Connector End Views

Fig 1: Bose Audio - With Navigation Without Surround Sound System Connector End Views (1 Of 43)

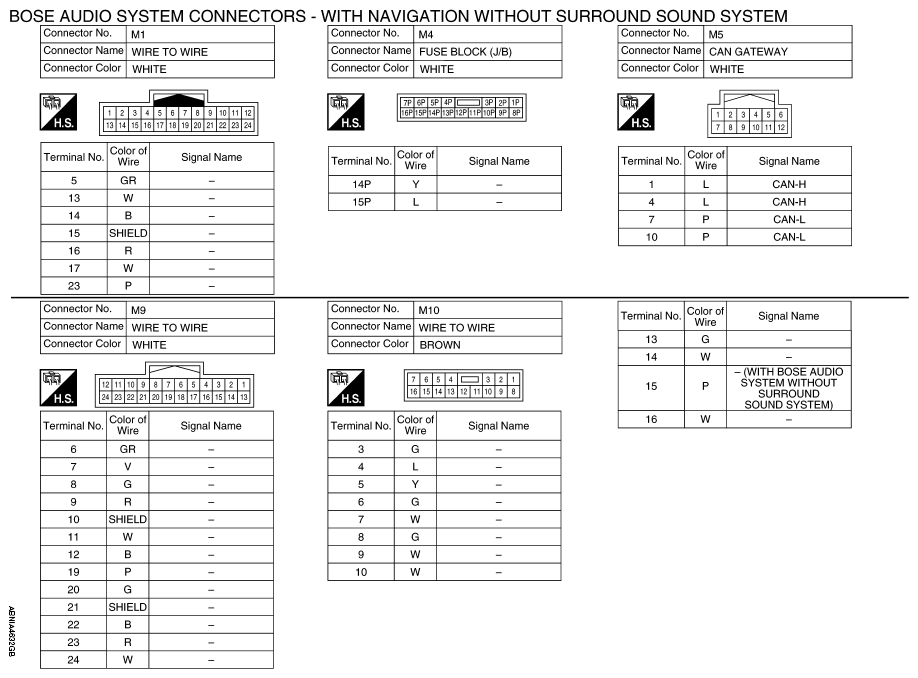

G09427801Courtesy of NISSAN NORTH AMERICA, INC.

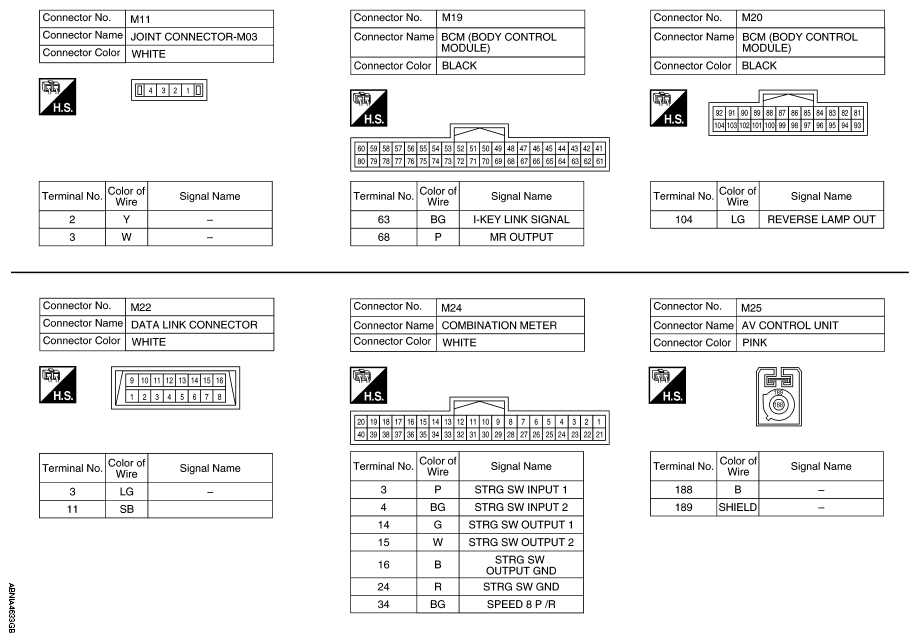

Fig 2: Bose Audio - With Navigation Without Surround Sound System Connector End Views (2 Of 43)
G09427802Courtesy of NISSAN NORTH AMERICA, INC.

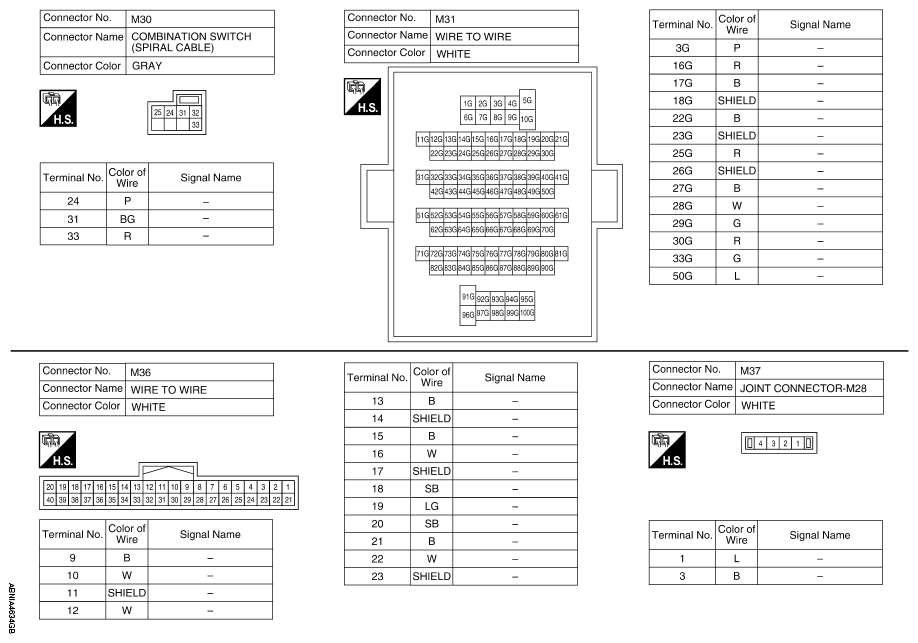

Fig 3: Bose Audio - With Navigation Without Surround Sound System Connector End Views (3 Of 43)
G09427803Courtesy of NISSAN NORTH AMERICA, INC.

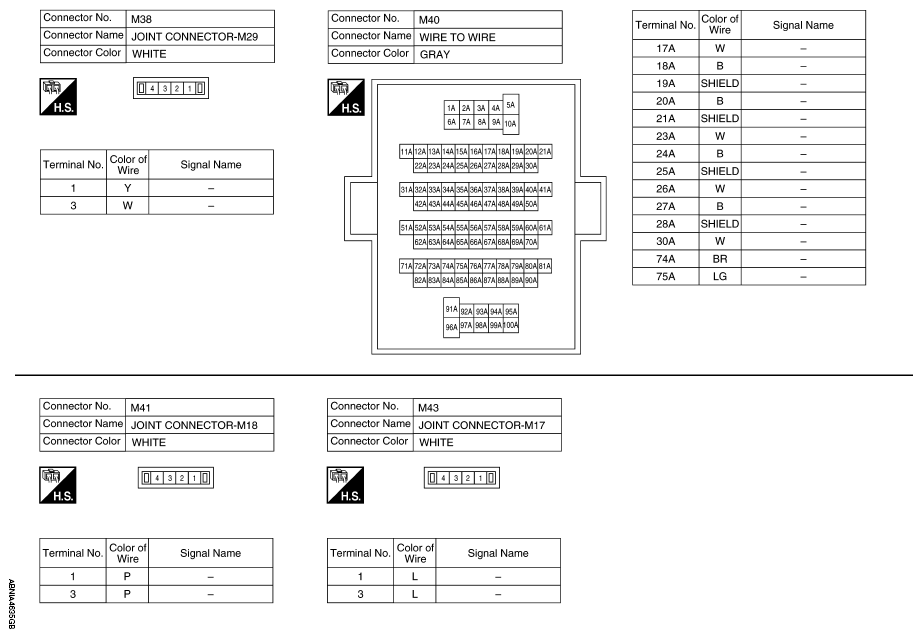

Fig 4: Bose Audio - With Navigation Without Surround Sound System Connector End Views (4 Of 43)
G09427804Courtesy of NISSAN NORTH AMERICA, INC.

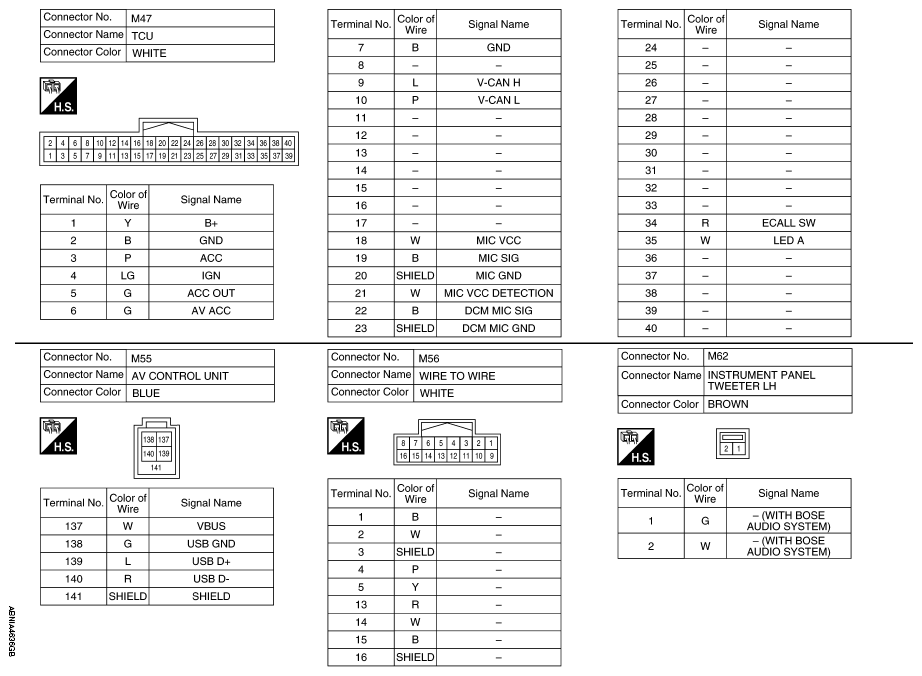

Fig 5: Bose Audio - With Navigation Without Surround Sound System Connector End Views (5 Of 43)
G09427805Courtesy of NISSAN NORTH AMERICA, INC.

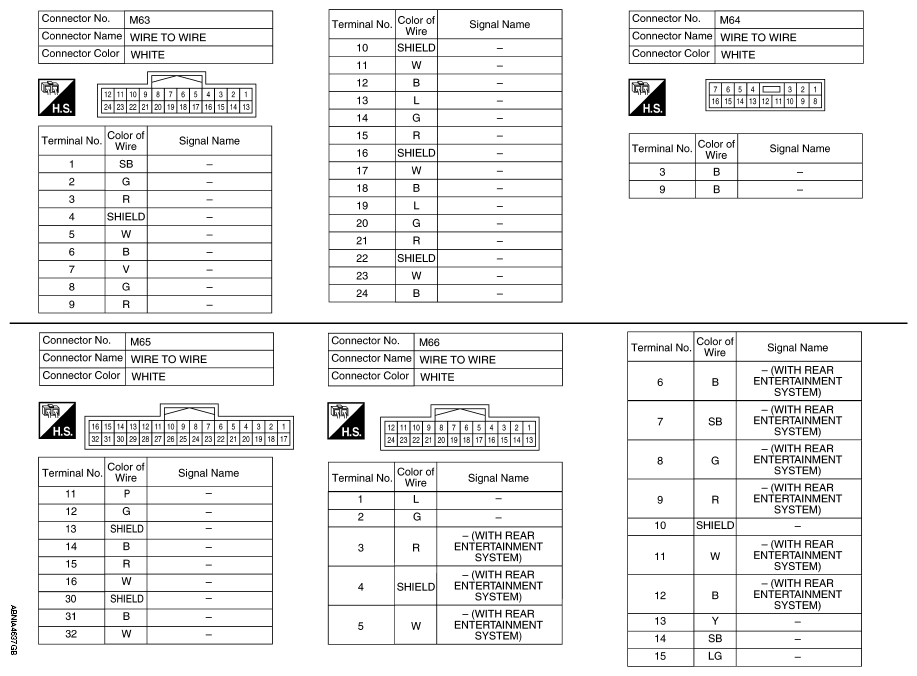

Fig 6: Bose Audio - With Navigation Without Surround Sound System Connector End Views (6 Of 43)
G09427806Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Bose Audio - With Navigation Without Surround Sound System Connector End Views (7 Of 43)

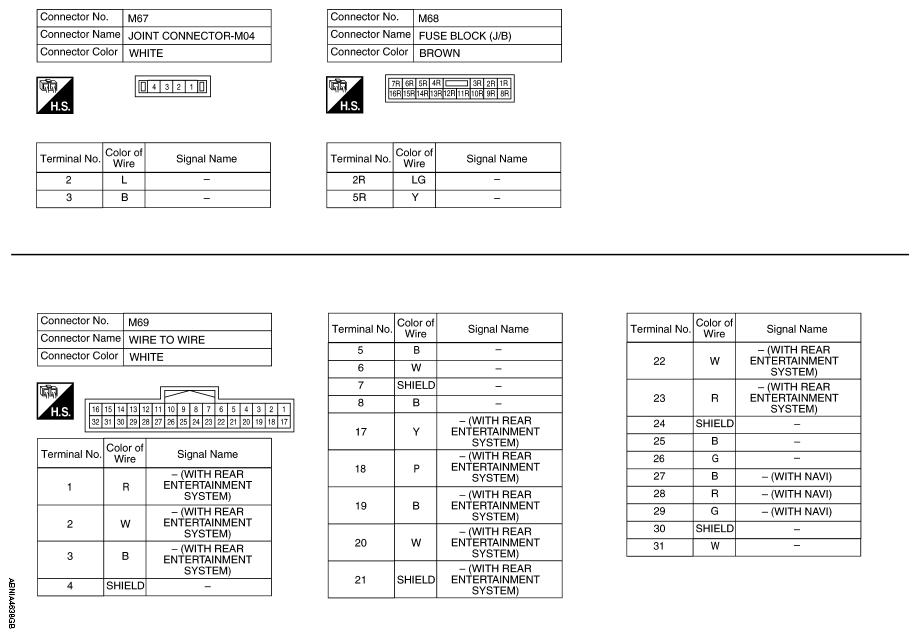

G09427807Courtesy of NISSAN NORTH AMERICA, INC.

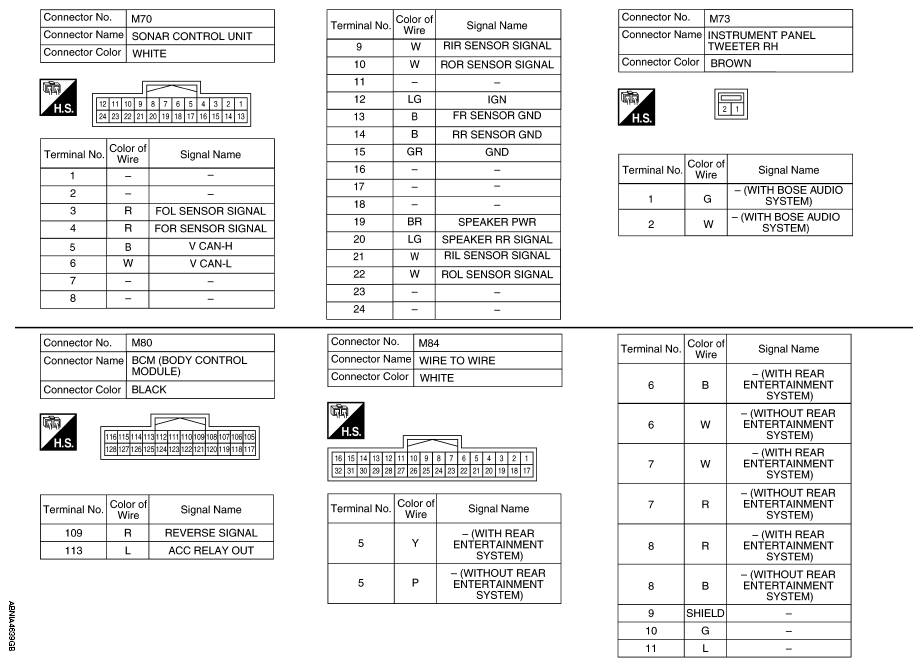

Fig 8: Bose Audio - With Navigation Without Surround Sound System Connector End Views (8 Of 43)
G09427808Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Bose Audio - With Navigation Without Surround Sound System Connector End Views (9 Of 43)

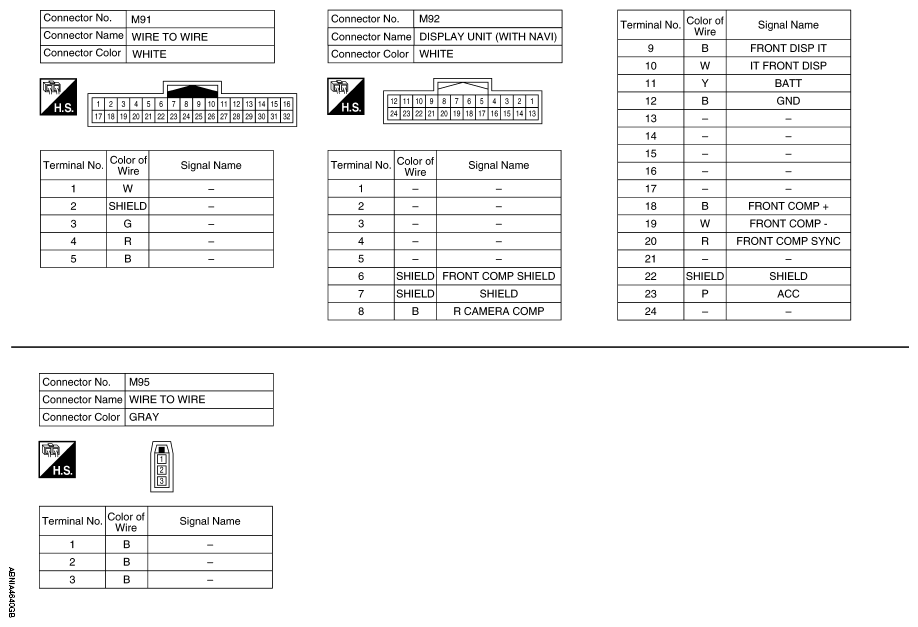

G09427809Courtesy of NISSAN NORTH AMERICA, INC.

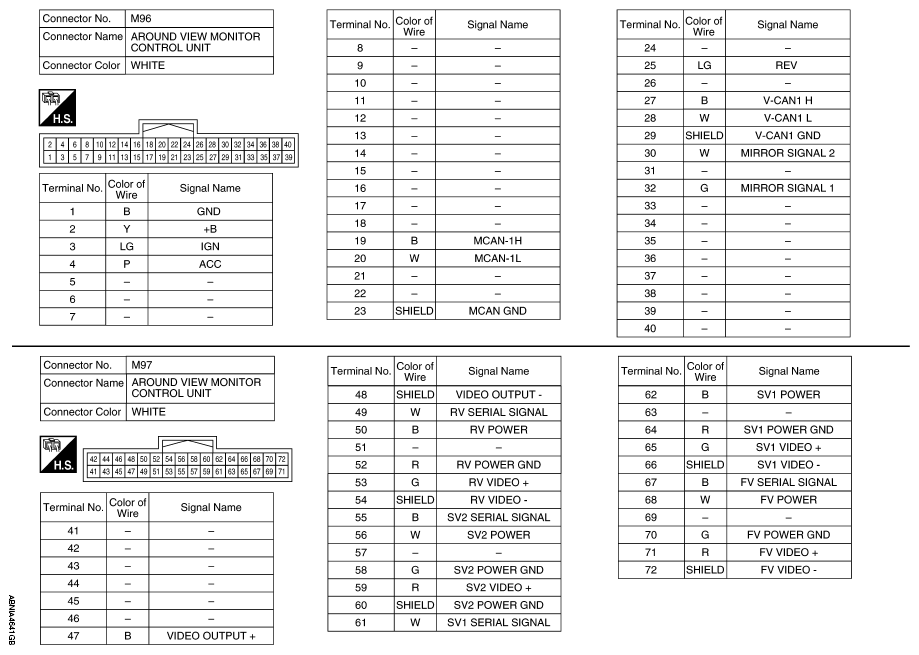

Fig 10: Bose Audio - With Navigation Without Surround Sound System Connector End Views (10 Of 43)
G09427810Courtesy of NISSAN NORTH AMERICA, INC.

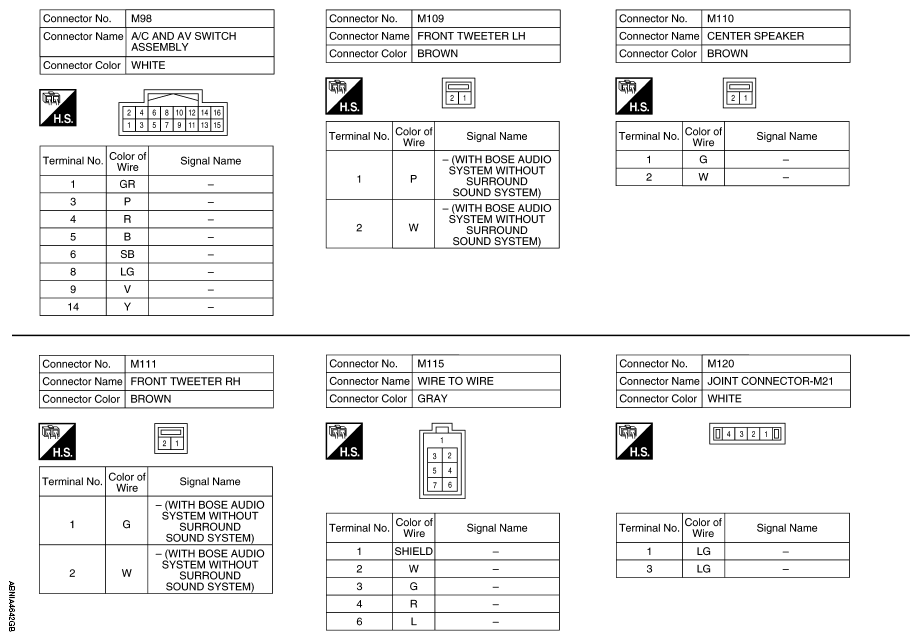

Fig 11: Bose Audio - With Navigation Without Surround Sound System Connector End Views (11 Of 43)
G09427811Courtesy of NISSAN NORTH AMERICA, INC.

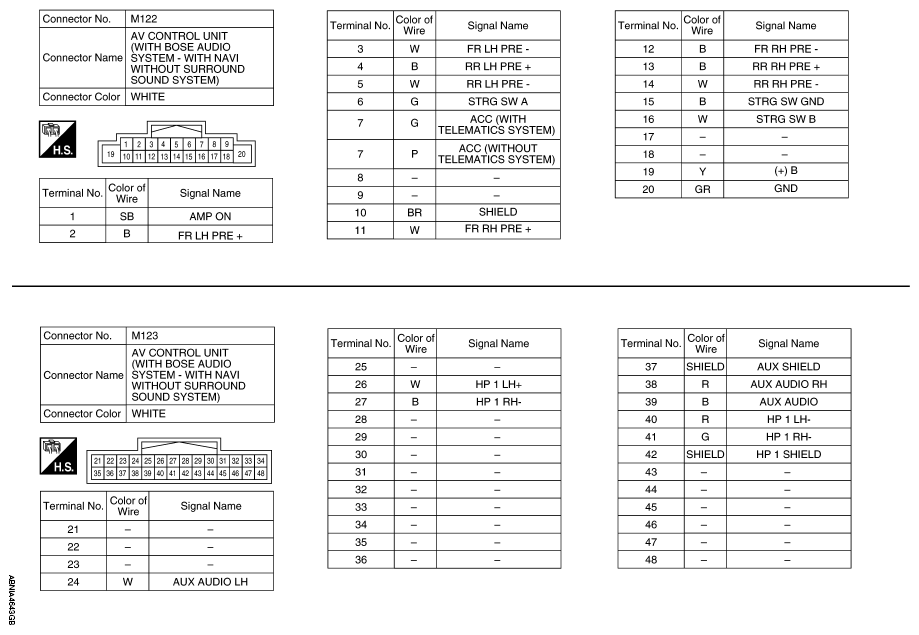

Fig 12: Bose Audio - With Navigation Without Surround Sound System Connector End Views (12 Of 43)
G09427812Courtesy of NISSAN NORTH AMERICA, INC.

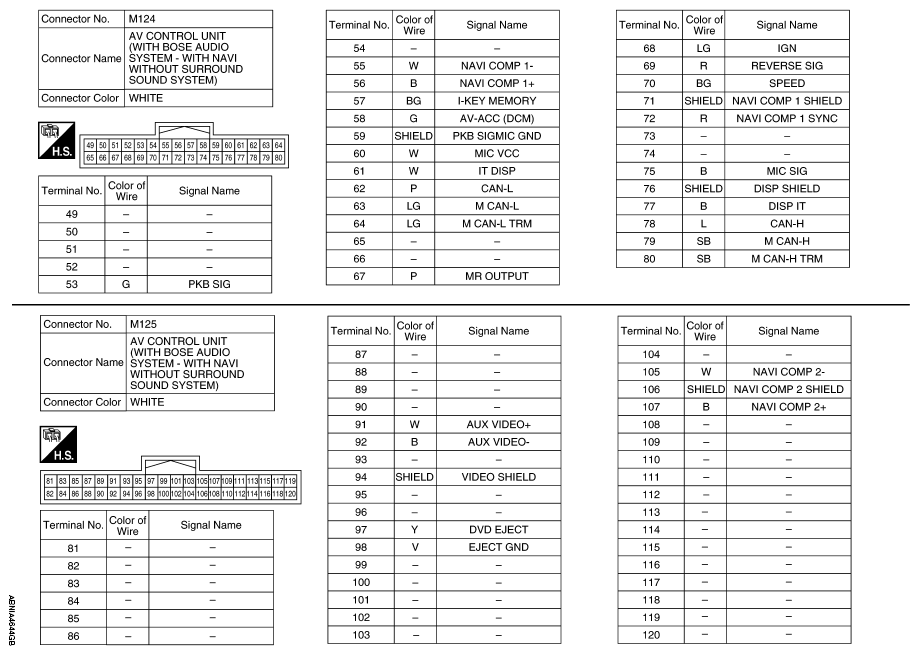

Fig 13: Bose Audio - With Navigation Without Surround Sound System Connector End Views (13 Of 43)
G09427813Courtesy of NISSAN NORTH AMERICA, INC.

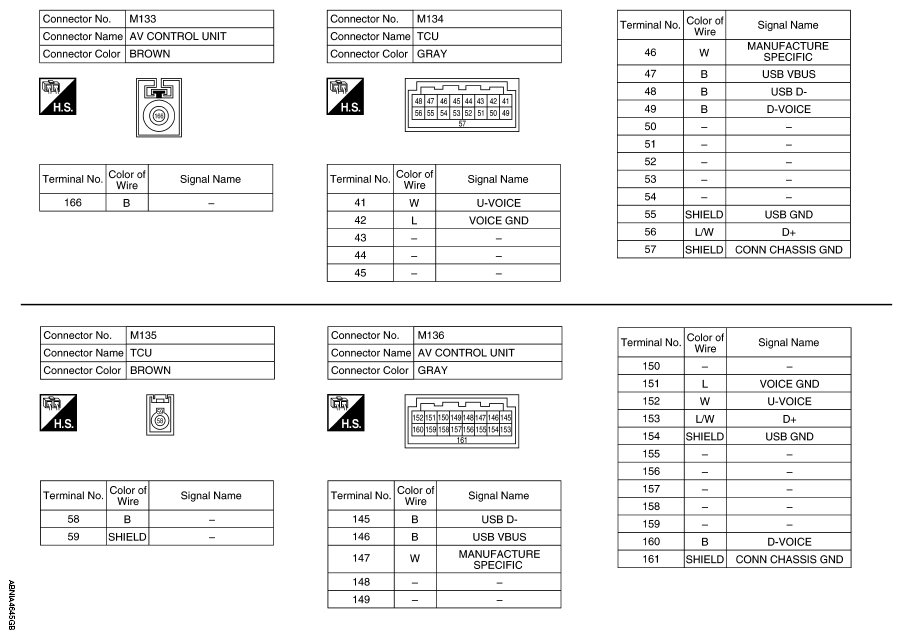

Fig 14: Bose Audio - With Navigation Without Surround Sound System Connector End Views (14 Of 43)
G09427814Courtesy of NISSAN NORTH AMERICA, INC.

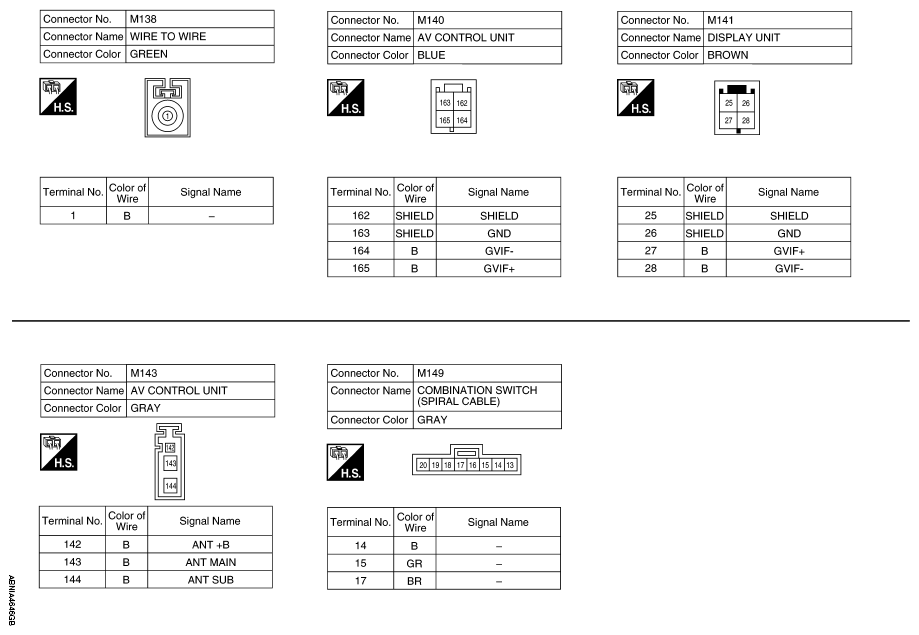

Fig 15: Bose Audio - With Navigation Without Surround Sound System Connector End Views (15 Of 43)
G09427815Courtesy of NISSAN NORTH AMERICA, INC.

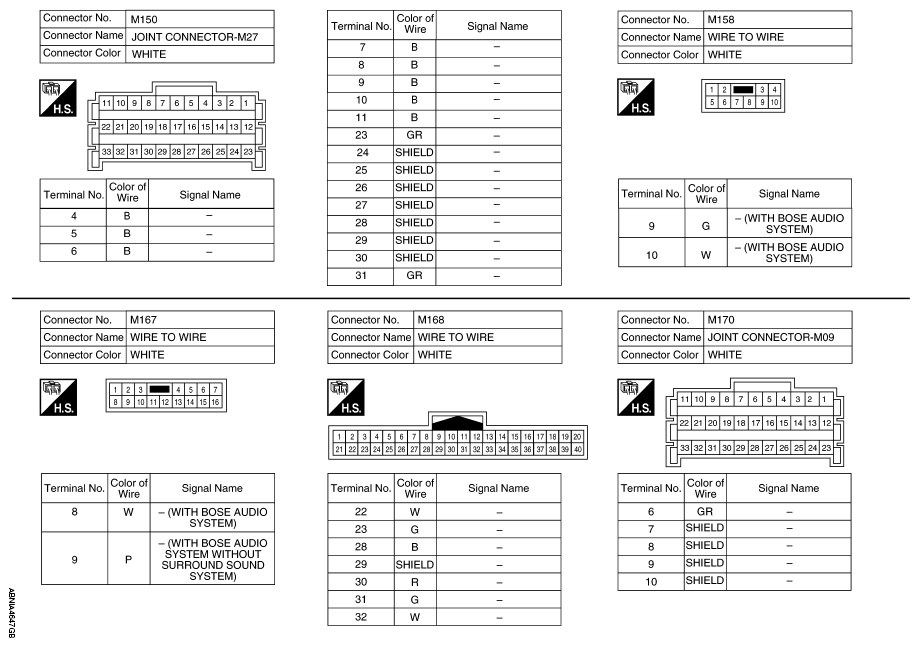

Fig 16: Bose Audio - With Navigation Without Surround Sound System Connector End Views (16 Of 43)
G09427816Courtesy of NISSAN NORTH AMERICA, INC.

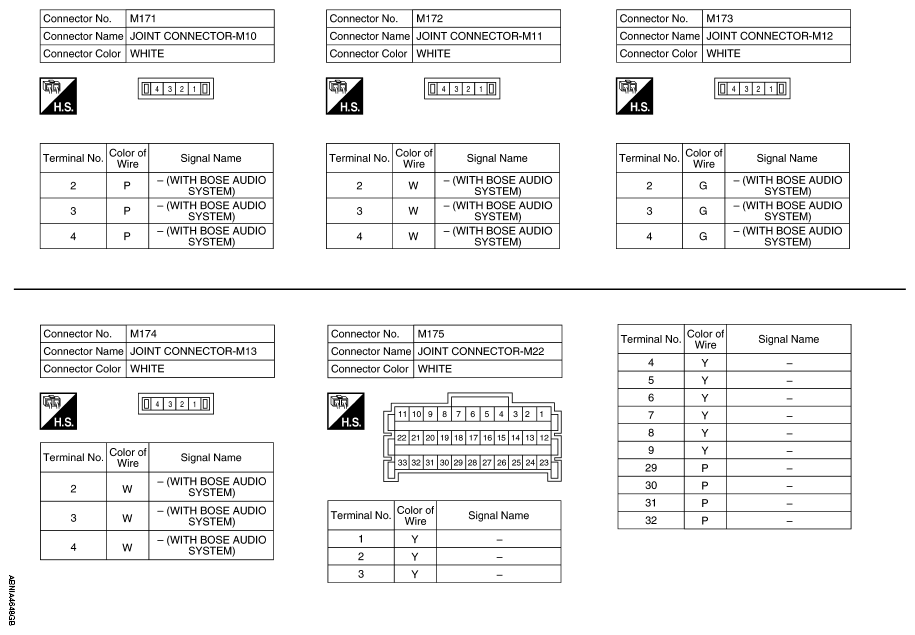

Fig 17: Bose Audio - With Navigation Without Surround Sound System Connector End Views (17 Of 43)
G09427817Courtesy of NISSAN NORTH AMERICA, INC.

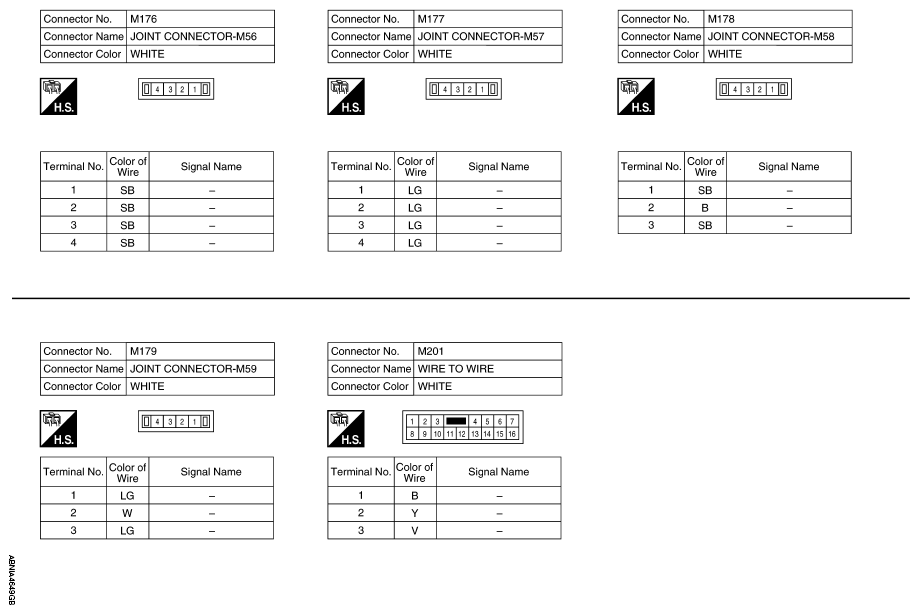

Fig 18: Bose Audio - With Navigation Without Surround Sound System Connector End Views (18 Of 43)
G09427818Courtesy of NISSAN NORTH AMERICA, INC.
Fig 19: Bose Audio - With Navigation Without Surround Sound System Connector End Views (19 Of 43)
G09427819Courtesy of NISSAN NORTH AMERICA, INC.

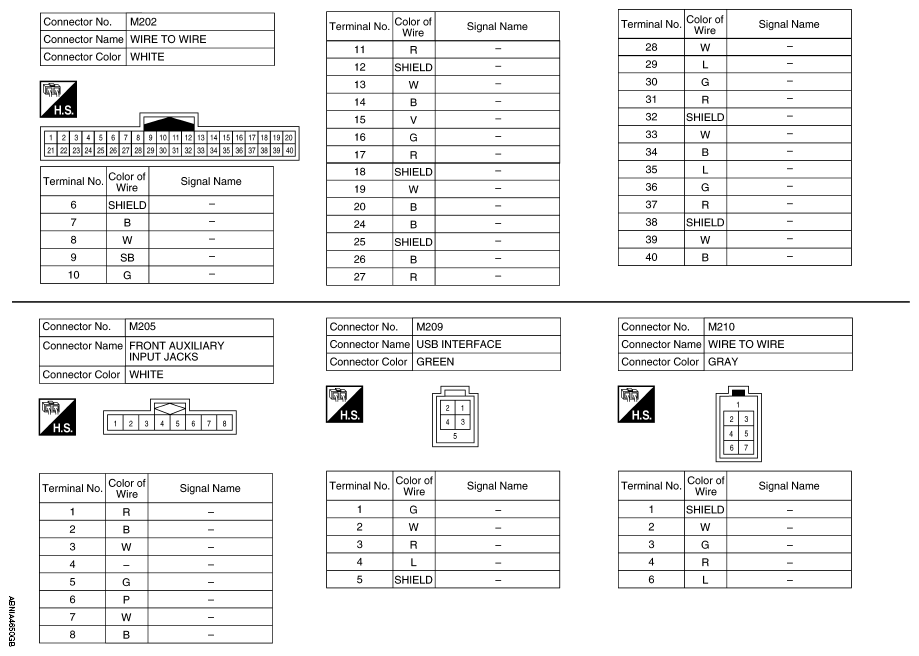

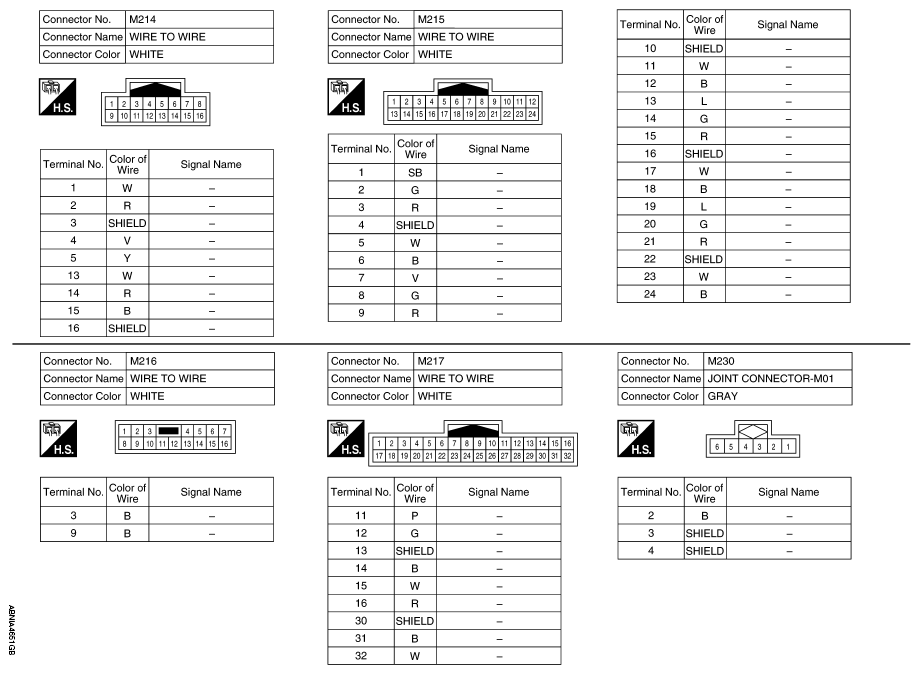

Fig 20: Bose Audio - With Navigation Without Surround Sound System Connector End Views (20 Of 43)
G09427820Courtesy of NISSAN NORTH AMERICA, INC.

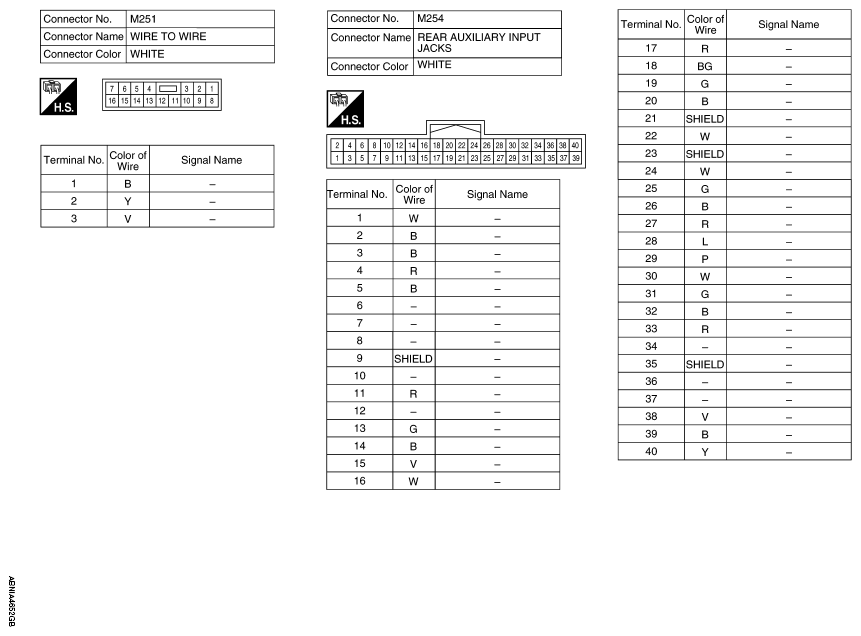

Fig 21: Bose Audio - With Navigation Without Surround Sound System Connector End Views (21 Of 43)
G09427821Courtesy of NISSAN NORTH AMERICA, INC.

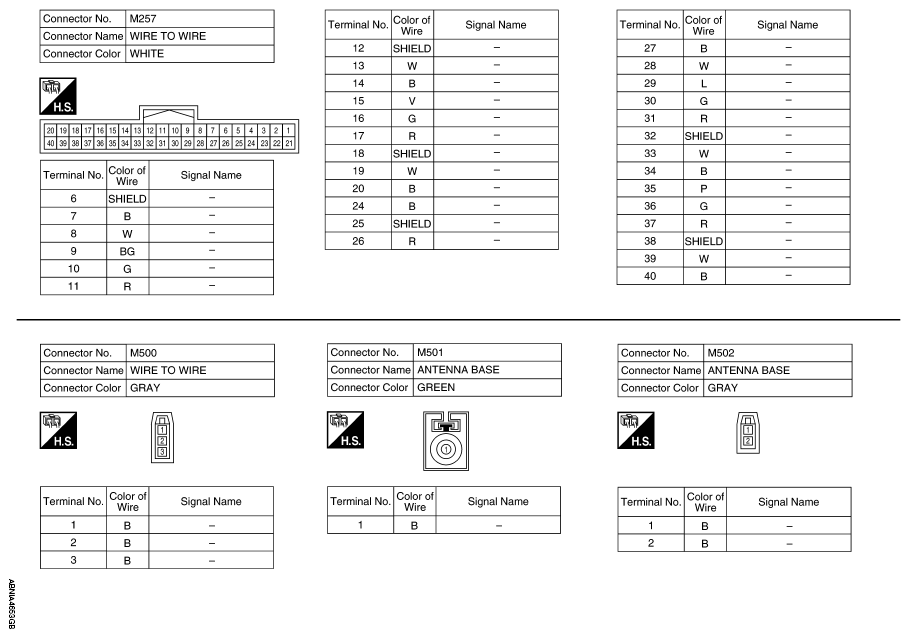

Fig 22: Bose Audio - With Navigation Without Surround Sound System Connector End Views(22 Of 43)
G09427822Courtesy of NISSAN NORTH AMERICA, INC.

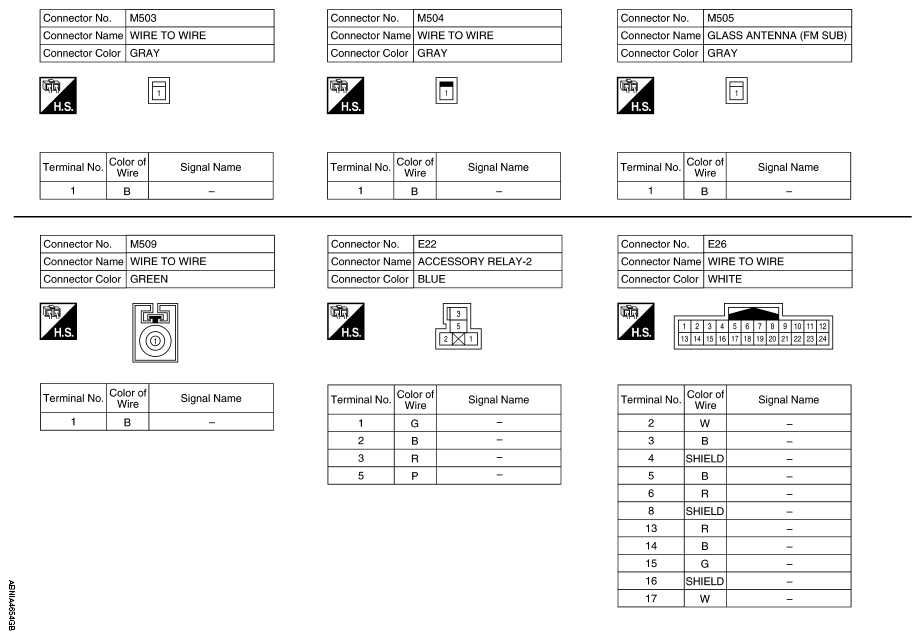

Fig 23: Bose Audio - With Navigation Without Surround Sound System Connector End Views (23 Of 43)
G09427823Courtesy of NISSAN NORTH AMERICA, INC.
Fig 24: Bose Audio - With Navigation Without Surround Sound System Connector End Views (24 Of 43)

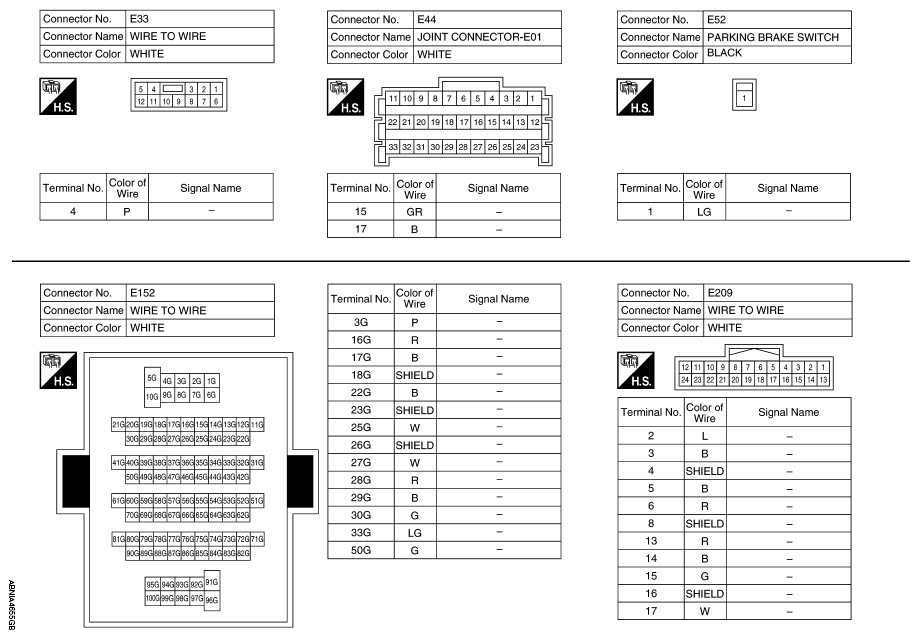

G09427824Courtesy of NISSAN NORTH AMERICA, INC.

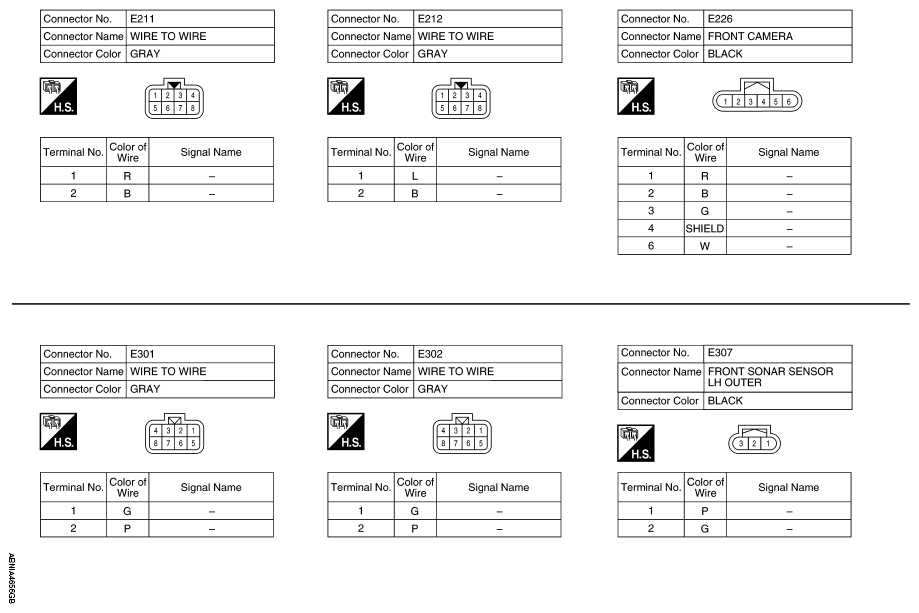

Fig 25: Bose Audio - With Navigation Without Surround Sound System Connector End Views(25 Of 43)
G09427825Courtesy of NISSAN NORTH AMERICA, INC.

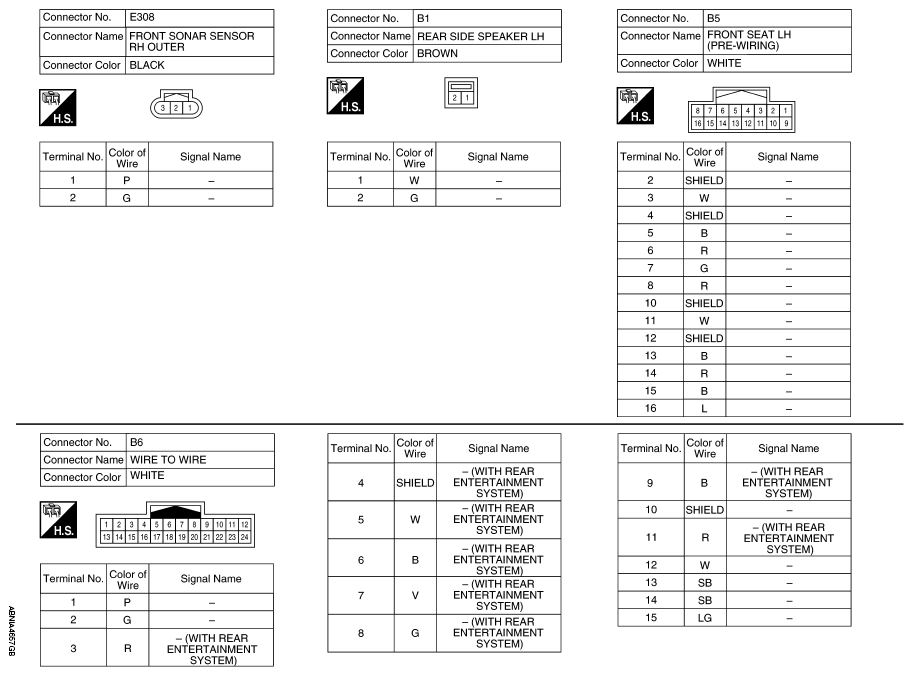

Fig 26: Bose Audio - With Navigation Without Surround Sound System Connector End Views (26 Of 43)
G09427826Courtesy of NISSAN NORTH AMERICA, INC.

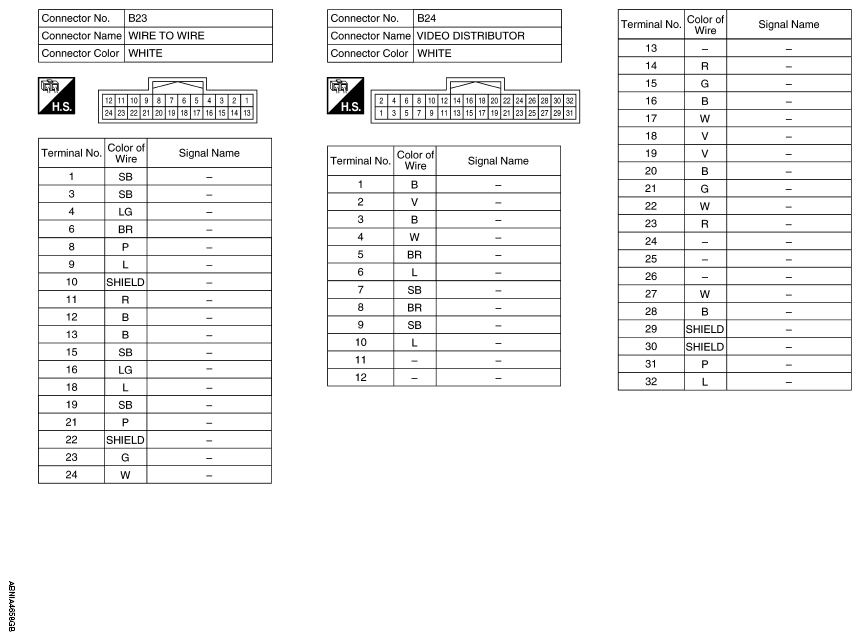

Fig 27: Bose Audio - With Navigation Without Surround Sound System Connector End Views (27 Of 43)
G09427827Courtesy of NISSAN NORTH AMERICA, INC.

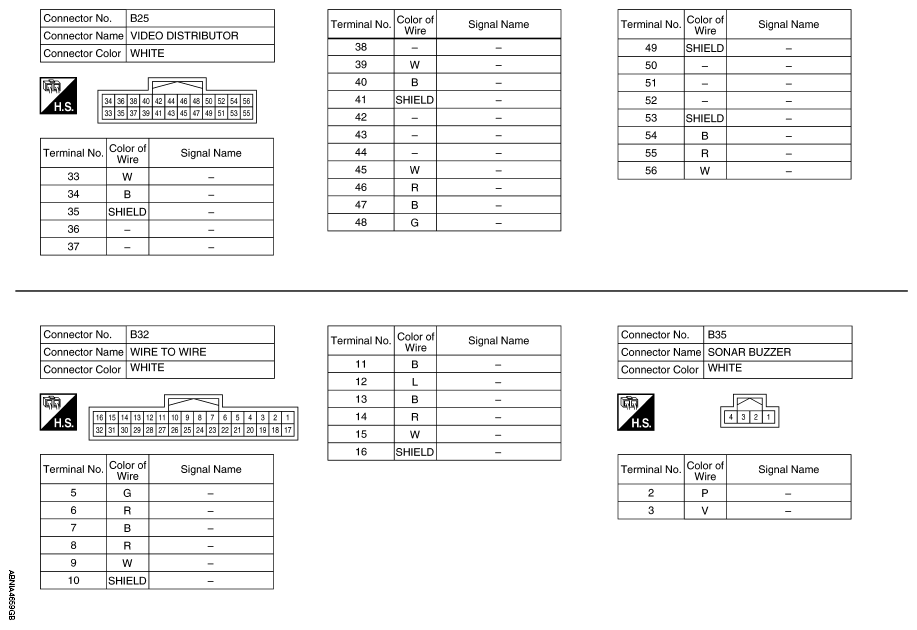

Fig 28: Bose Audio - With Navigation Without Surround Sound System Connector End Views (28 Of 43)
G09427828Courtesy of NISSAN NORTH AMERICA, INC.

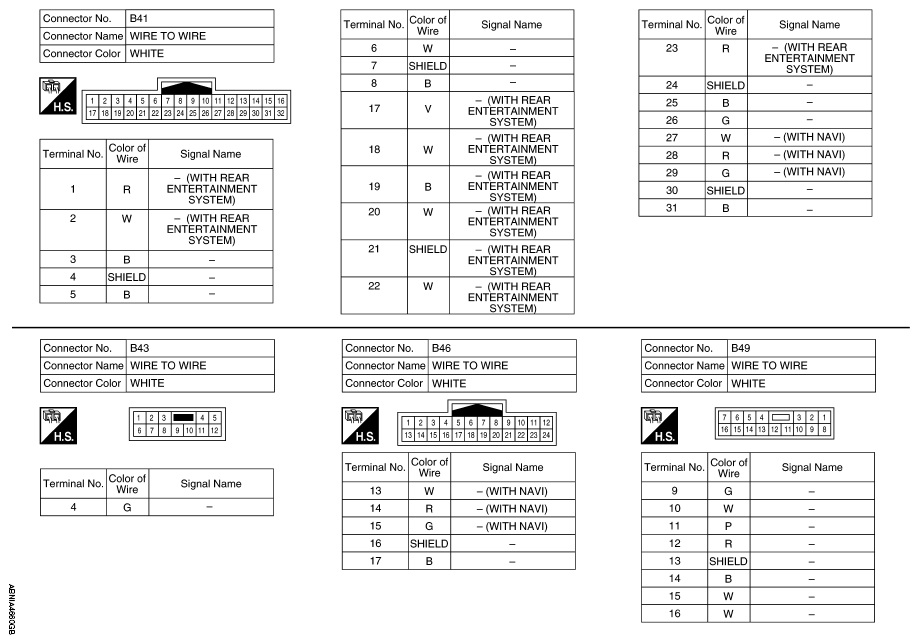

Fig 29: Bose Audio - With Navigation Without Surround Sound System Connector End Views (29 Of 43)
G09427829Courtesy of NISSAN NORTH AMERICA, INC.
Fig 30: Bose Audio - With Navigation Without Surround Sound System Connector End Views (30 Of 43)

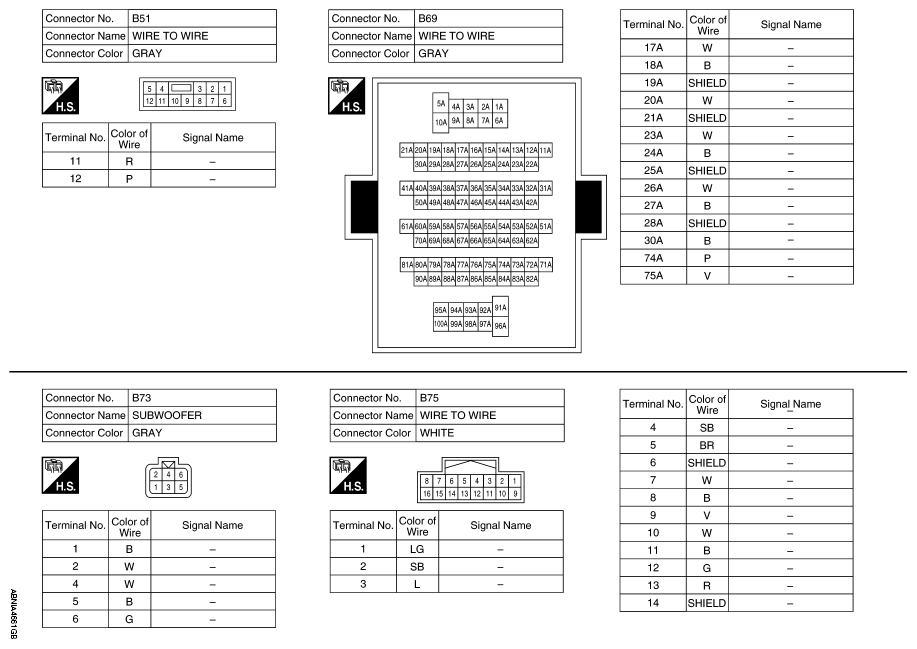

G09427830Courtesy of NISSAN NORTH AMERICA, INC.
Fig 31: Bose Audio - With Navigation Without Surround Sound System Connector End Views (31 Of 43)

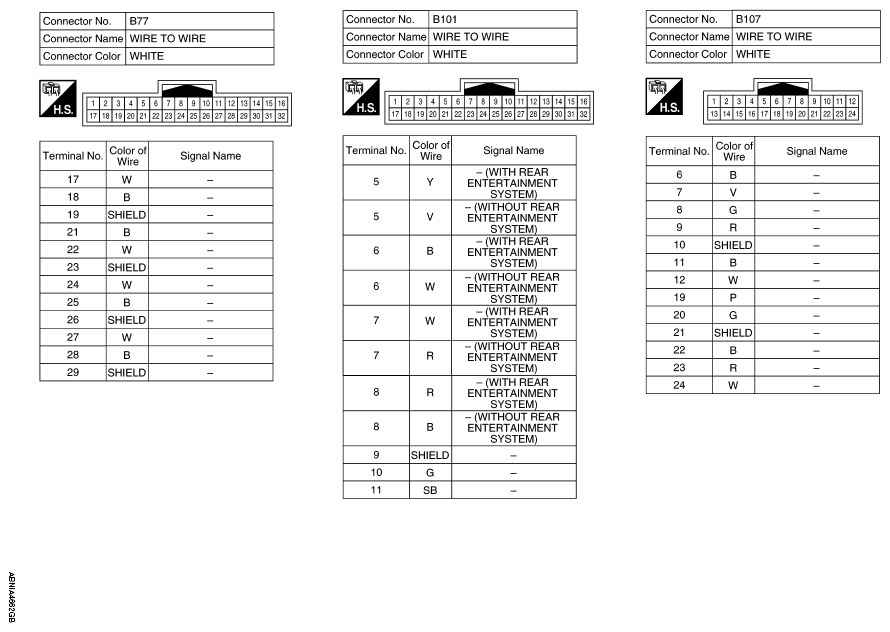

G09427831Courtesy of NISSAN NORTH AMERICA, INC.
Fig 32: Bose Audio - With Navigation Without Surround Sound System Connector End Views (32 Of 43)

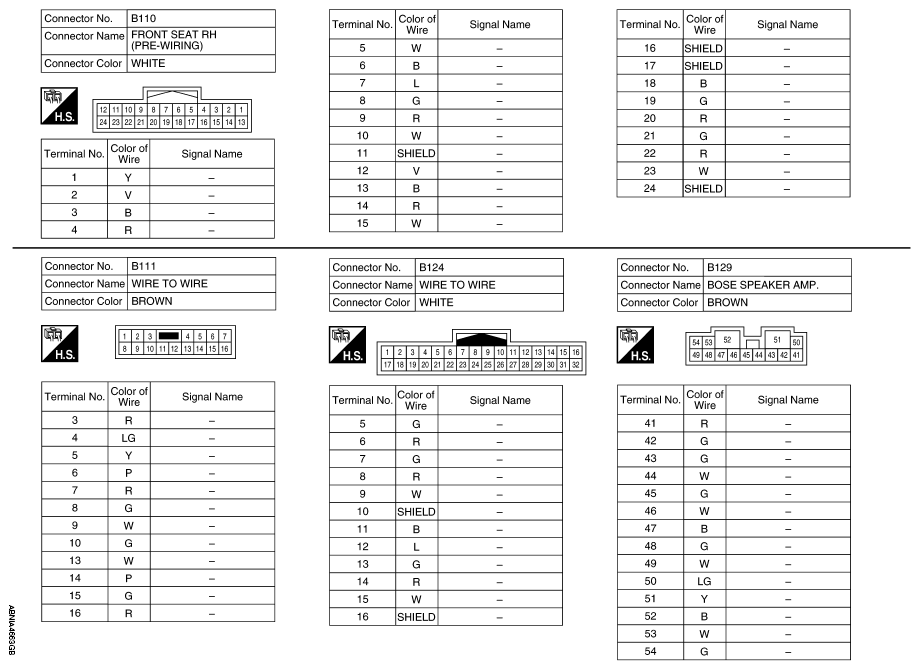

G09427832Courtesy of NISSAN NORTH AMERICA, INC.
Fig 33: Bose Audio - With Navigation Without Surround Sound System Connector End Views (33 Of 43)

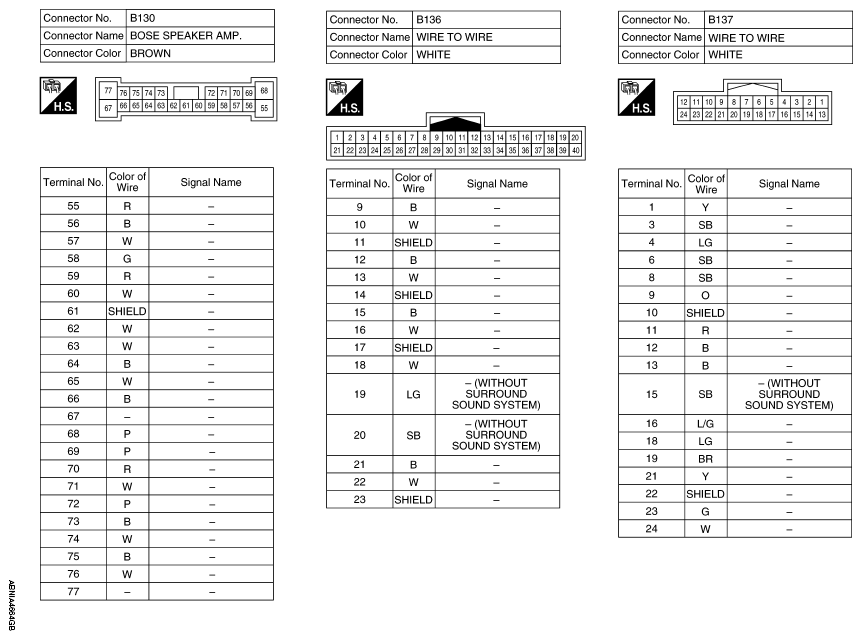

G09427833Courtesy of NISSAN NORTH AMERICA, INC.

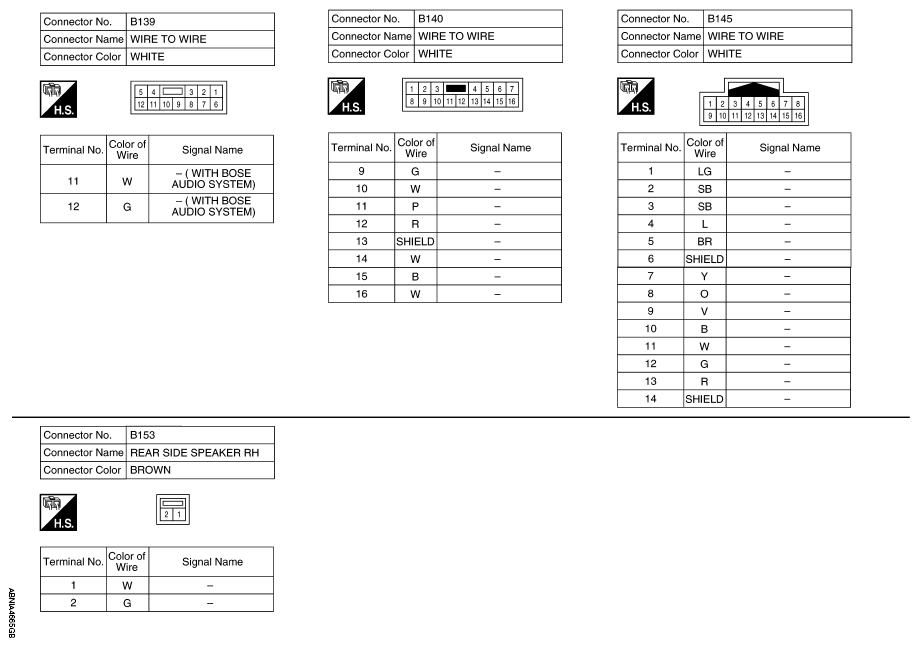

Fig 34: Bose Audio - With Navigation Without Surround Sound System Connector End Views (34 Of 43)
G09427834Courtesy of NISSAN NORTH AMERICA, INC.

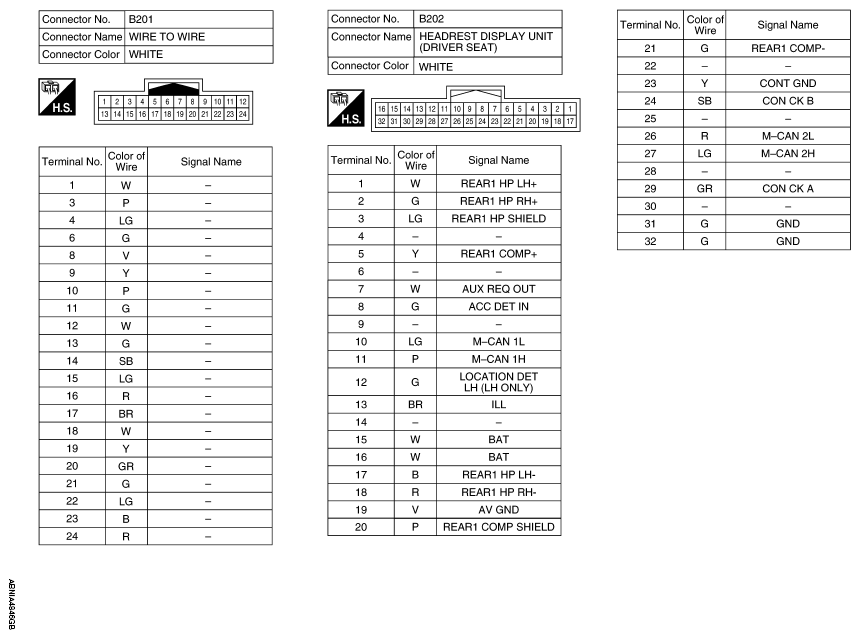

Fig 35: Bose Audio - With Navigation Without Surround Sound System Connector End Views (35 Of 43)
G09427835Courtesy of NISSAN NORTH AMERICA, INC.

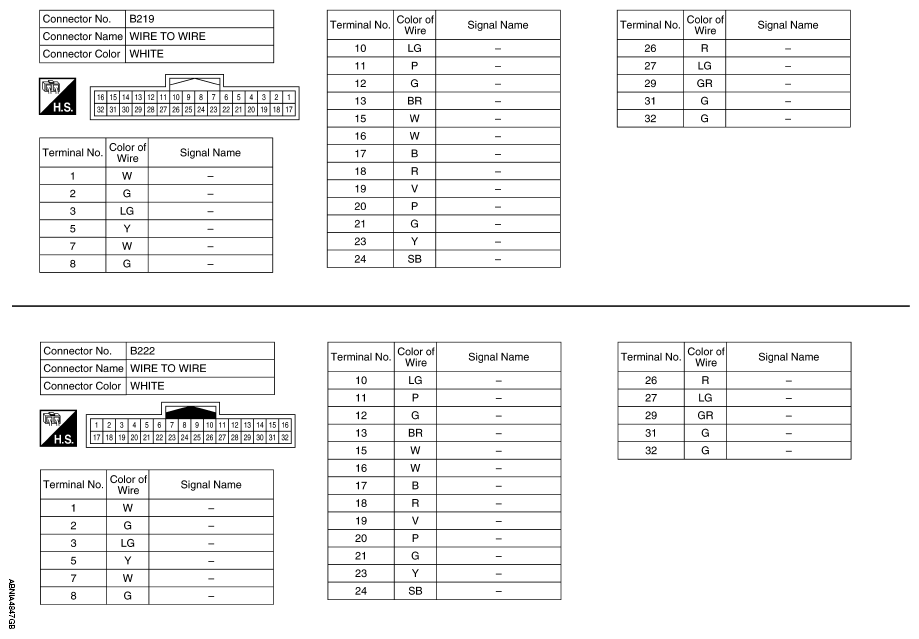

Fig 36: Bose Audio - With Navigation Without Surround Sound System Connector End Views (36 Of 43)
G09427836Courtesy of NISSAN NORTH AMERICA, INC.

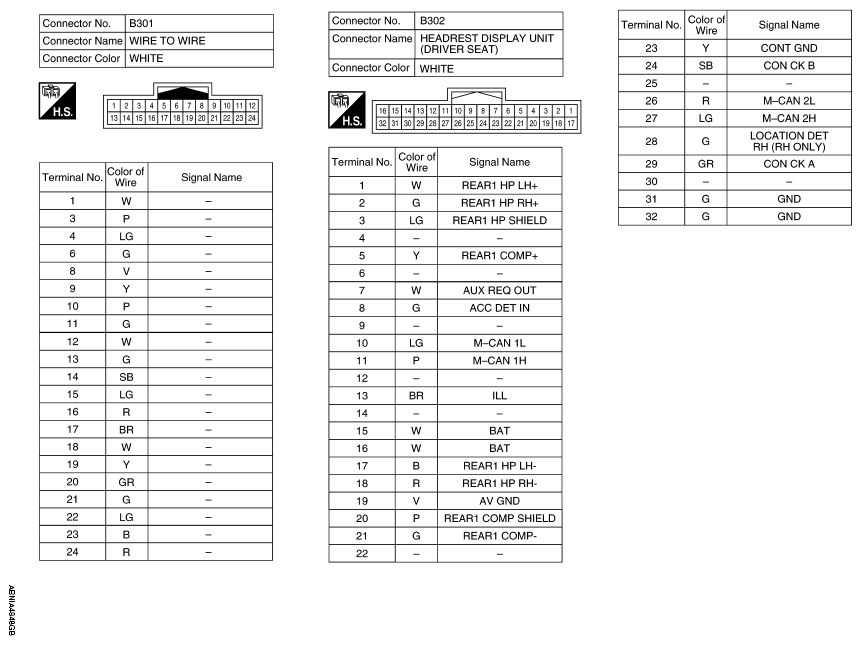

Fig 37: Bose Audio - With Navigation Without Surround Sound System Connector End Views (37 Of 43)
G09427837Courtesy of NISSAN NORTH AMERICA, INC.

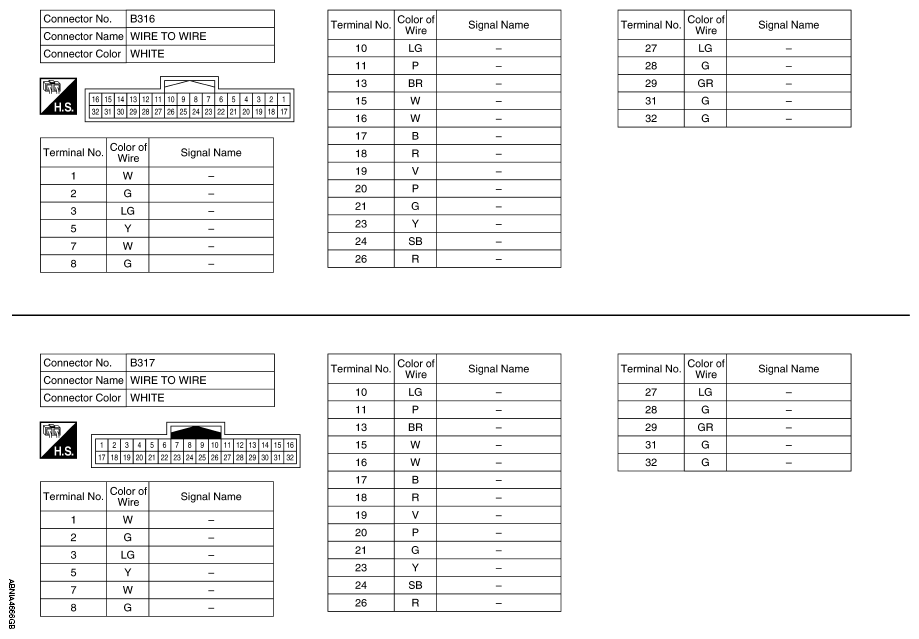

Fig 38: Bose Audio - With Navigation Without Surround Sound System Connector End Views (38 Of 43)
G09427838Courtesy of NISSAN NORTH AMERICA, INC.

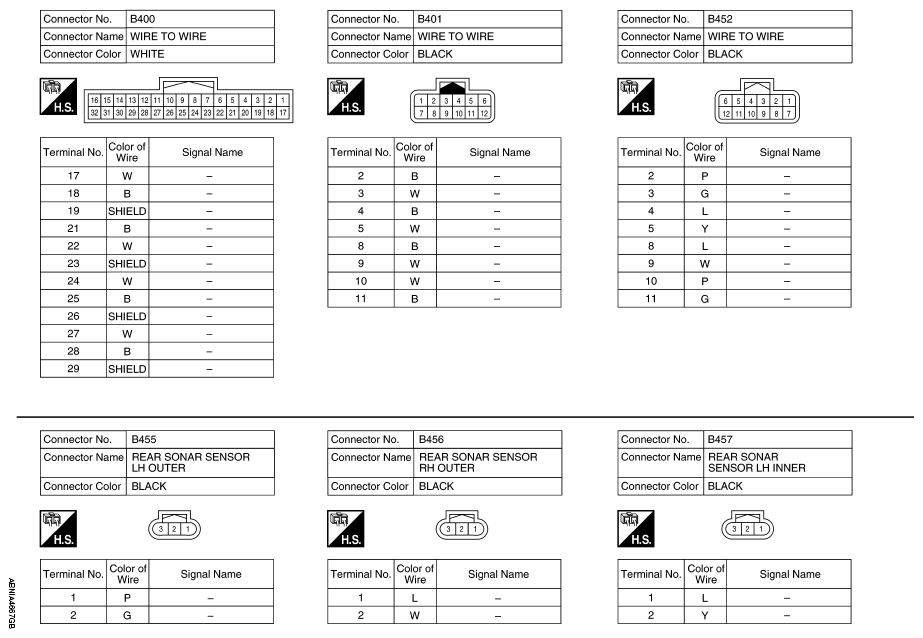

Fig 39: Bose Audio - With Navigation Without Surround Sound System Connector End Views (39 Of 43)
G09427839Courtesy of NISSAN NORTH AMERICA, INC.

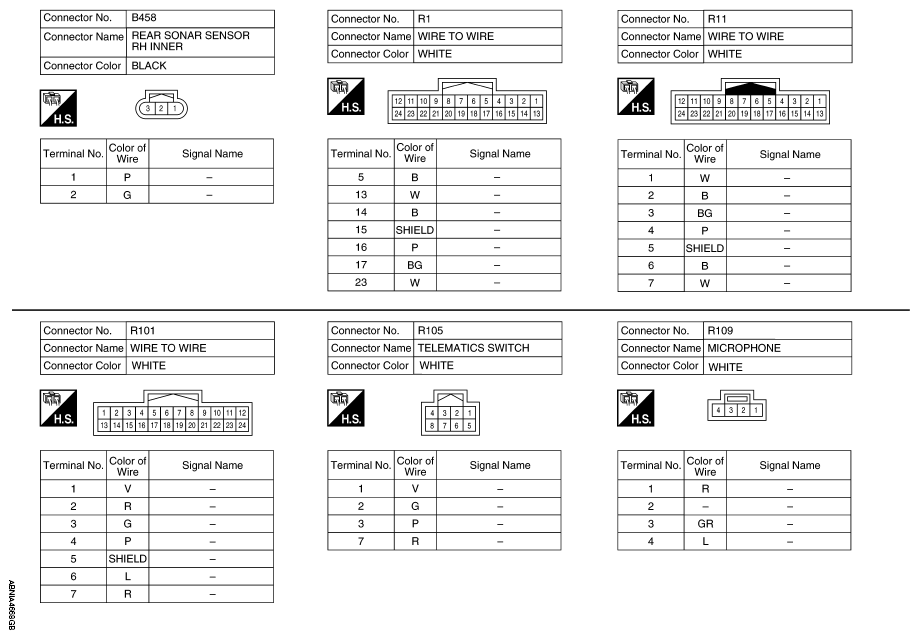

Fig 40: Bose Audio - With Navigation Without Surround Sound System Connector End Views (40 Of 43)
G09427840Courtesy of NISSAN NORTH AMERICA, INC.

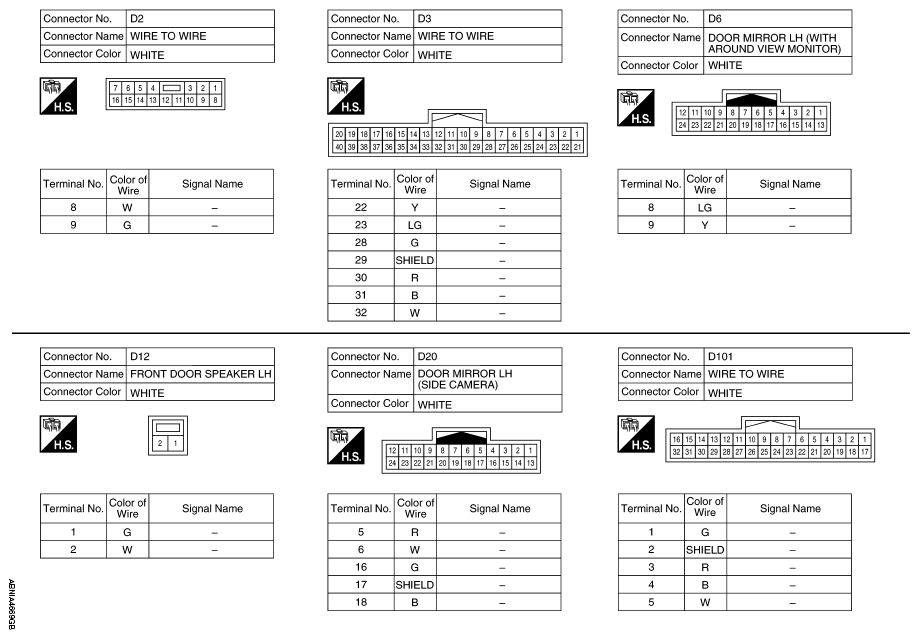

Fig 41: Bose Audio - With Navigation Without Surround Sound System Connector End Views (41 Of 43)
G09427841Courtesy of NISSAN NORTH AMERICA, INC.

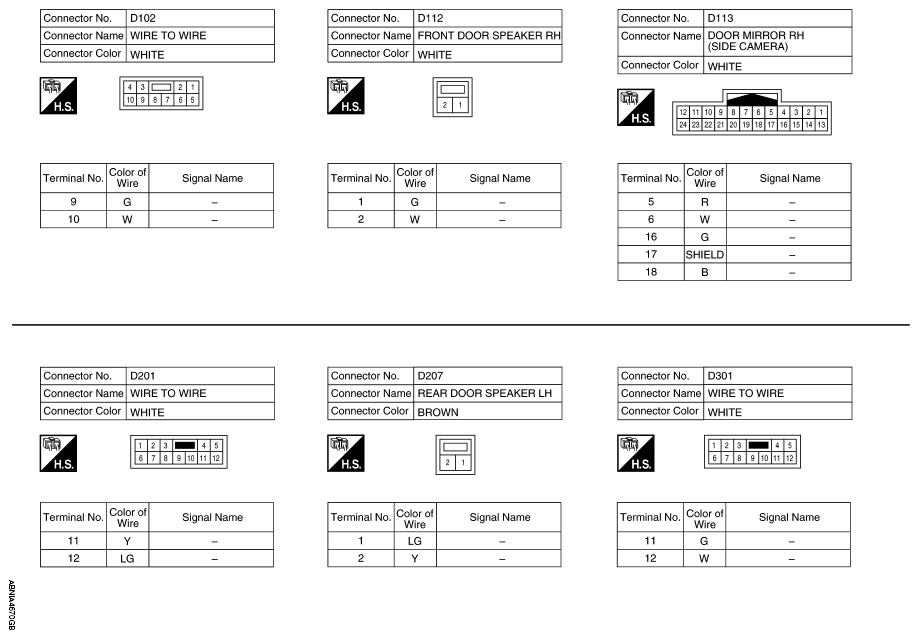

Fig 42: Bose Audio - With Navigation Without Surround Sound System Connector End Views (42 Of 43)
G09427842Courtesy of NISSAN NORTH AMERICA, INC.

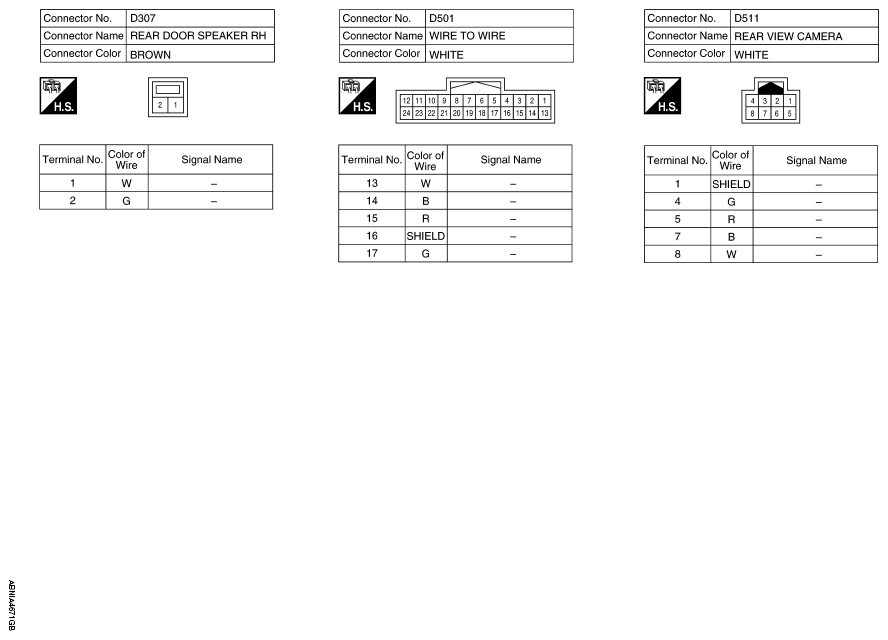

Fig 43: Bose Audio - With Navigation Without Surround Sound System Connector End Views (43 Of 43)
G09427843Courtesy of NISSAN NORTH AMERICA, INC.
