Indicator Lamp And Warning Lamp

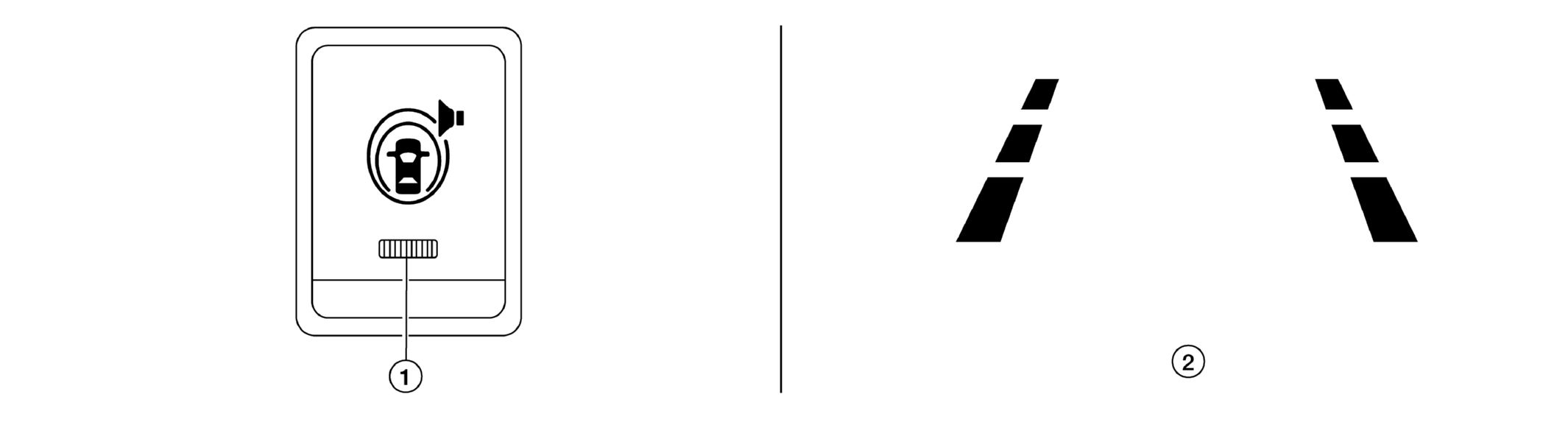

Fig 1: Identifying Indicator Lamp And Warning Lamp
G08857486Courtesy of NISSAN NORTH AMERICA, INC.
No. Display item Description
1 Warning systems ON indicator
  • Indicates that the LDW, FCW, and/or BSW system is ON
  • Blinks when the setting of LDW, FCW, and BSW are "OFF" and the warning systems switch is pressed
  • Blinks when the temperature of the lane camera unit becomes high
2 Lane departure warning indicator light
  • Blinks when LDW system is activated
