LANE DEPARTURE WARNING (LDW) SYSTEM: Component Parts Location
LANE DEPARTURE WARNING (LDW) SYSTEM: Component Parts Location

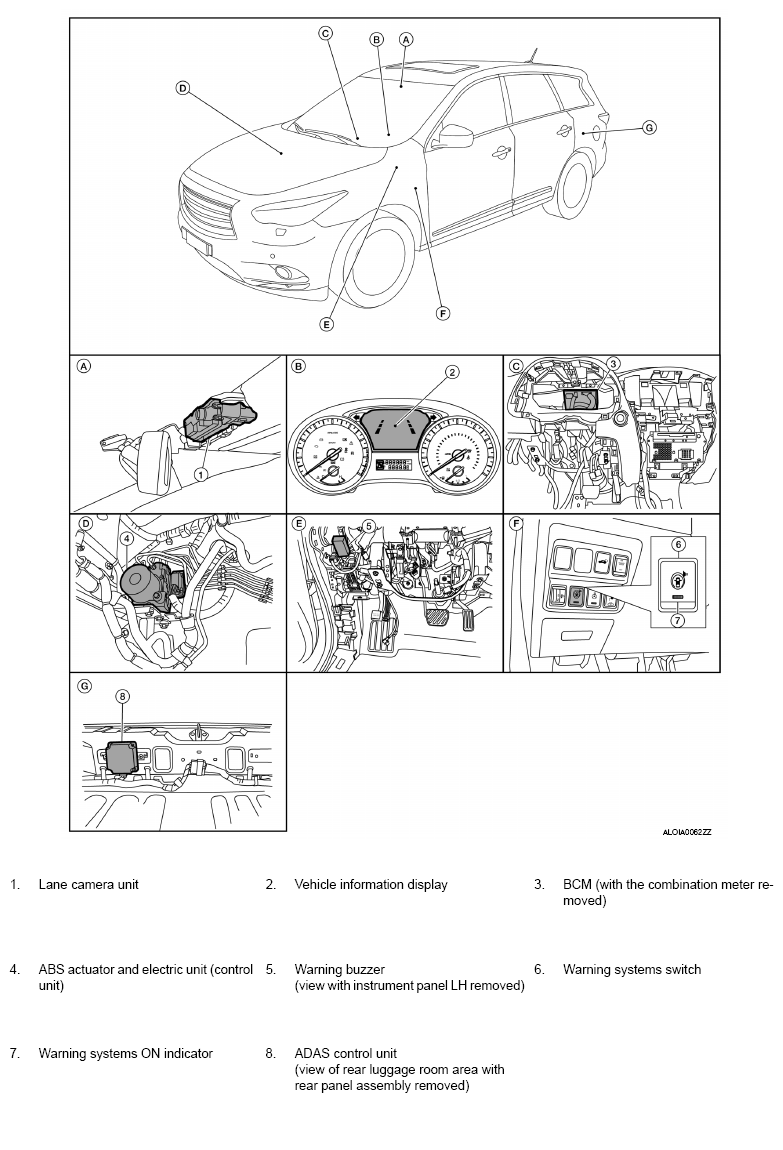

Fig 1: Lane Departure Warning System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
