Removal and Installation: Removal

  1. Remove the AV control unit. Refer to "REMOVAL AND INSTALLATION - AV CONTROL UNIT " (BOSE audio with navigation system without surround sound system) or "REMOVAL AND INSTALLATION - AV CONTROL UNIT " (BOSE audio with navigation system with surround sound system).
  2. Remove the screw (A) from the bracket of the automatic drive positioner control unit (1).

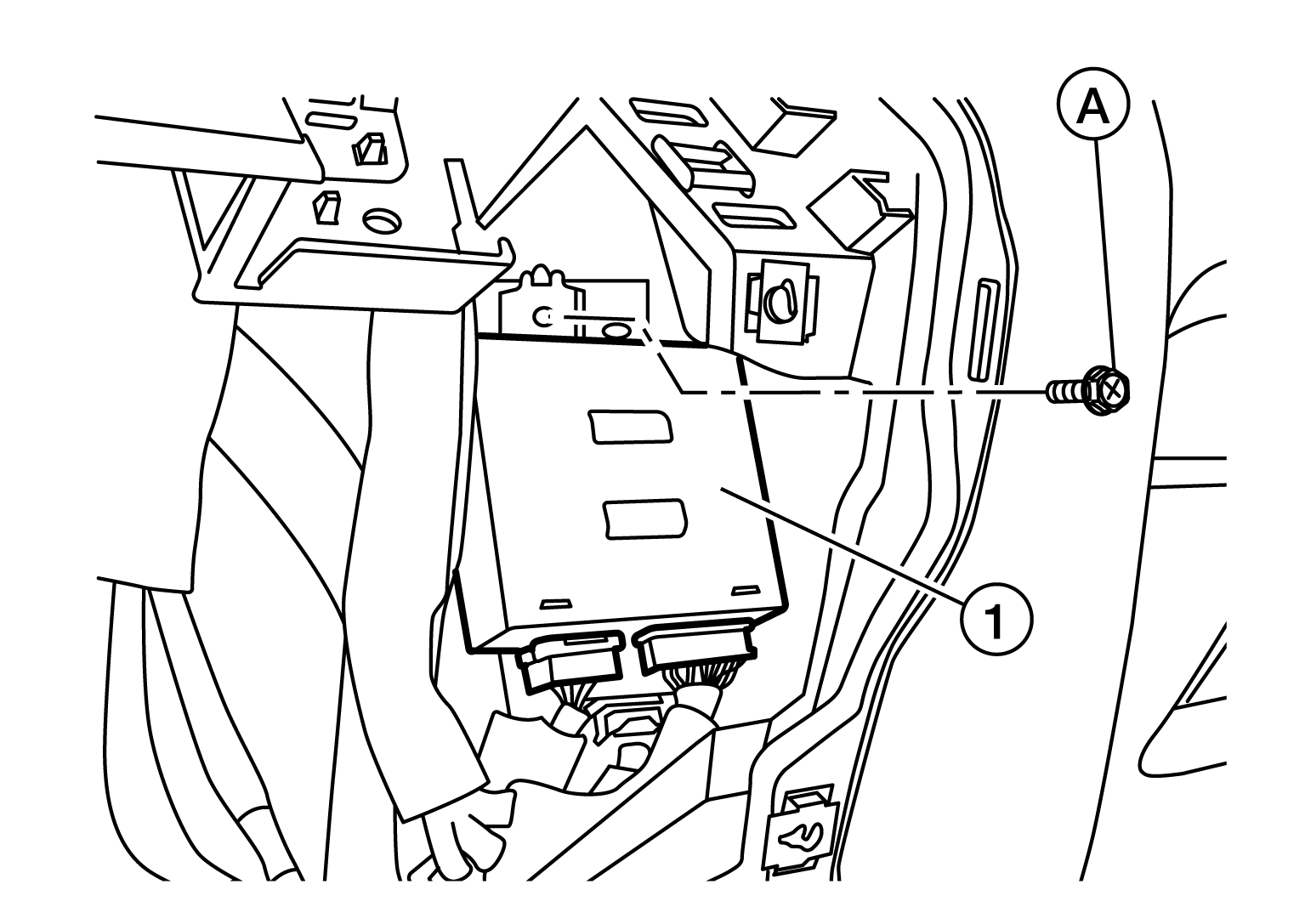

    Fig 1: Identifying Automatic Drive Positioner Control Unit And Mounting Screw
    G08857422Courtesy of NISSAN NORTH AMERICA, INC.
  3. Position the automatic drive positioner control unit aside and remove the CAN gateway (2) from the bracket by sliding it as shown below.

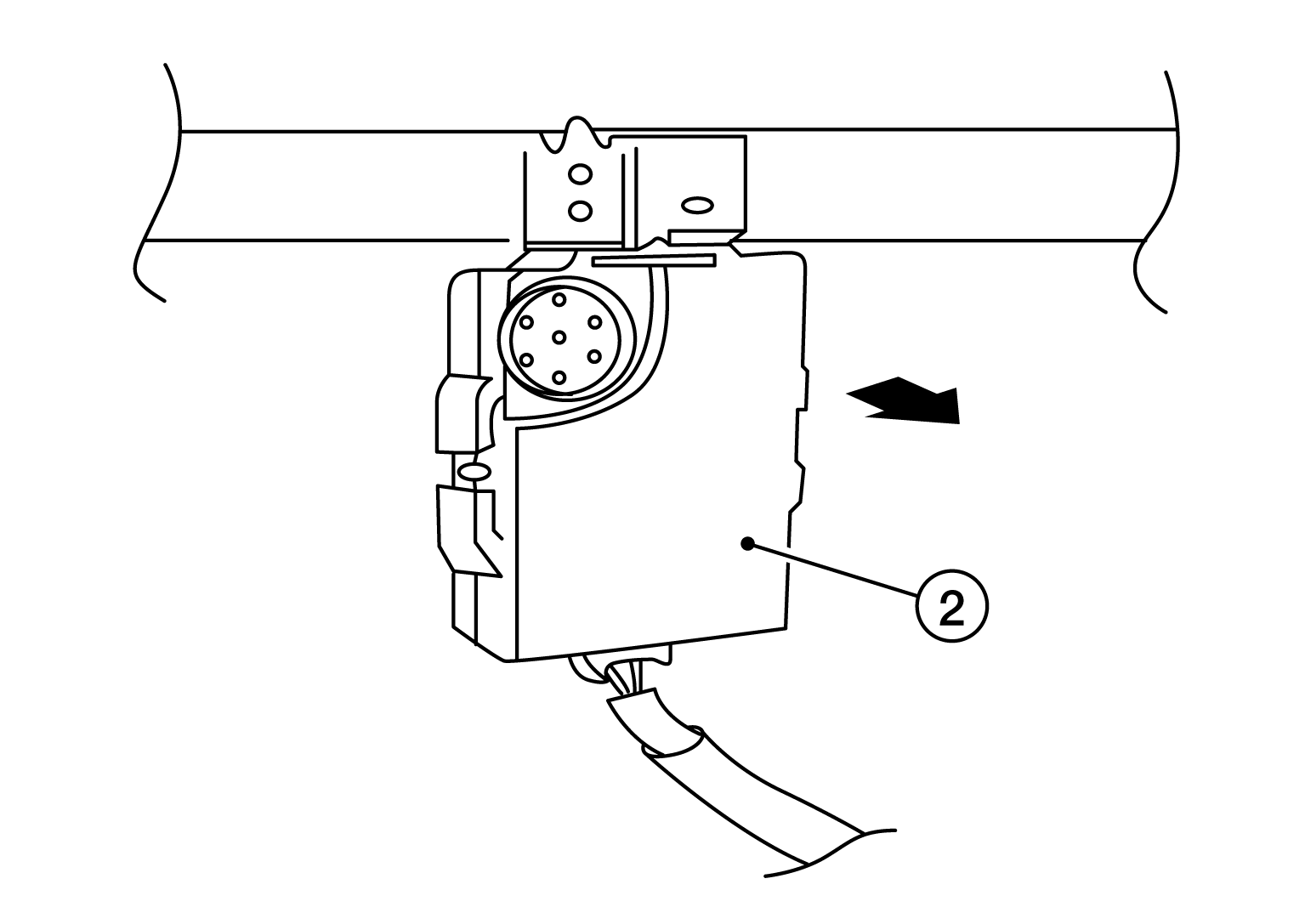

    Fig 2: Removing CAN Gateway
    G08857423Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connector from the CAN gateway and remove the CAN gateway.
