Component Description

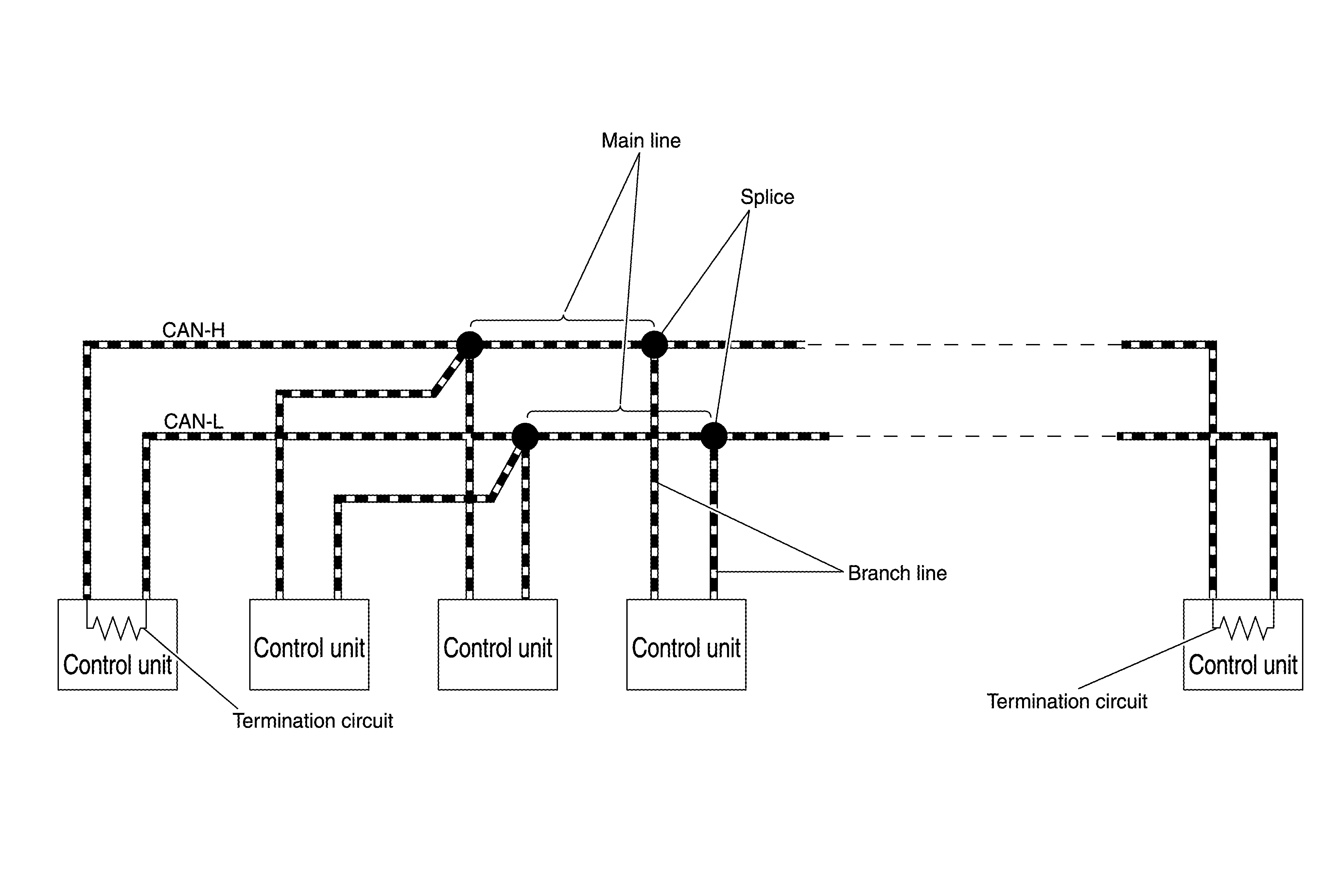

Fig 1: Trouble Diagnosis System Diagram
G07053811Courtesy of NISSAN NORTH AMERICA, INC.
Component Description
Main line CAN communication line between splices
Branch line CAN communication line between splice and a control unit
Splice A point connecting a branch line with a main line
Termination circuit Circuit connected across the CAN communication system. (Resistor)
