Intelligent Key System: Wiring Diagram

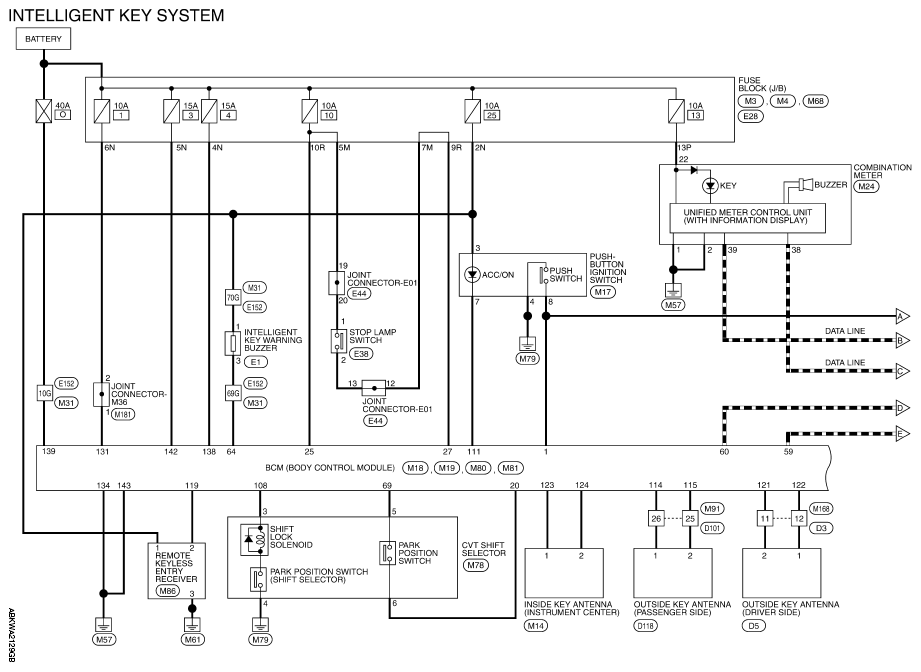

Fig 1: Intelligent Key System - Wiring Diagram (1 Of 5)

G09426227

Courtesy of NISSAN NORTH AMERICA, INC.

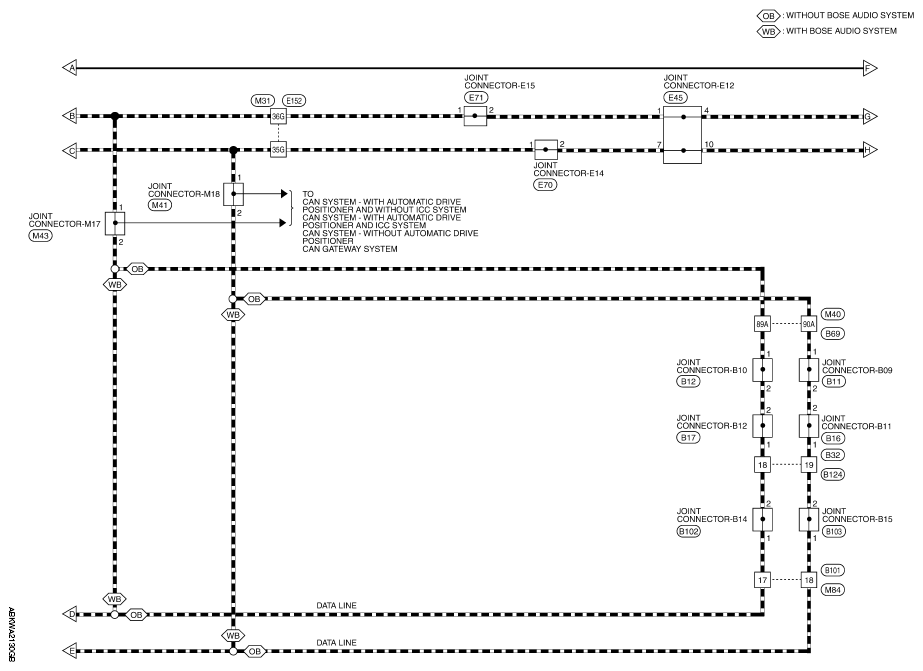

Fig 2: Intelligent Key System - Wiring Diagram (2 Of 5)

G09426228

Courtesy of NISSAN NORTH AMERICA, INC.

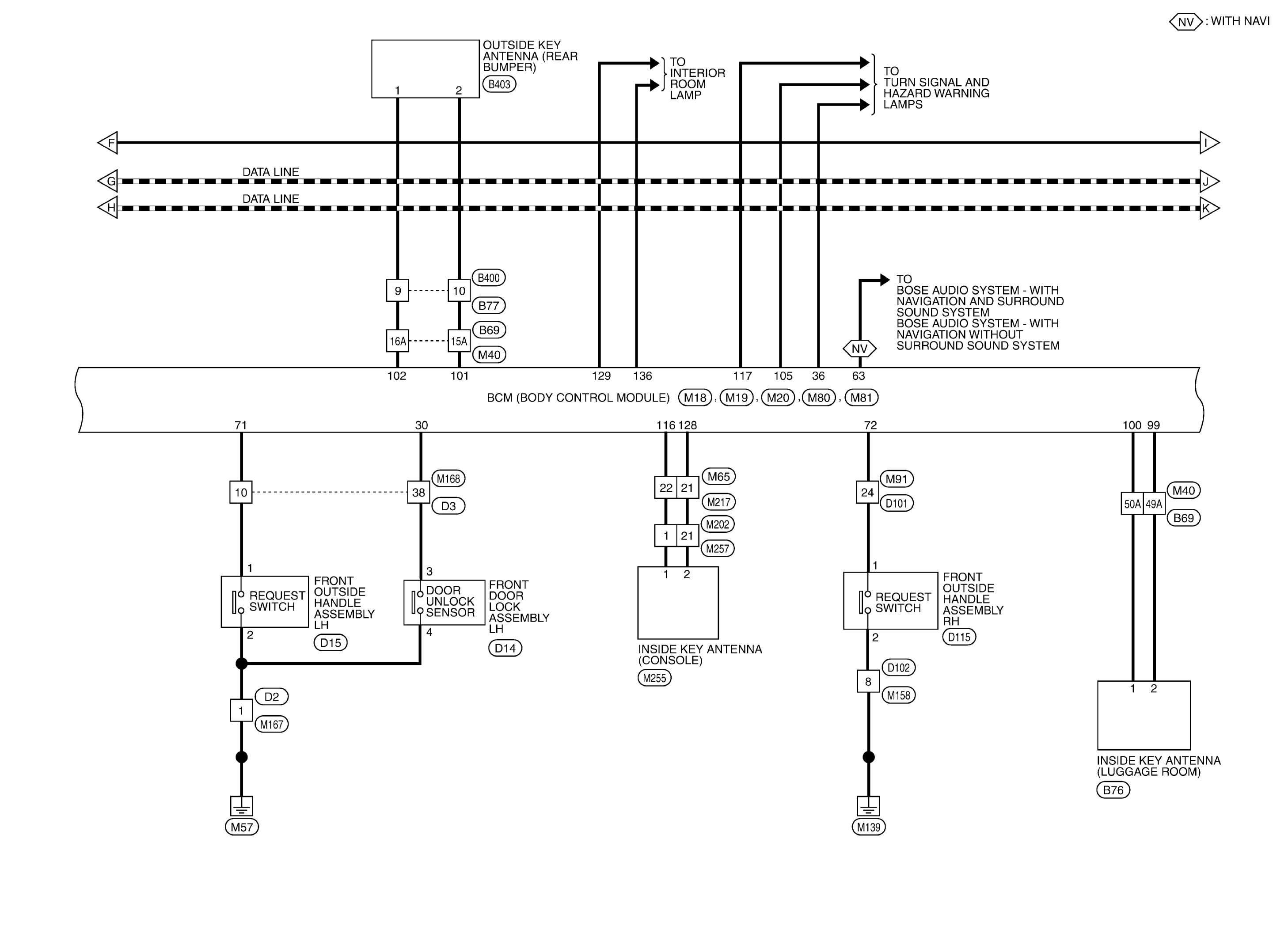

Fig 3: Intelligent Key System - Wiring Diagram (3 Of 5)

G09426229

Courtesy of NISSAN NORTH AMERICA, INC.

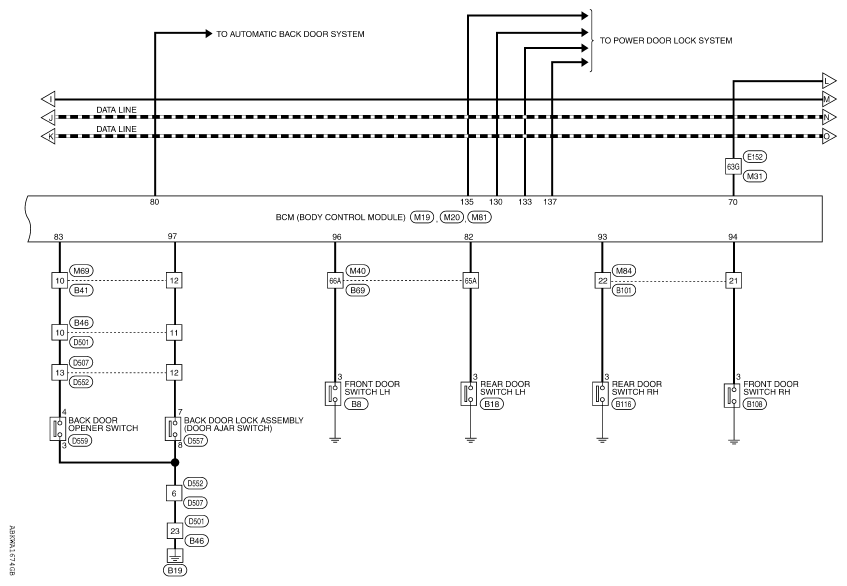

Fig 4: Intelligent Key System - Wiring Diagram (4 Of 5)

G08854358

Courtesy of NISSAN NORTH AMERICA, INC.

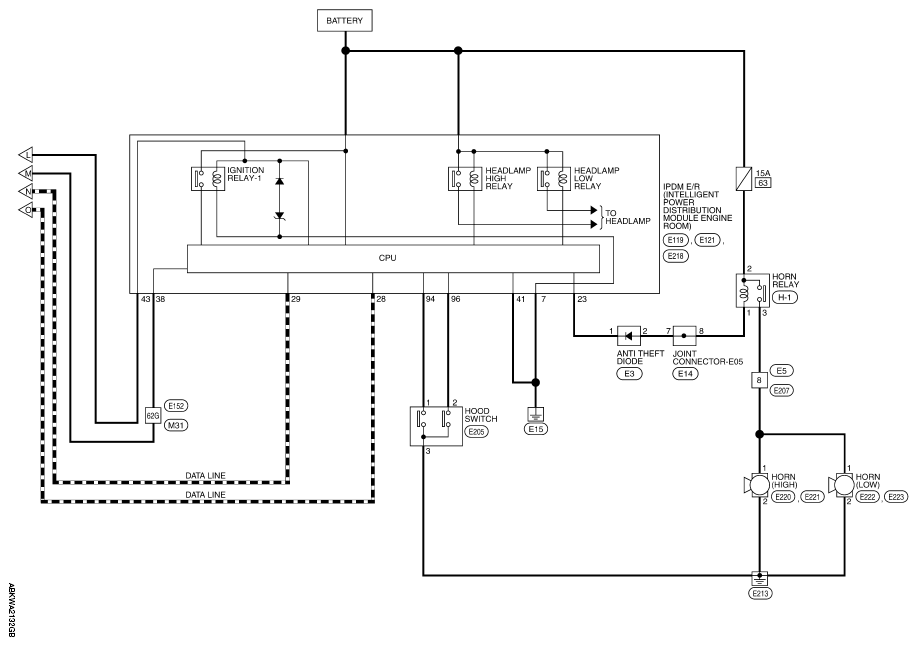

Fig 5: Intelligent Key System - Wiring Diagram (5 Of 5)

G09426231

Courtesy of NISSAN NORTH AMERICA, INC.

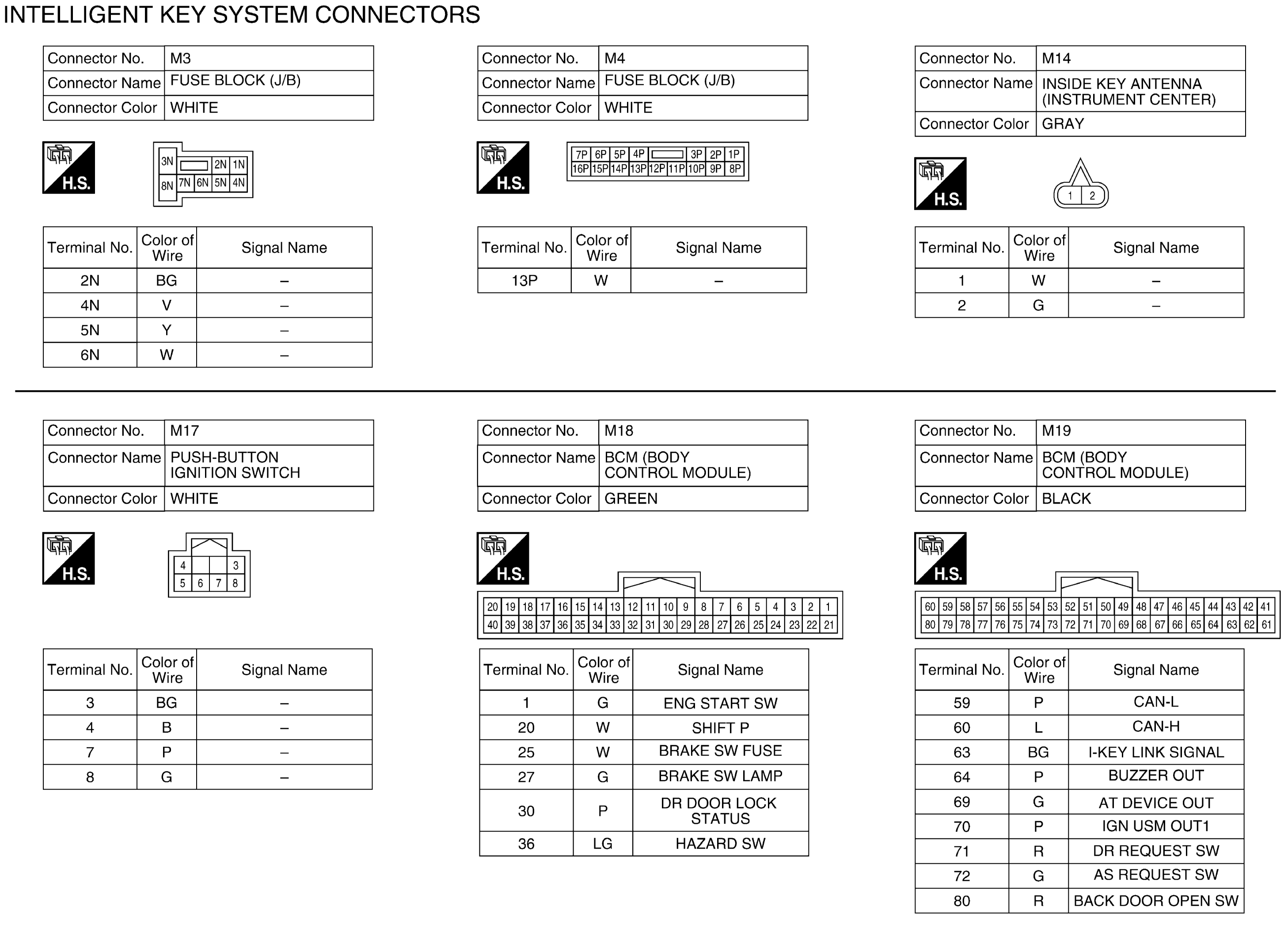

Fig 6: Intelligent Key System Connector End Views (1 Of 16)

G09426232

Courtesy of NISSAN NORTH AMERICA, INC.

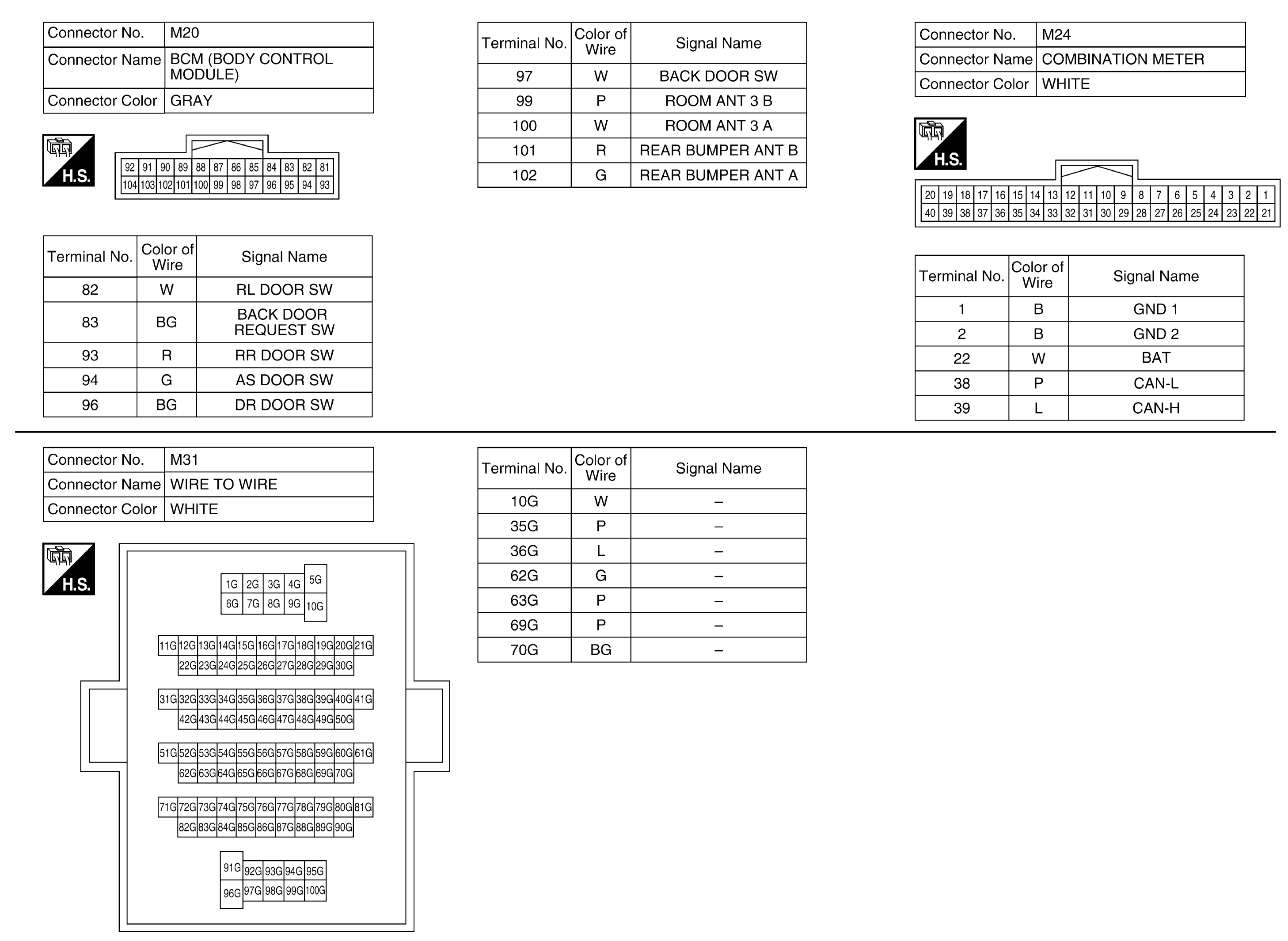

Fig 7: Intelligent Key System Connector End Views (2 Of 16)

G08854361

Courtesy of NISSAN NORTH AMERICA, INC.

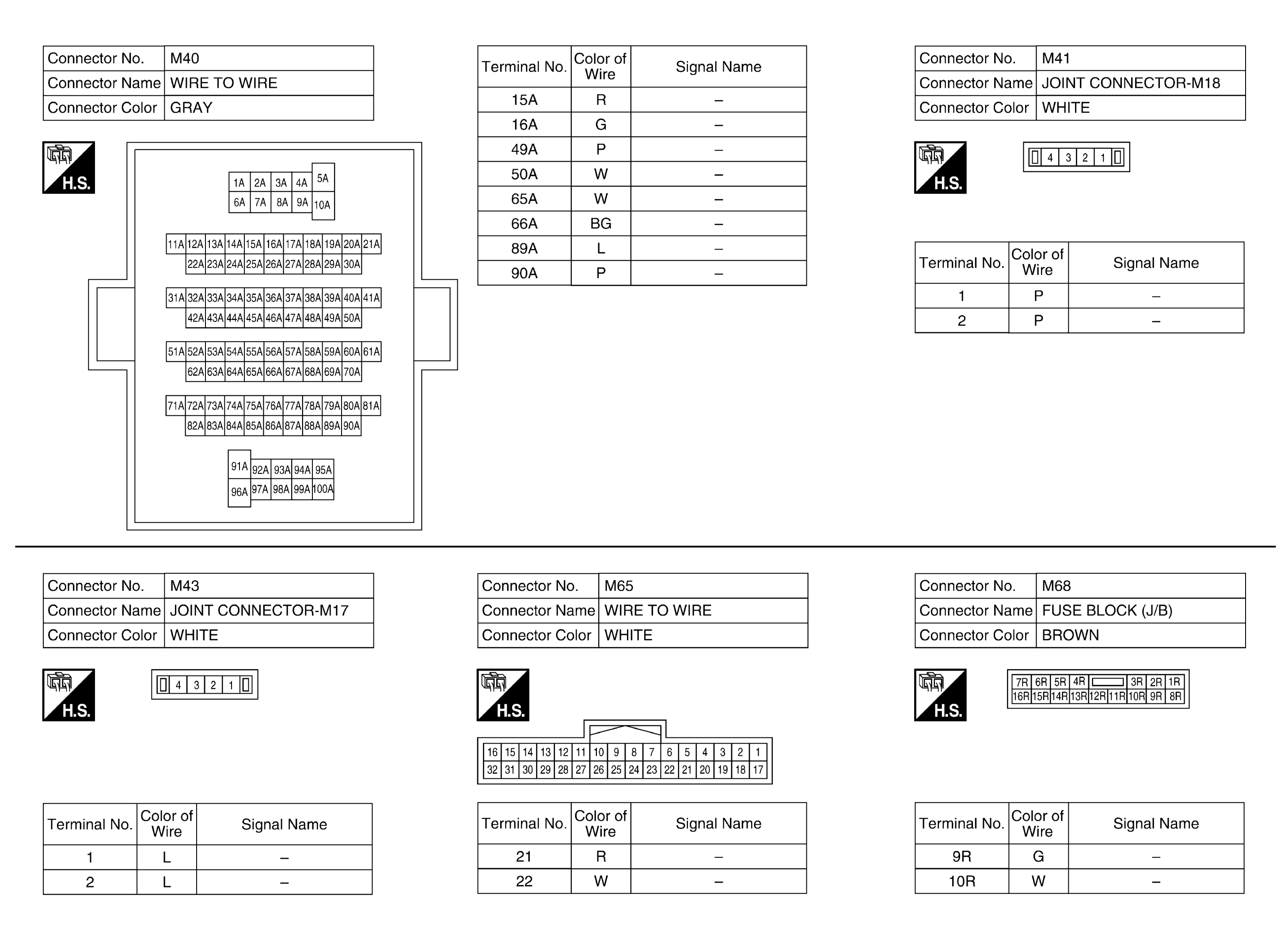

Fig 8: Intelligent Key System Connector End Views (3 Of 16)

G09426234

Courtesy of NISSAN NORTH AMERICA, INC.

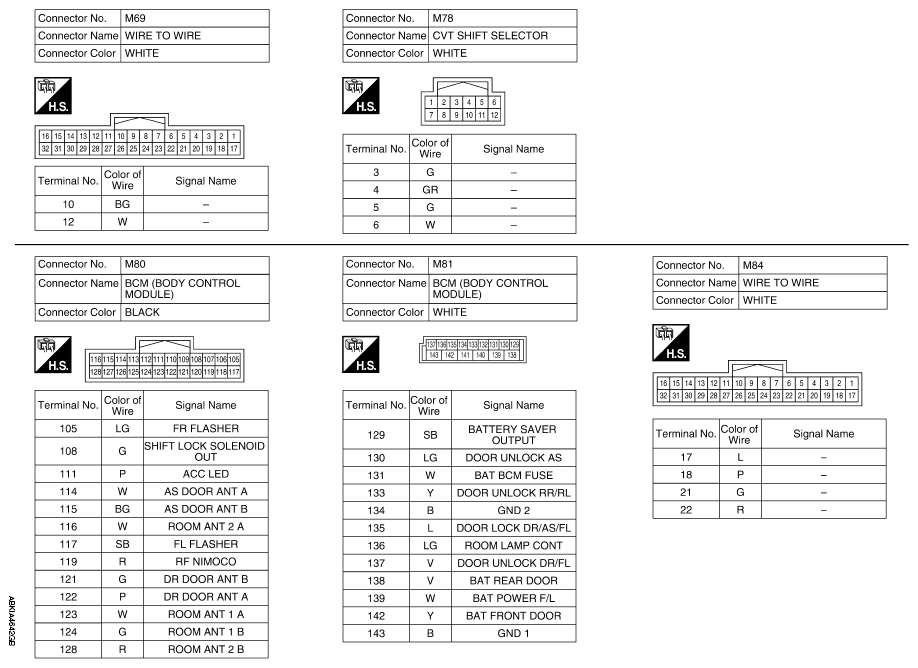

Fig 9: Intelligent Key System Connector End Views (4 Of 16)

G09426235

Courtesy of NISSAN NORTH AMERICA, INC.

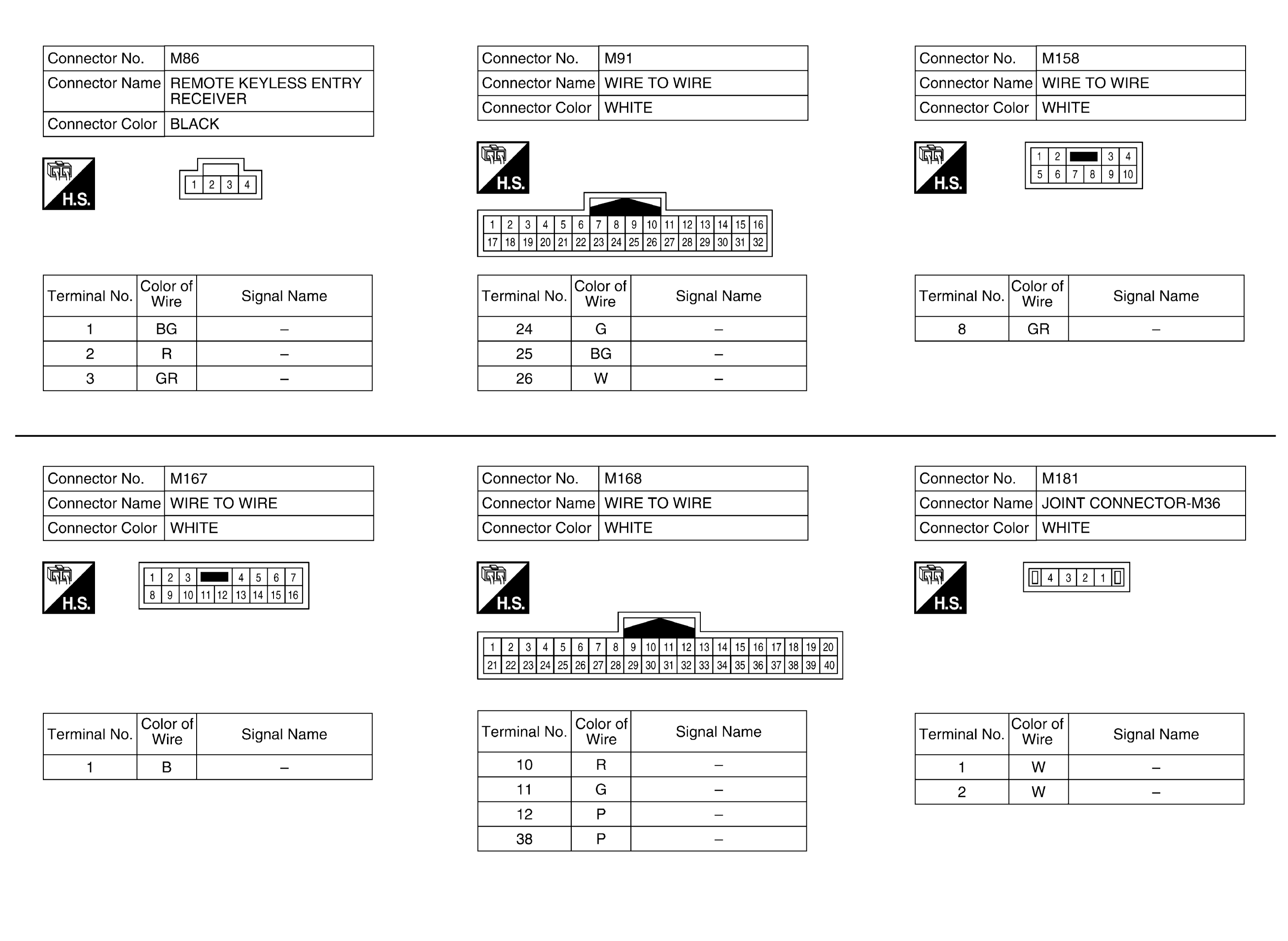

Fig 10: Intelligent Key System Connector End Views (5 Of 16)

G09426236

Courtesy of NISSAN NORTH AMERICA, INC.

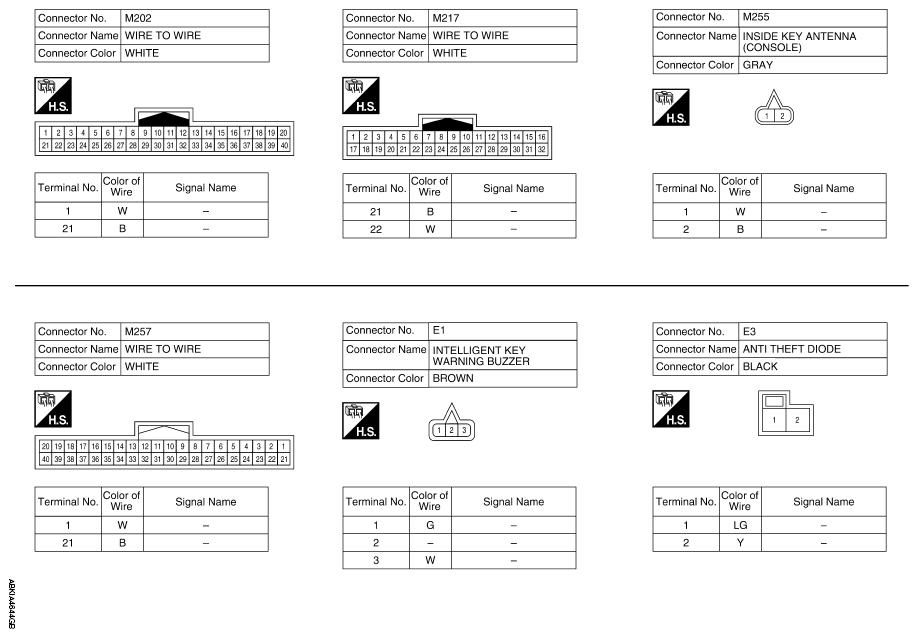

Fig 11: Intelligent Key System Connector End Views (6 Of 16)

G09426237

Courtesy of NISSAN NORTH AMERICA, INC.

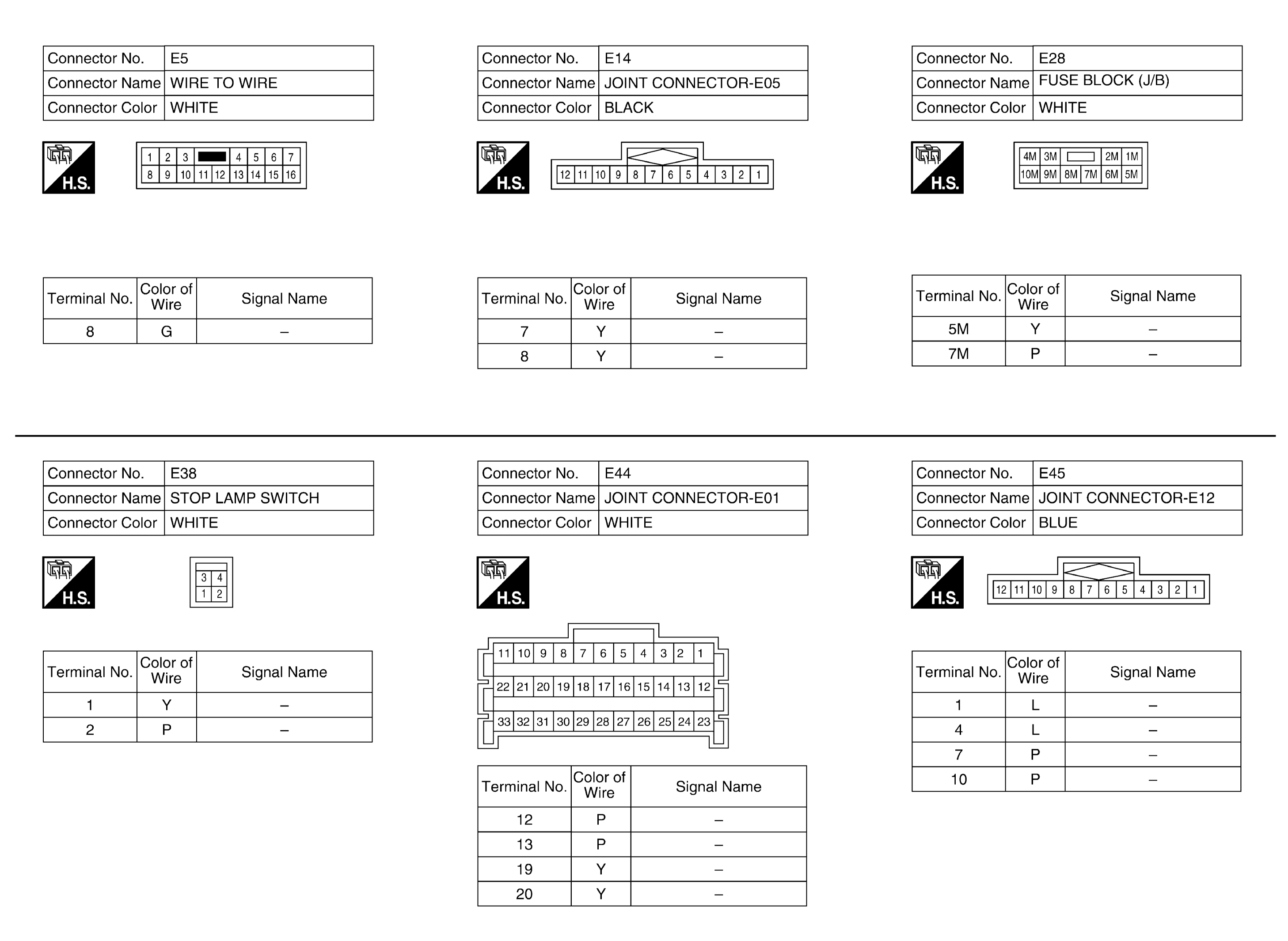

Fig 12: Intelligent Key System Connector End Views (7 Of 16)

G09426238

Courtesy of NISSAN NORTH AMERICA, INC.

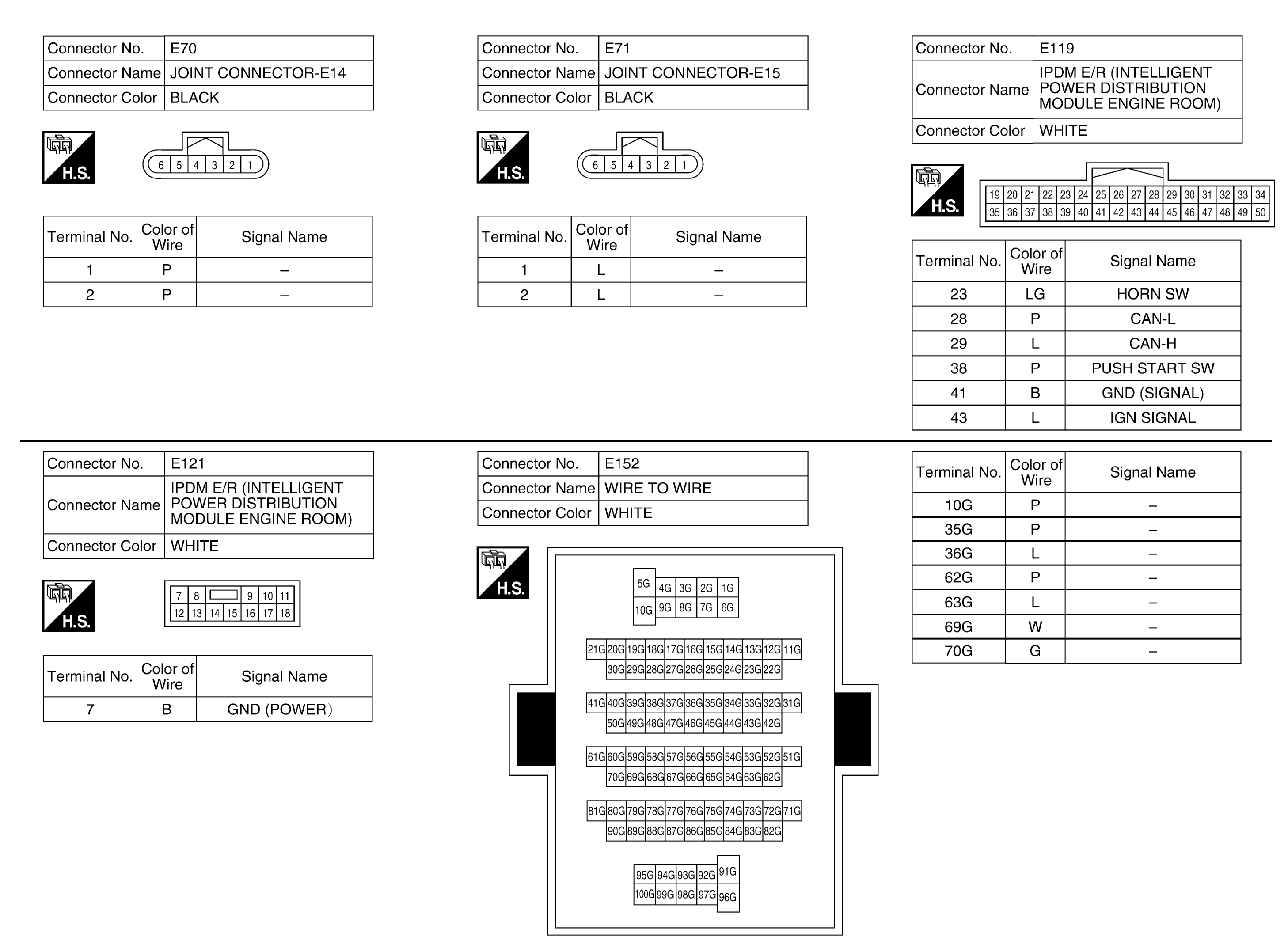

Fig 13: Intelligent Key System Connector End Views (8 Of 16)

G09426239

Courtesy of NISSAN NORTH AMERICA, INC.

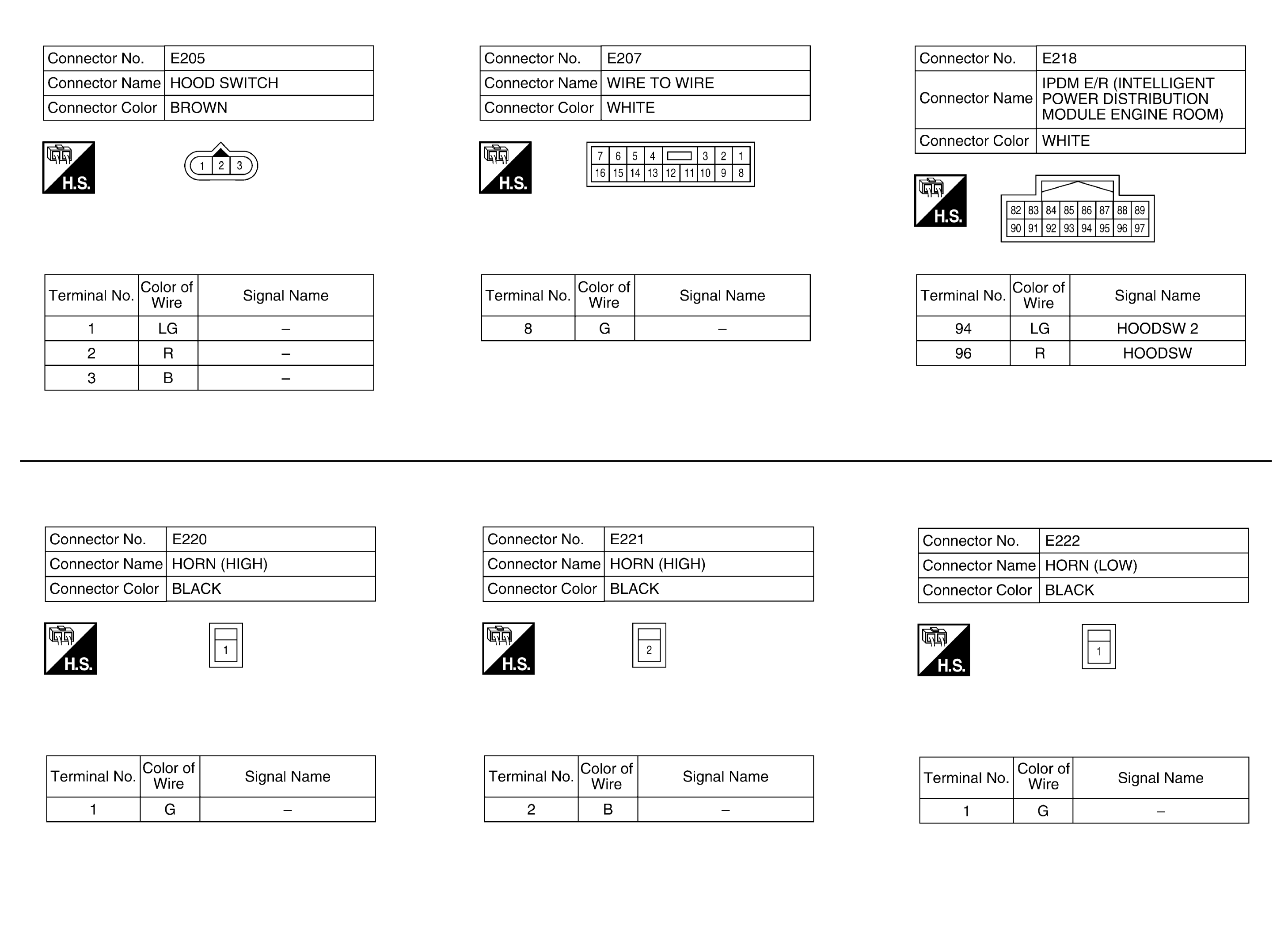

Fig 14: Intelligent Key System Connector End Views (9 Of 16)

G09426240

Courtesy of NISSAN NORTH AMERICA, INC.

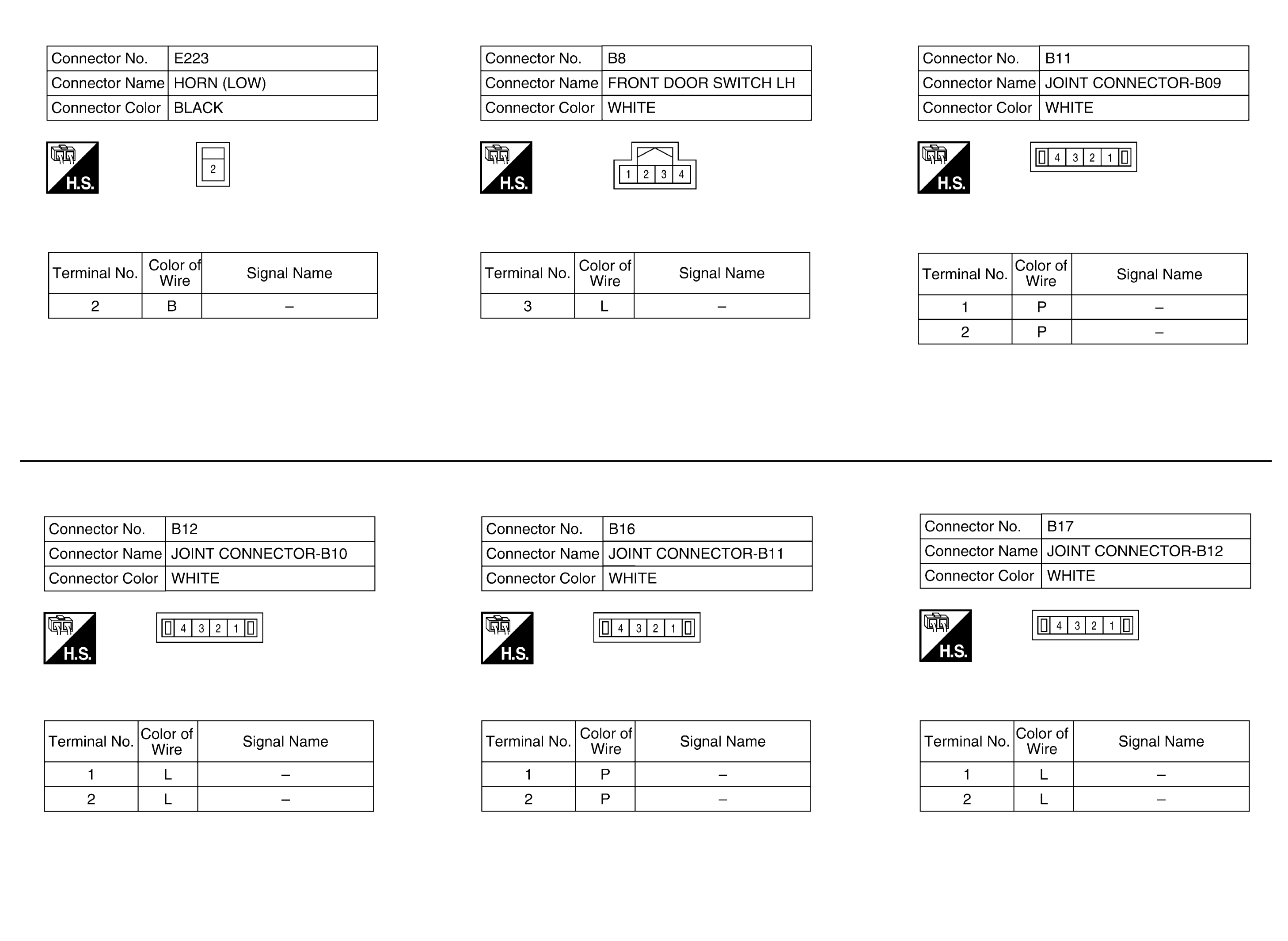

Fig 15: Intelligent Key System Connector End Views (10 Of 16)

G09426241

Courtesy of NISSAN NORTH AMERICA, INC.

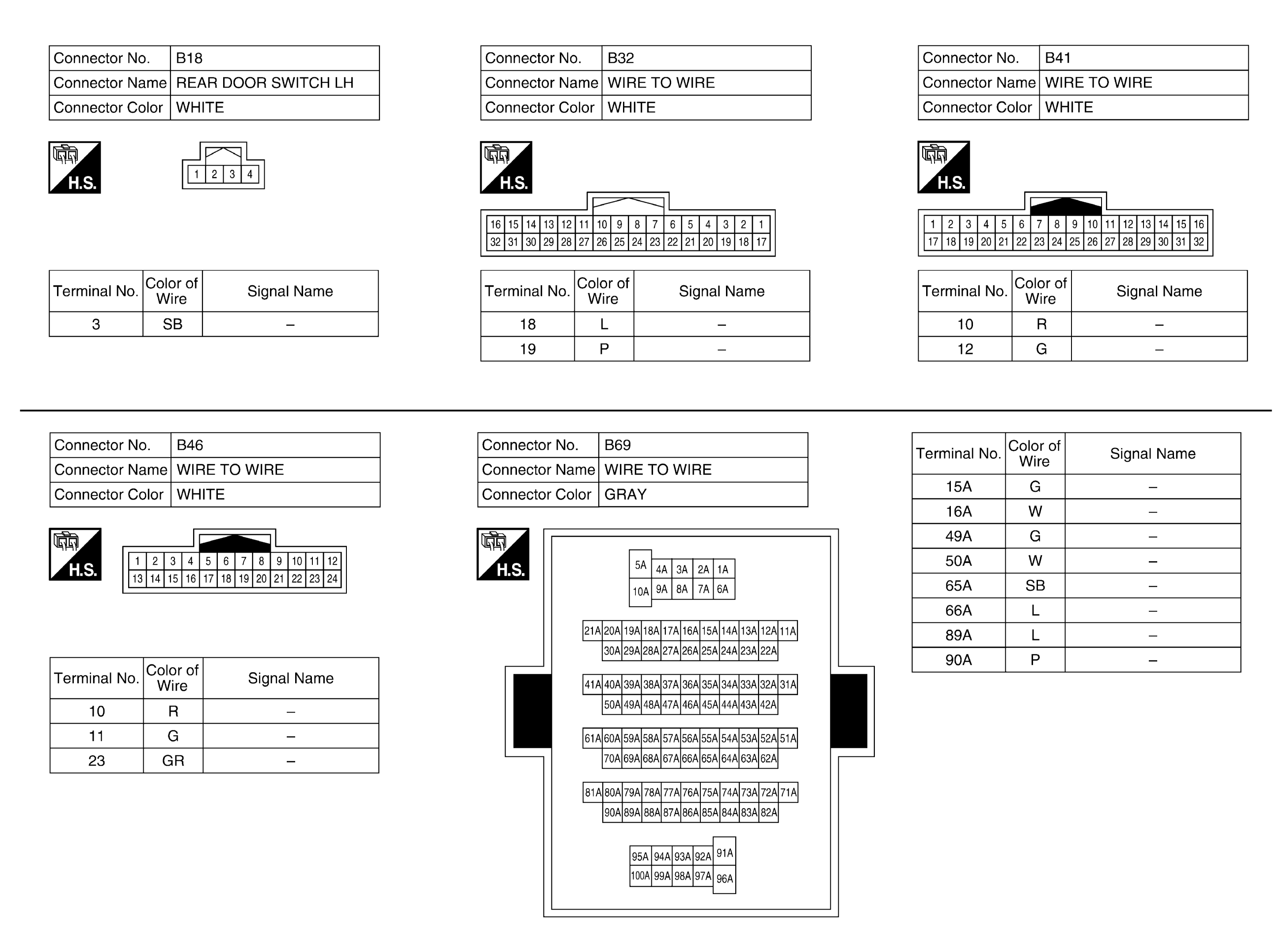

Fig 16: Intelligent Key System Connector End Views (11 Of 16)

G09426242

Courtesy of NISSAN NORTH AMERICA, INC.

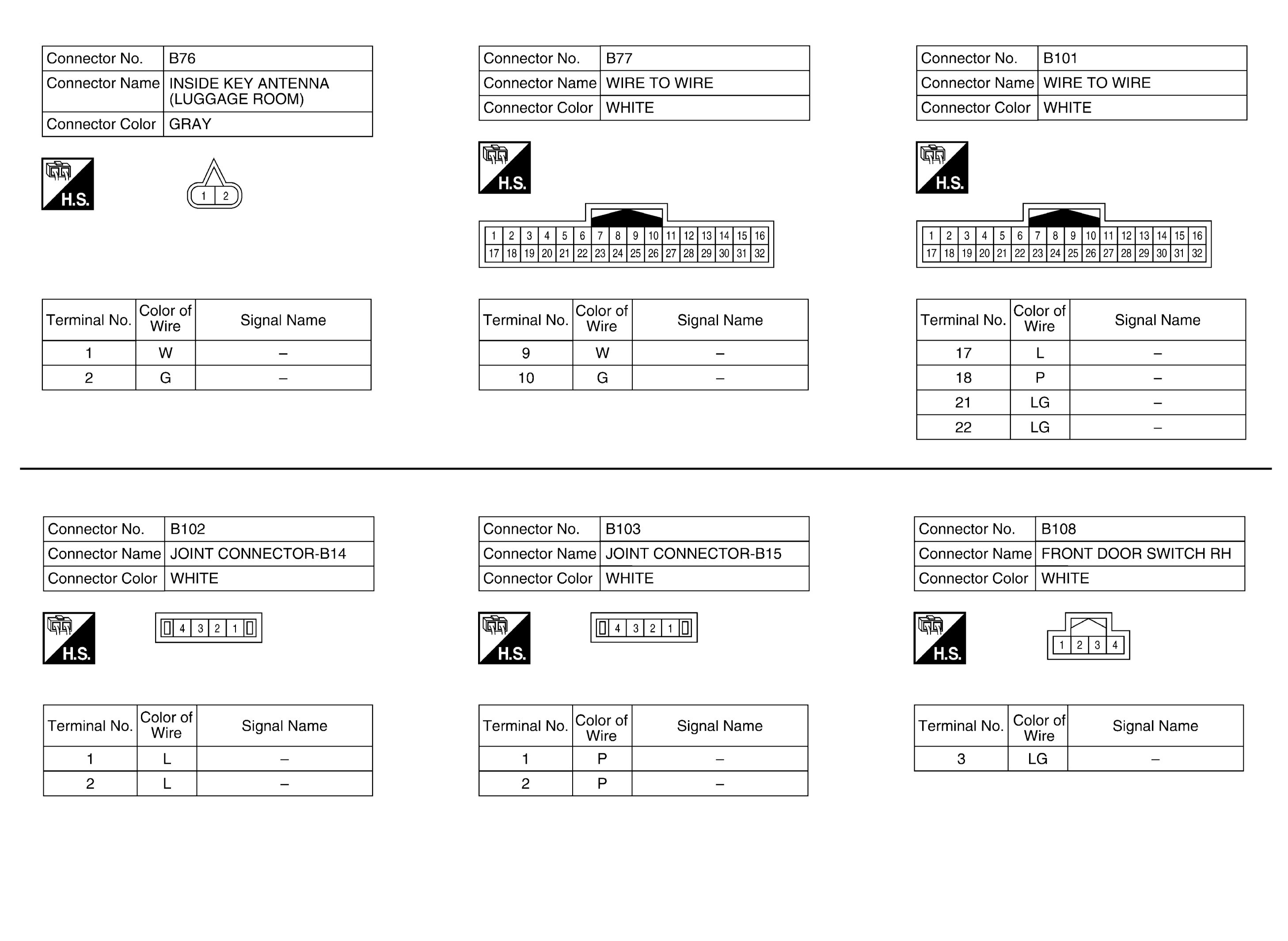

Fig 17: Intelligent Key System Connector End Views (12 Of 16)

G09426243

Courtesy of NISSAN NORTH AMERICA, INC.

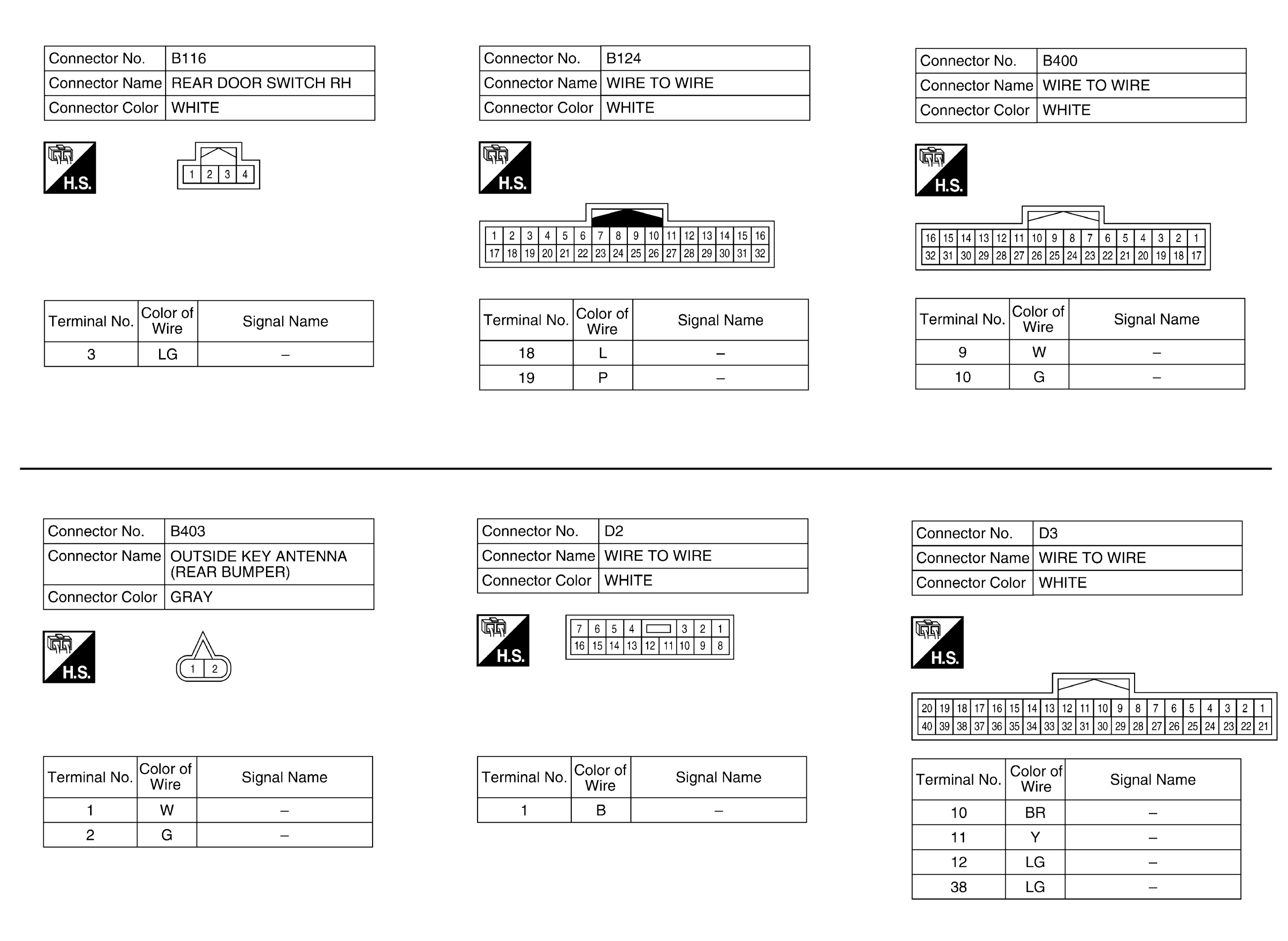

Fig 18: Intelligent Key System Connector End Views (13 Of 16)

G09426244

Courtesy of NISSAN NORTH AMERICA, INC.

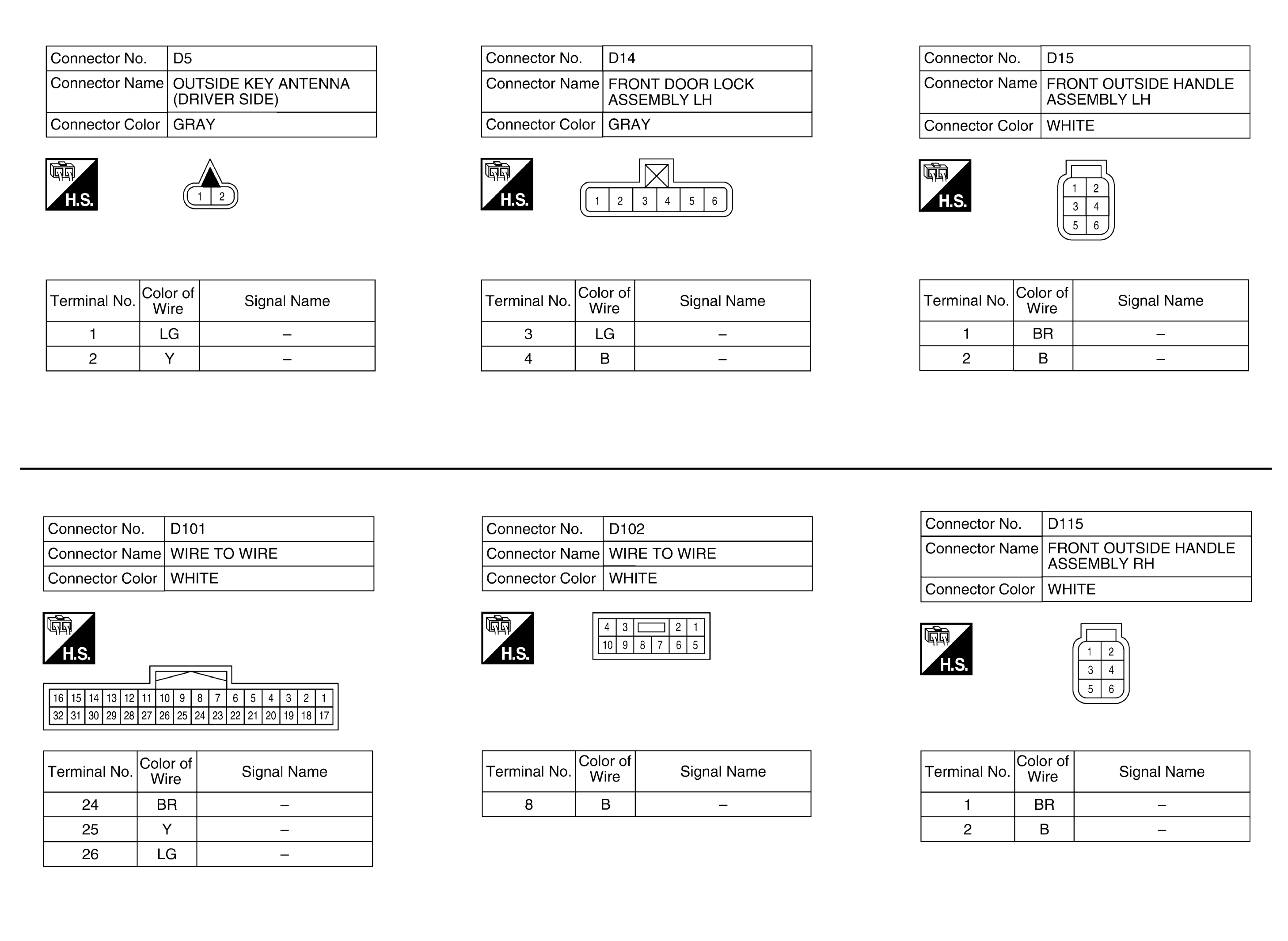

Fig 19: Intelligent Key System Connector End Views (14 Of 16)

G09426245

Courtesy of NISSAN NORTH AMERICA, INC.

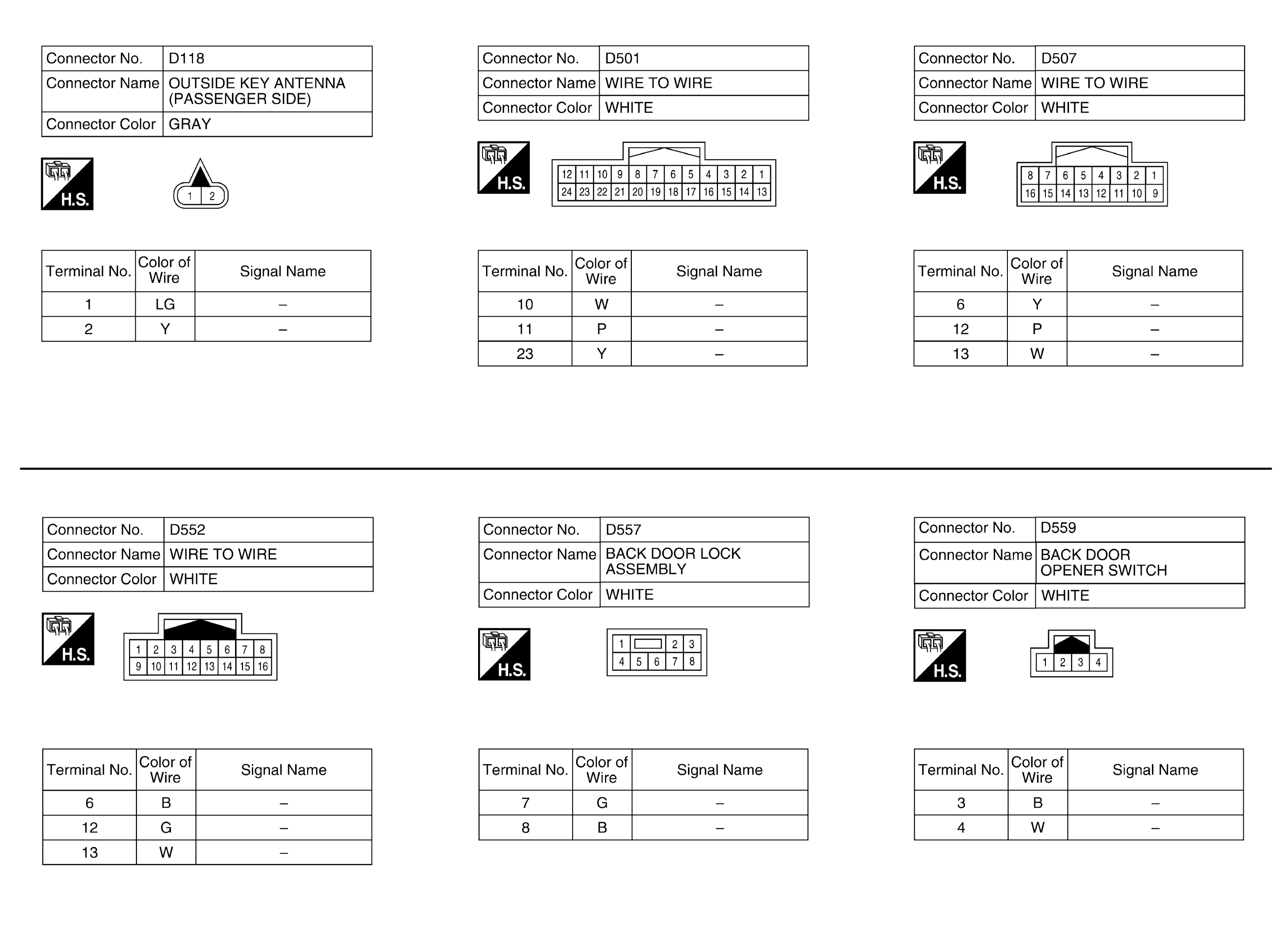

Fig 20: Intelligent Key System Connector End Views (15 Of 16)

G09426246

Courtesy of NISSAN NORTH AMERICA, INC.

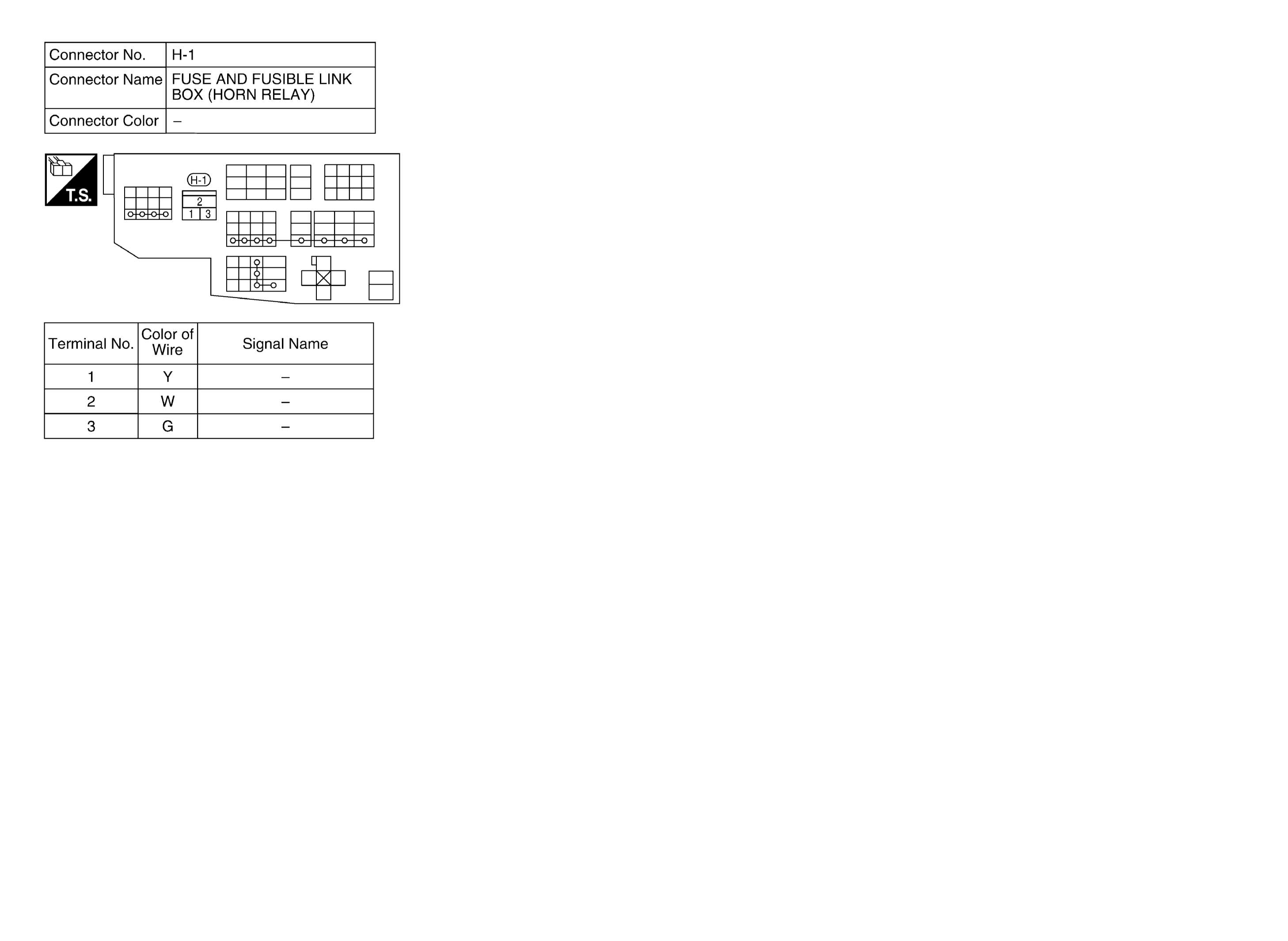

Fig 21: Intelligent Key System Connector End Views (16 Of 16)

G09426247

Courtesy of NISSAN NORTH AMERICA, INC.
