Connector End Views

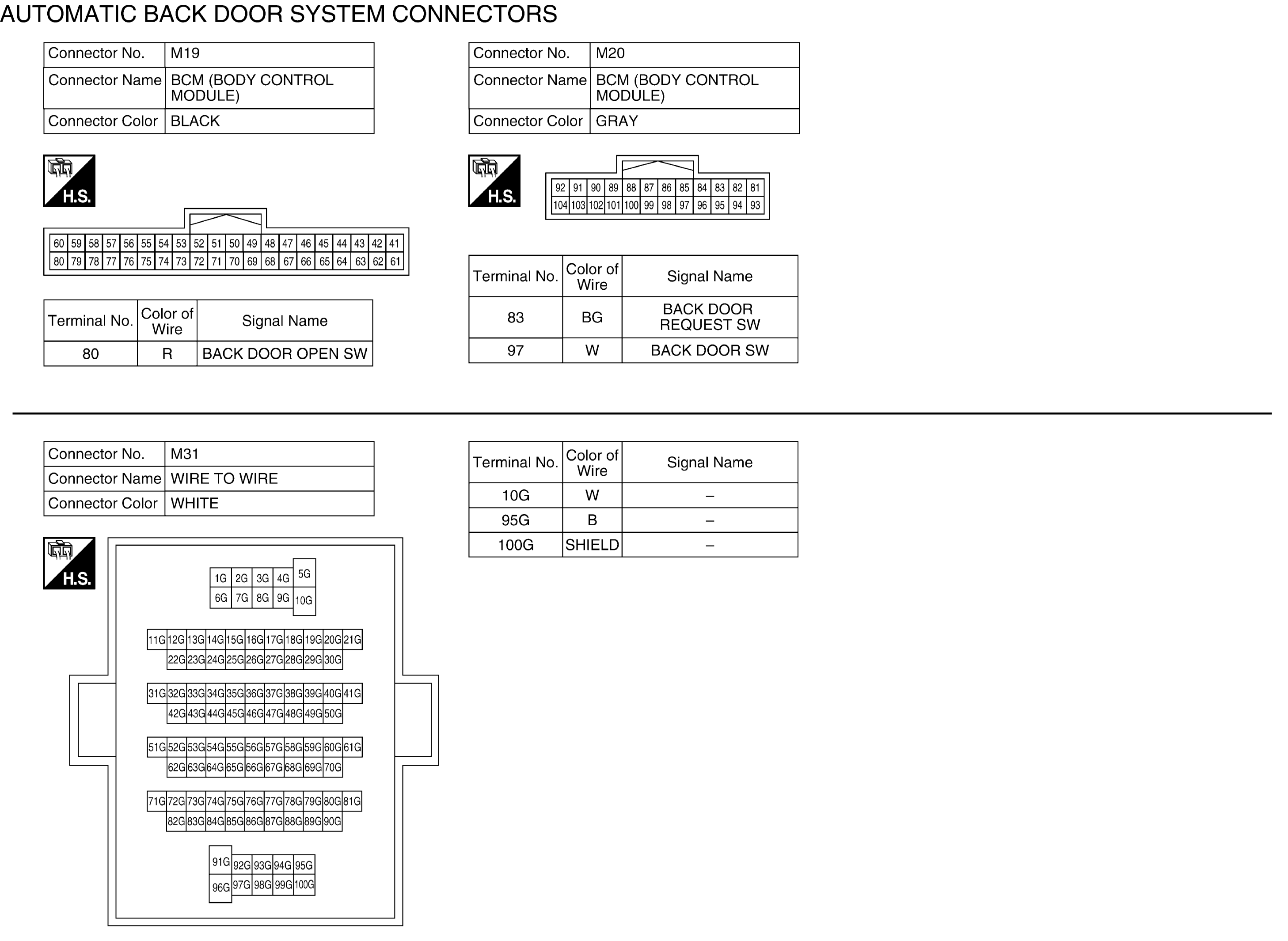

Fig 1: Automatic Back Door System Connector End Views (1 Of 9)
G08854377Courtesy of NISSAN NORTH AMERICA, INC.

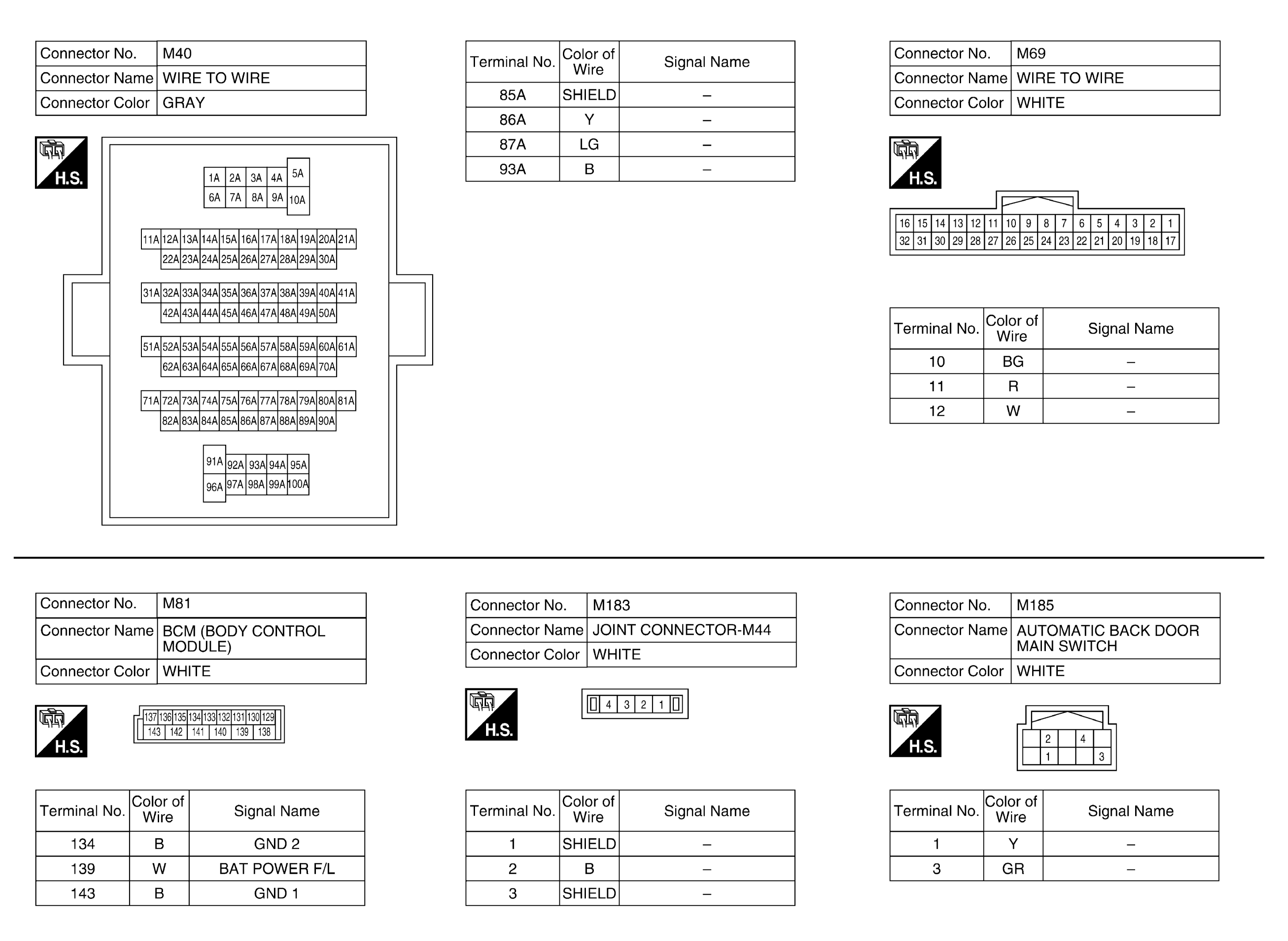

Fig 2: Automatic Back Door System Connector End Views (2 Of 9)
G09426251Courtesy of NISSAN NORTH AMERICA, INC.

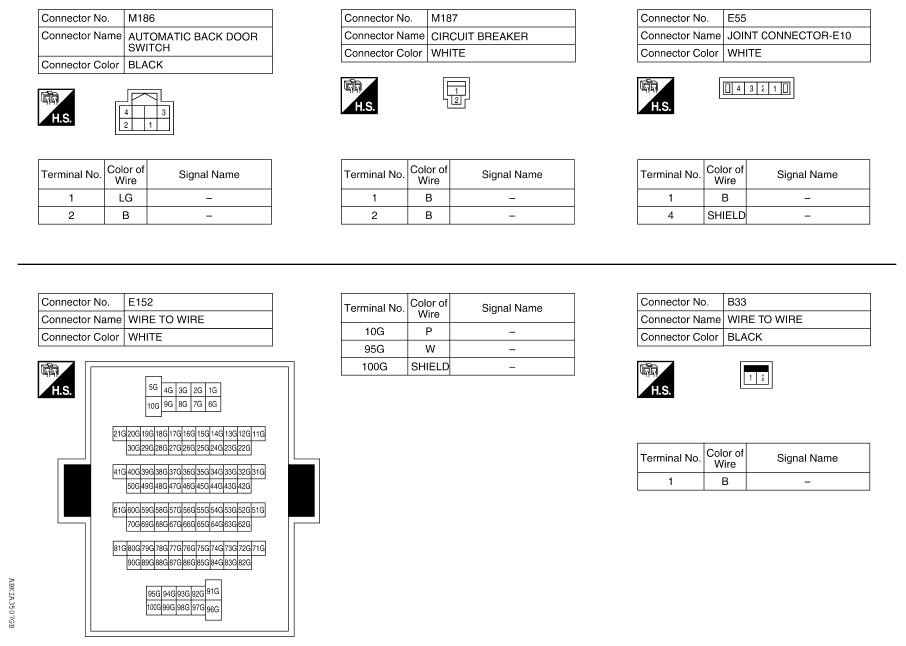

Fig 3: Automatic Back Door System Connector End Views (3 Of 9)
G08854379Courtesy of NISSAN NORTH AMERICA, INC.

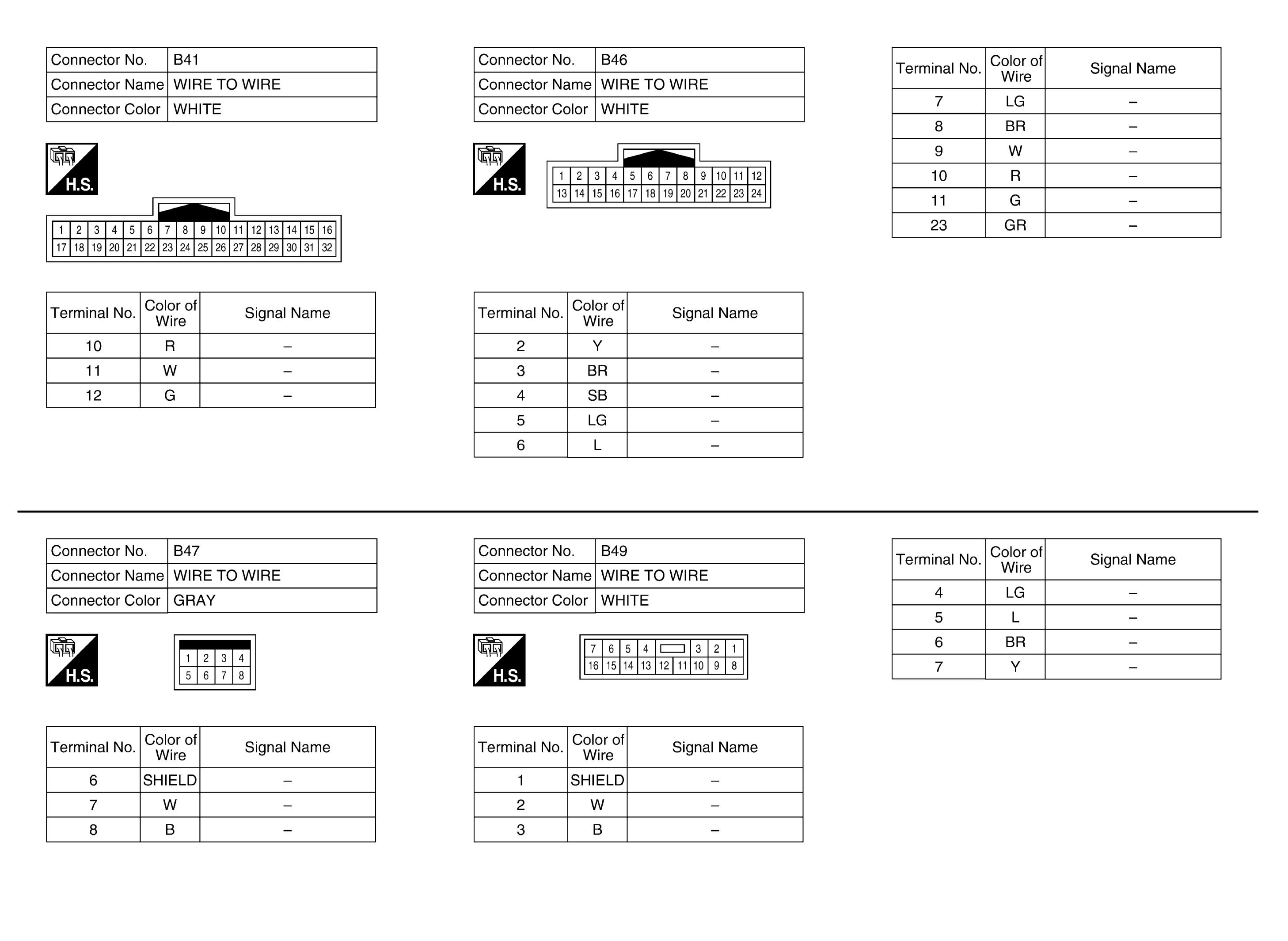

Fig 4: Automatic Back Door System Connector End Views (4 Of 9)
G09426253Courtesy of NISSAN NORTH AMERICA, INC.

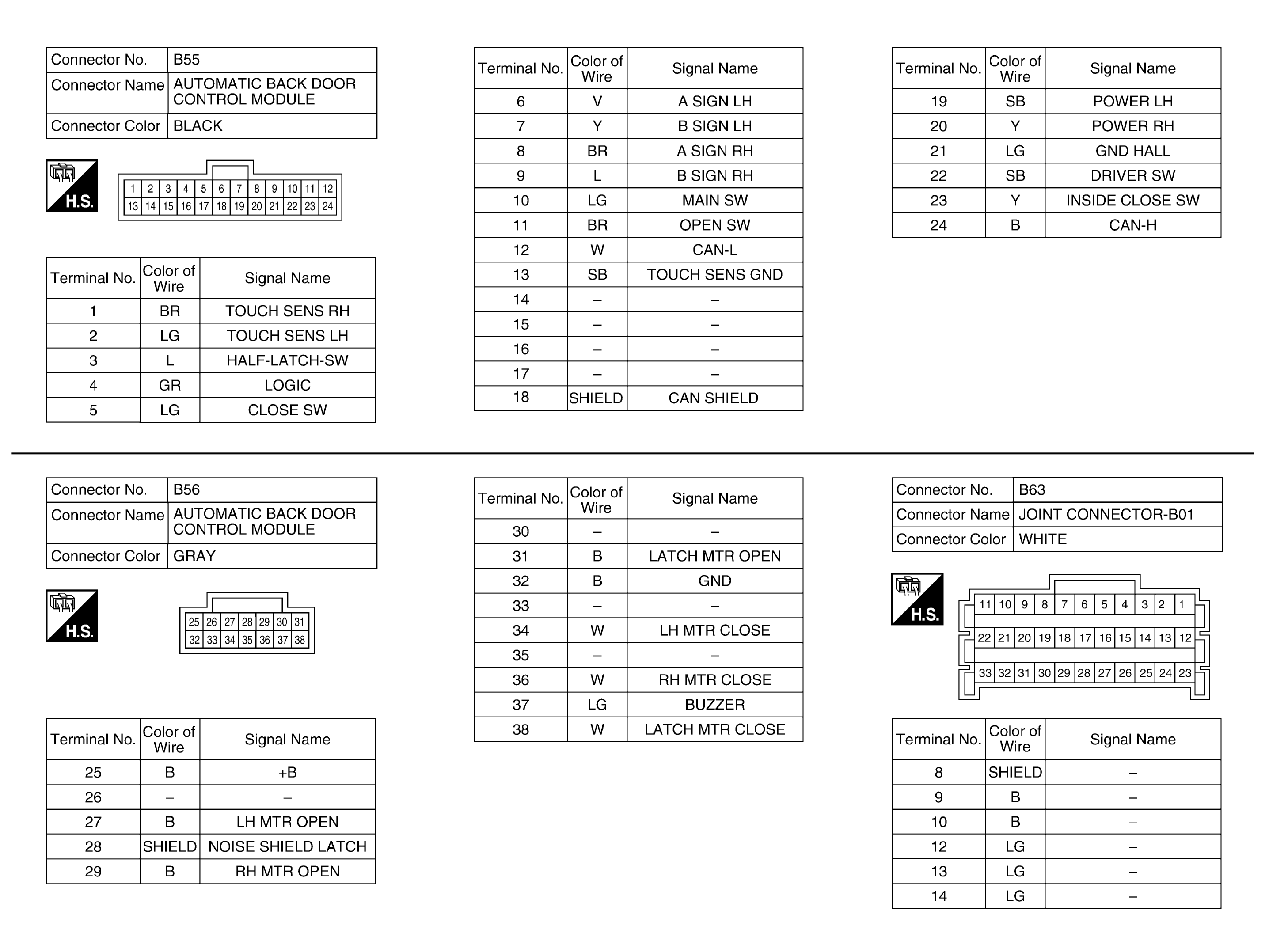

Fig 5: Automatic Back Door System Connector End Views (5 Of 9)
G09426254Courtesy of NISSAN NORTH AMERICA, INC.

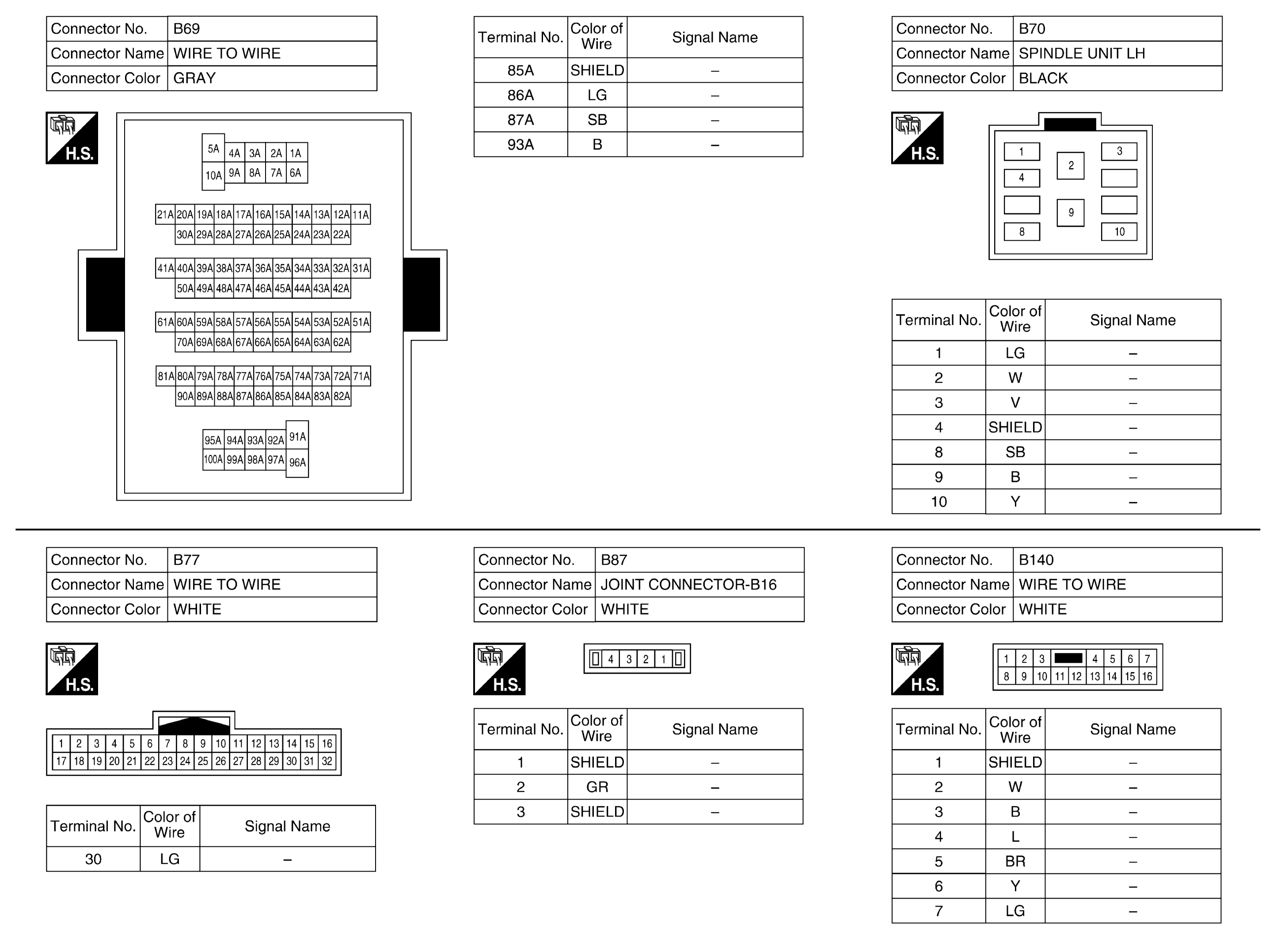

Fig 6: Automatic Back Door System Connector End Views (6 Of 9)
G09426255Courtesy of NISSAN NORTH AMERICA, INC.

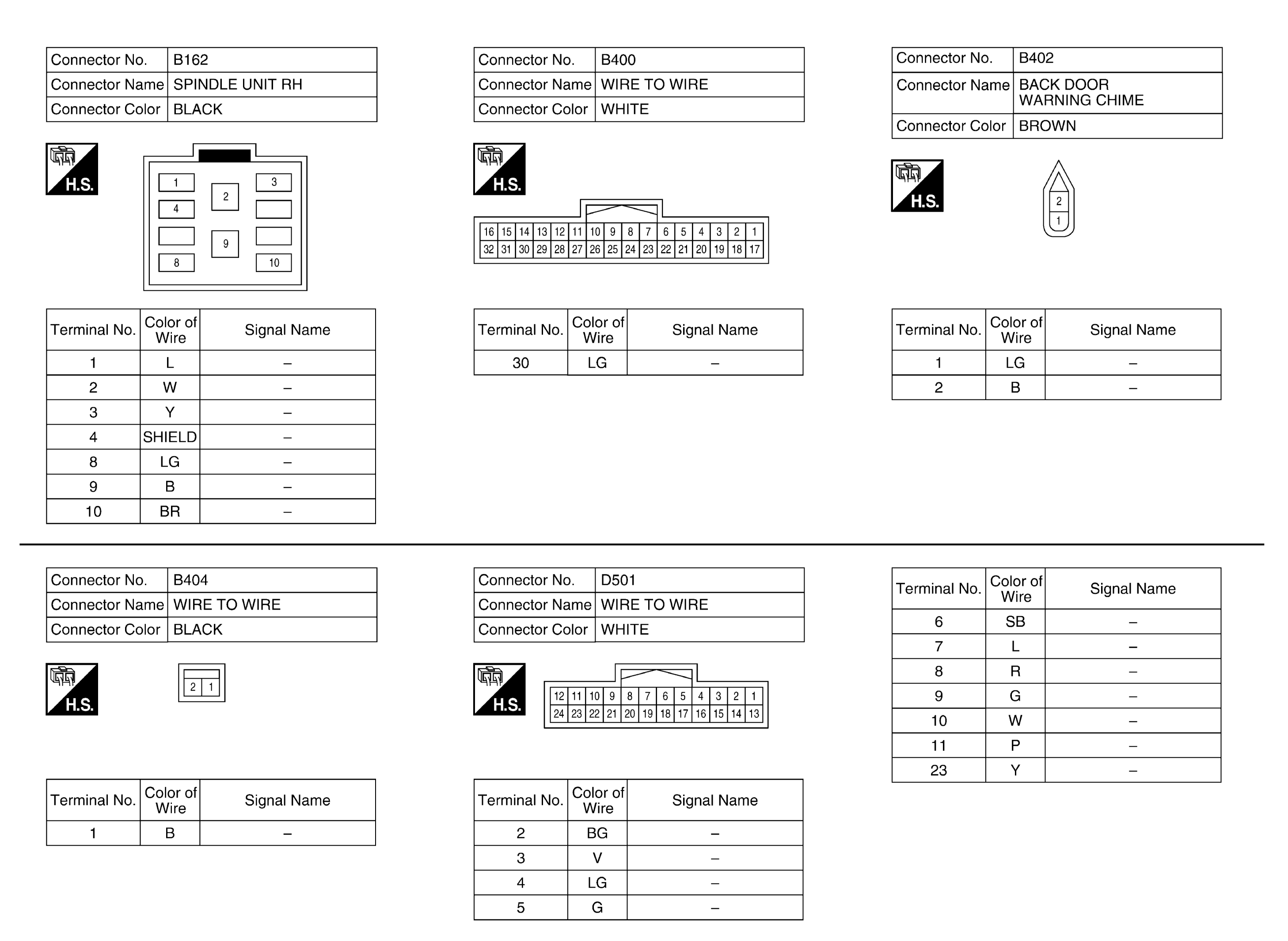

Fig 7: Automatic Back Door System Connector End Views (7 Of 9)
G09426256Courtesy of NISSAN NORTH AMERICA, INC.

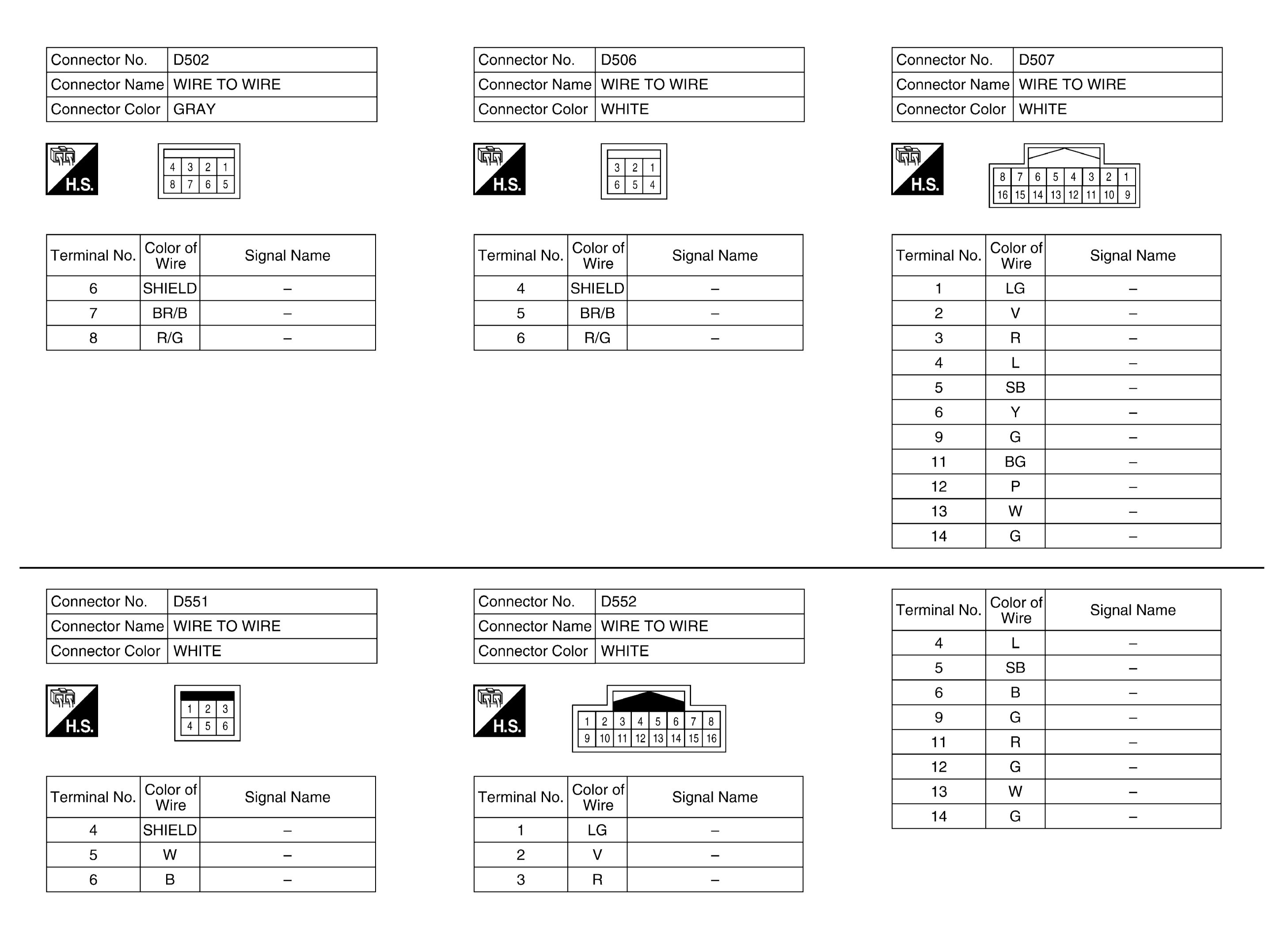

Fig 8: Automatic Back Door System Connector End Views (8 Of 9)
G09426257Courtesy of NISSAN NORTH AMERICA, INC.

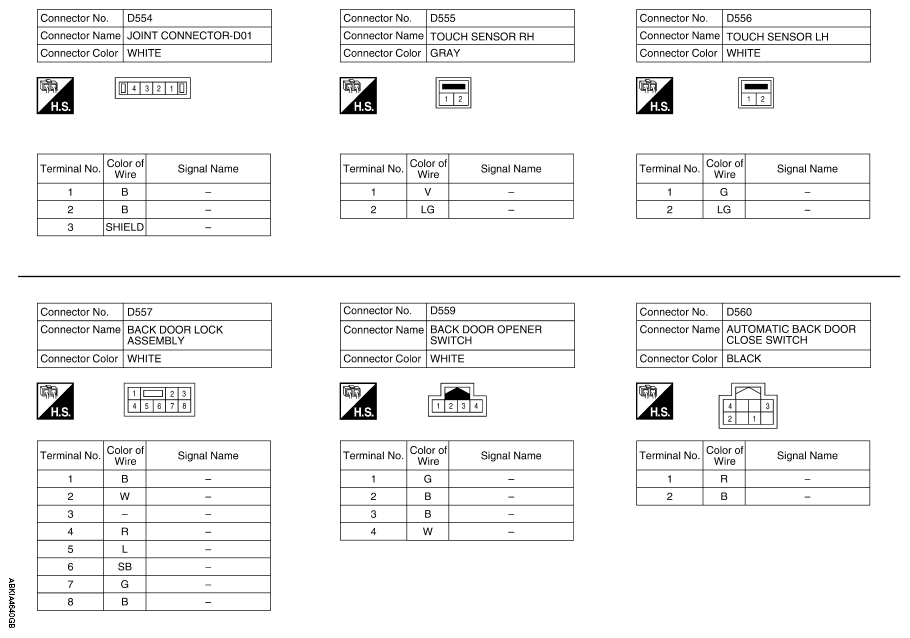

Fig 9: Automatic Back Door System Connector End Views (9 Of 9)
G09426258Courtesy of NISSAN NORTH AMERICA, INC.
