Connector End Views

Fig 1: Meter - With Automatic Drive Positioner Connector End Views (1 Of 14)

G09427320

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Meter - With Automatic Drive Positioner Connector End Views (2 Of 14)

G09427321

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Meter - With Automatic Drive Positioner Connector End Views (3 Of 14)

G09427322

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Meter - With Automatic Drive Positioner Connector End Views (4 Of 14)

G08852315

Courtesy of NISSAN NORTH AMERICA, INC.

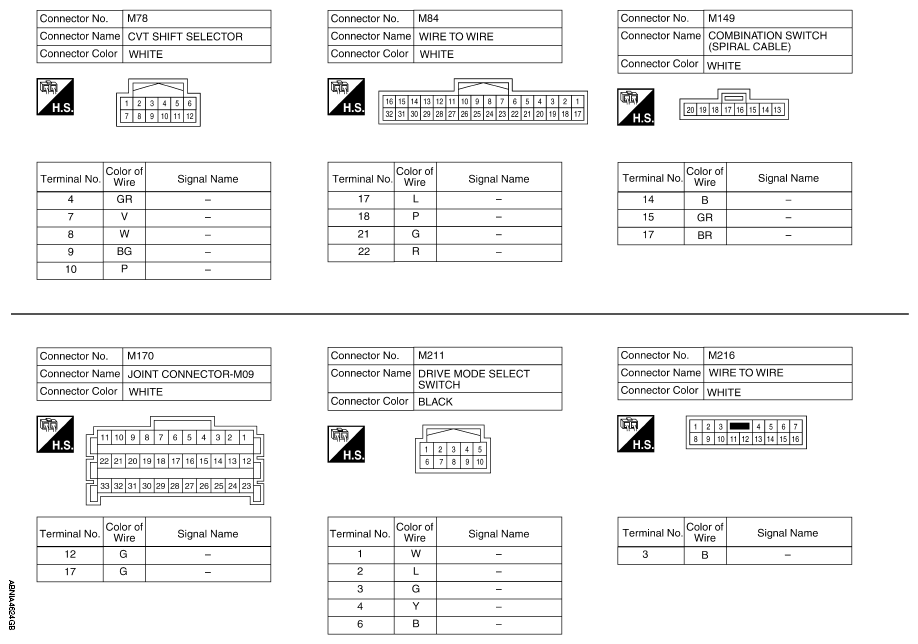

Fig 5: Meter - With Automatic Drive Positioner Connector End Views (5 Of 14)

G09427324

Courtesy of NISSAN NORTH AMERICA, INC.

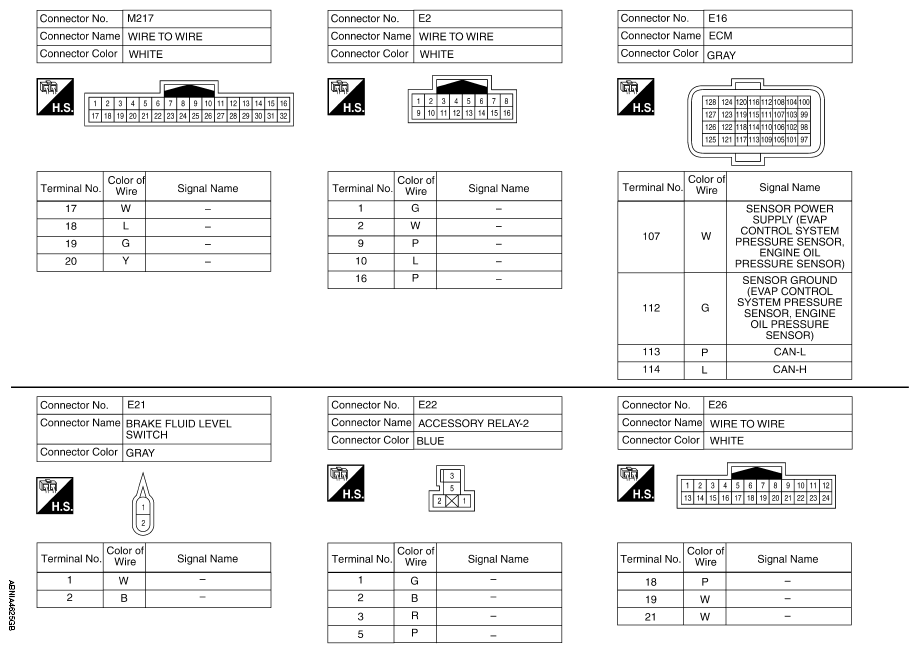

Fig 6: Meter - With Automatic Drive Positioner Connector End Views (6 Of 14)

G09427325

Courtesy of NISSAN NORTH AMERICA, INC.

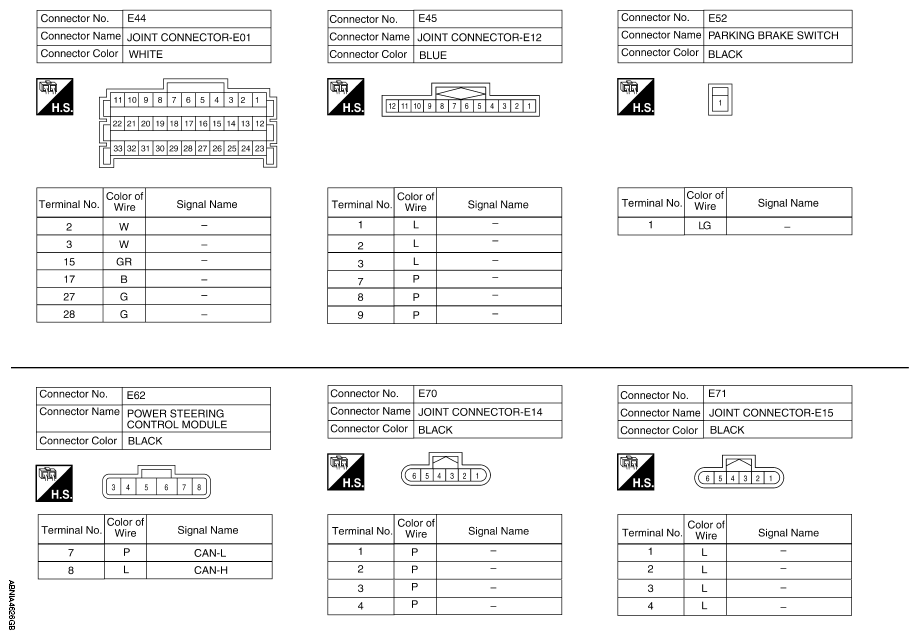

Fig 7: Meter - With Automatic Drive Positioner Connector End Views (7 Of 14)

G09427326

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Meter - With Automatic Drive Positioner Connector End Views (8 Of 14)

G08852319

Courtesy of NISSAN NORTH AMERICA, INC.

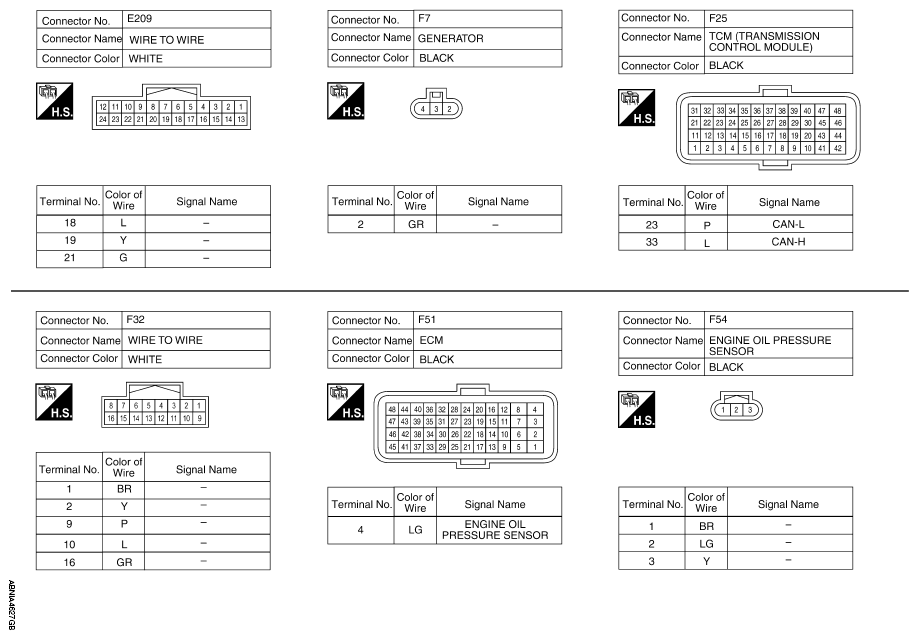

Fig 9: Meter - With Automatic Drive Positioner Connector End Views (9 Of 14)

G09427328

Courtesy of NISSAN NORTH AMERICA, INC.

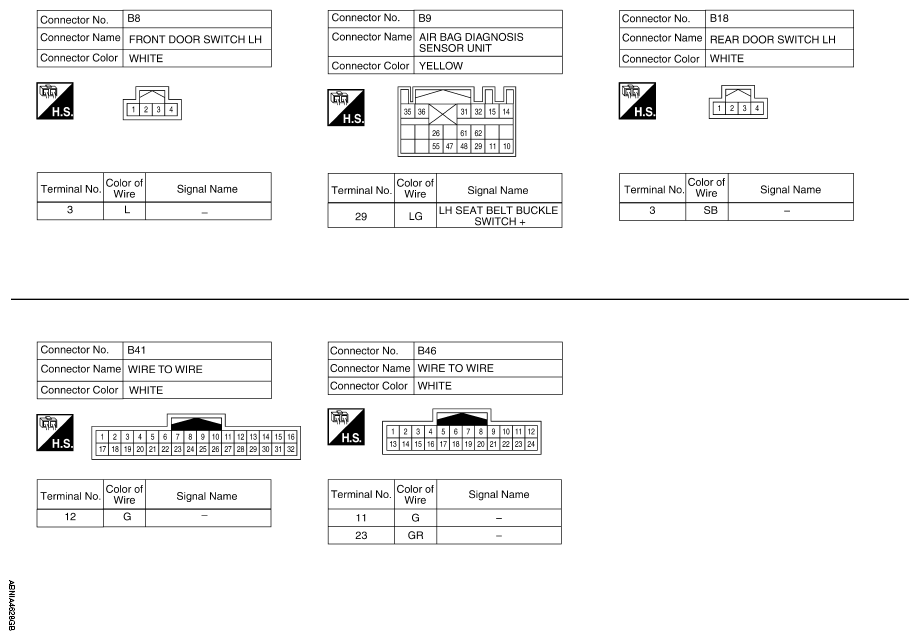

Fig 10: Meter - With Automatic Drive Positioner Connector End Views (10 Of 14)

G09427329

Courtesy of NISSAN NORTH AMERICA, INC.

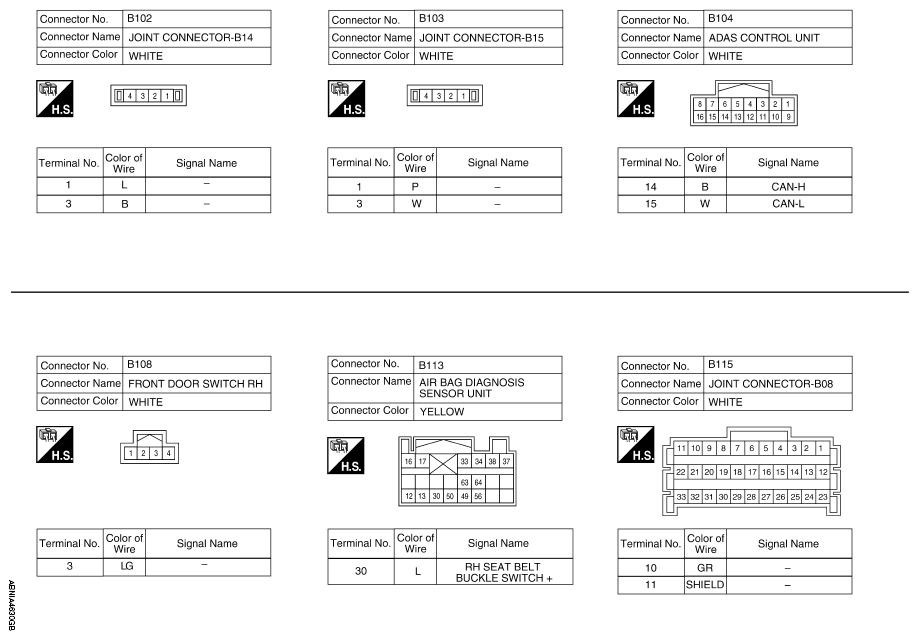

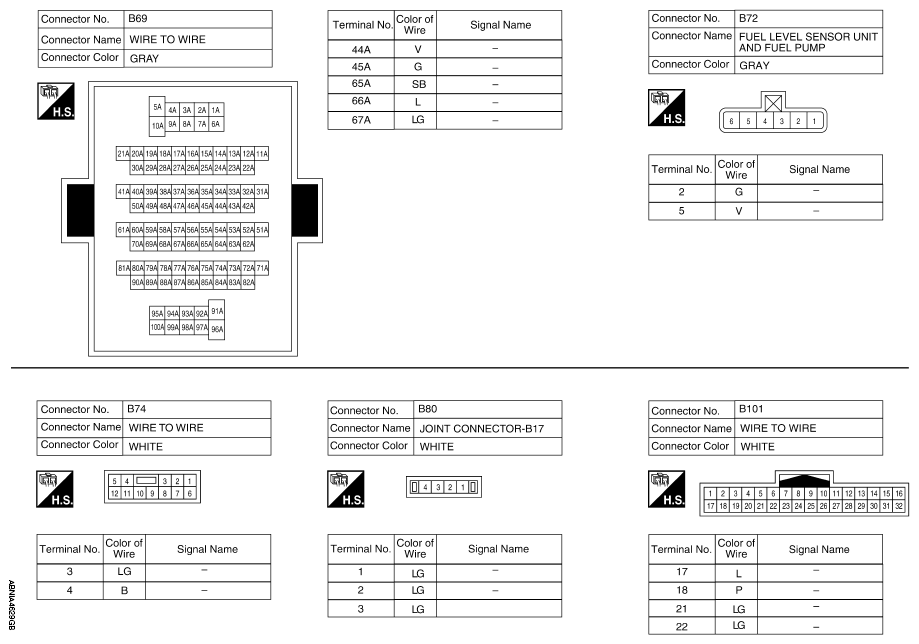

Fig 11: Meter - With Automatic Drive Positioner Connector End Views (11 Of 14)

G09427330

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Meter - With Automatic Drive Positioner Connector End Views (12 Of 14)

G09427331

Courtesy of NISSAN NORTH AMERICA, INC.

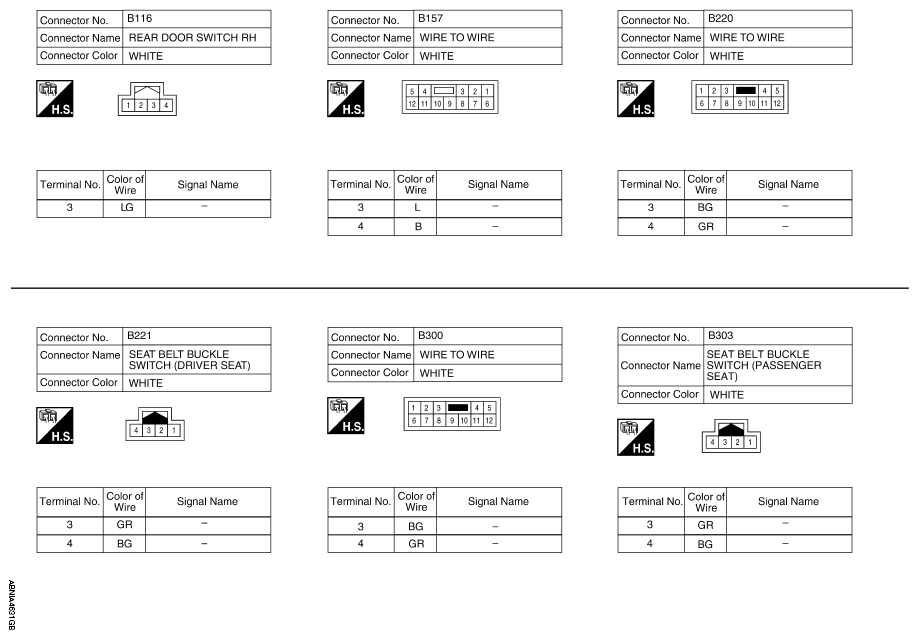

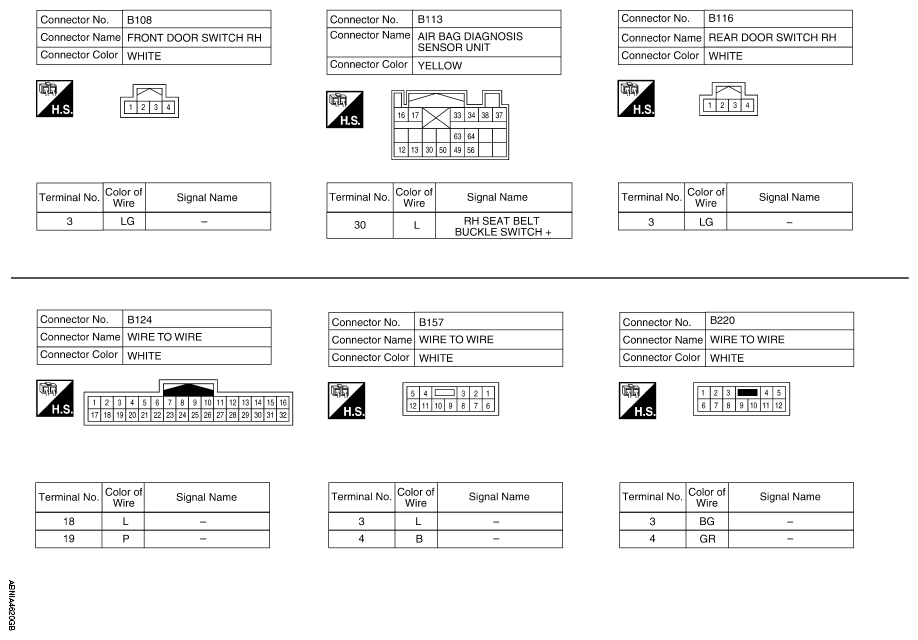

Fig 13: Meter - With Automatic Drive Positioner Connector End Views (13 Of 14)

G09427332

Courtesy of NISSAN NORTH AMERICA, INC.

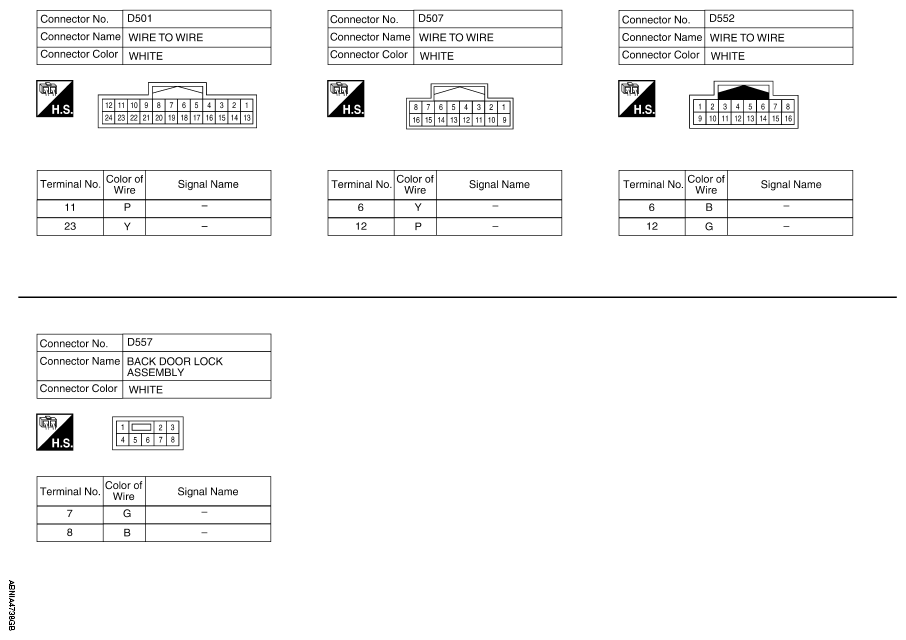

Fig 14: Meter - With Automatic Drive Positioner Connector End Views (14 Of 14)

G09427333

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 1: Meter - With Automatic Drive Positioner Connector End Views (1 Of 15)

G09427339

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Meter - With Automatic Drive Positioner Connector End Views (2 Of 15)

G09427340

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Meter - With Automatic Drive Positioner Connector End Views (3 Of 15)

G09427341

Courtesy of NISSAN NORTH AMERICA, INC.

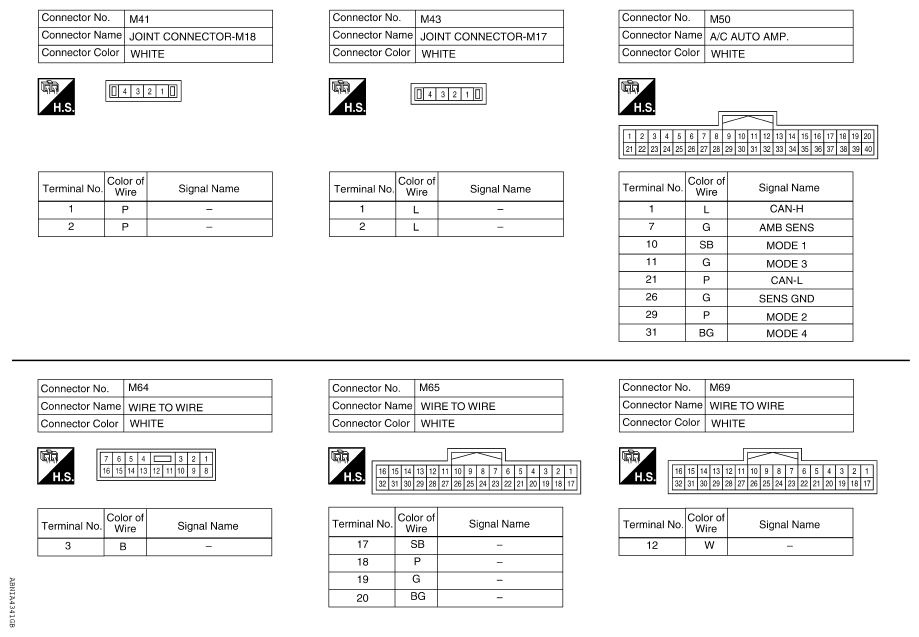

Fig 4: Meter - With Automatic Drive Positioner Connector End Views (4 Of 15)

G08852334

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Meter - With Automatic Drive Positioner Connector End Views (5 Of 15)

G09427343

Courtesy of NISSAN NORTH AMERICA, INC.

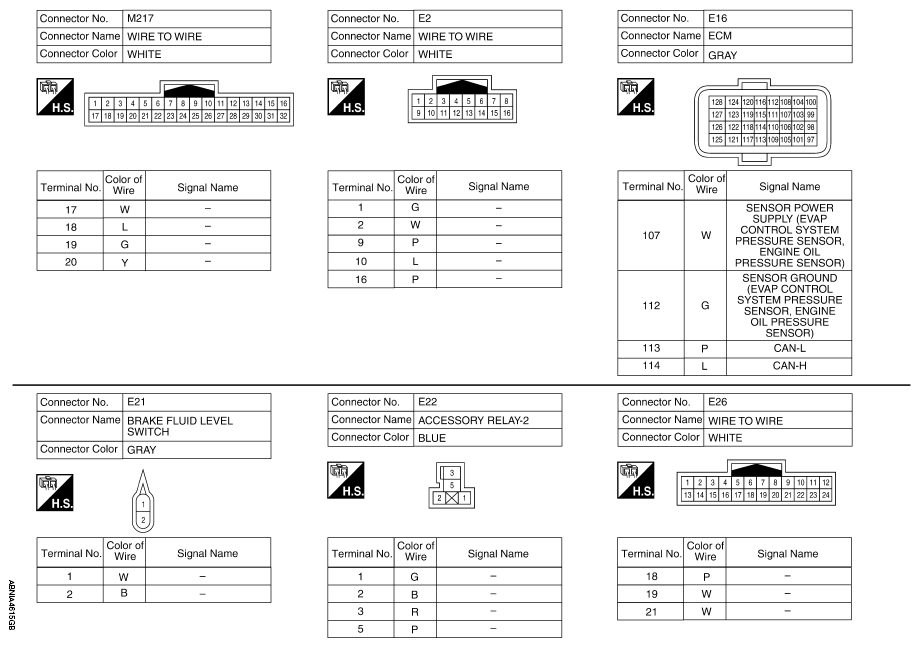

Fig 6: Meter - With Automatic Drive Positioner Connector End Views (6 Of 15)

G09427344

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Meter - With Automatic Drive Positioner Connector End Views (7 Of 15)

G09427345

Courtesy of NISSAN NORTH AMERICA, INC.

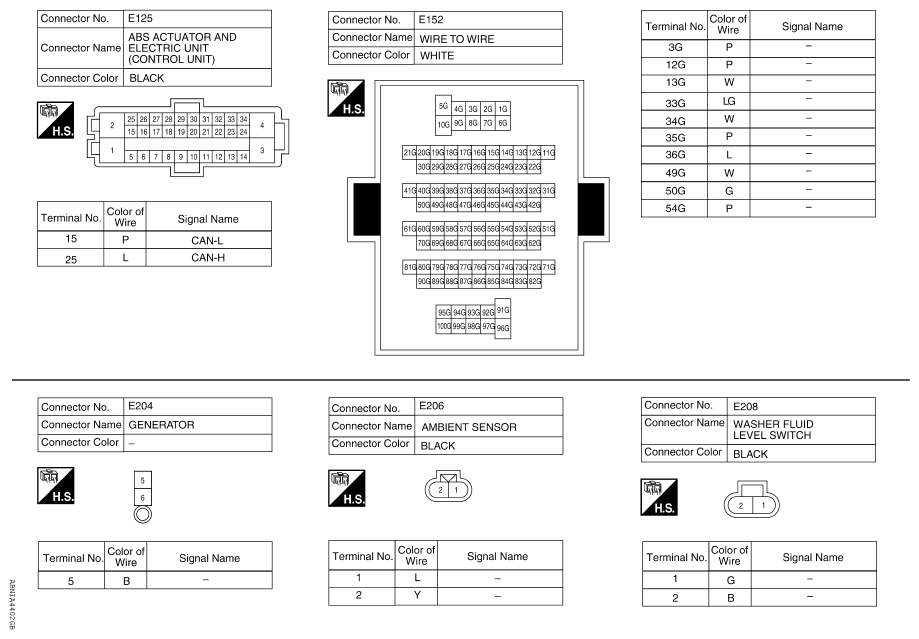

Fig 8: Meter - With Automatic Drive Positioner Connector End Views (8 Of 15)

G08852338

Courtesy of NISSAN NORTH AMERICA, INC.

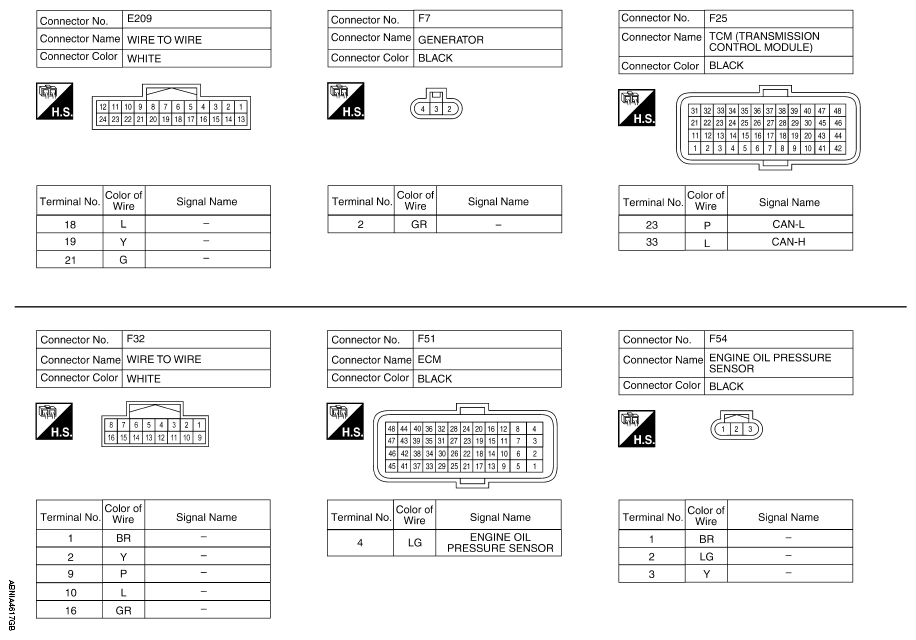

Fig 9: Meter - With Automatic Drive Positioner Connector End Views (9 Of 15)

G09427347

Courtesy of NISSAN NORTH AMERICA, INC.

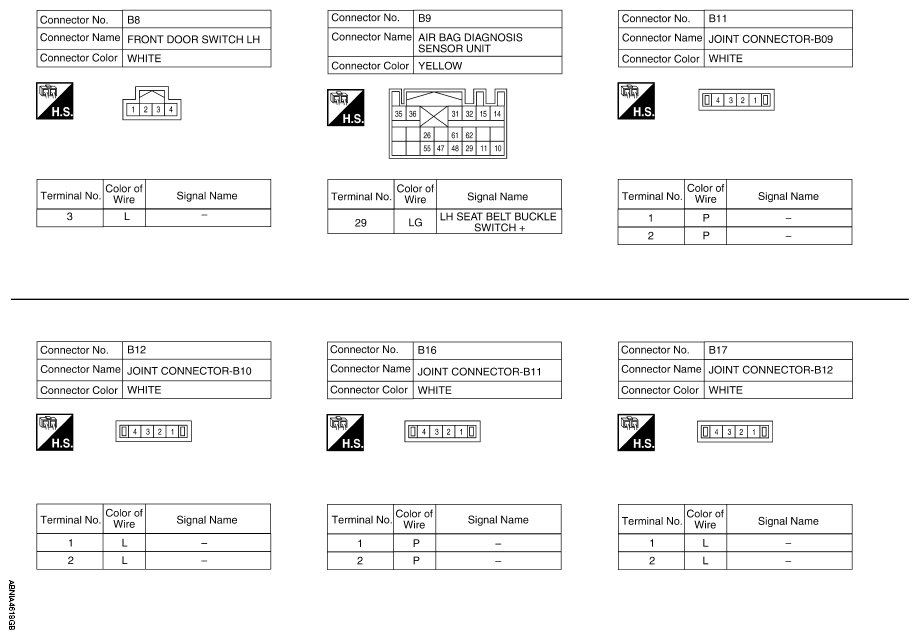

Fig 10: Meter - With Automatic Drive Positioner Connector End Views (10 Of 15)

G09427348

Courtesy of NISSAN NORTH AMERICA, INC.

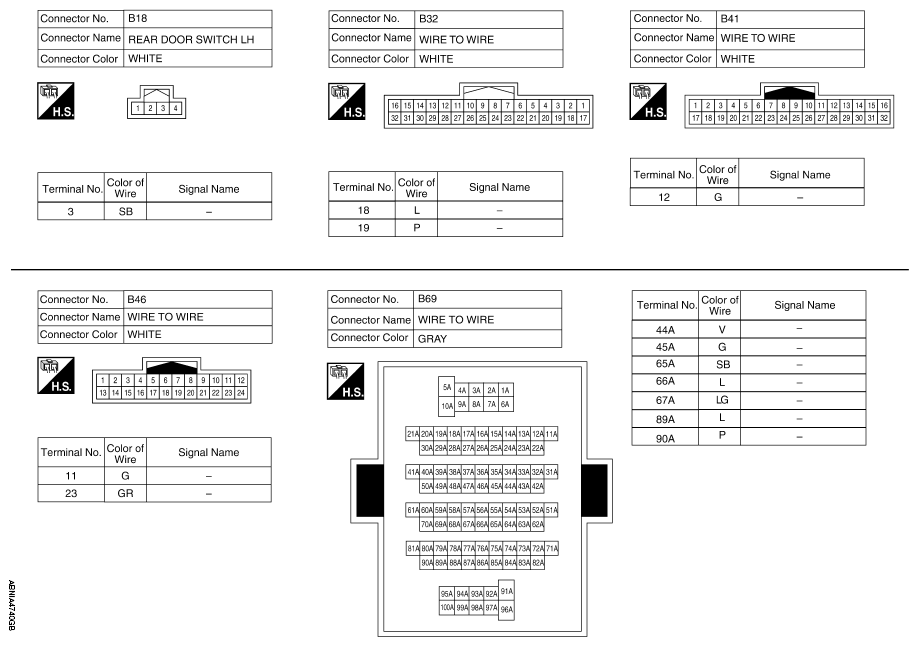

Fig 11: Meter - With Automatic Drive Positioner Connector End Views (11 Of 15)

G09427349

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Meter - With Automatic Drive Positioner Connector End Views (12 Of 15)

G09427350

Courtesy of NISSAN NORTH AMERICA, INC.

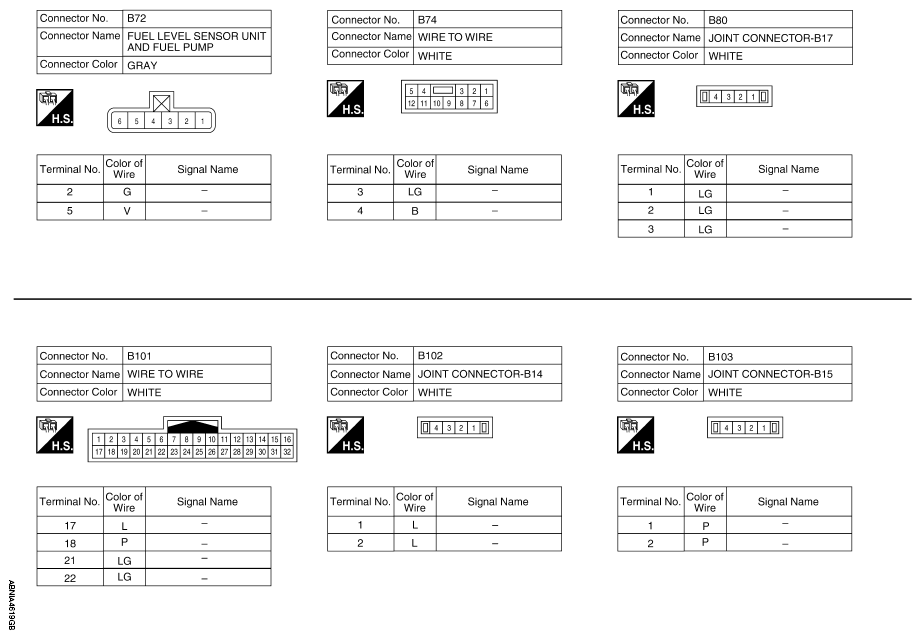

Fig 13: Meter - With Automatic Drive Positioner Connector End Views (13 Of 15)

G09427351

Courtesy of NISSAN NORTH AMERICA, INC.

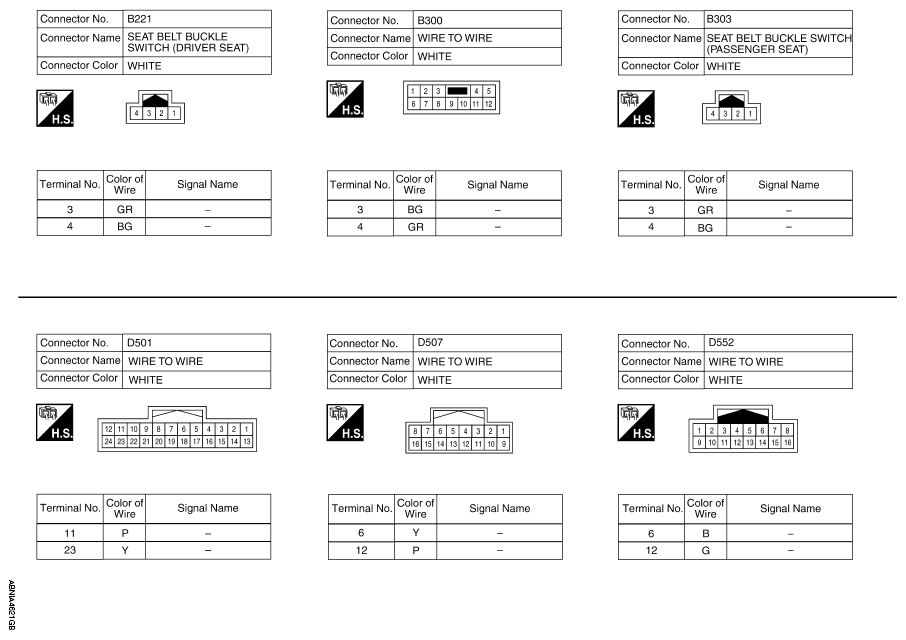

Fig 14: Meter - With Automatic Drive Positioner Connector End Views (14 Of 15)

G09427352

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Meter - With Automatic Drive Positioner Connector End Views (15 Of 15)

G08852345

Courtesy of NISSAN NORTH AMERICA, INC.
