METER SYSTEM: Arrangement of Combination Meter

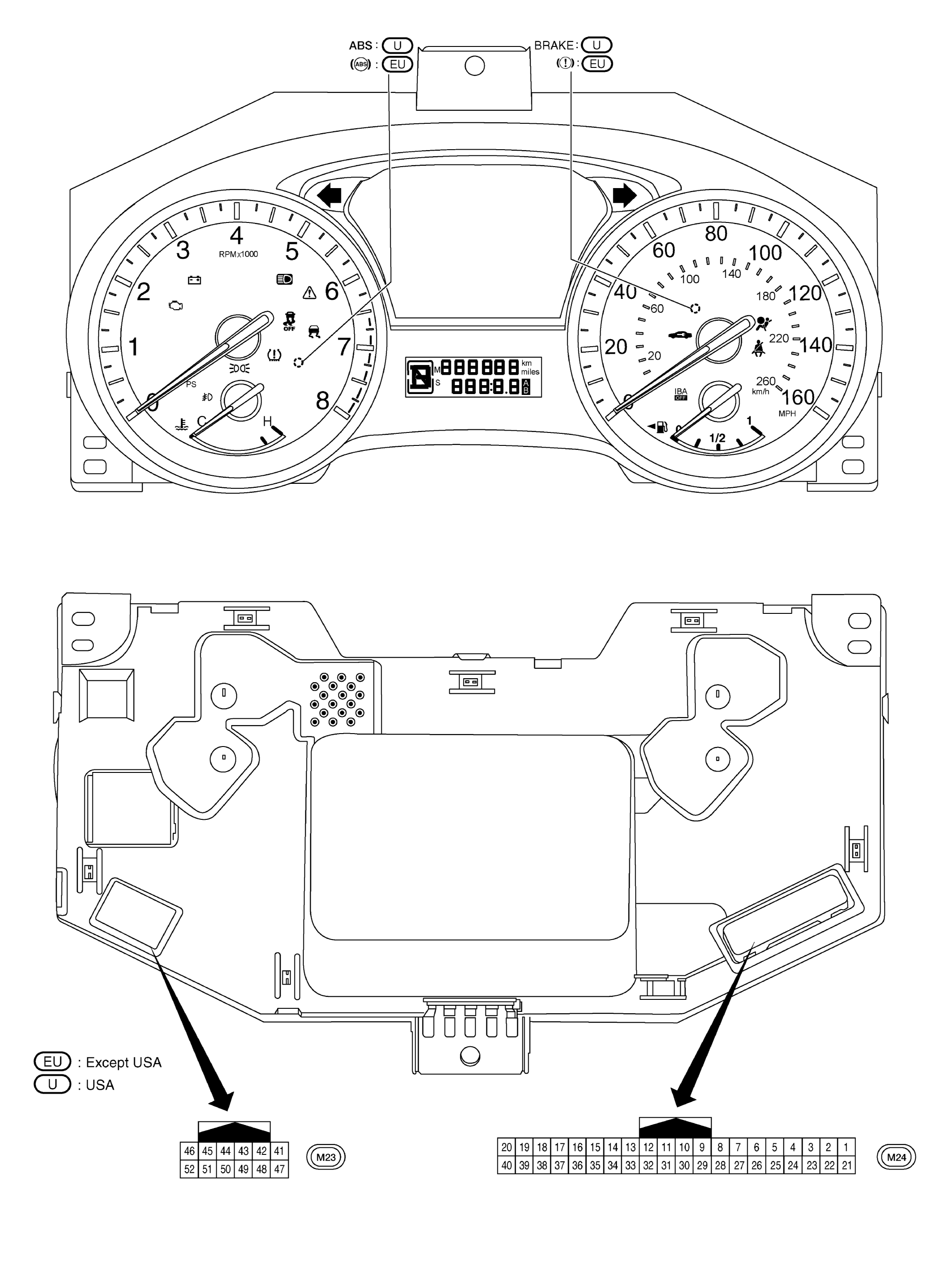

Fig 1: Combination Meter System Arrangement with Connector End Views

G09427302

Courtesy of NISSAN NORTH AMERICA, INC.
