Removal and Installation: Removal

Remove instrument side finisher (LH) (1) using a suitable tool.

Fig 1: Identifying Instrument Side Finisher LH
Courtesy of NISSAN NORTH AMERICA, INC.

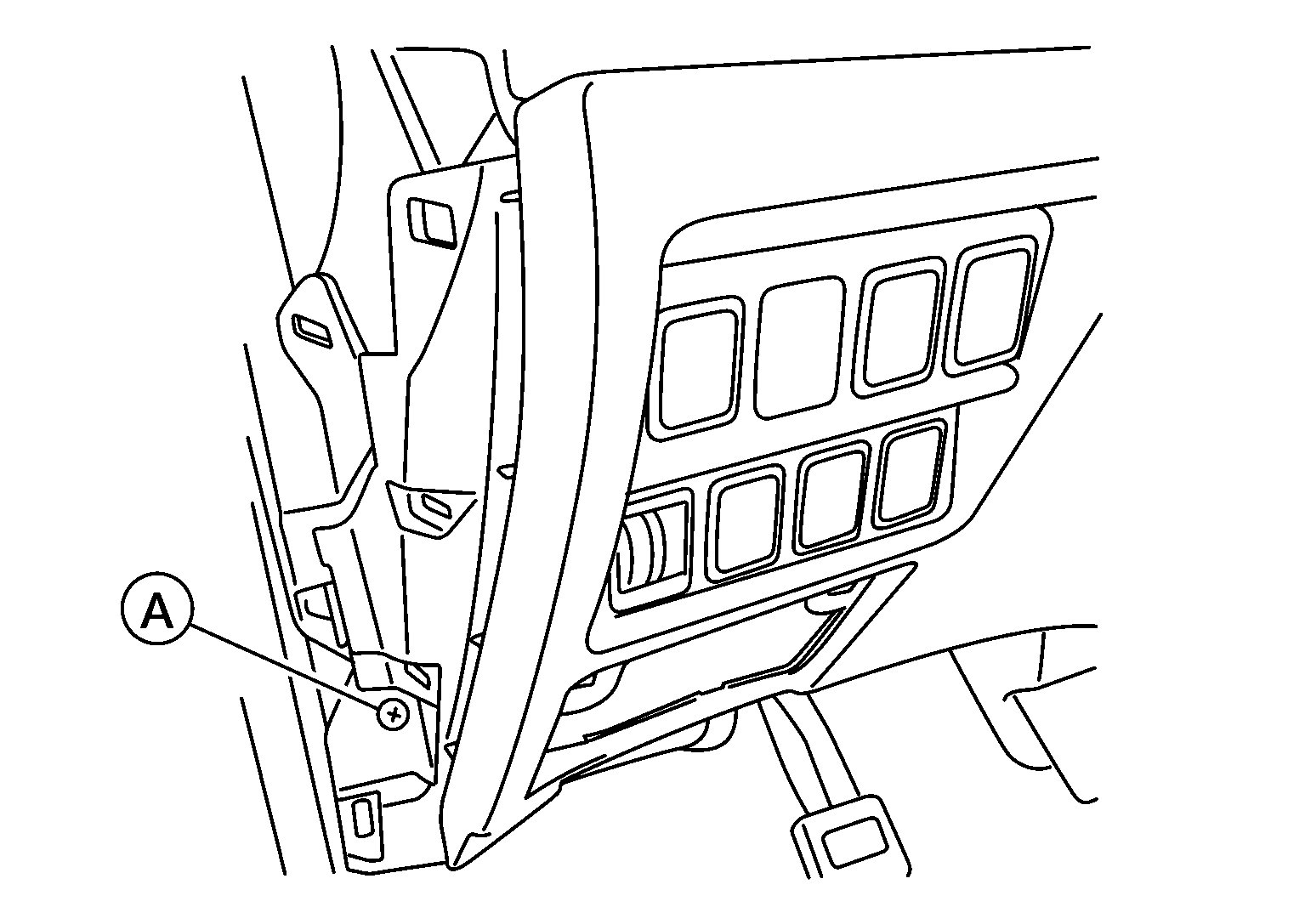

Remove instrument lower panel LH screw (A).

Fig 2: Identifying Instrument Lower Panel LH Screw
Courtesy of NISSAN NORTH AMERICA, INC.
Remove hood lock release handle from instrument lower panel LH. Refer to "EXPLODED VIEW ".
Remove data link connector from instrument lower panel LH.

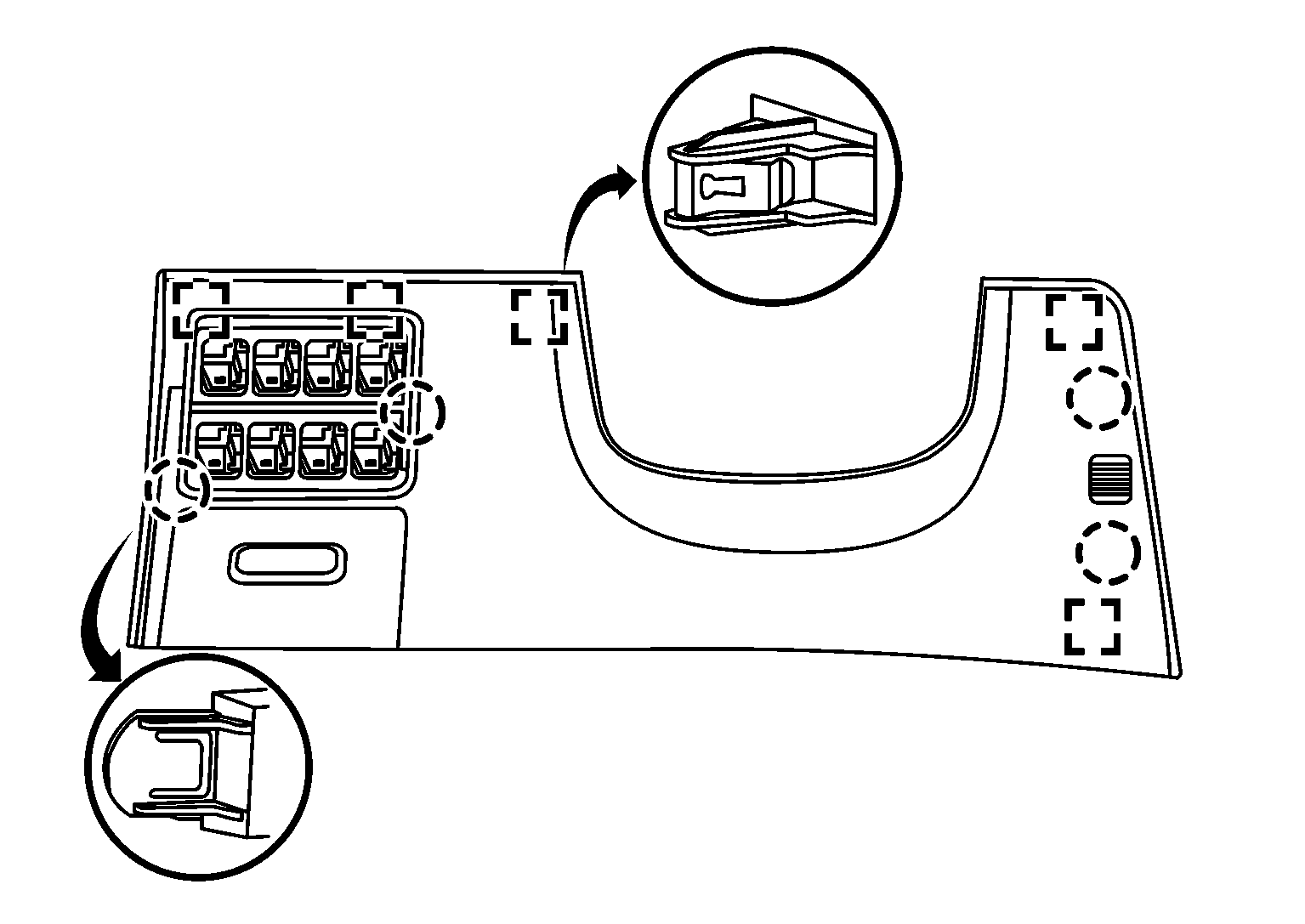

Release instrument lower panel LH clips and pawls using a suitable tool.

Fig 3: Identifying Instrument Lower Panel LH Clips And Pawls
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect aspirator hose from instrument lower panel LH.
Disconnect harness connectors and remove instrument lower panel LH.
