Removal and Installation: Removal

  1. Remove instrument side finisher (RH) using a suitable tool.
  2. Remove glove box assembly lower screws (A).
    Fig 1: Identifying Glove Box Assembly Lower Screws
    G09153050Courtesy of NISSAN NORTH AMERICA, INC.
  3. Open glove box lid, then remove the glove box assembly upper screws (A).

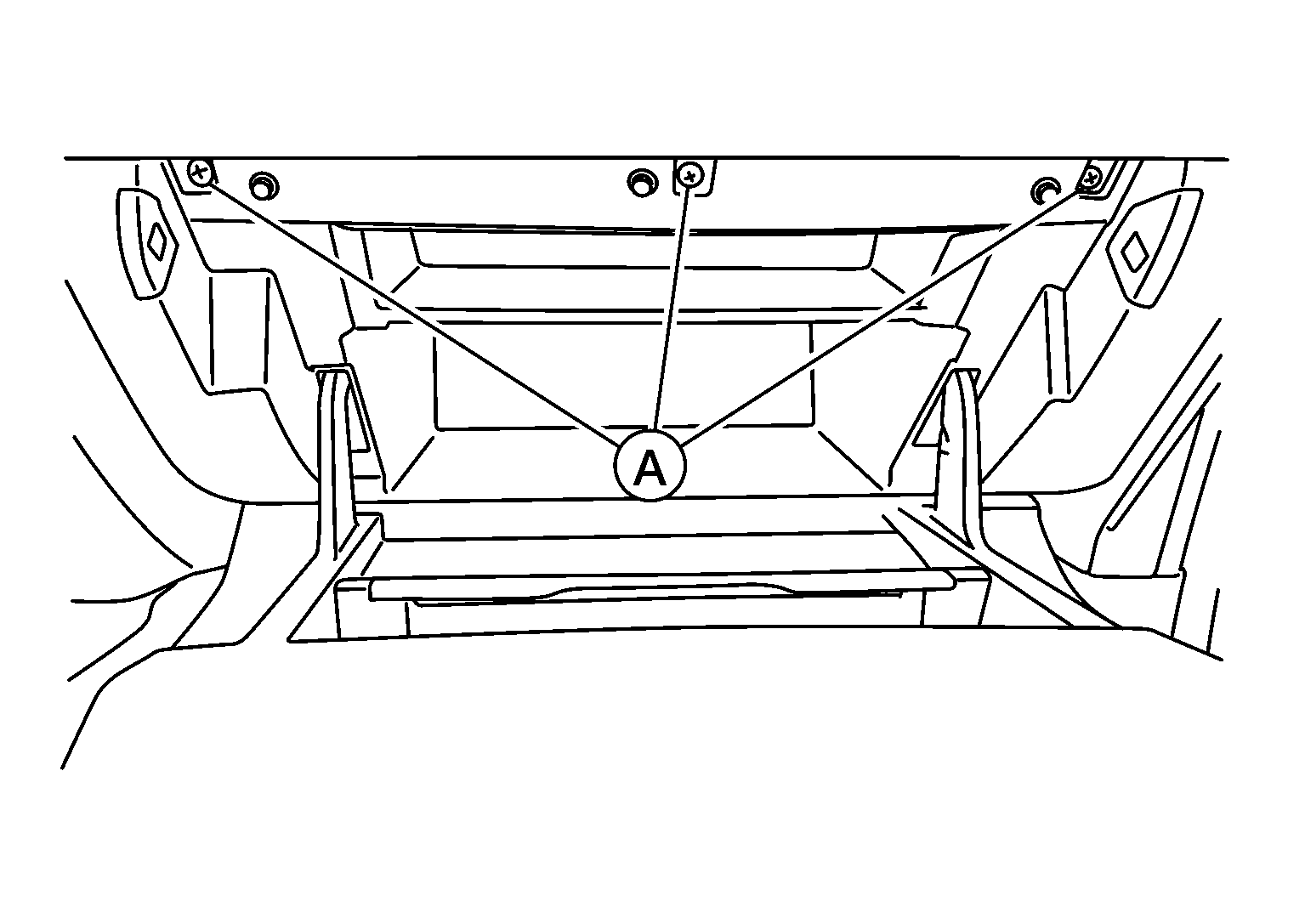

    Fig 2: Identifying Glove Box Assembly Upper Screws
    G09153051Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors from the glove box assembly and remove.
