Removal and Installation: Removal

  1. Remove cluster lid C upper. Refer to "CLUSTER LID C UPPER: REMOVAL AND INSTALLATION ".
  2. Remove cluster lid D screw (A).
  3. Release cluster lid D clips and pawls using a suitable tool and remove.

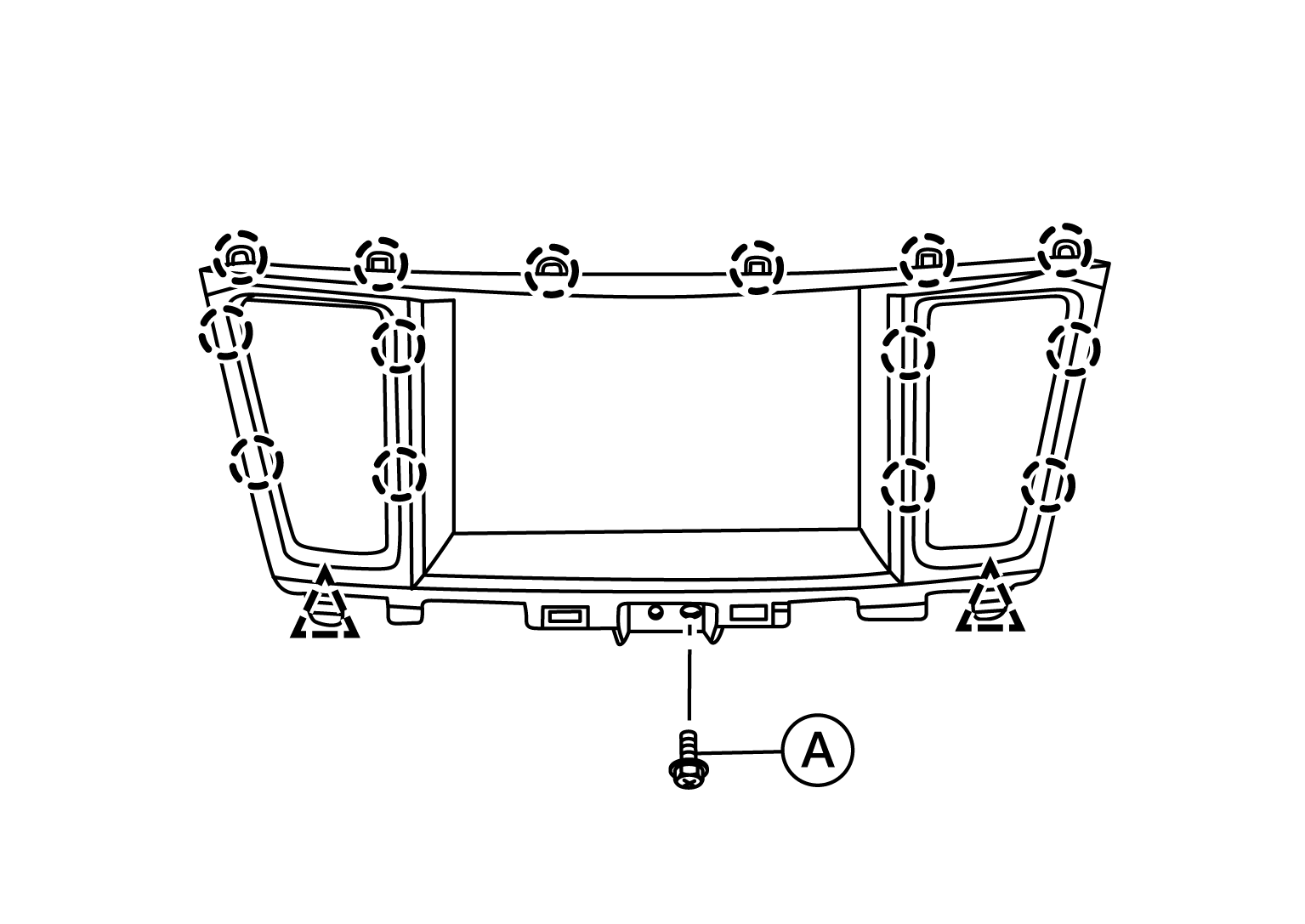

    Fig 1: Identifying Cluster Lid D Screw
    G09425941Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove center ventilator grille (LH/RH) from cluster lid D (if necessary). Refer to "CENTER VENTILATOR GRILLE: REMOVAL AND INSTALLATION ".
