Removal and Installation: Removal

CAUTION: Be careful not to scratch center console finishers and other parts.
  1. Release center console side finisher (LH/RH) clip and pawls using a suitable tool and remove.
    Fig 1: Identifying Center Console Side Finisher LH/RH Clip And Pawls
    G09425931Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove front console mat from front console tray.
  3. Remove front console tray screw (A).

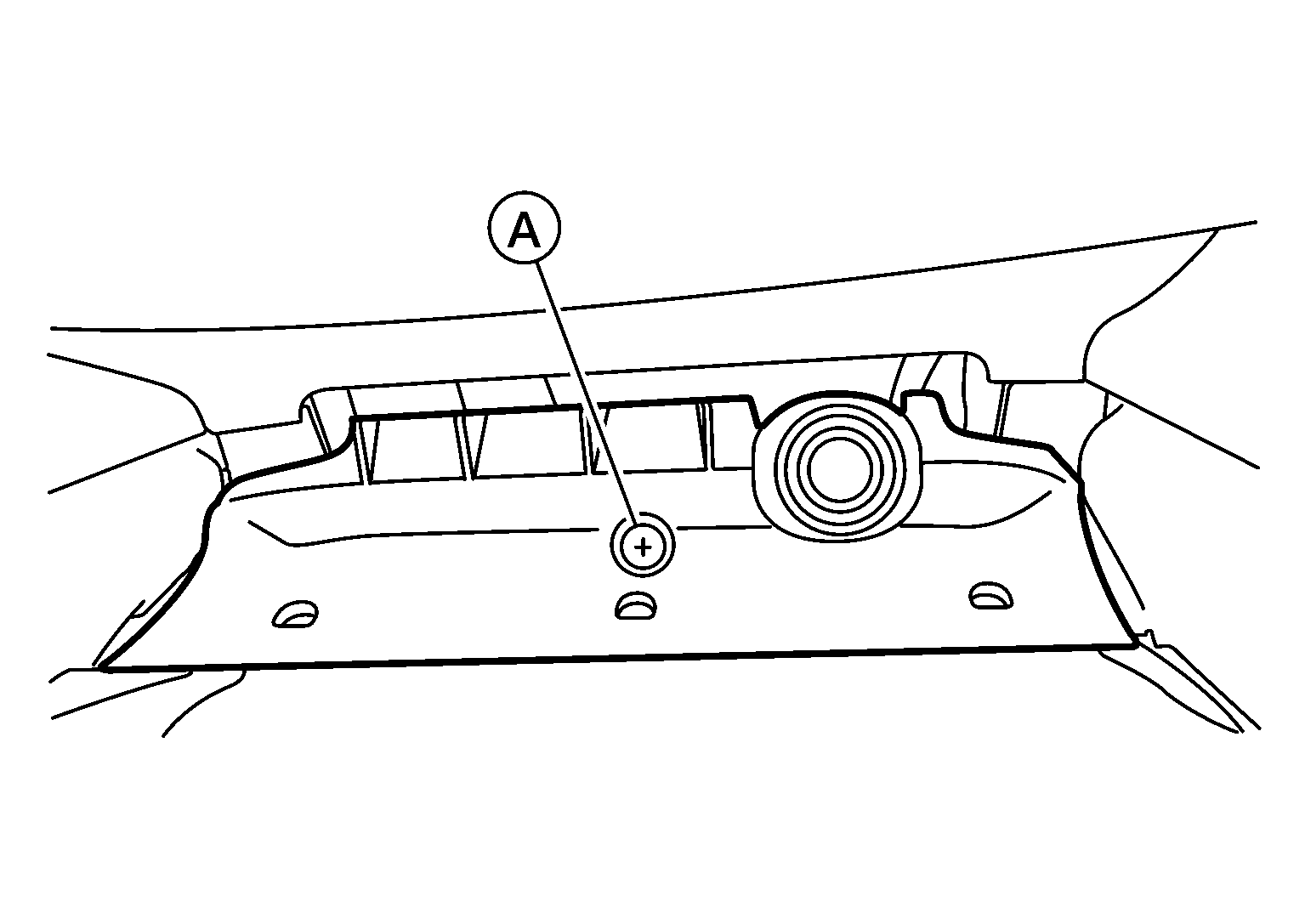

    Fig 2: Identifying Front Console Tray Screw
    G09425932Courtesy of NISSAN NORTH AMERICA, INC.
  4. Release front console tray clips using a suitable tool, disconnect the harness connector and remove.
  5. Remove shift selector handle. Refer to "EXPLODED VIEW ".
  6. Release shift selector finisher clips and pawls using a suitable tool, disconnect the harness connectors and remove.
  7. Release center console rear brace finisher (1) pawls using a suitable tool and remove.
    NOTE: Center console bin lid removed for clarity.

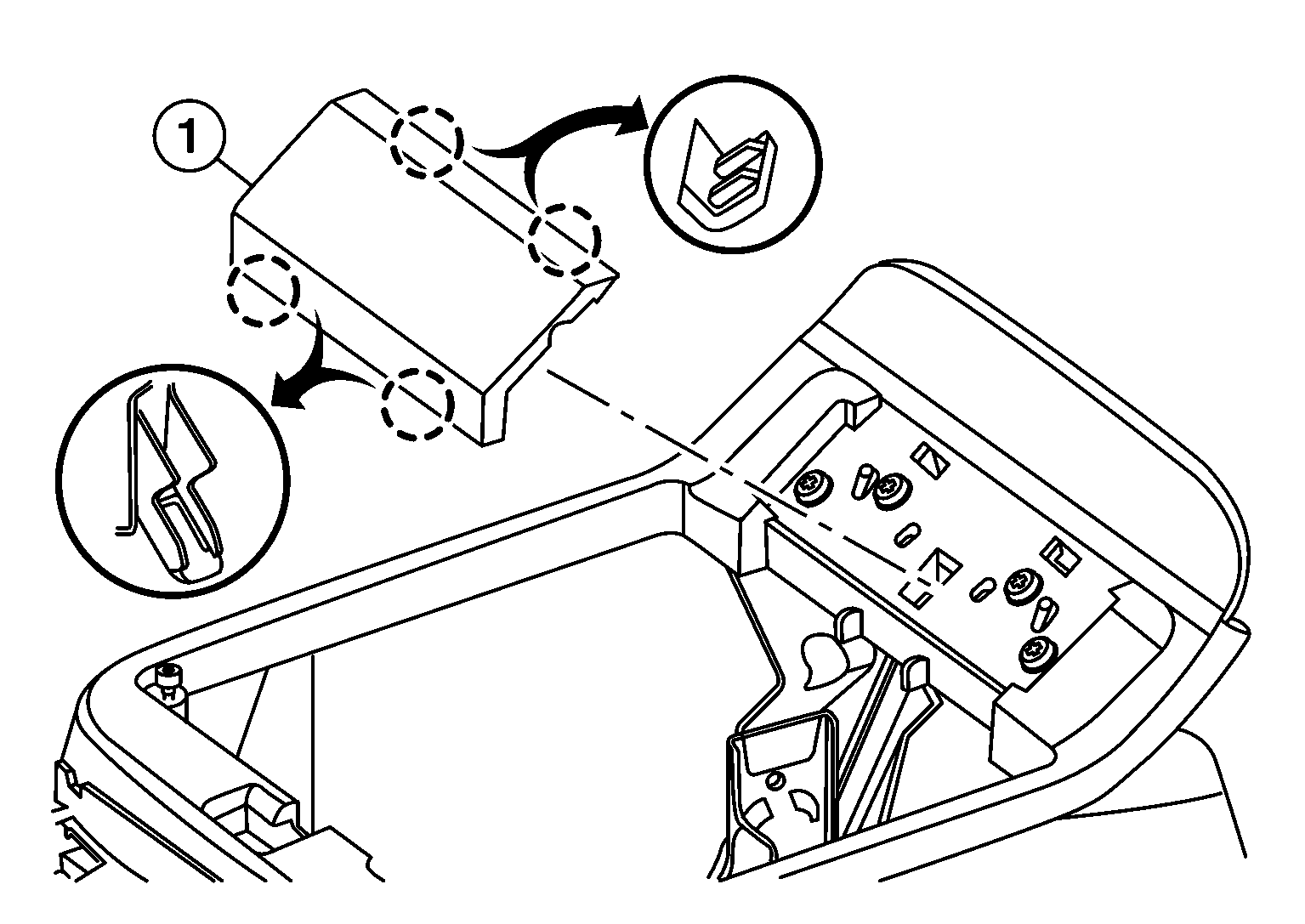

    Fig 3: Identifying Center Console Rear Brace Finisher Pawls
    G09425933Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove center console rear finisher screws (A).

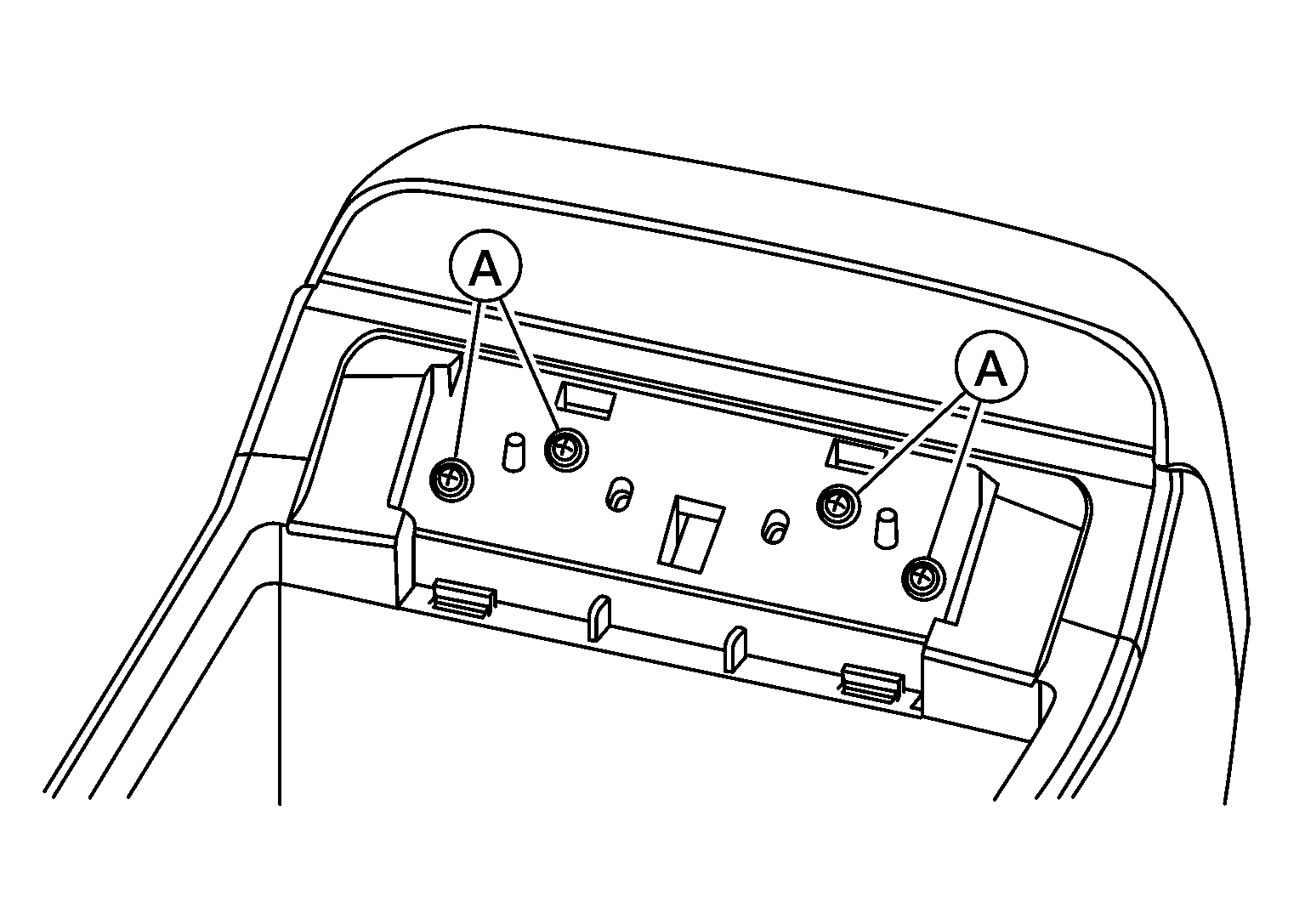

    Fig 4: Identifying Center Console Rear Finisher Screws
    G08945928Courtesy of NISSAN NORTH AMERICA, INC.
  9. Release center console rear finisher clips using a suitable tool, disconnect the harness connectors and remove.
    Fig 5: Identifying Center Console Rear Finisher Clips
    G09425935Courtesy of NISSAN NORTH AMERICA, INC.
  10. Remove center console assembly screws.
  11. Disconnect the harness connectors from the center console assembly and remove.
