Descriptions for Clips

Replace any clips which are damaged during removal or installation.

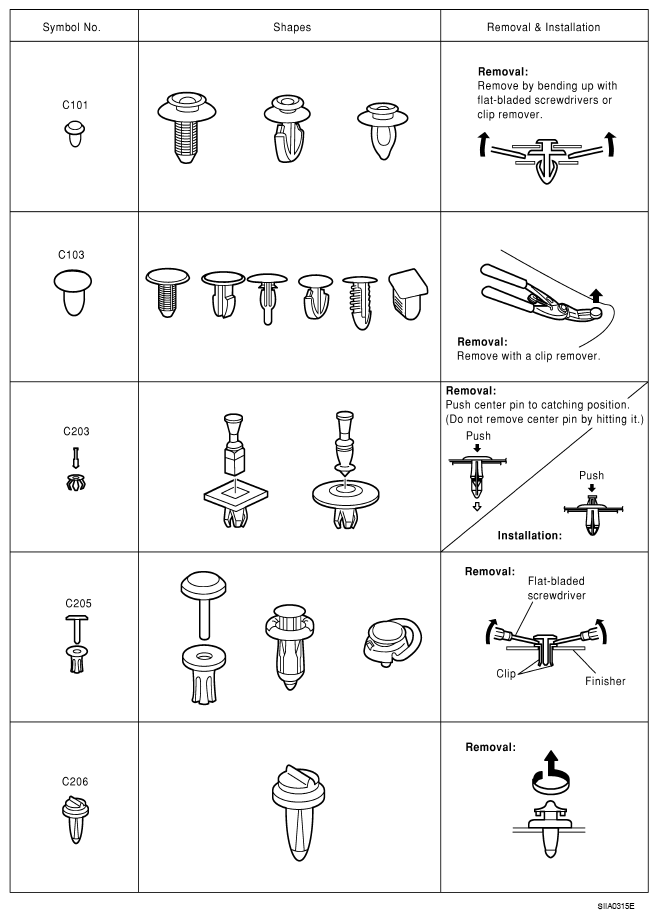

Fig 1: Clip Removal And Installation List (1 Of 4)
G08168563Courtesy of NISSAN NORTH AMERICA, INC.

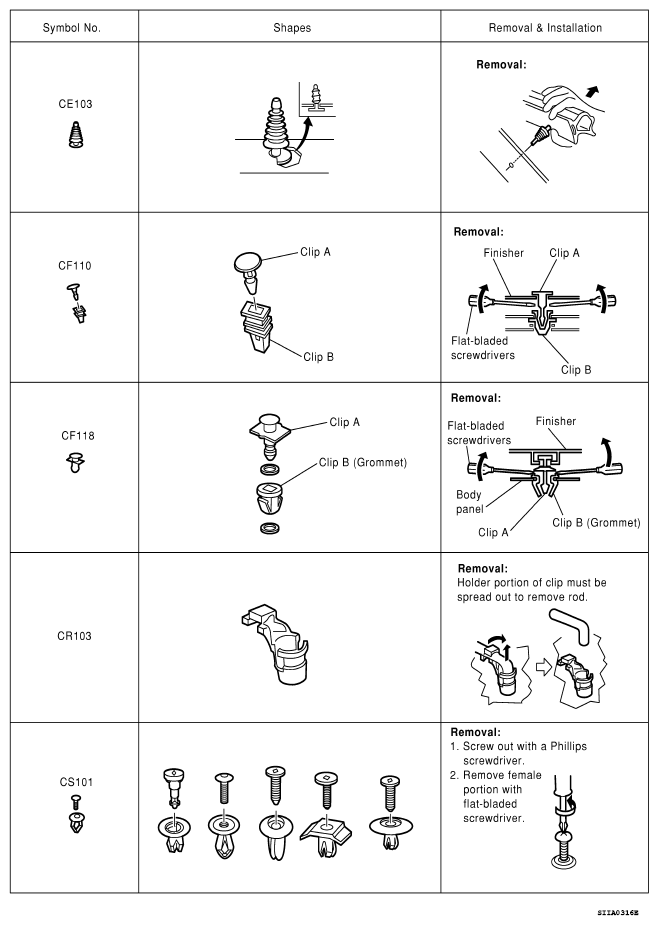

Fig 2: Clip Removal And Installation List (2 Of 4)
G08984509Courtesy of NISSAN NORTH AMERICA, INC.

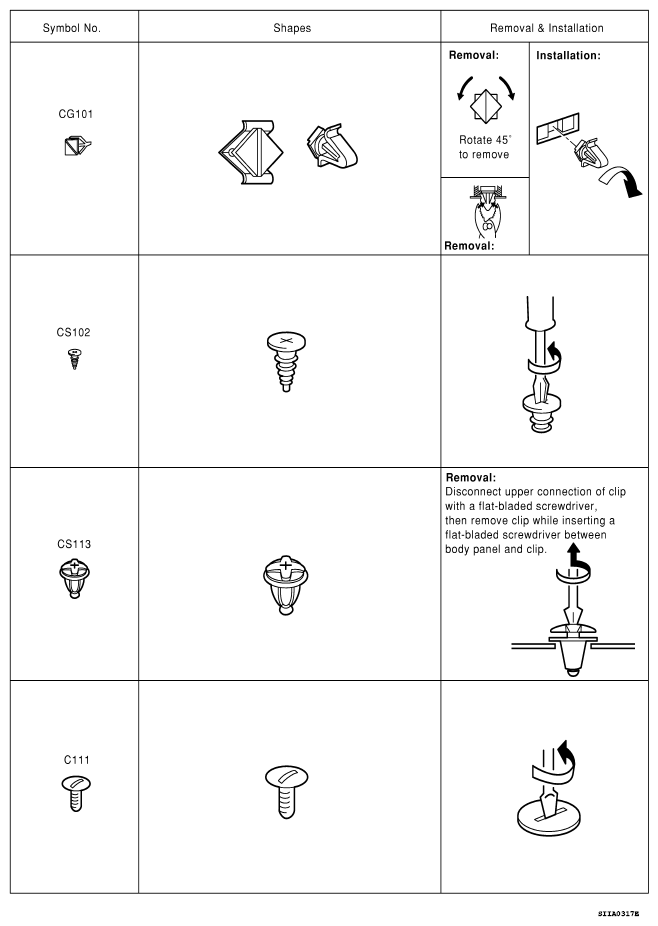

Fig 3: Clip Removal And Installation List (3 Of 4)
G08984510Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Clip Removal And Installation List (4 Of 4)
G06986957Courtesy of NISSAN NORTH AMERICA, INC.
