Wiring Diagram - IGNITION POWER SUPPLY

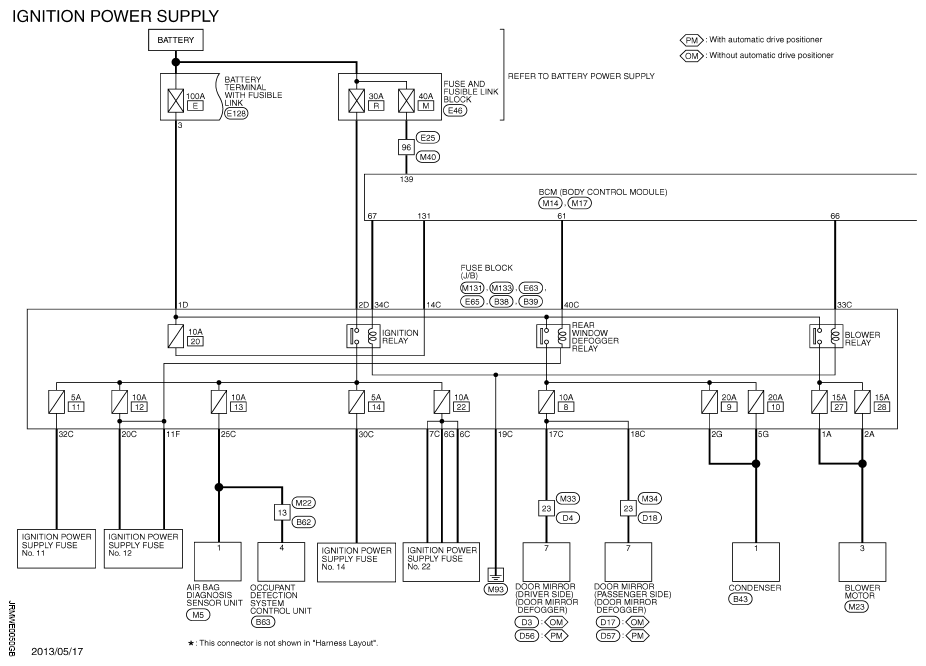

Fig 1: Ignition Power Supply Wiring Diagram (1 Of 3)

G09161219

Courtesy of NISSAN NORTH AMERICA, INC.

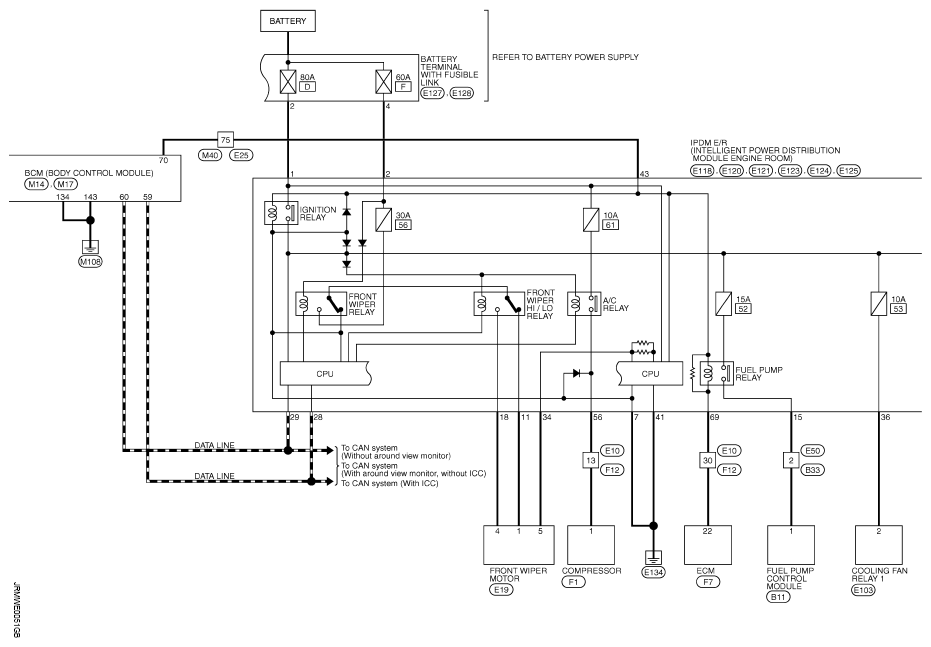

Fig 2: Ignition Power Supply Wiring Diagram (2 Of 3)

G09161220

Courtesy of NISSAN NORTH AMERICA, INC.

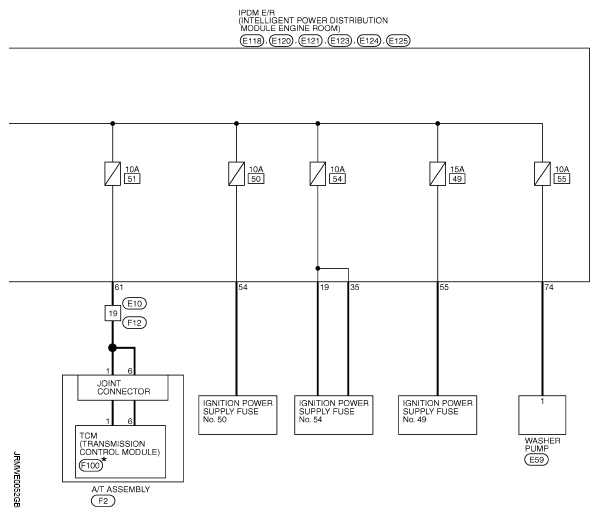

Fig 3: Ignition Power Supply Wiring Diagram (3 Of 3)

G09161221

Courtesy of NISSAN NORTH AMERICA, INC.

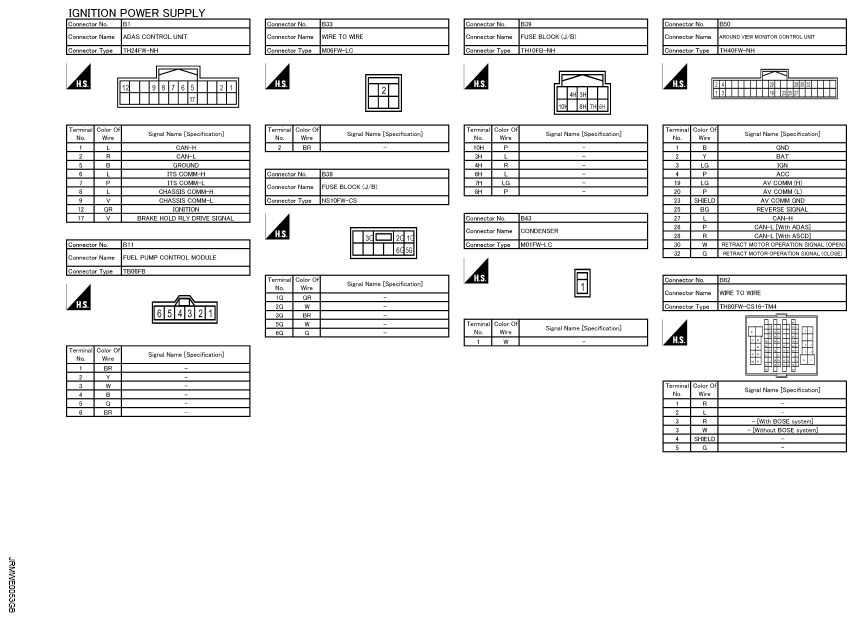

Fig 4: Ignition Power Supply Connector End Views (1 Of 17)

G09161222

Courtesy of NISSAN NORTH AMERICA, INC.

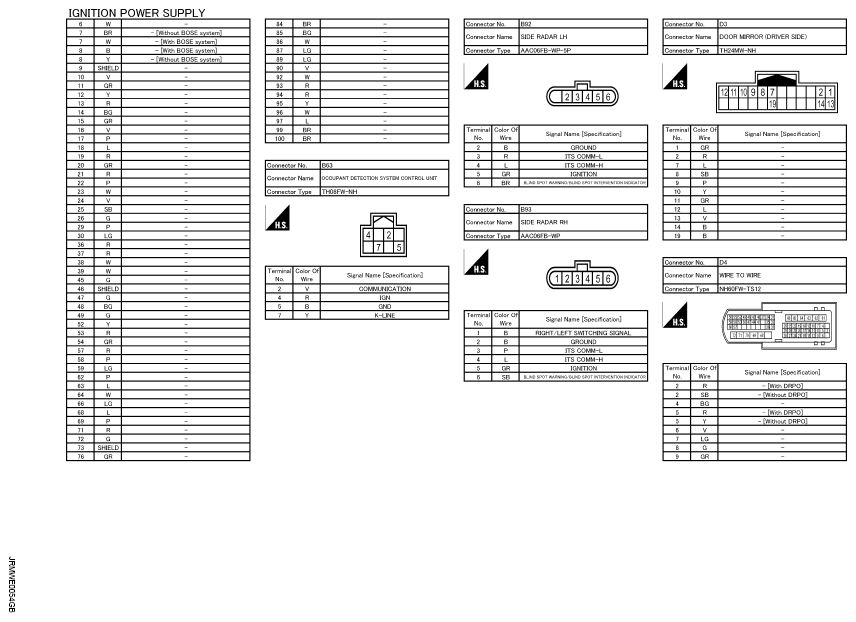

Fig 5: Ignition Power Supply Connector End Views (2 Of 17)

G09161223

Courtesy of NISSAN NORTH AMERICA, INC.

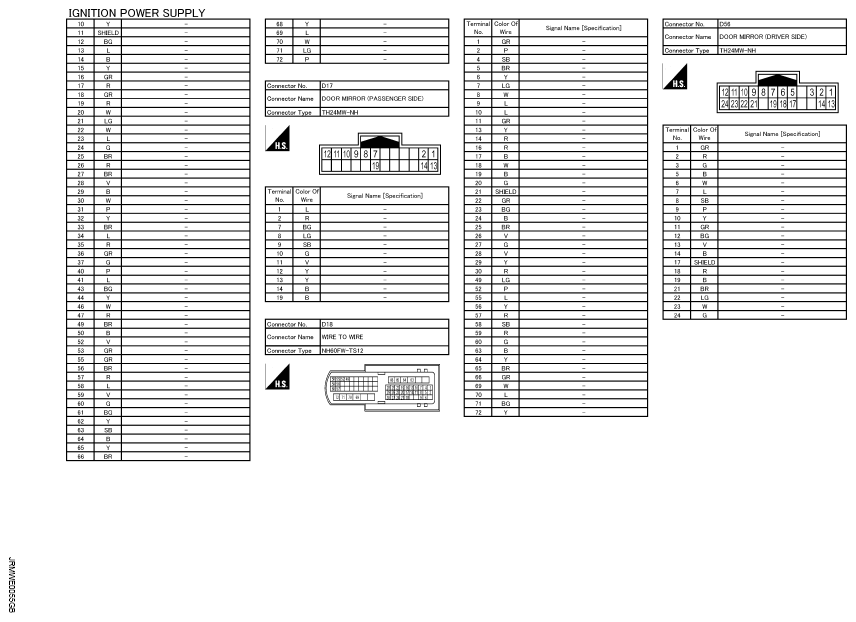

Fig 6: Ignition Power Supply Connector End Views (3 Of 17)

G09161224

Courtesy of NISSAN NORTH AMERICA, INC.

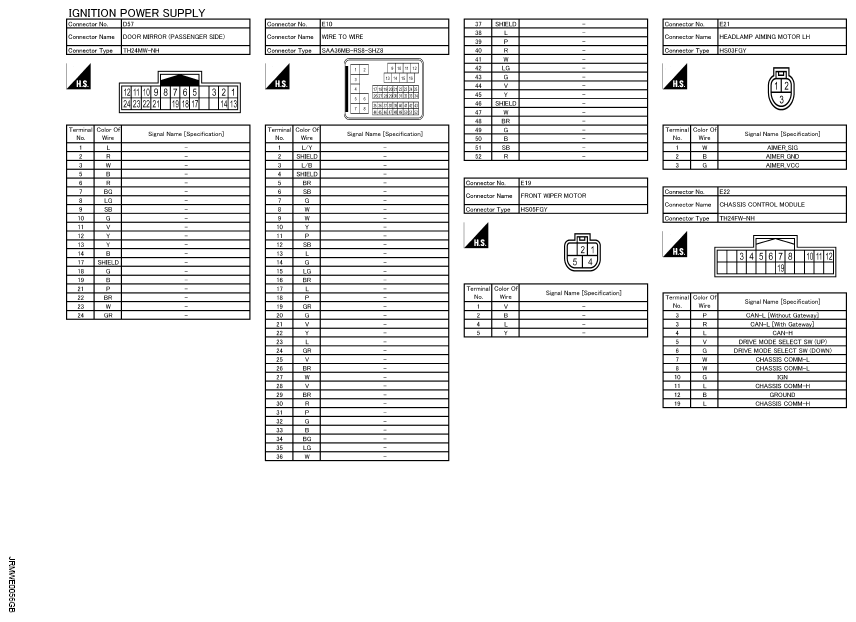

Fig 7: Ignition Power Supply Connector End Views (4 Of 17)

G09161225

Courtesy of NISSAN NORTH AMERICA, INC.

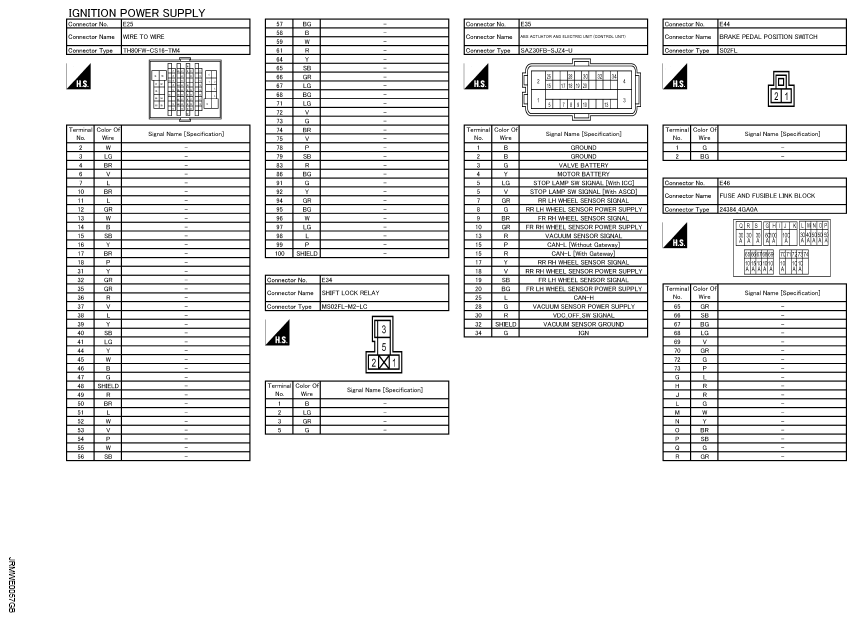

Fig 8: Ignition Power Supply Connector End Views (5 Of 17)

G09161226

Courtesy of NISSAN NORTH AMERICA, INC.

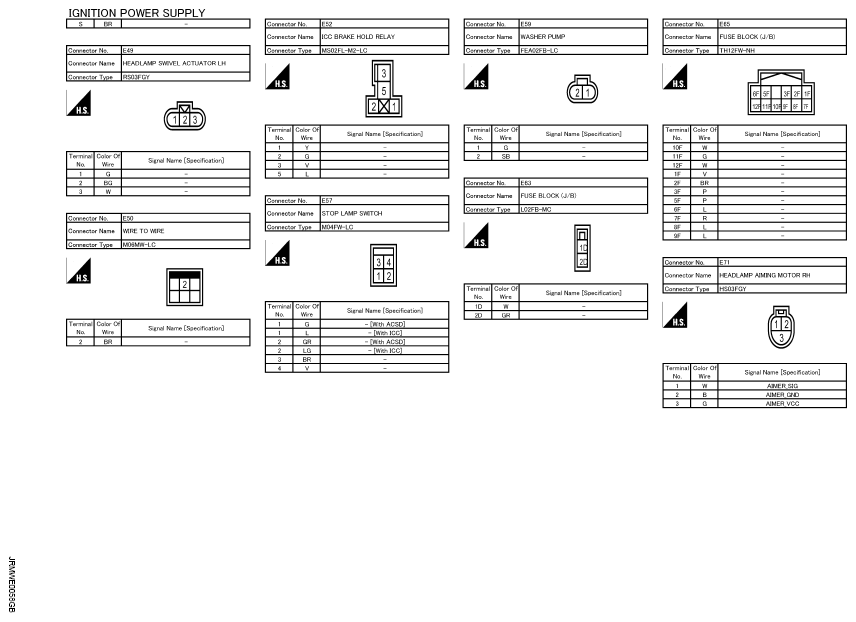

Fig 9: Ignition Power Supply Connector End Views (6 Of 17)

G09161227

Courtesy of NISSAN NORTH AMERICA, INC.

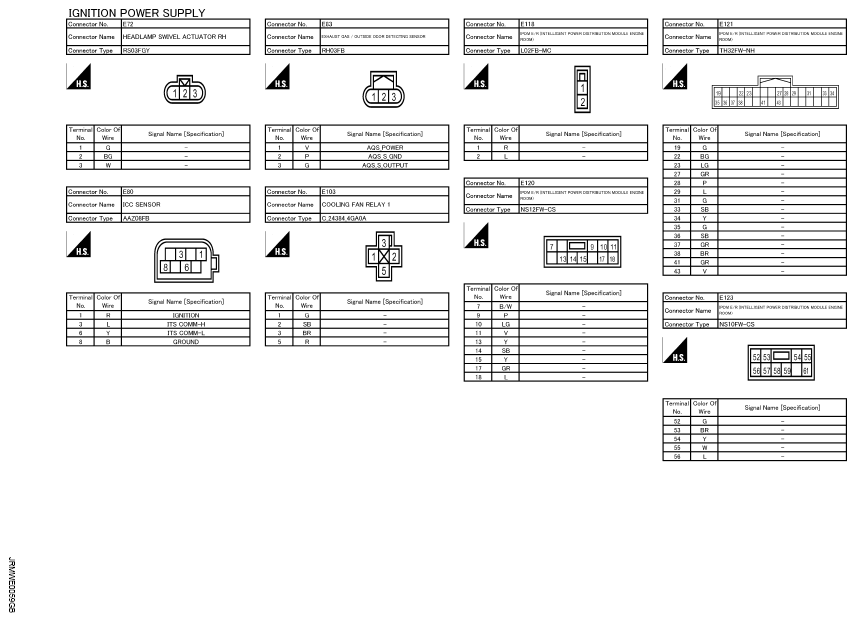

Fig 10: Ignition Power Supply Connector End Views (7 Of 17)

G09161228

Courtesy of NISSAN NORTH AMERICA, INC.

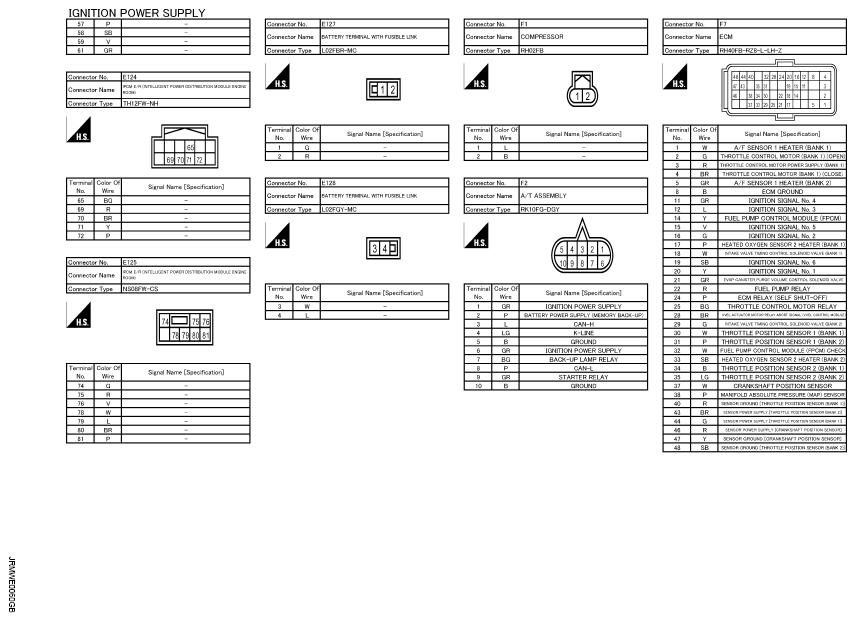

Fig 11: Ignition Power Supply Connector End Views (8 Of 17)

G09161229

Courtesy of NISSAN NORTH AMERICA, INC.

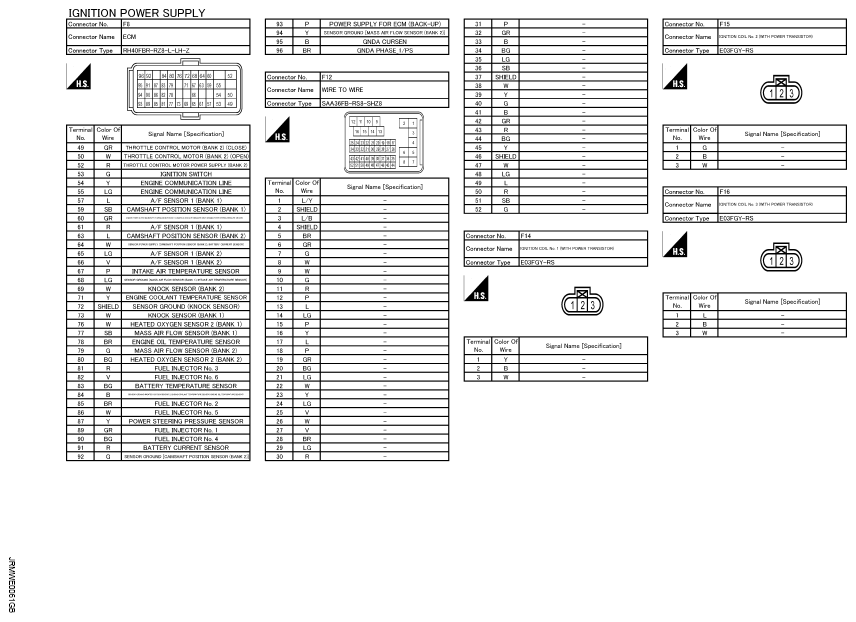

Fig 12: Ignition Power Supply Connector End Views (9 Of 17)

G09161230

Courtesy of NISSAN NORTH AMERICA, INC.

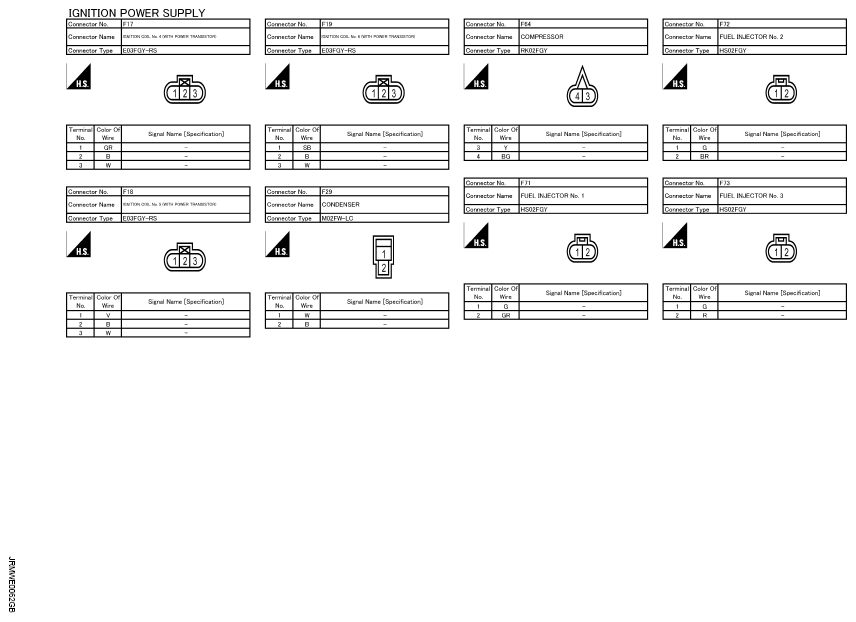

Fig 13: Ignition Power Supply Connector End Views (10 Of 17)

G09161231

Courtesy of NISSAN NORTH AMERICA, INC.

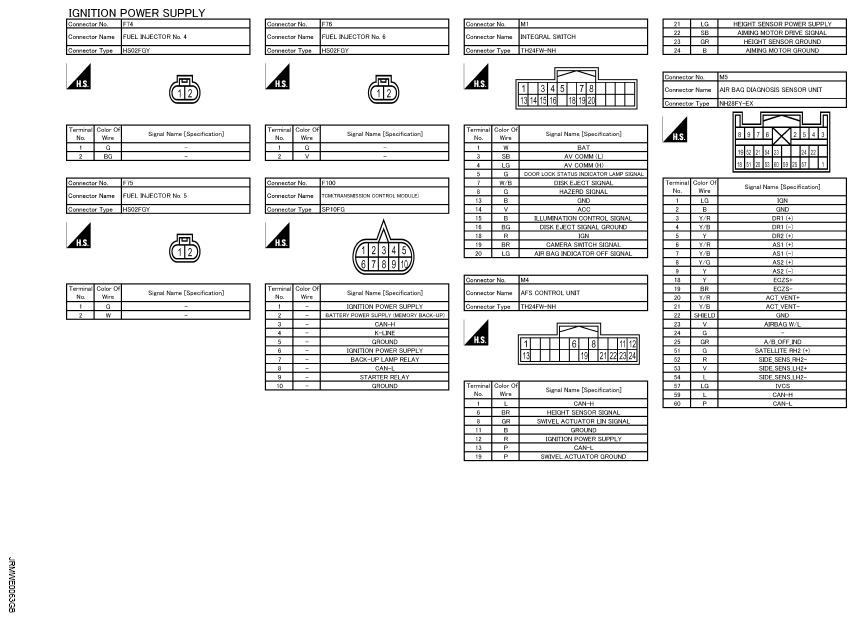

Fig 14: Ignition Power Supply Connector End Views (11 Of 17)

G09161232

Courtesy of NISSAN NORTH AMERICA, INC.

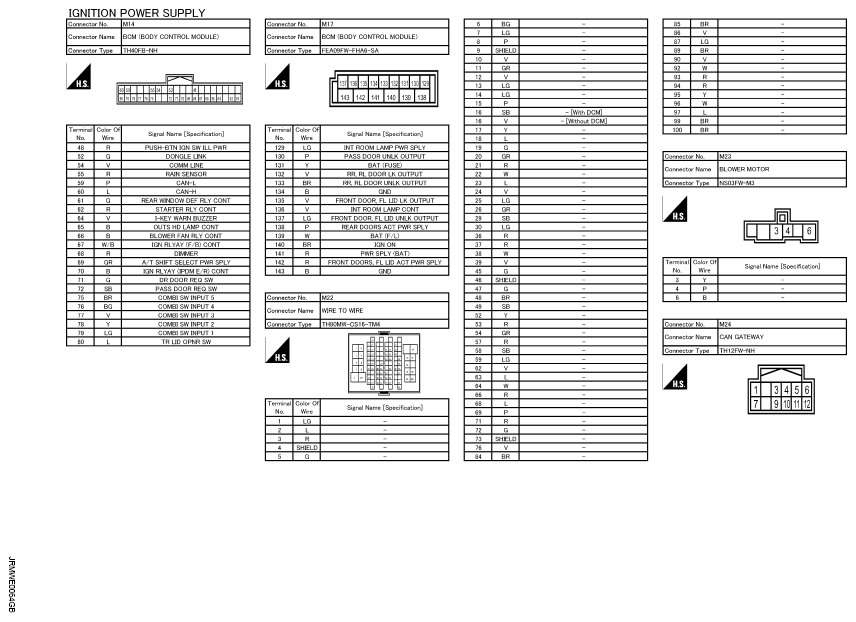

Fig 15: Ignition Power Supply Connector End Views (12 Of 17)

G09161233

Courtesy of NISSAN NORTH AMERICA, INC.

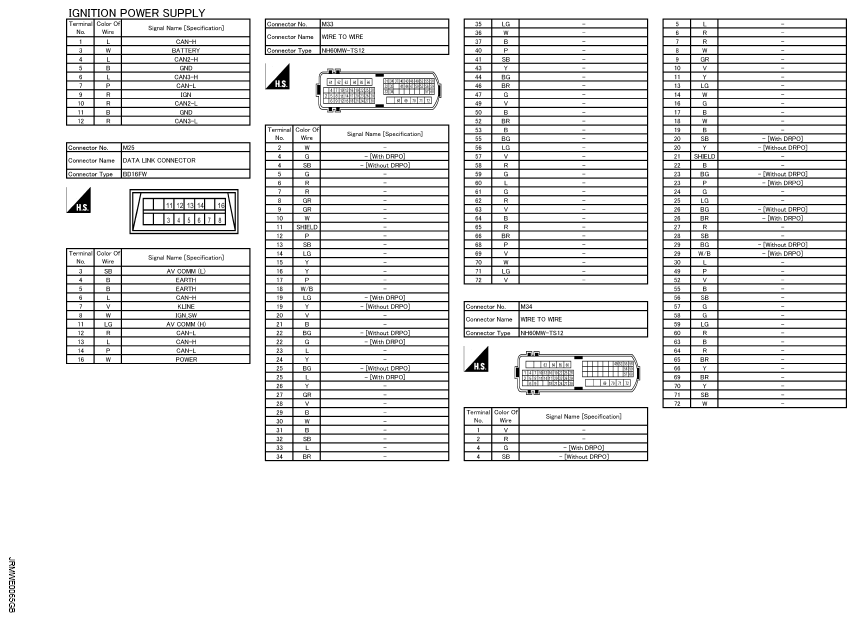

Fig 16: Ignition Power Supply Connector End Views (13 Of 17)

G09161234

Courtesy of NISSAN NORTH AMERICA, INC.

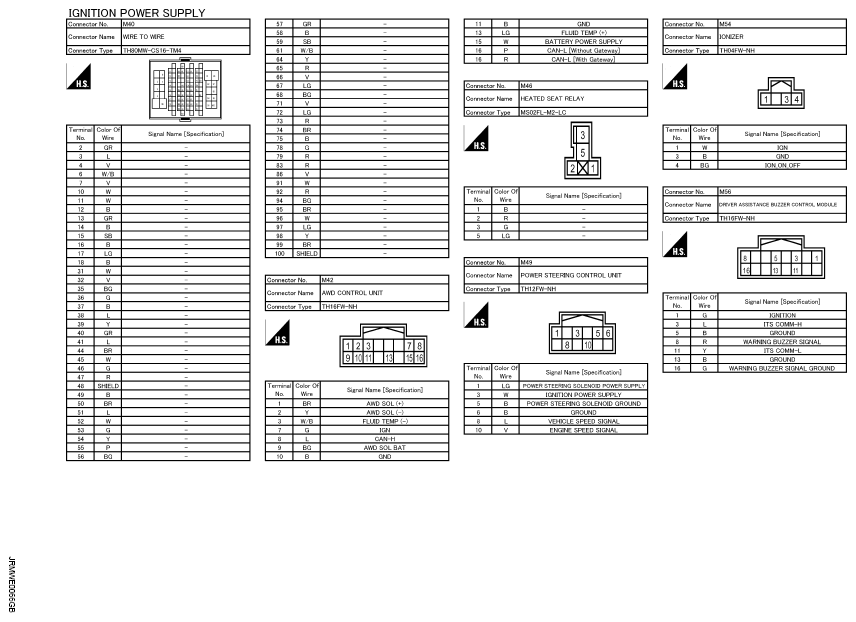

Fig 17: Ignition Power Supply Connector End Views (14 Of 17)

G09161235

Courtesy of NISSAN NORTH AMERICA, INC.

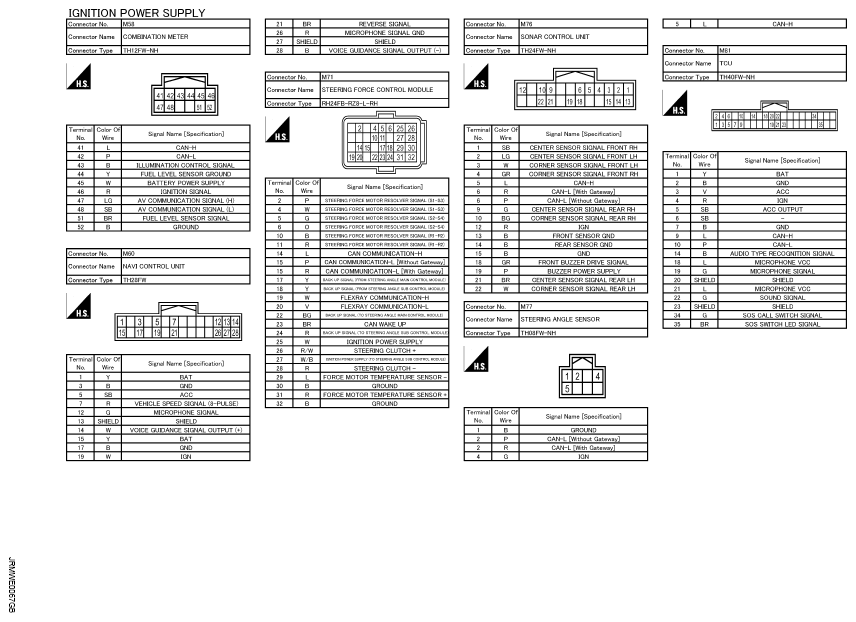

Fig 18: Ignition Power Supply Connector End Views (15 Of 17)

G09161236

Courtesy of NISSAN NORTH AMERICA, INC.

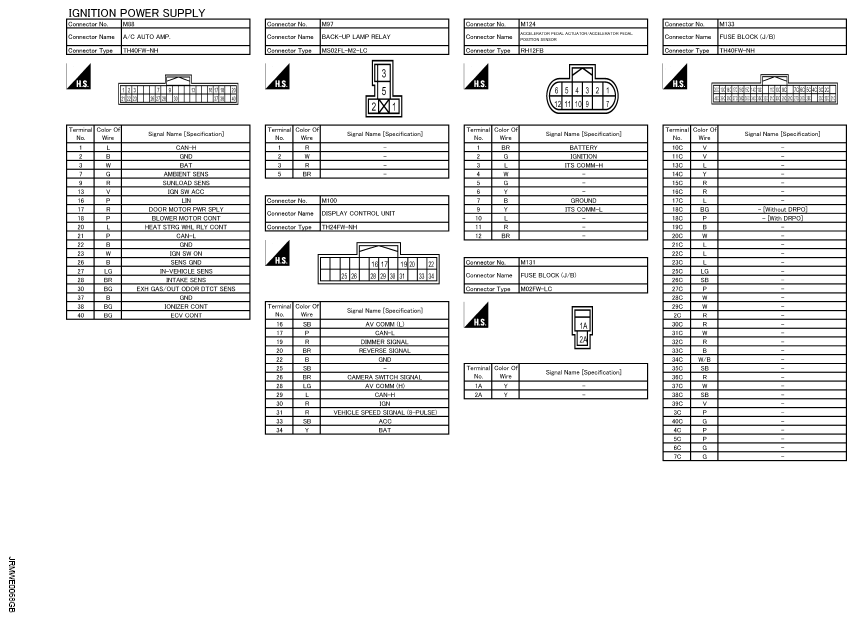

Fig 19: Ignition Power Supply Connector End Views (16 Of 17)

G09161237

Courtesy of NISSAN NORTH AMERICA, INC.

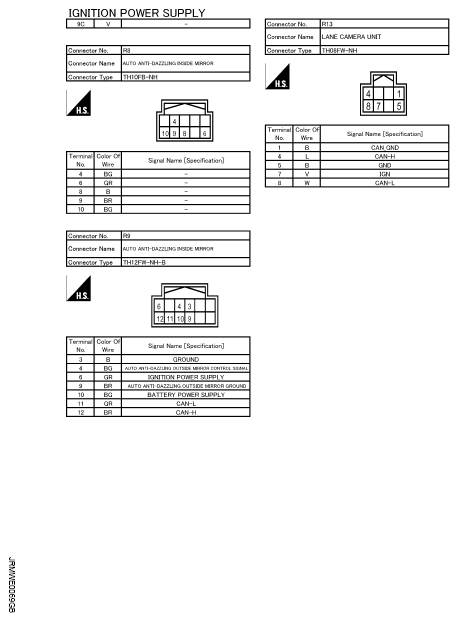

Fig 20: Ignition Power Supply Connector End Views (17 Of 17)

G09161238

Courtesy of NISSAN NORTH AMERICA, INC.
