Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 12

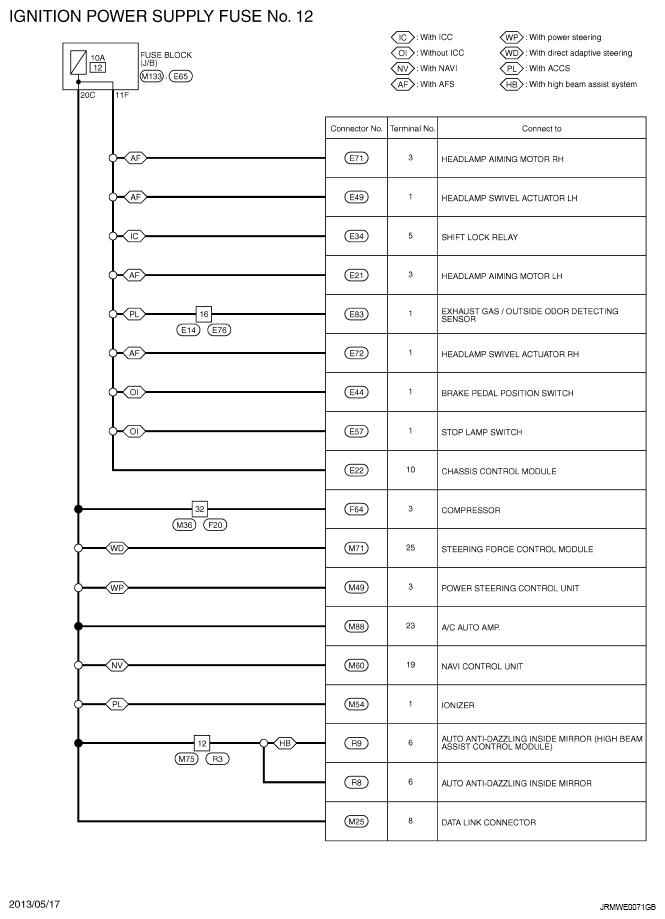

Fig 1: Ignition Power Supply Fuse No. 12 Wiring Diagram

G09161240

Courtesy of NISSAN NORTH AMERICA, INC.
