Wiring Diagram - BATTERY POWER SUPPLY FUSIBLE LINK No. M

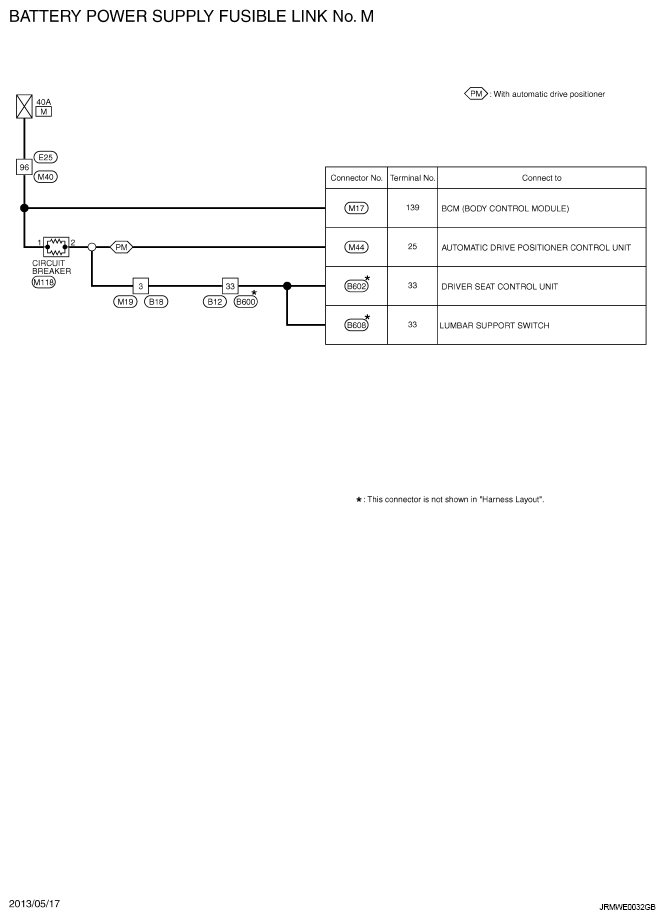

Fig 1: Battery Power Supply Fusible Link No. M Wiring Diagram

G09161201

Courtesy of NISSAN NORTH AMERICA, INC.
