Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 4

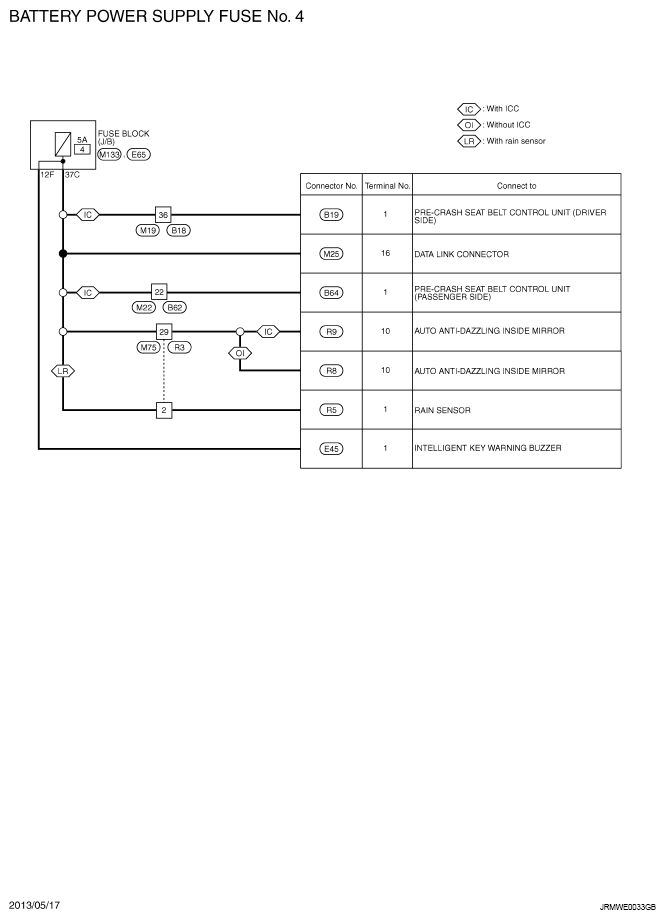

Fig 1: Battery Power Supply Fuse No. 4 Wiring Diagram

G09161202

Courtesy of NISSAN NORTH AMERICA, INC.
