Wiring Diagram - BATTERY POWER SUPPLY -

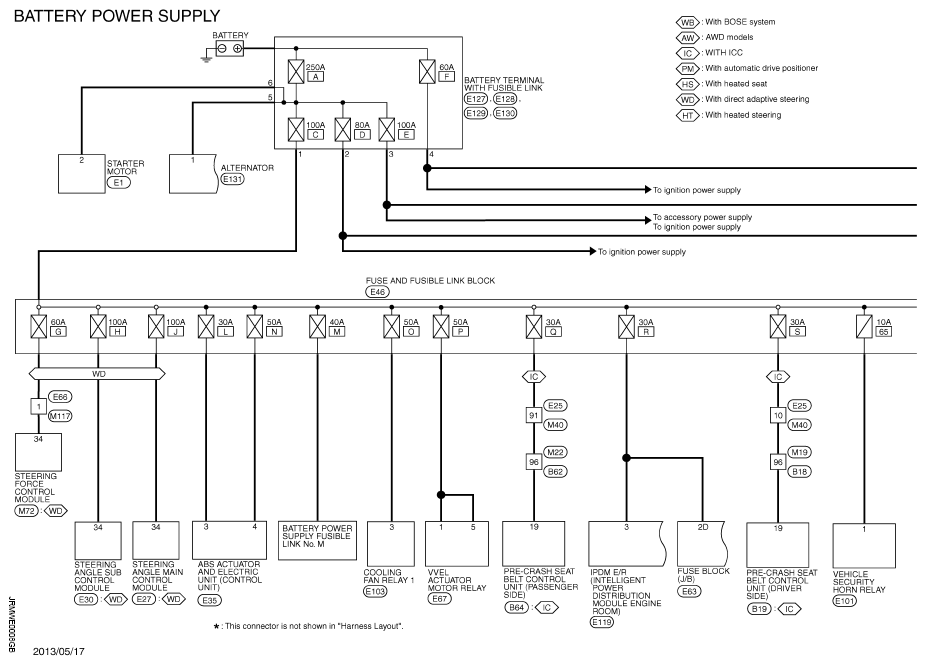

Fig 1: Battery Power Supply Wiring Diagram (1 Of 5)

G09161177

Courtesy of NISSAN NORTH AMERICA, INC.

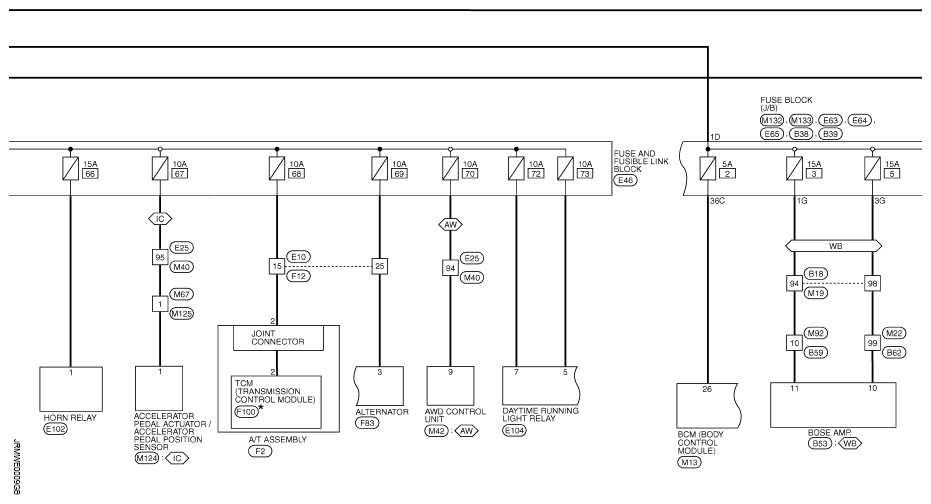

Fig 2: Battery Power Supply Wiring Diagram (2 Of 5)

G09161178

Courtesy of NISSAN NORTH AMERICA, INC.

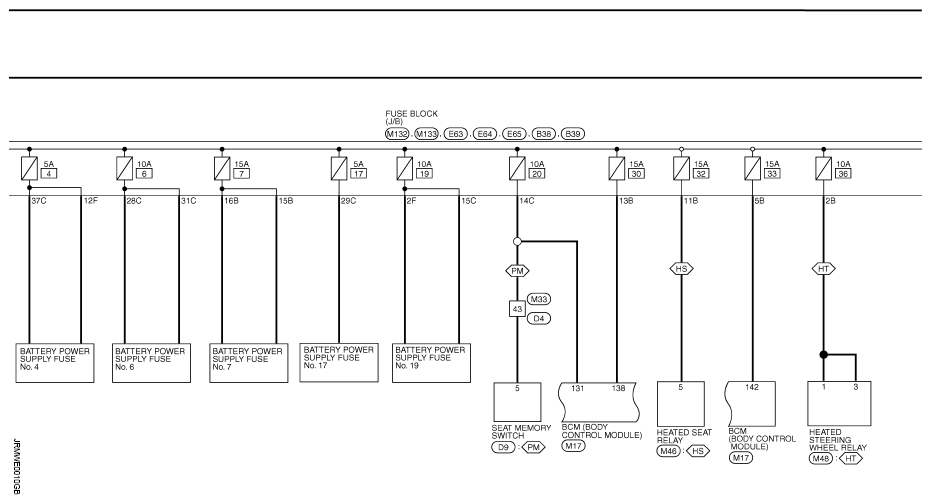

Fig 3: Battery Power Supply Wiring Diagram (3 Of 5)

G09161179

Courtesy of NISSAN NORTH AMERICA, INC.

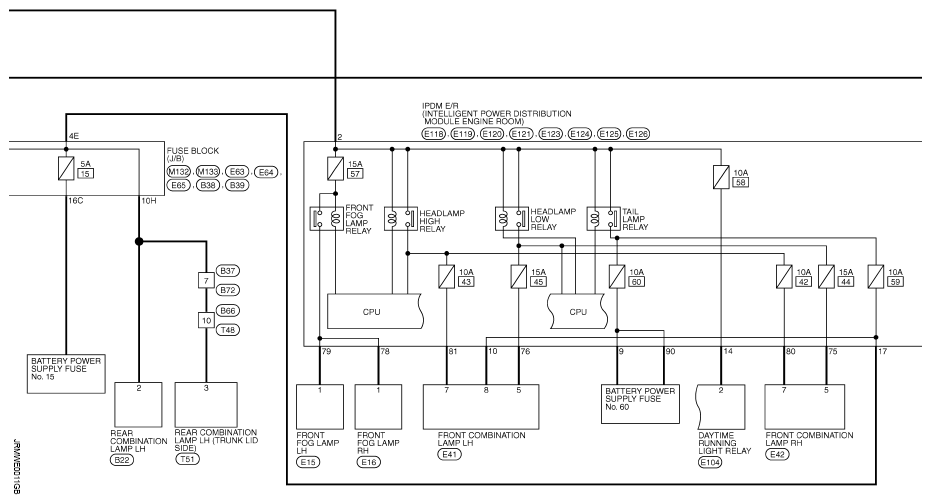

Fig 4: Battery Power Supply Wiring Diagram (4 Of 5)

G09161180

Courtesy of NISSAN NORTH AMERICA, INC.

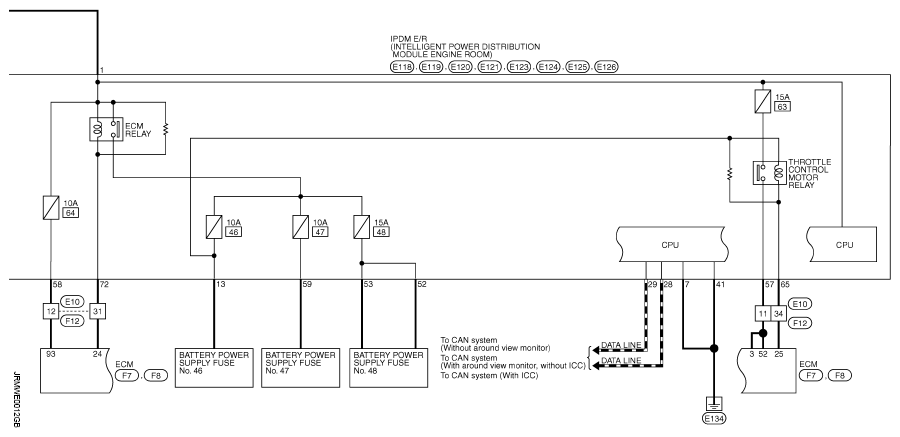

Fig 5: Battery Power Supply Wiring Diagram (5 Of 5)

G09161181

Courtesy of NISSAN NORTH AMERICA, INC.

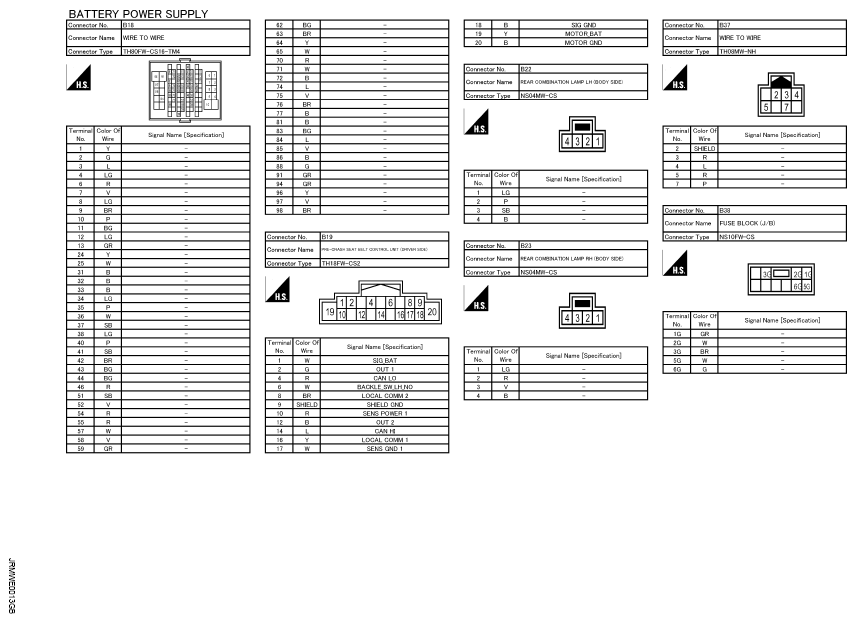

Fig 6: Battery Power Supply Connector End Views (1 Of 19)

G09161182

Courtesy of NISSAN NORTH AMERICA, INC.

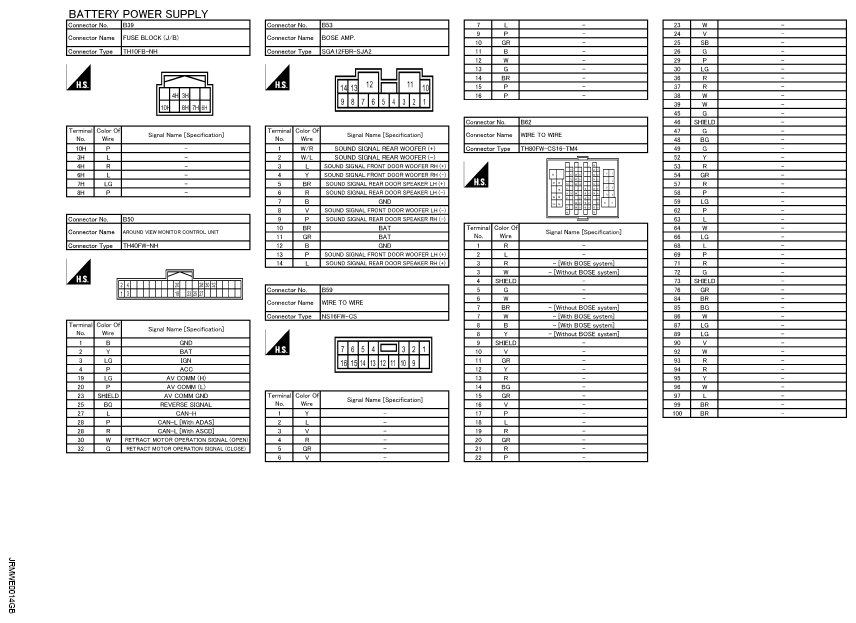

Fig 7: Battery Power Supply Connector End Views (2 Of 19)

G09161183

Courtesy of NISSAN NORTH AMERICA, INC.

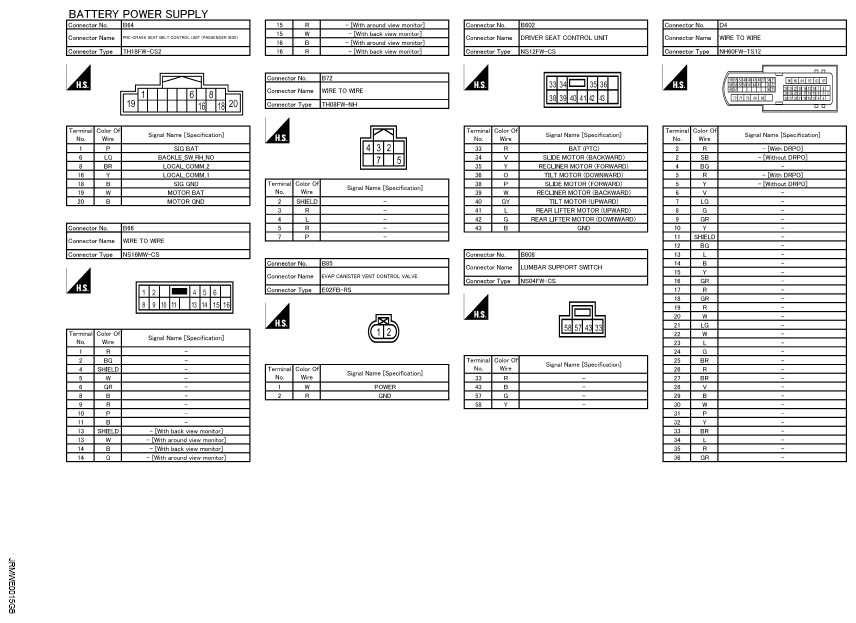

Fig 8: Battery Power Supply Connector End Views (3 Of 19)

G09161184

Courtesy of NISSAN NORTH AMERICA, INC.

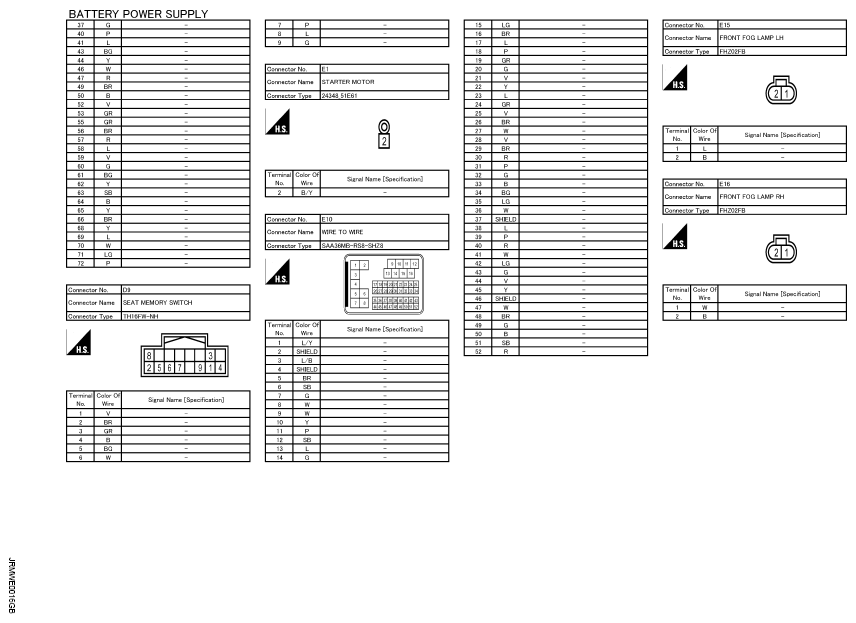

Fig 9: Battery Power Supply Connector End Views (4 Of 19)

G09161185

Courtesy of NISSAN NORTH AMERICA, INC.

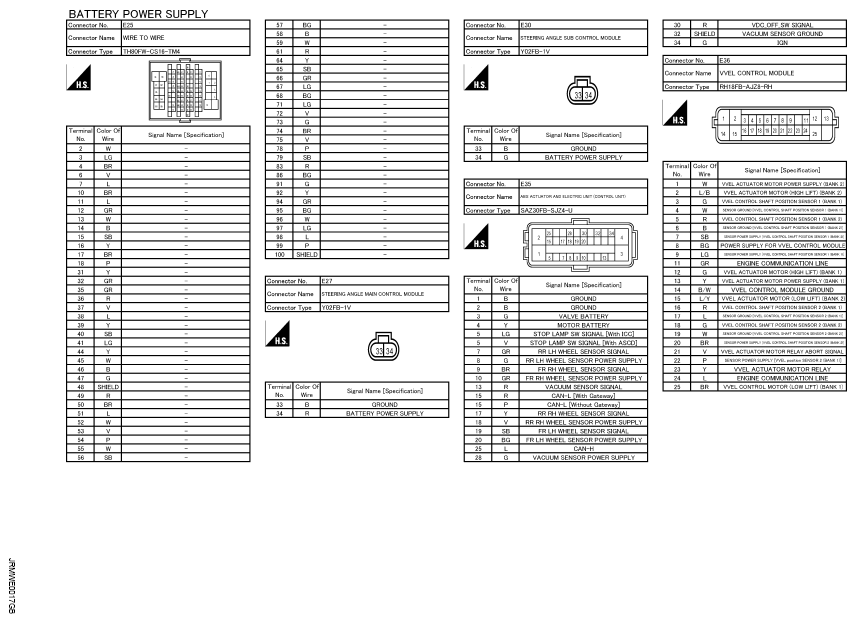

Fig 10: Battery Power Supply Connector End Views (5 Of 19)

G09161186

Courtesy of NISSAN NORTH AMERICA, INC.

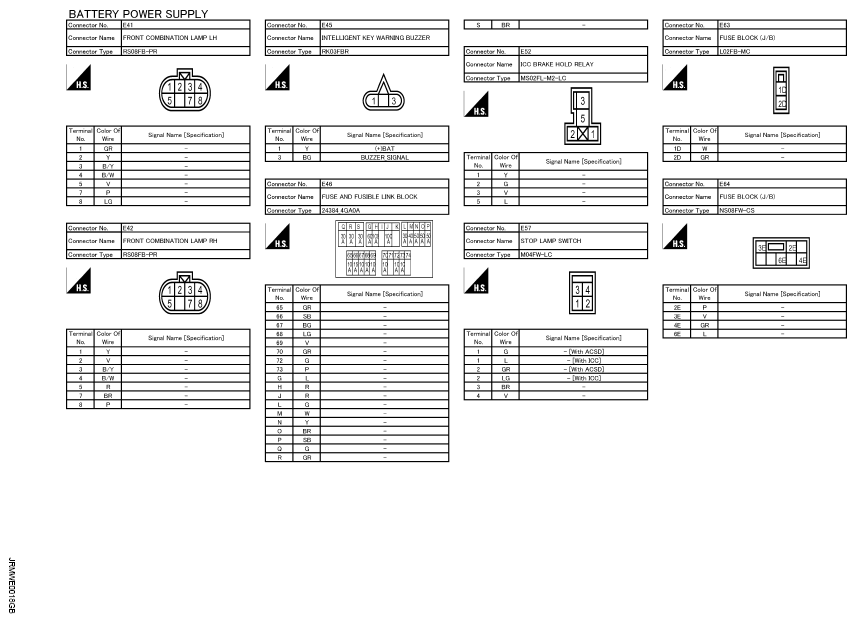

Fig 11: Battery Power Supply Connector End Views (6 Of 19)

G09161187

Courtesy of NISSAN NORTH AMERICA, INC.

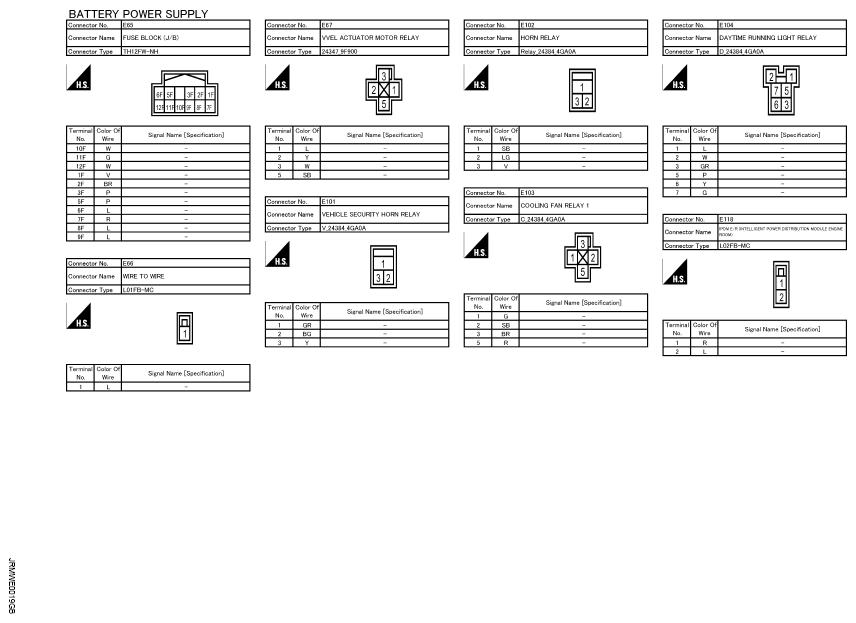

Fig 12: Battery Power Supply Connector End Views (7 Of 19)

G09161188

Courtesy of NISSAN NORTH AMERICA, INC.

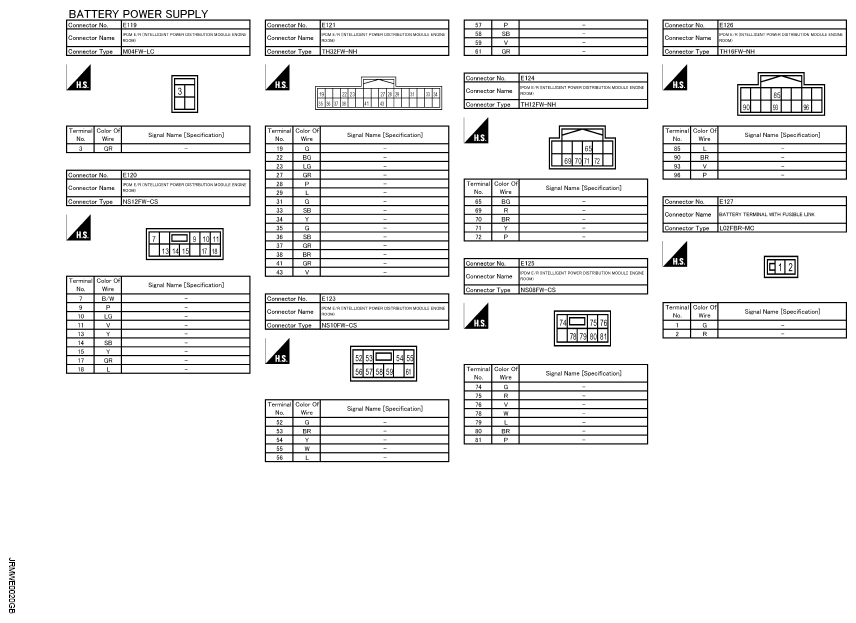

Fig 13: Battery Power Supply Connector End Views (8 Of 19)

G09161189

Courtesy of NISSAN NORTH AMERICA, INC.

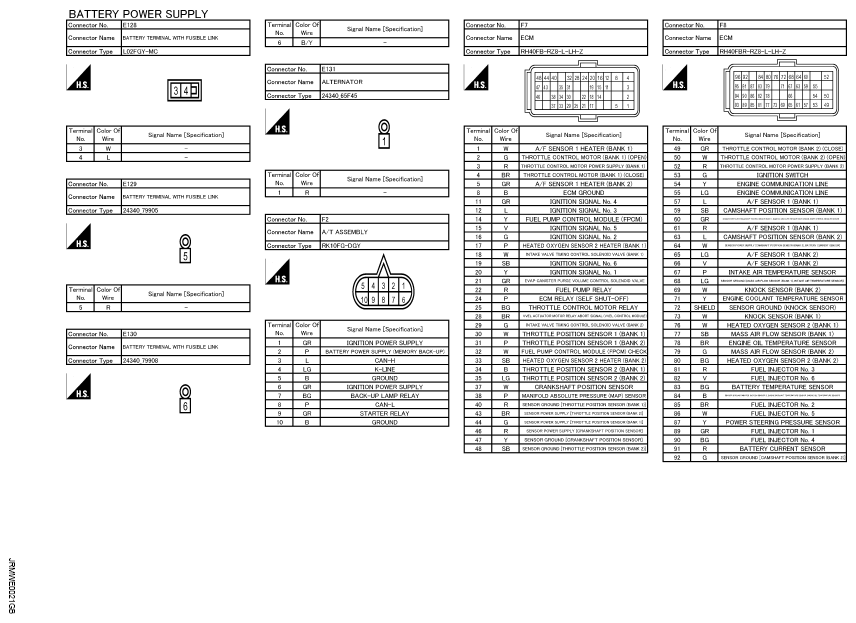

Fig 14: Battery Power Supply Connector End Views (9 Of 19)

G09161190

Courtesy of NISSAN NORTH AMERICA, INC.

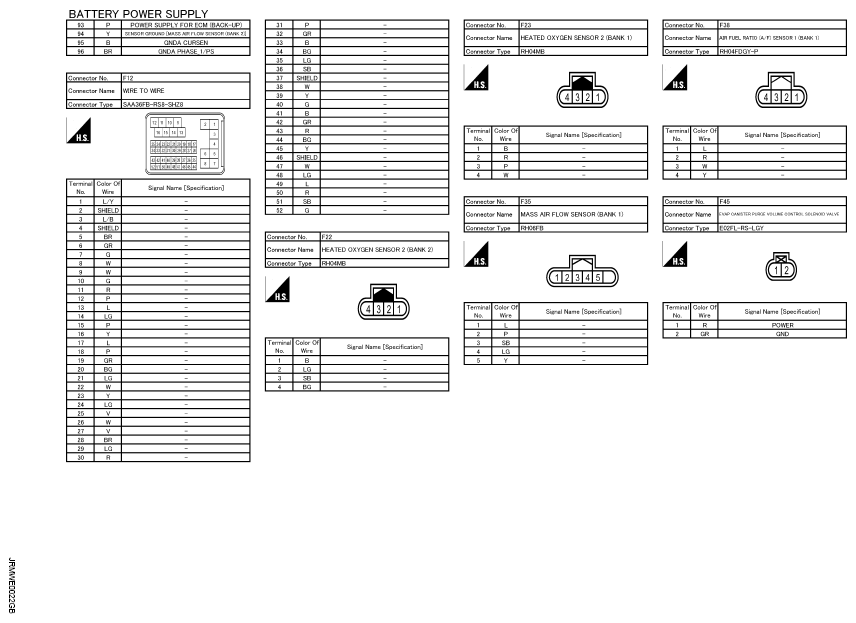

Fig 15: Battery Power Supply Connector End Views (10 Of 19)

G09161191

Courtesy of NISSAN NORTH AMERICA, INC.

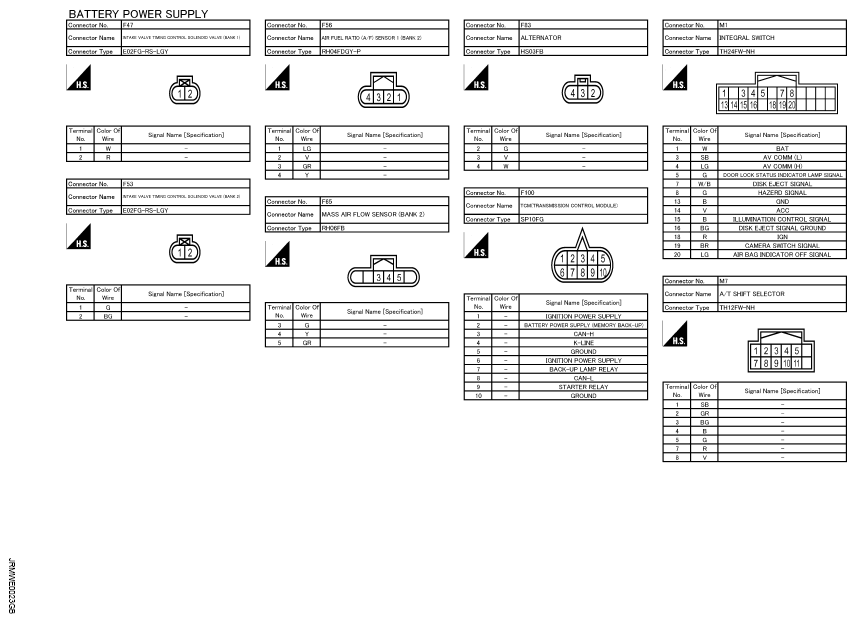

Fig 16: Battery Power Supply Connector End Views (11 Of 19)

G09161192

Courtesy of NISSAN NORTH AMERICA, INC.

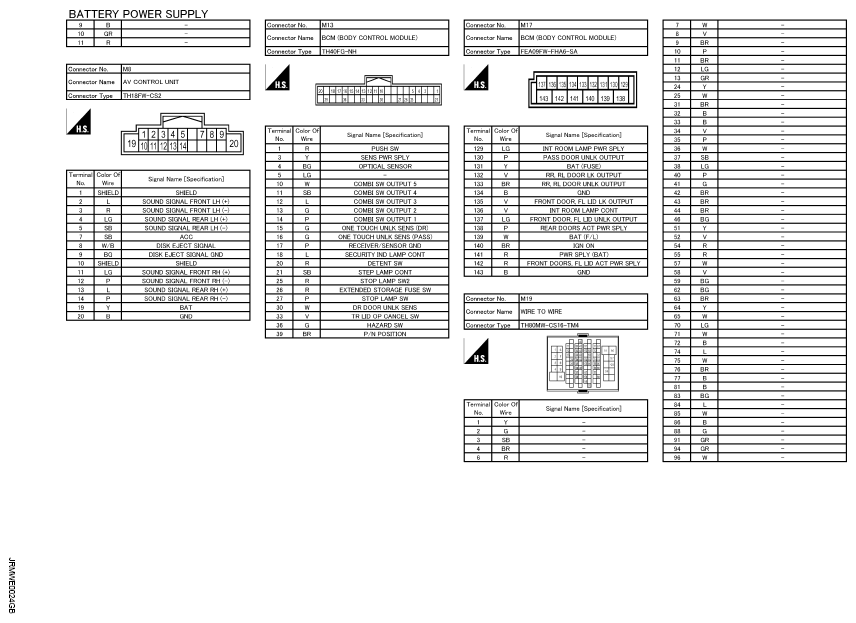

Fig 17: Battery Power Supply Connector End Views (12 Of 19)

G09161193

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Battery Power Supply Connector End Views (13 Of 19)

G09161194

Courtesy of NISSAN NORTH AMERICA, INC.

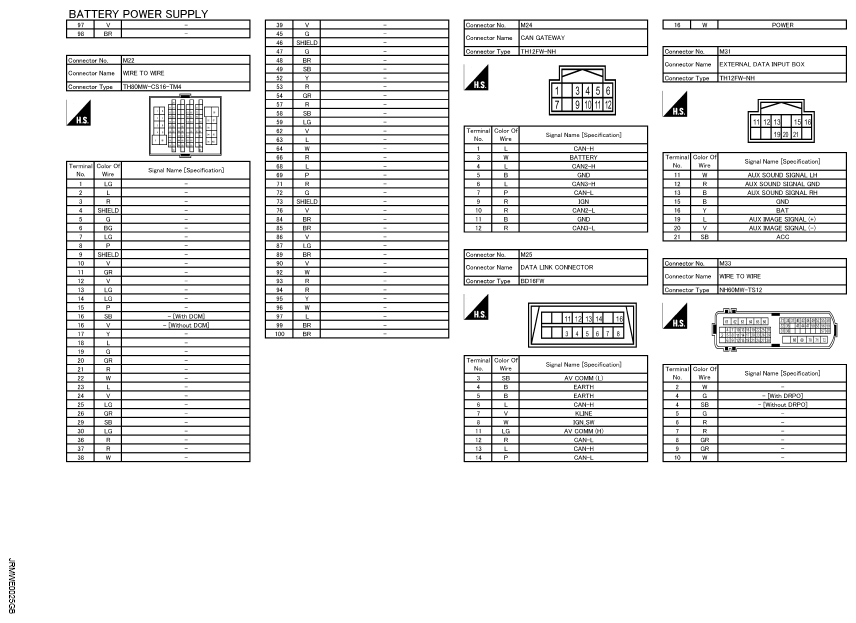

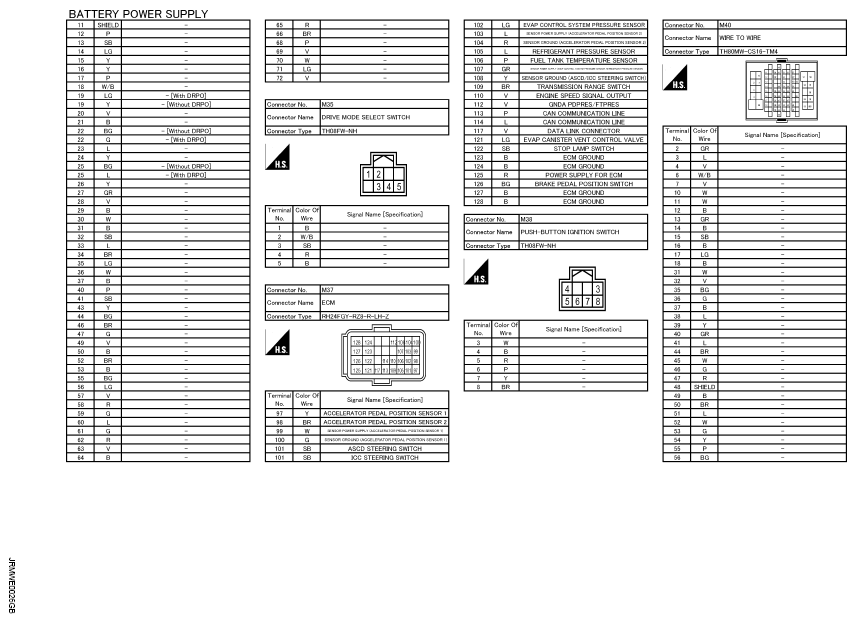

Fig 19: Battery Power Supply Connector End Views (14 Of 19)

G09161195

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Battery Power Supply Connector End Views (15 Of 19)

G09161196

Courtesy of NISSAN NORTH AMERICA, INC.

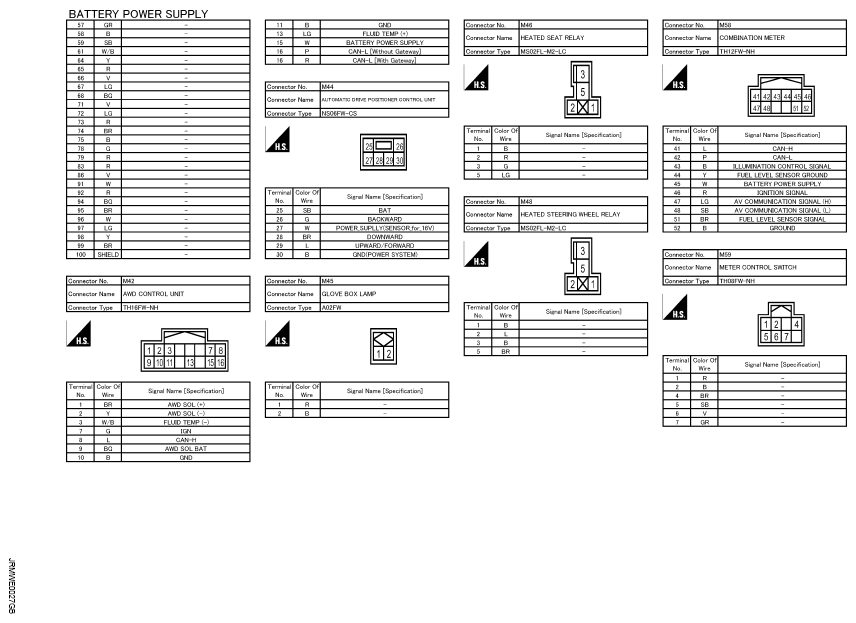

Fig 21: Battery Power Supply Connector End Views (16 Of 19)

G09161197

Courtesy of NISSAN NORTH AMERICA, INC.

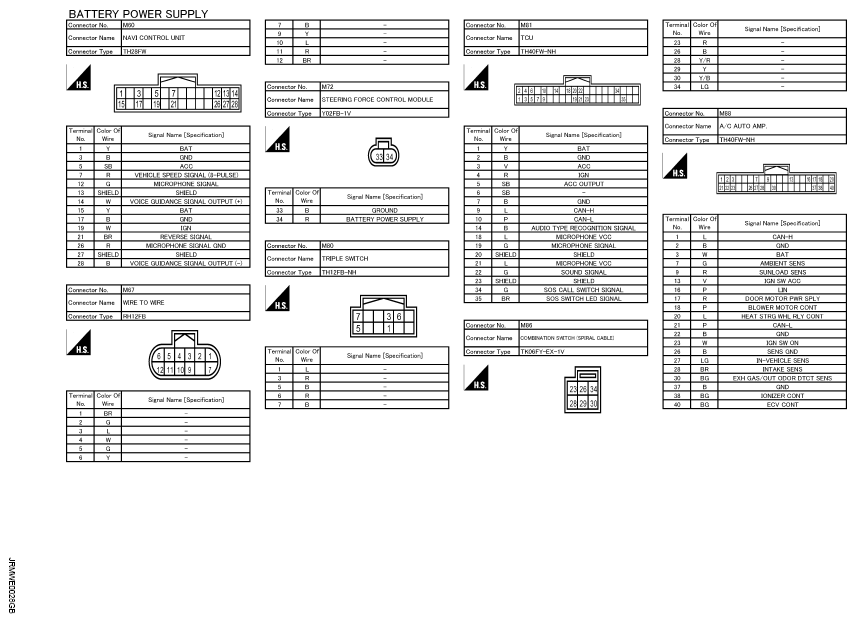

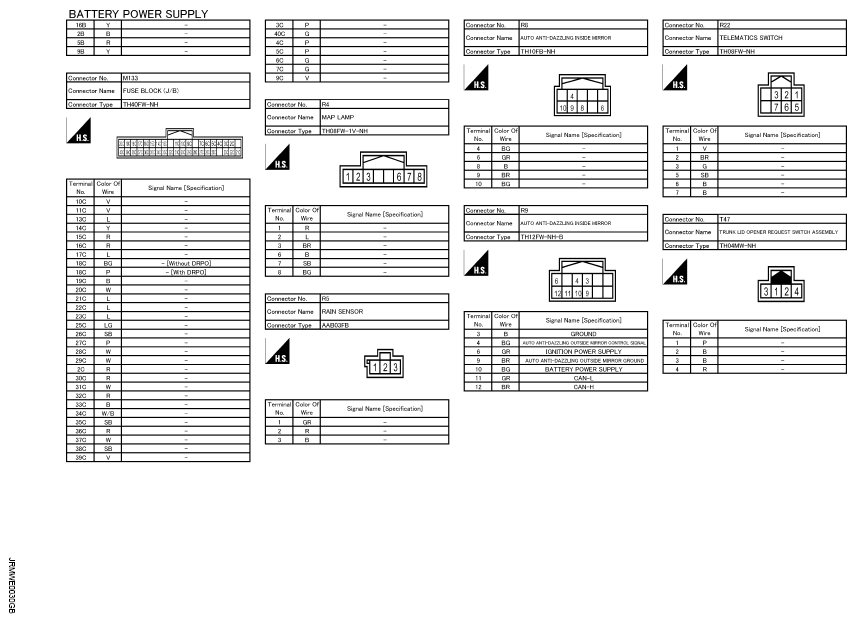

Fig 22: Battery Power Supply Connector End Views (17 Of 19)

G09161198

Courtesy of NISSAN NORTH AMERICA, INC.

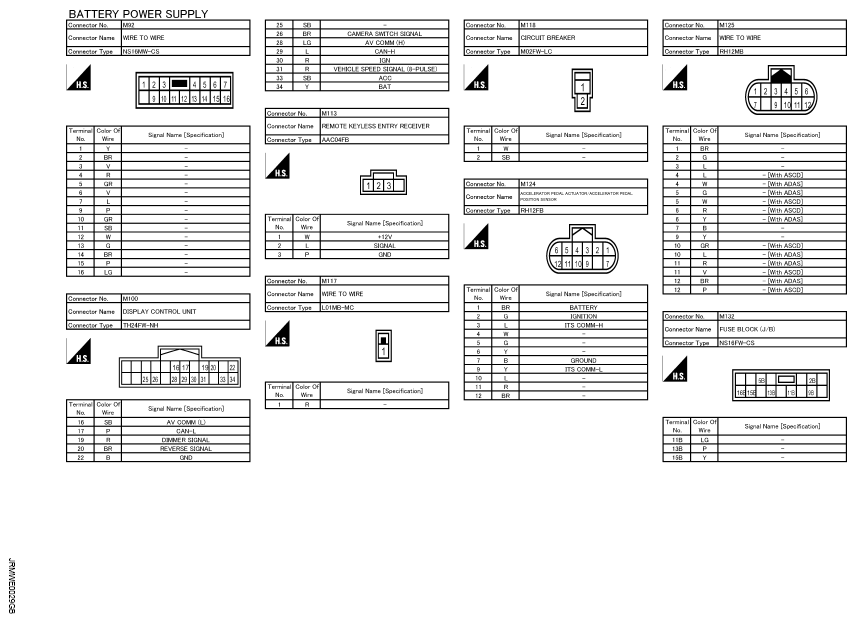

Fig 23: Battery Power Supply Connector End Views (18 Of 19)

G09161199

Courtesy of NISSAN NORTH AMERICA, INC.

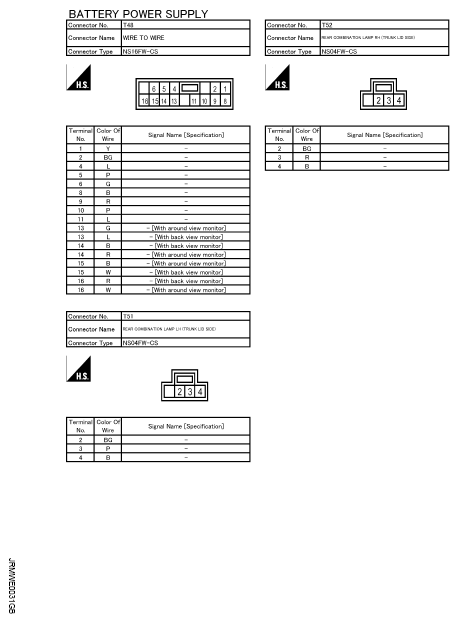

Fig 24: Battery Power Supply Connector End Views (19 Of 19)

G09161200

Courtesy of NISSAN NORTH AMERICA, INC.
