Wiring Diagram - ACCESSORY POWER SUPPLY

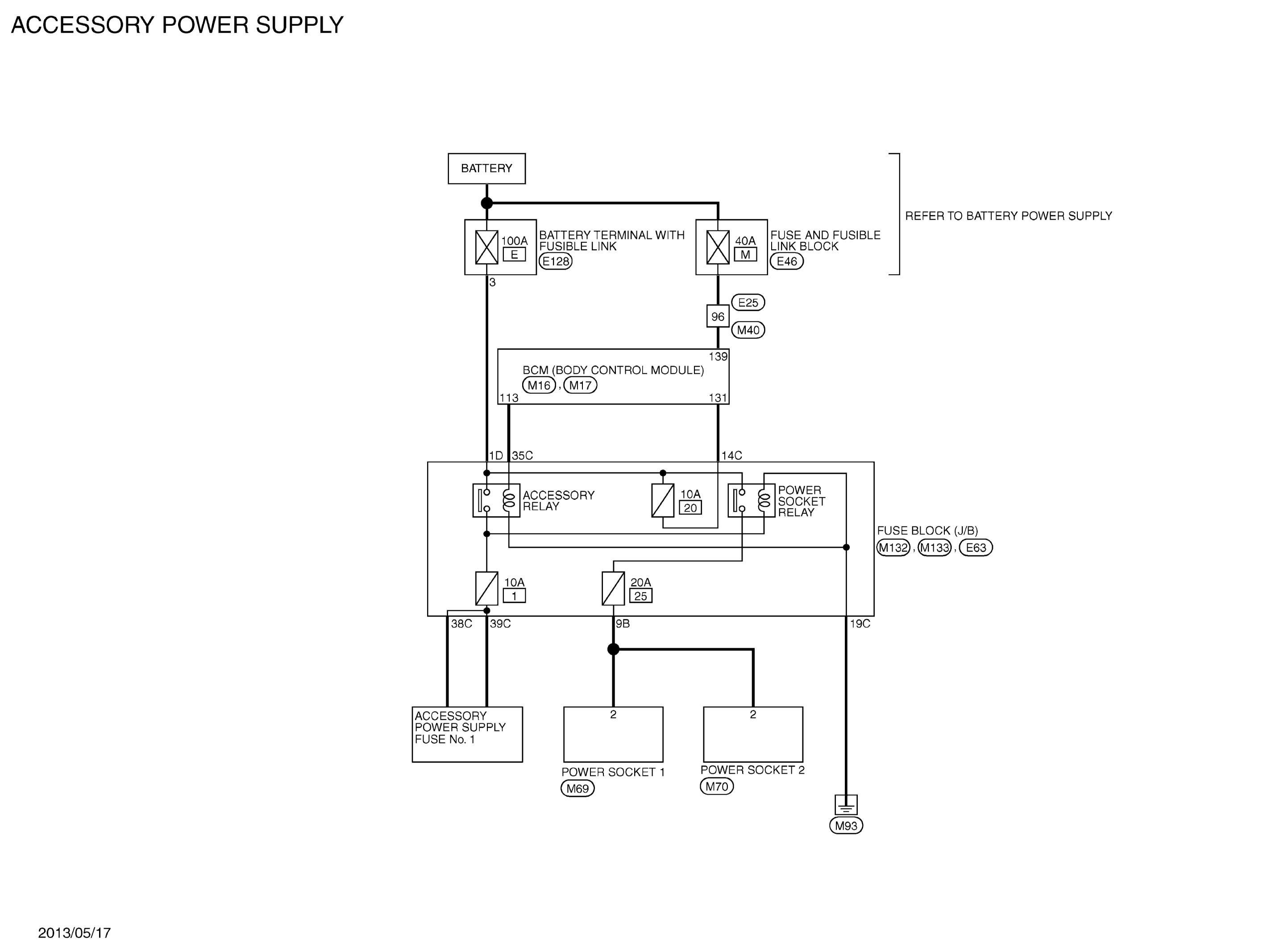

Fig 1: Accessory Power Supply Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

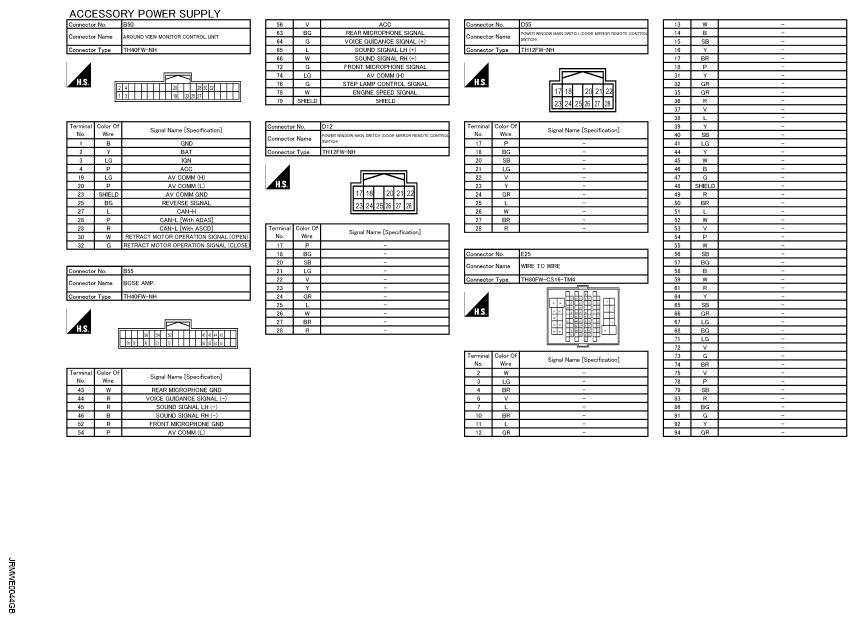

Fig 2: Accessory Power Supply Connector End Views (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

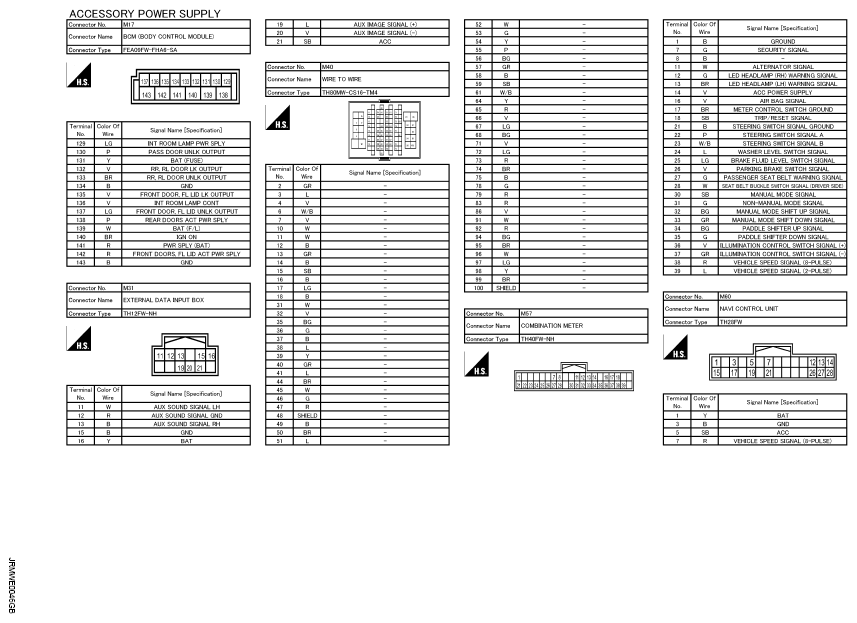

Fig 3: Accessory Power Supply Connector End Views (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

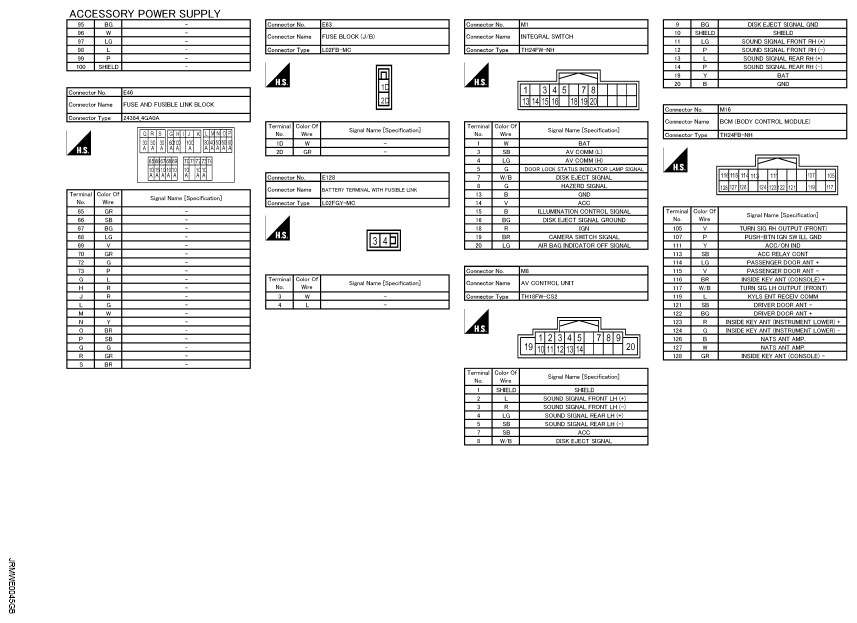

Fig 4: Accessory Power Supply Connector End Views (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

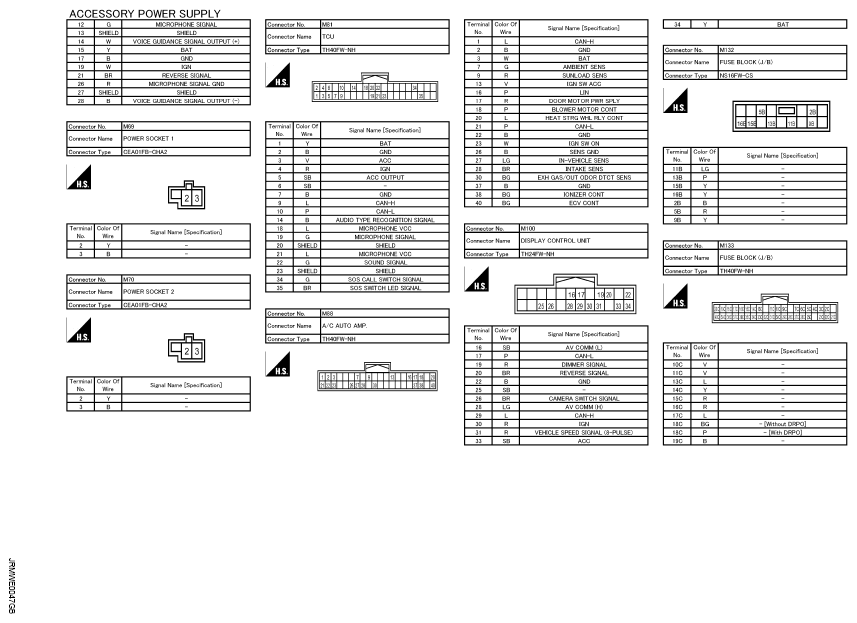

Fig 5: Accessory Power Supply Connector End Views (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Accessory Power Supply Connector End Views (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
