Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No. 1

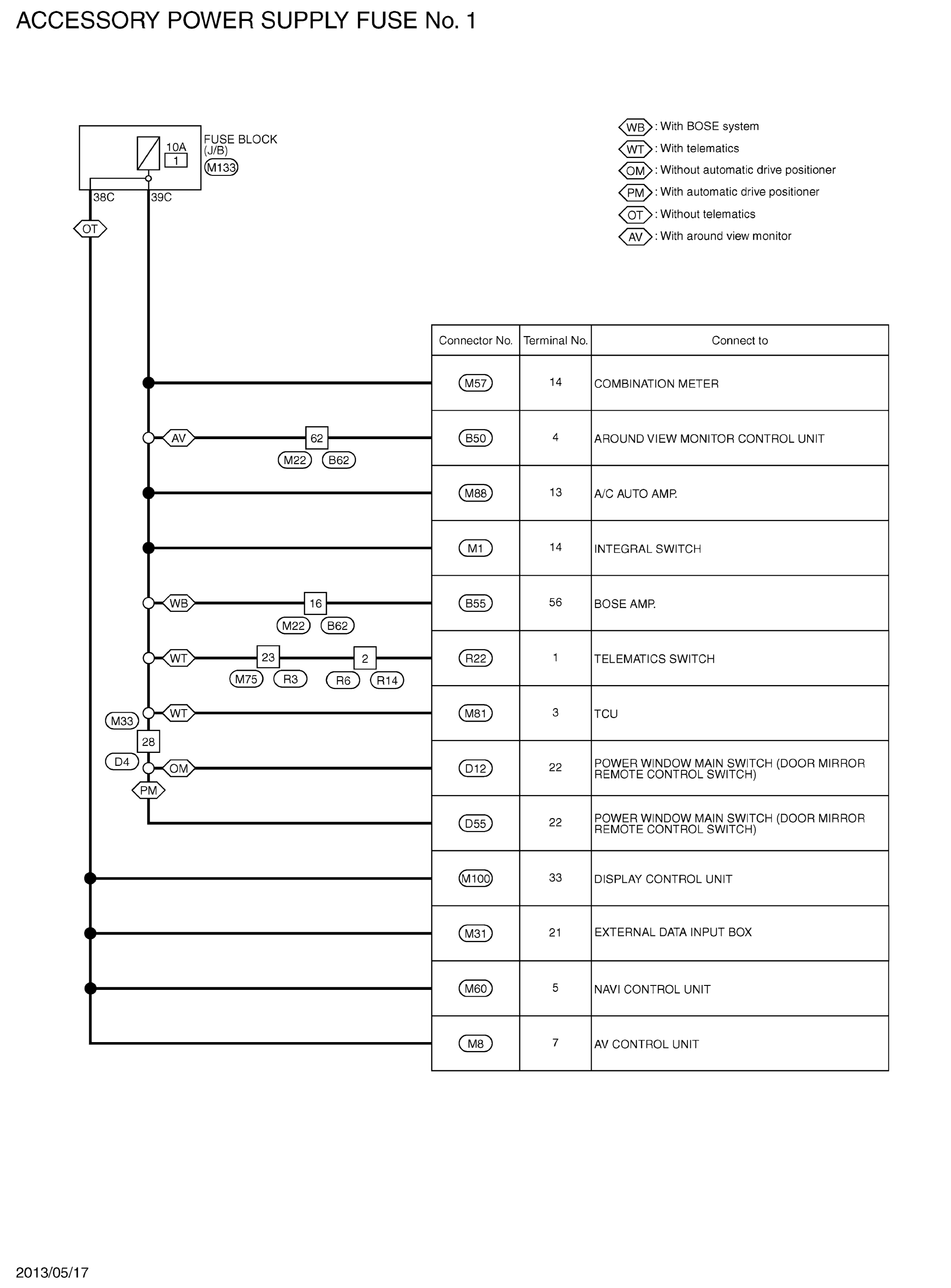

Fig 1: Accessory Power Supply Fuse No. 1 Wiring Diagram

G09161218

Courtesy of NISSAN NORTH AMERICA, INC.
