Fuse, Connector and Terminal Arrangement

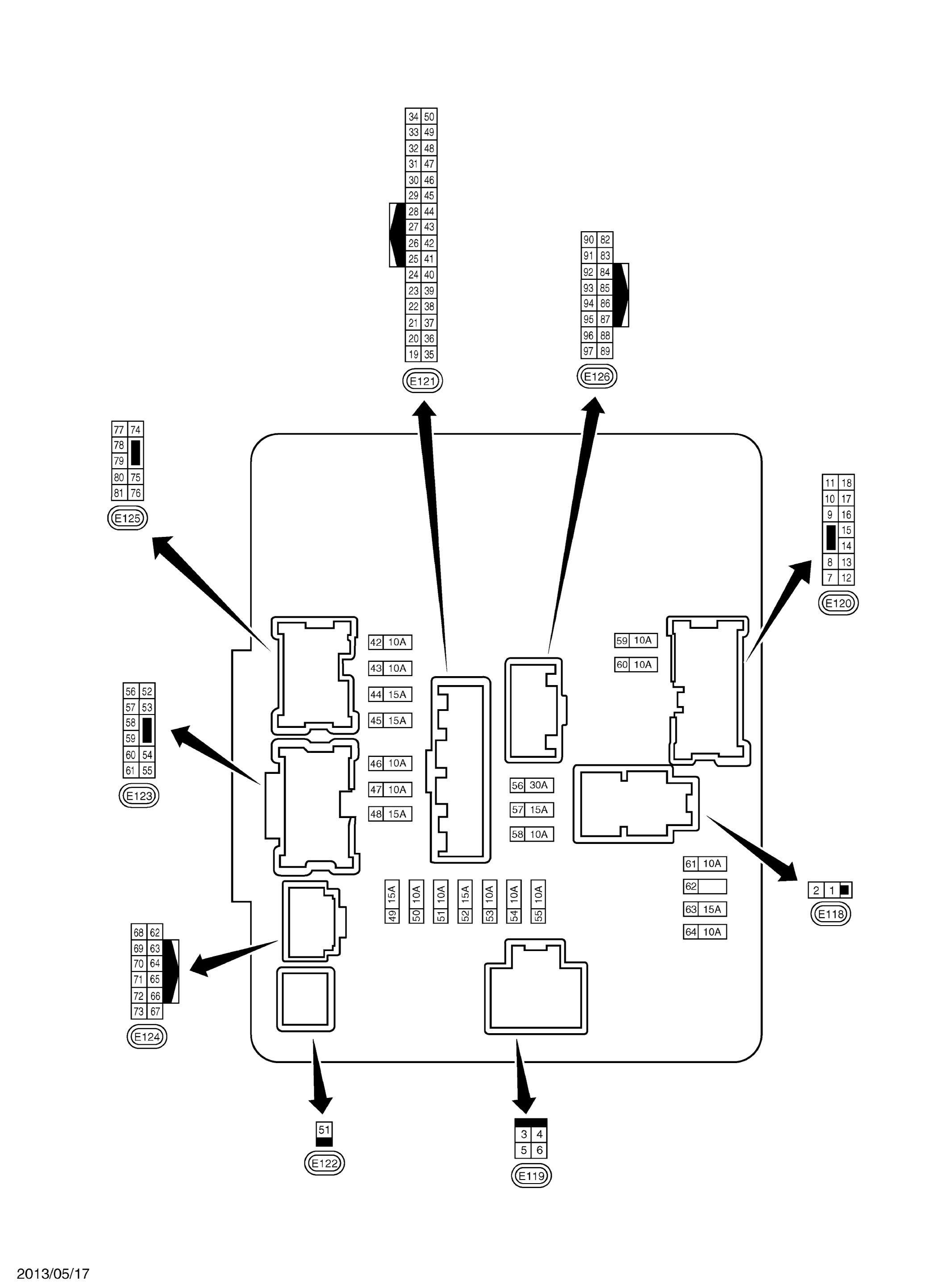

Fig 1: Identifying IPDM E/R With Connector End Views

G09161248

Courtesy of NISSAN NORTH AMERICA, INC.
