Infiniti
>>
2014
>>
Q50 Base, RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Except Hybrid)
>>
Wiring Diagram
>>
Fuse Block - Junction Box (J/B)
>>
Fuse, Connector and Terminal Arrangement
Fuse, Connector and Terminal Arrangement

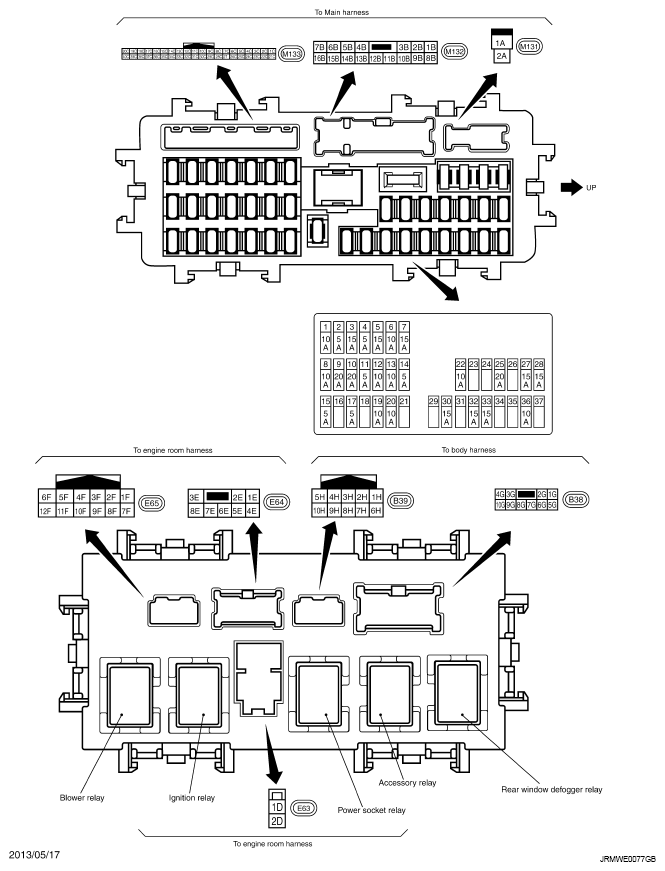

Fig 1: Identifying Fuse Block - Junction Box (J/B) With Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
