Extended Storage Fuse Switch (If Equipped): Notes

The following switch may be mounted on the fuse block (Junction Box) for transportation and storage.

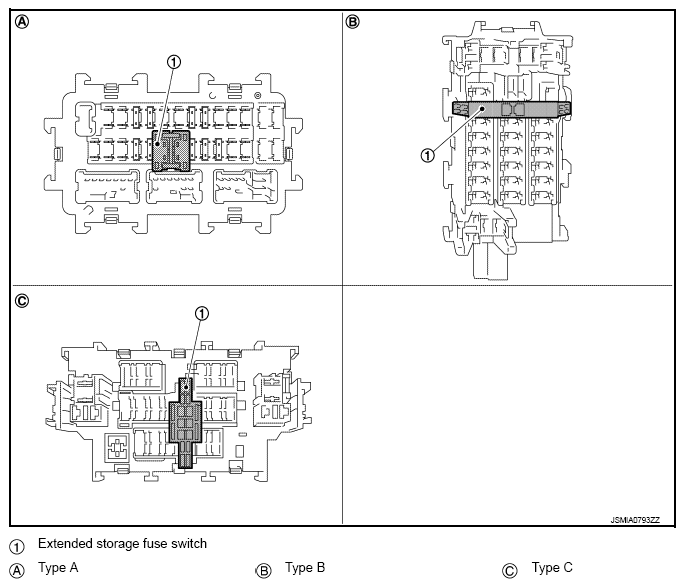

Fig 1: Identifying Extended Storage Fuse Switch

Courtesy of NISSAN NORTH AMERICA, INC.

• Remove the extended storage fuse switch when replacing the fuse of extended storage fuse switch.
• Remove the extended storage fuse switch if it causes the interference when the fuse or the other fuses is checked.
