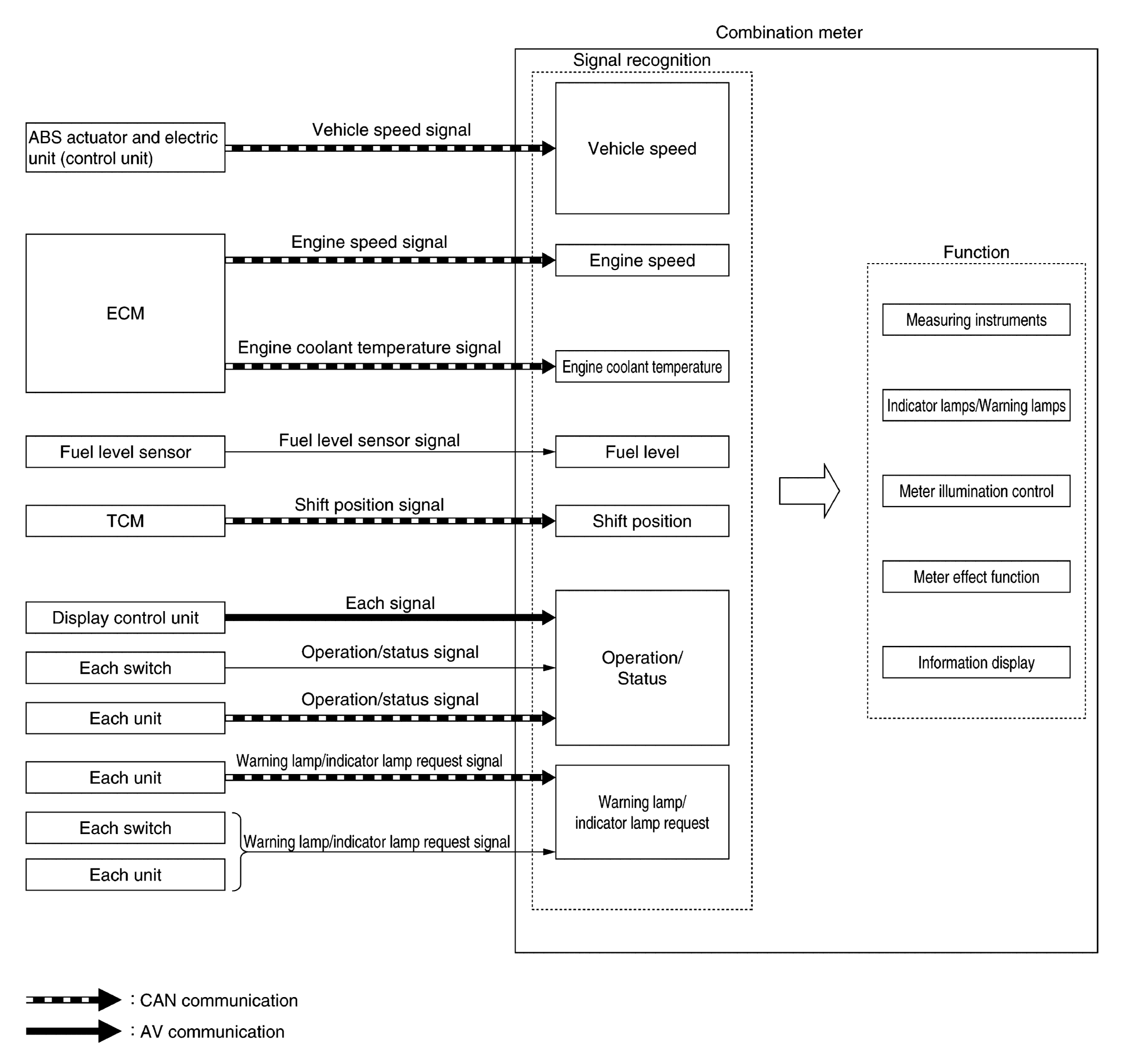

System Diagram
Combination Meter Input Signal (CAN Communication Signal)
| Transmit unit | Signal name |
|---|---|
| ABS actuator and electric unit (control unit) | Vehicle speed signal |
| ABS warning lamp signal | |
| VDC warning lamp signal | |
| VDC OFF indicator lamp signal | |
| Brake warning lamp signal | |
| BCM | Dimmer signal |
| Position light request signal | |
| Door switch signal | |
| Front fog light request signal | |
| High beam request signal | |
| Meter display signal | |
| Sleep wake up signal | |
| Buzzer output signal | |
| Tire pressure data signal | |
| Trunk switch signal | |
| Key ID signal | |
| Turn indicator signal | |
| TPMS malfunction warning lamp signal | |
| Low tire pressure warning lamp signal | |
| High beam assist indicator lamp signal | |
| Starter relay status signal | |
| Oil pressure switch signal | |
| Meter ring illumination request signal | |
| Shipping mode status signal | |
| TCM | Shift position signal |
| A/T CHECK indicator lamp signal | |
| Manual mode shift refusal signal | |
| ECM | Engine speed signal |
| ASCD status signal | |
| Engine coolant temperature signal | |
| Fuel consumption monitor signal | |
| Malfunctioning indicator lamp signal | |
| Engine status signal | |
| ECO drive indicator control signal | |
| Fuel filler cap warning display signal | |
| Steering force control module | Power steering warning lamp signal |
| AFS control unit | AFS warning signal |
| Chassis control module | Active Lane Control display signal |
| Active Trace Control display signal | |
| Chassis control malfunction signal | |
| Interrupt display signal | |
| Key link signal | |
| Log-in permit signal | |
| Tire display signal | |
| Turn display signal | |
| Vehicle display signal | |
| Display control unit | User information signal |
| AWD control unit | AWD warning lamp signal |
| ADAS control unit | BSI ON indicator signal |
| BSW/BSI warning lamp signal | |
| ICC warning lamp signal | |
| Lane departure warning lamp signal | |
| LDP ON indicator lamp signal | |
| IBA OFF indicator lamp signal | |
| A/C auto amp. | Ambient sensor signal |
