Infiniti
>>
2014
>>
Q50 Base, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter, Warning Lamp & Indicator (Except Hybrid)
>>
System Description
>>
System
>>
Meter System
>>
METER SYSTEM: Circuit Diagram
METER SYSTEM: Circuit Diagram

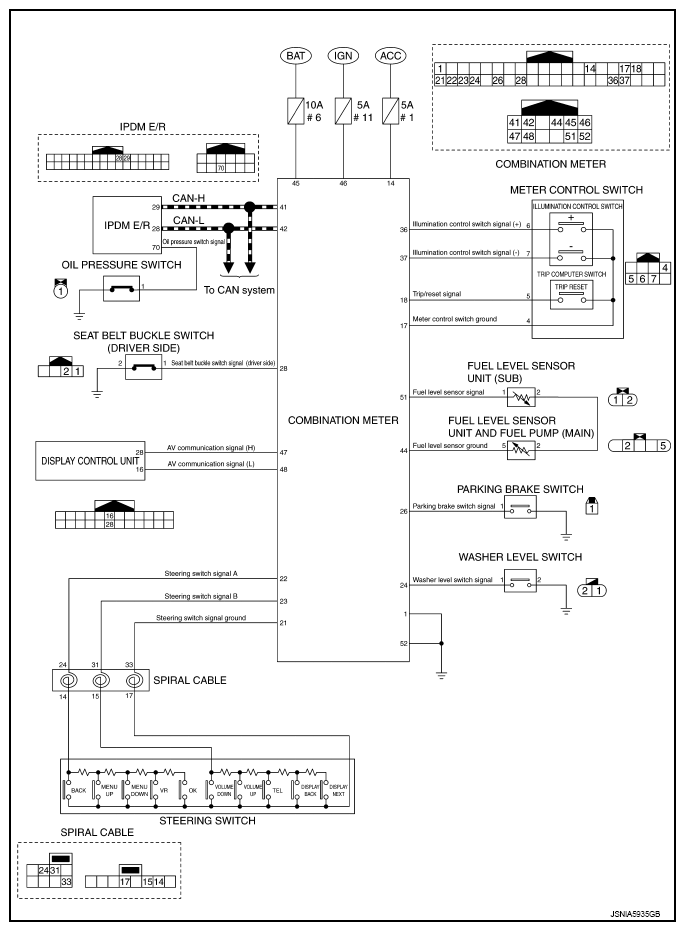

Fig 1: Combination Meter System Circuit Diagram With Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
