METER SYSTEM: Component Parts Location

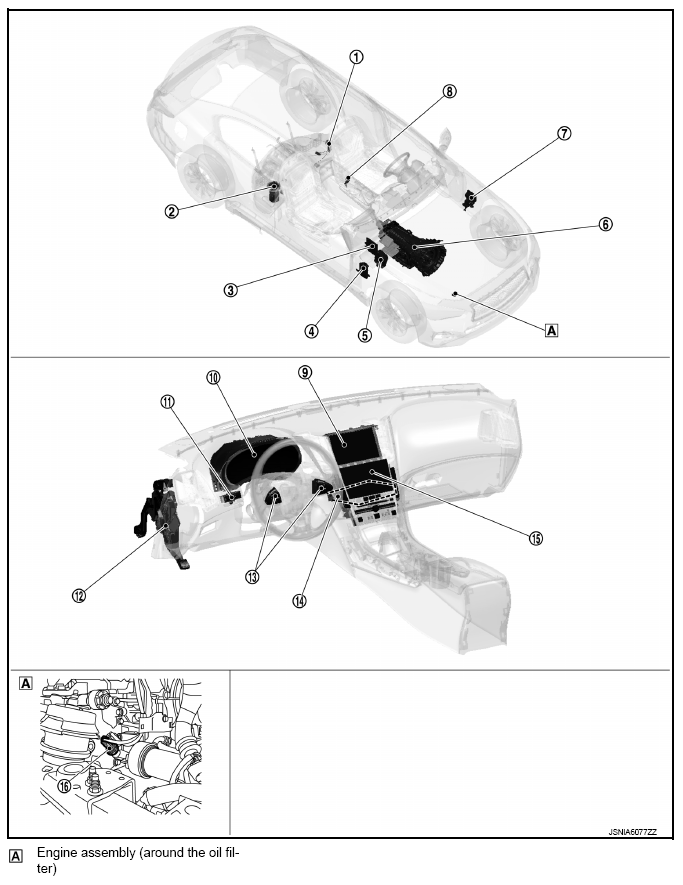

Fig 1: Meter System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
(1)	Fuel level sensor unit (sub)	Transmits the fuel level sensor signal to the combination meter.
(2)	Fuel level sensor unit (main)	Transmits the fuel level sensor signal to the combination meter.
(3)	ECM	Transmits the each signal to the combination meter via CAN communication. Refer to "METER SYSTEM: SYSTEM DESCRIPTION ". Refer to "ENGINE CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
(4)	BCM	Transmits the each signal to the combination meter via CAN communication. Refer to "METER SYSTEM: SYSTEM DESCRIPTION ". Refer to "BODY CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
(5)	IPDM E/R	Transmits the oil pressure switch signal to the combination meter via CAN communication. Refer to "METER SYSTEM: SYSTEM DESCRIPTION ". Refer to "COMPONENT PARTS LOCATION " for detailed installation location.
(6)	TCM	Transmits the each signal to the combination meter via CAN communication. Refer to "METER SYSTEM: SYSTEM DESCRIPTION ". Refer to "A/T CONTROL SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
(7)	ABS actuator and electric unit (control unit)	Transmits the each signal to the combination meter via CAN communication. Refer to "METER SYSTEM: SYSTEM DESCRIPTION ". Refer to "COMPONENT PARTS LOCATION " for detailed installation location.
(8)	Seat belt buckle switch (driver side)	Transmits the seat belt buckle switch signal (driver side) to the combination meter.
(9)	Display control unit	Transmits the each signal to the combination meter via CAN communication. Refer to "METER SYSTEM: SYSTEM DESCRIPTION ". Refer to "COMPONENT PARTS LOCATION " for detailed installation location.
(10)	Combination meter	Refer to "METER SYSTEM: COMBINATION METER ".
11	Meter control switch	Refer to "METER SYSTEM: METER CONTROL SWITCH ".
(12)	Parking brake switch	Transmits the parking brake switch signal to the combination meter.
(13)	Steering switch	Refer to "METER SYSTEM: STEERING SWITCH ".
(14)	A/C auto amp.	Transmits the each signal to the combination meter via CAN communication. Refer to "METER SYSTEM: SYSTEM DESCRIPTION ". Refer to "AUTOMATIC AIR CONDITIONING SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
(15)	Integral switch	Transmits the meter setting request signal to the combination meter.
(16)	Oil pressure switch	Transmits the oil pressure switch signal to the IPDM E/R.
