Removal and Installation: Removal

CAUTION: When removing, always use a remover tool that is made of plastic.
  1. Release front pillar portion of front body side welt LH. Refer to "BODY SIDE WELT: REMOVAL AND INSTALLATION ".
  2. Remove instrument side finisher LH.
    1. Apply protective tape (A) on the part to protect it from damage.

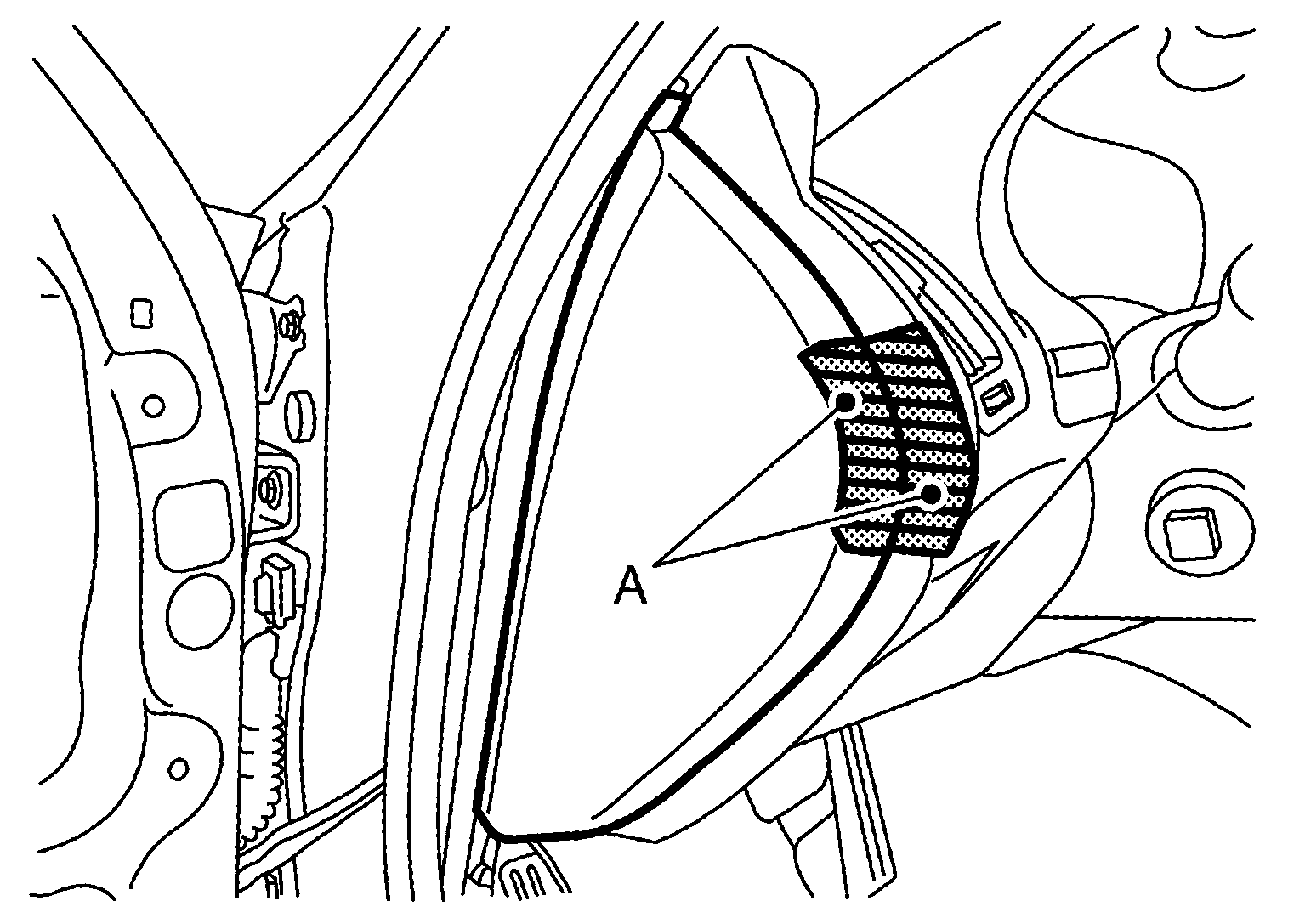

      Fig 1: Locating Instrument Panel Protective Tape Application Area
      G09163174Courtesy of NISSAN NORTH AMERICA, INC.

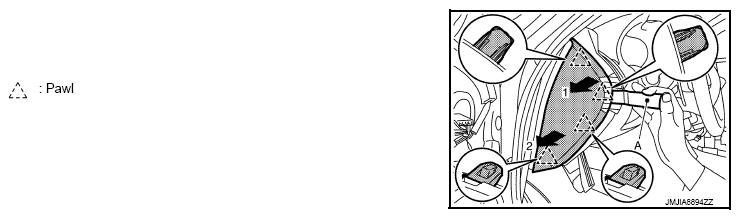

    2. Pull instrument side finisher LH, and then disengage pawls using a remover tool (A) according to the numerical order 1→2 as shown in the figure below.
      Fig 2: Disengaging Pawls Using Remover Tool
      G09163175Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove front pillar garnish LH. Refer to "FRONT PILLAR GARNISH: REMOVAL AND INSTALLATION ".
  4. Remove instrument lower panel LH.
    1. Disconnect hood lock control cable. Refer to "HOOD LOCK CONTROL CABLE: REMOVAL AND INSTALLATION ".
    2. Remove fixing screw (A).

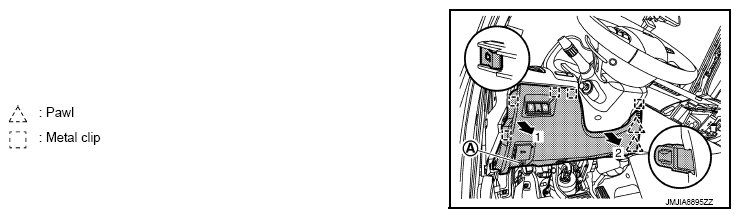

    3. Pull back instrument lower panel LH, and then disengage pawls and metal clips according to the numerical order 1→2 as shown in the figure below.
      Fig 3: Disengaging Pawls And Metal Clips
      G09163176Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Remove the pawls and metal clips slowly so that they are not damaged.
    4. Disengage steering column lower cover apron portion (1) fixing pawls from instrument lower panel LH (2).

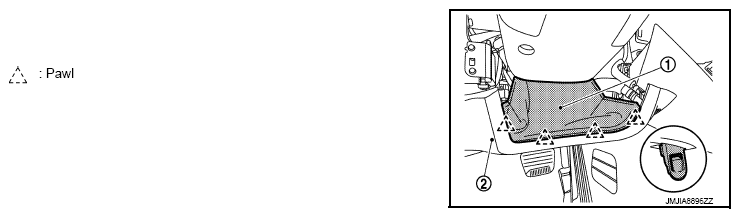

      Fig 4: Disengaging Steering Column Lower Cover Apron Portion Fixing Pawls From Instrument Lower Panel LH
      G09163177Courtesy of NISSAN NORTH AMERICA, INC.
    5. Disconnect harness fixing clips, and then remove harness connectors and aspirator duct.
      CAUTION: Harness is installed on the back side of instrument lower panel LH using (A) clips as shown in the figure below. Remove instrument lower panel LH slowly without pulling it strongly.

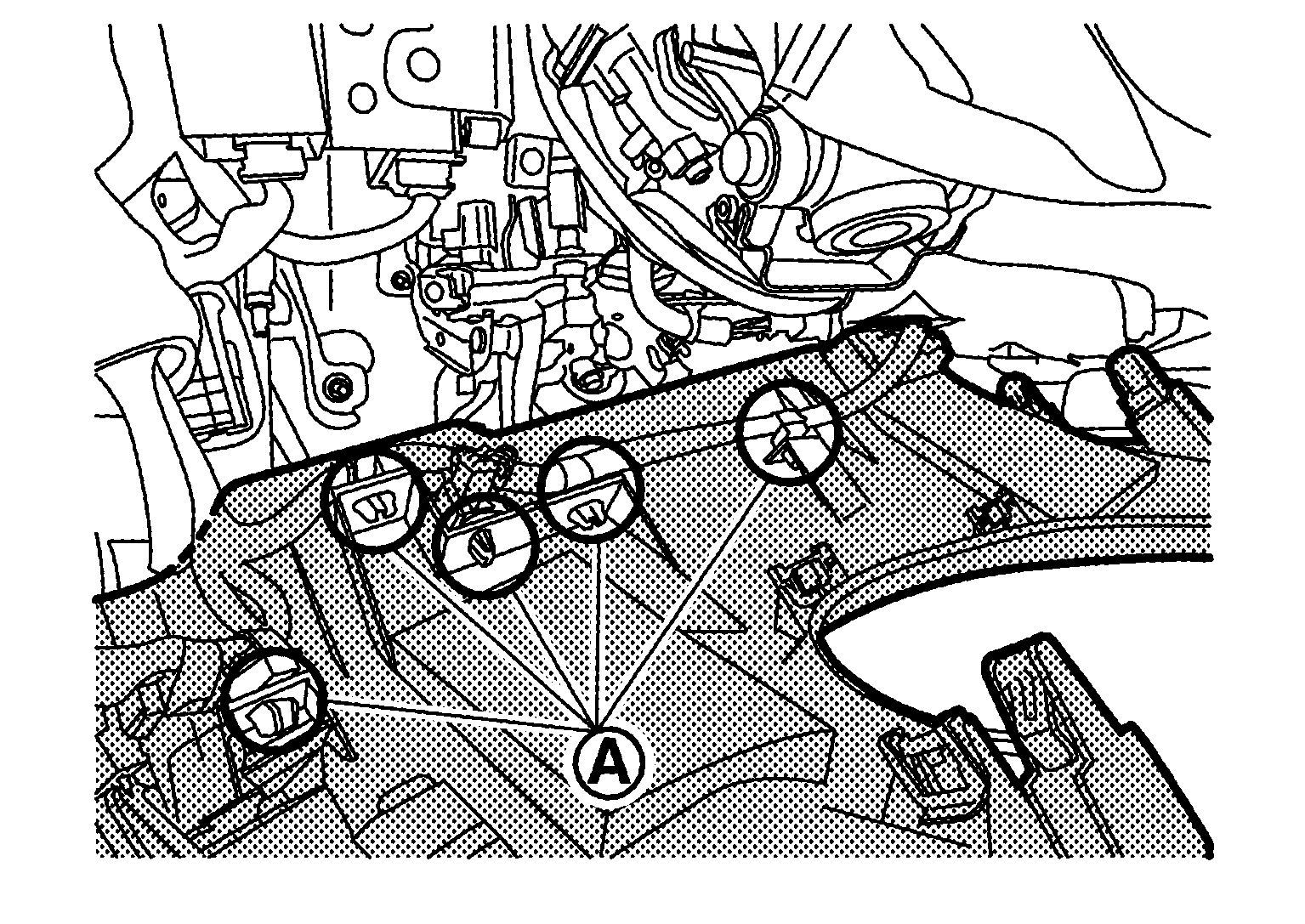

      Fig 5: Identifying Instrument Lower Panel LH Clips
      G09163178Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  6. Remove instrument side panel LH.
    1. Remove fixing screws (A).
    2. Pull instrument side panel LH, and then disengage pawls and metal clips according to the numerical order 1→2 as shown in the figure below.

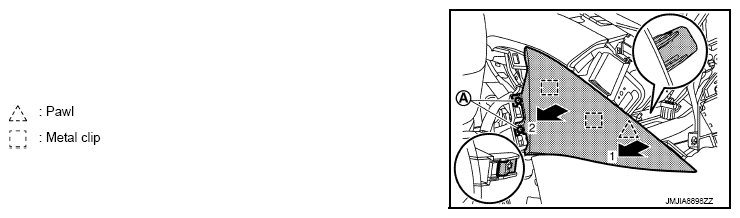

      Fig 6: Disengaging Pawls And Metal Clips
      G09163179Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove driver air bag module. Refer to "REMOVAL AND INSTALLATION ".
  8. Remove steering wheel. Refer to the followings:
  9. Remove steering column covers.
    1. With paddle shifter.
      • Remove steering column masks (1) with a small flat-bladed screwdriver (A).

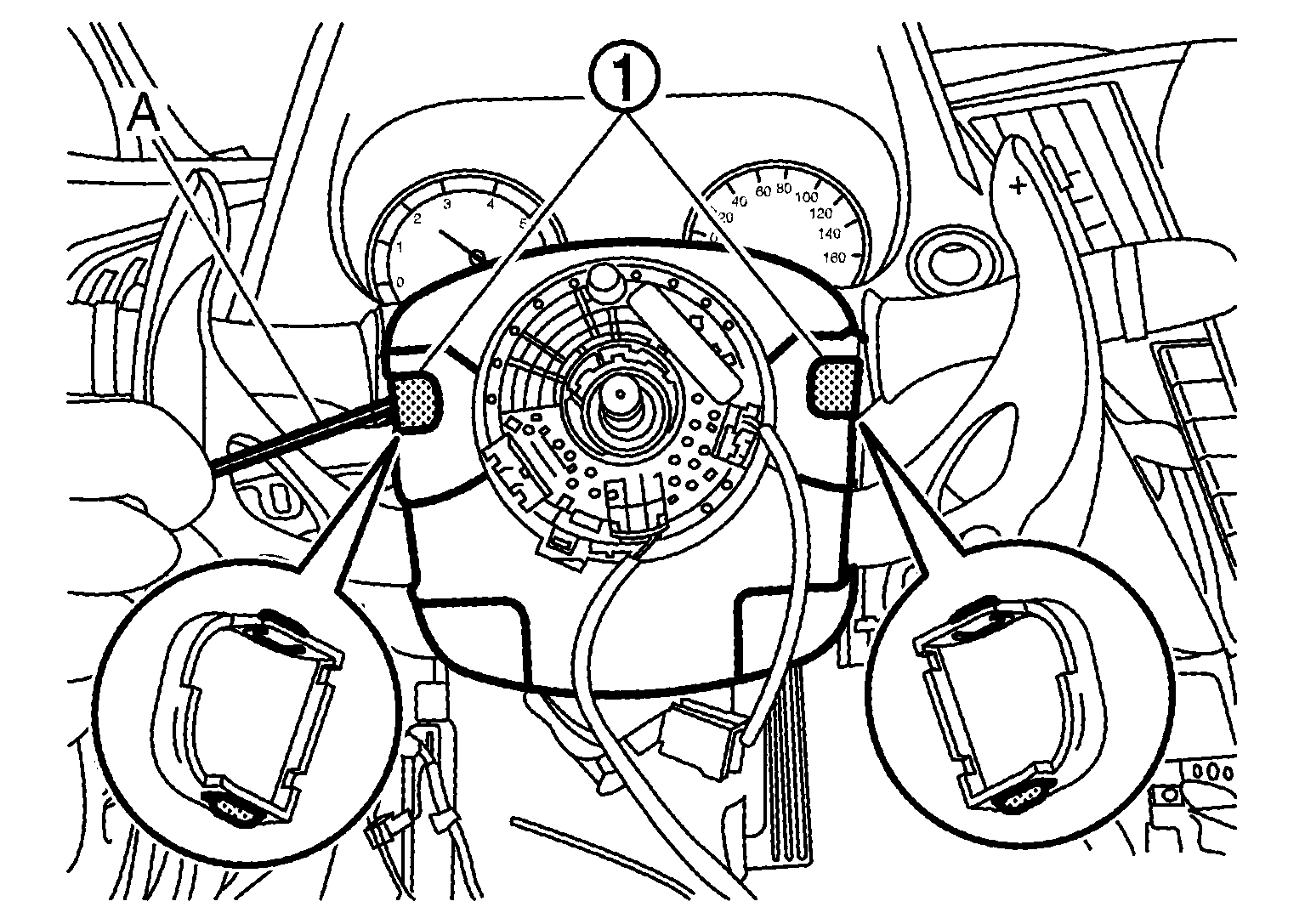

        Fig 7: Removing Steering Column Masks Using Small Flat-Bladed Screwdriver
        G09163180Courtesy of NISSAN NORTH AMERICA, INC.
      • Remove fixing screws (A).

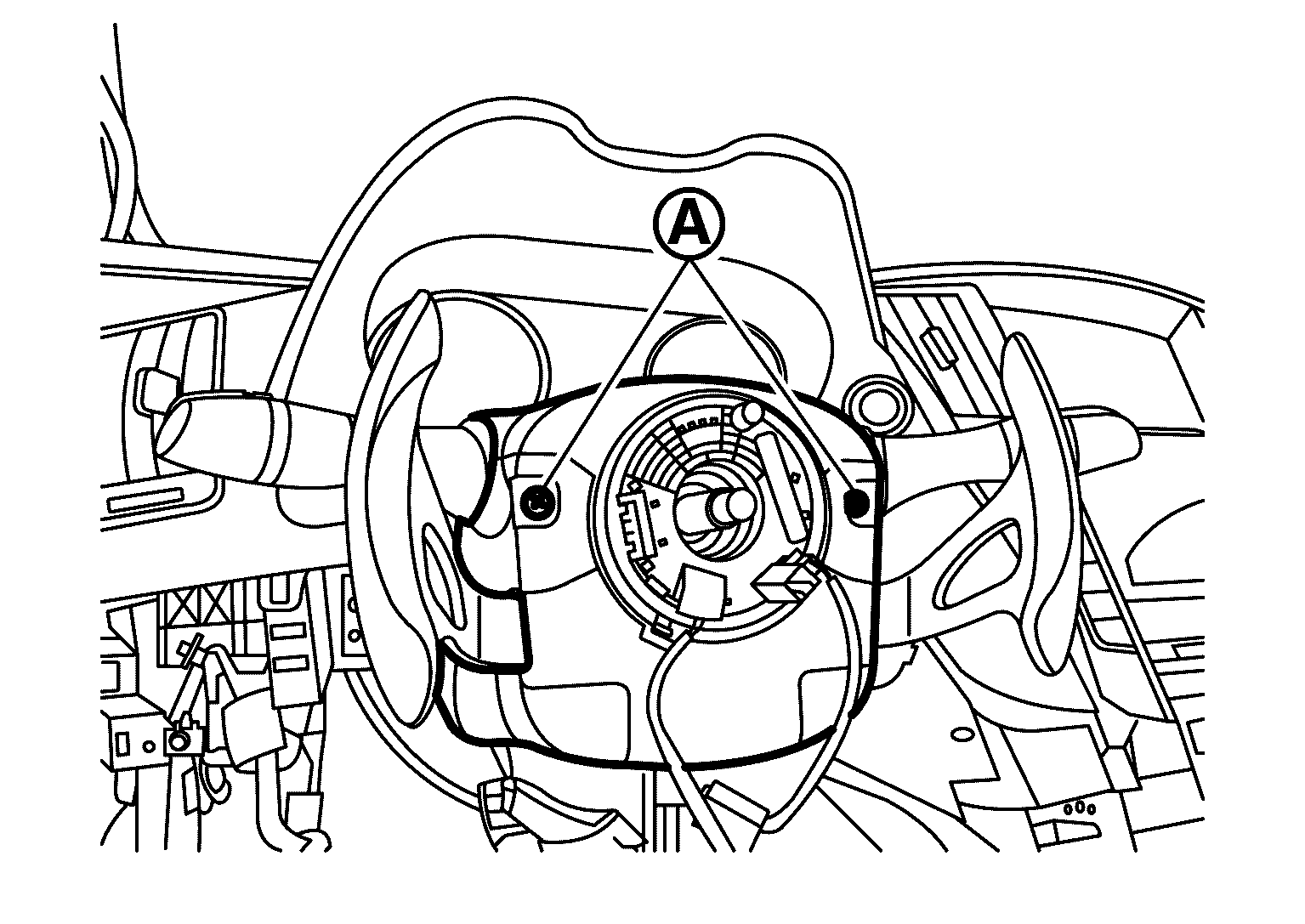

        Fig 8: Locating Fixing Screws
        G09163181Courtesy of NISSAN NORTH AMERICA, INC.
      • Apply protective tape (A) on the part to protect it from damage.

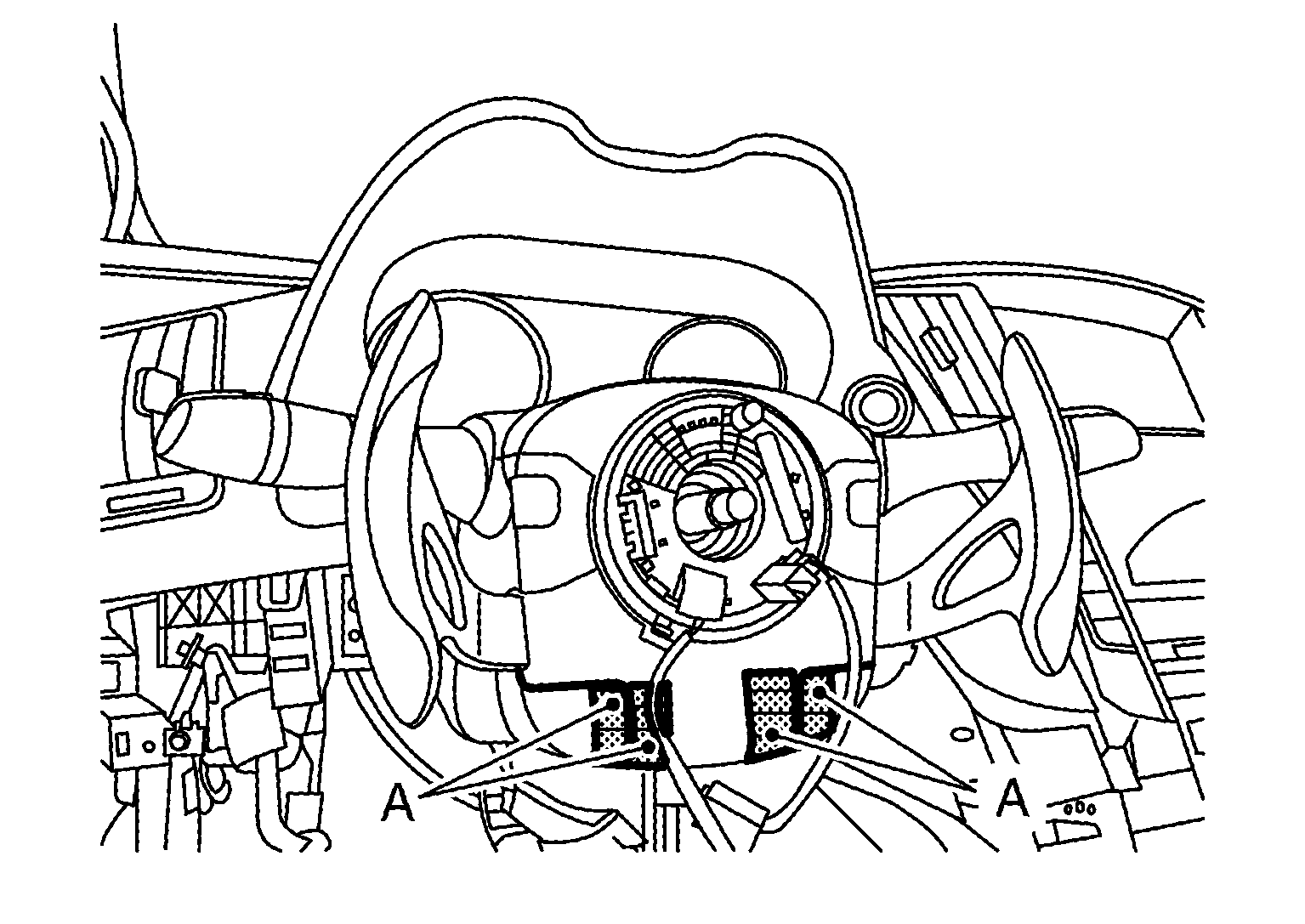

        Fig 9: Locating Protective Tape Application Area
        G09163182Courtesy of NISSAN NORTH AMERICA, INC.
      • Disengage pawls of steering column cover LH and steering column cover RH (2) using a flat-bladed screwdriver.
      • Pull up steering column upper cover, and remove steering column cover LH and steering column cover RH as shown in the figure below.

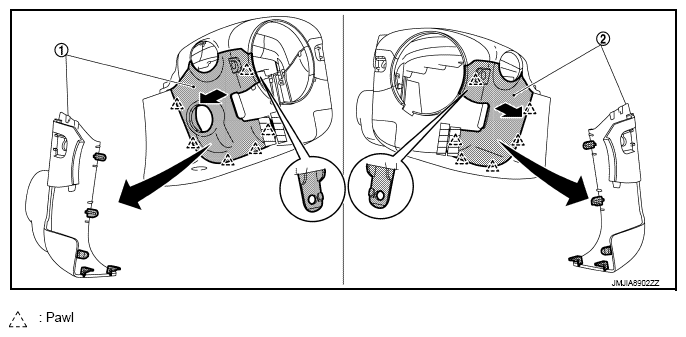

        Fig 10: Removing Steering Column Cover LH And Steering Column Cover RH
        G09163183Courtesy of NISSAN NORTH AMERICA, INC.
      • Disengage pawls of cluster lid A apron portion (2) and remove steering column upper cover (A).

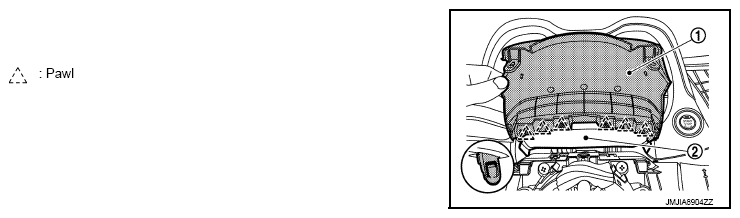

        Fig 11: Removing Steering Column Upper Cover
        G09163184Courtesy of NISSAN NORTH AMERICA, INC.
      • Remove fixing screws (A) and pull down steering column lower cover.

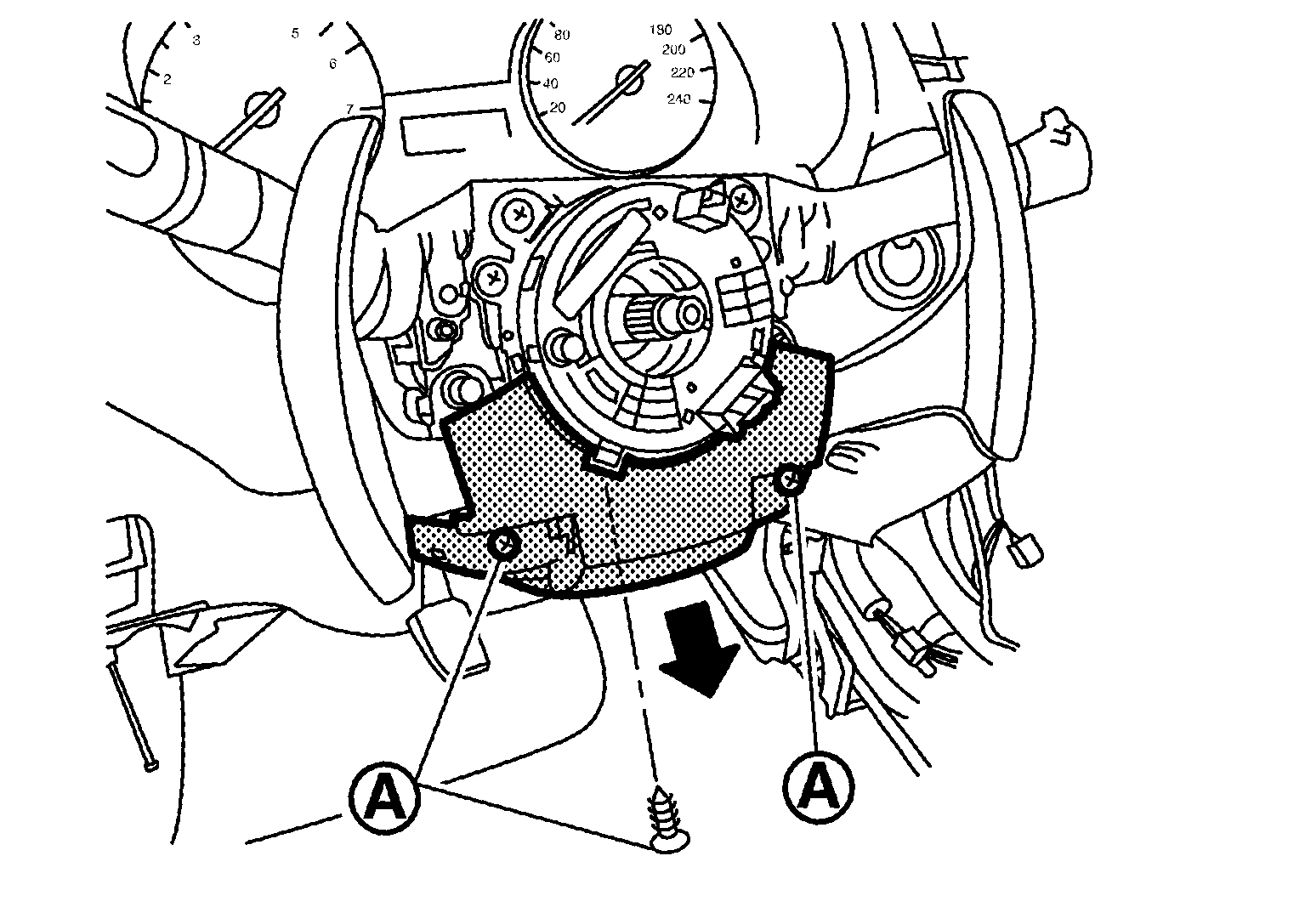

        Fig 12: Removing Fixing Screws
        G09163185Courtesy of NISSAN NORTH AMERICA, INC.
    2. Without paddle shifter.
      • Remove steering column masks with a small flat-bladed screwdriver.

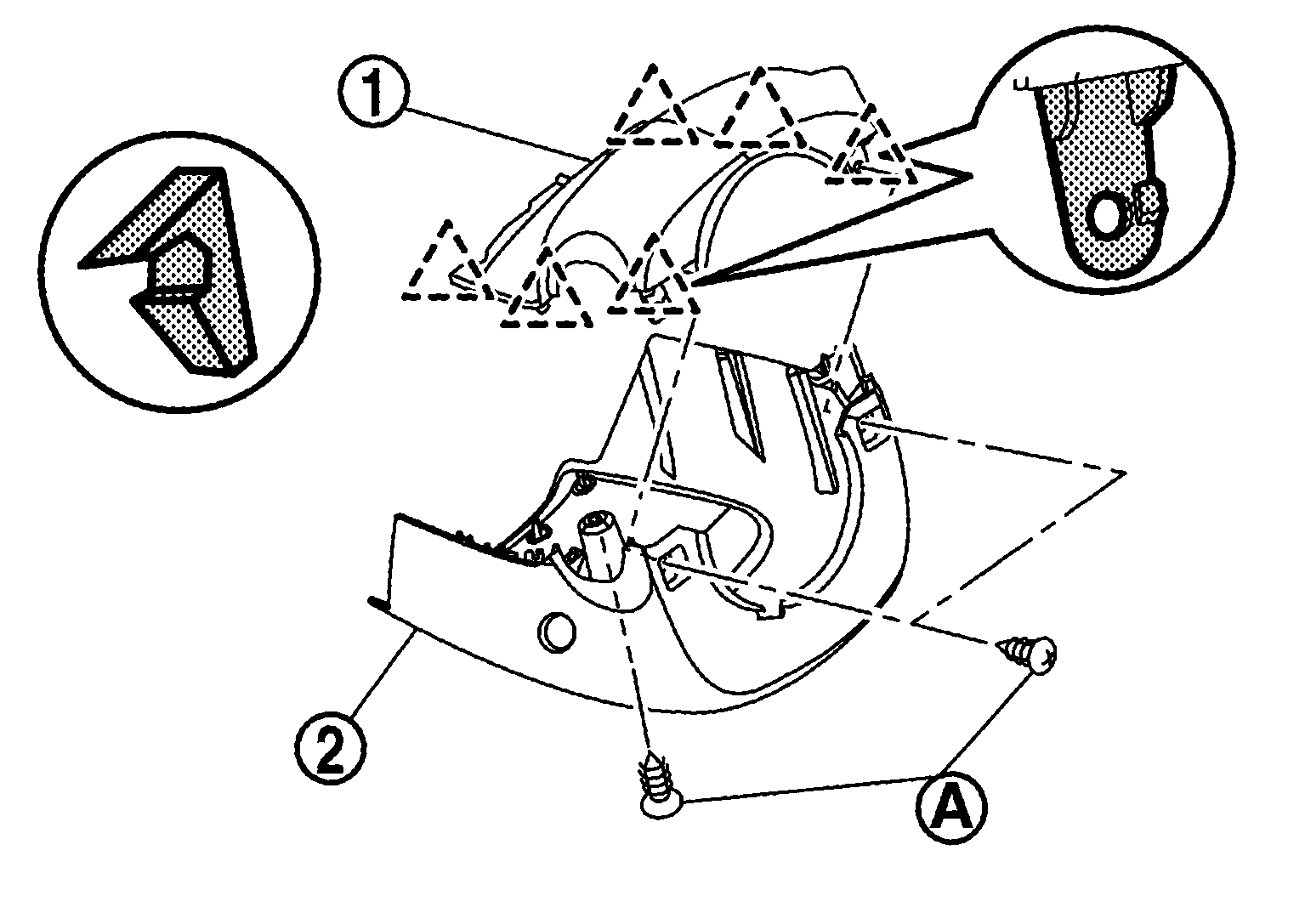

      • Remove fixing screws (A) from steering column upper cover (1) and steering column lower cover (2).
        Fig 13: Removing Steering Column Masks Using Small Flat-Bladed Screwdriver
        G09163186Courtesy of NISSAN NORTH AMERICA, INC.
      • Disengage pawls of cluster lid A apron portion (2) and remove steering column upper cover (A).
        Fig 14: Removing Steering Column Upper Cover
        G09163187Courtesy of NISSAN NORTH AMERICA, INC.
      • Pull down steering column lower cover (2), remove harness connector and then remove steering column lower cover.
  10. Remove spiral cable. Refer to "REMOVAL AND INSTALLATION ".
  11. Remove combination switch. Refer to "REMOVAL AND INSTALLATION ".
  12. Remove cluster lid A.
    1. Cover steering shaft with a shop cloth to prevent damage.
    2. Pull back cluster lid A, and then disengage pawls and metal clips according to the numerical order 1→2 as shown in the figure below.

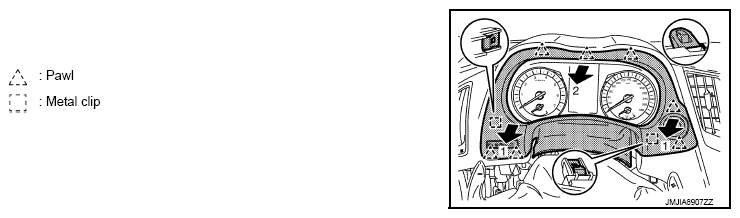

      Fig 15: Disengaging Pawls And Metal Clips
      G09163188Courtesy of NISSAN NORTH AMERICA, INC.
  13. Remove combination meter. Refer to "REMOVAL AND INSTALLATION ".
  14. Remove instrument finisher C and D.
    1. Pull back instrument finisher, and then disengage the fixing metal clips according to the numerical order 1→3 as shown in the figure below.

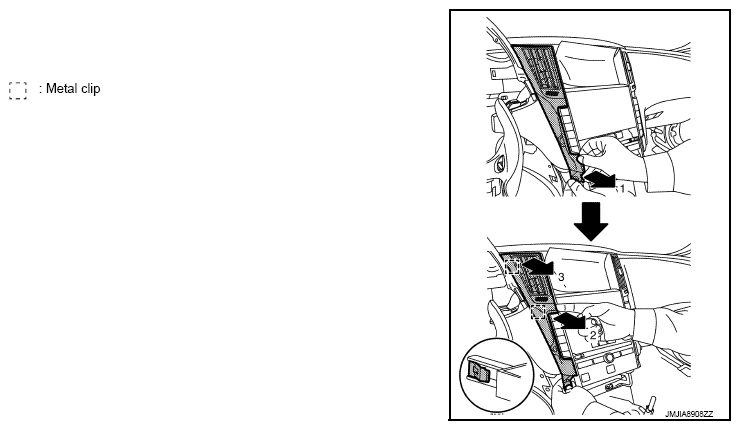

      Fig 16: Removing Instrument Finisher C And D
      G09163189Courtesy of NISSAN NORTH AMERICA, INC.
  15. Remove integral switch.
    1. Remove fixing screw (A).
    2. Disengage integral switch pawls and metal clips according to the numerical order 1→ 3 as shown in the figure above below.
    3. Disconnect harness connectors and remove integral switch.

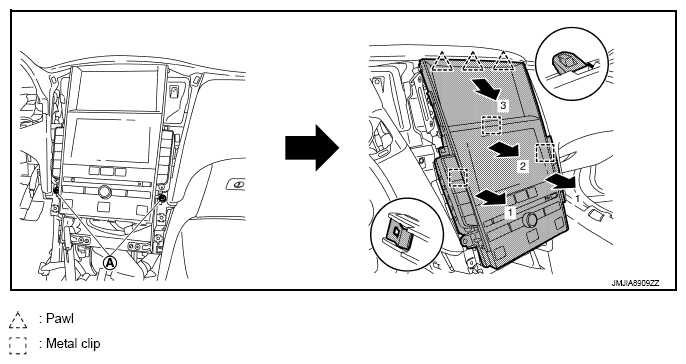

    Fig 17: Locating Fixing Screws And Disengaging Integral Switch Pawls
    G09163190Courtesy of NISSAN NORTH AMERICA, INC.
  16. Remove display control unit.
    1. Remove fixing screws (A).
    2. Pull back display control unit to remove.
      Fig 18: Removing Fixing Screws
      G09163191Courtesy of NISSAN NORTH AMERICA, INC.
    3. Disconnect harness connectors and remove display control unit.
  17. Remove AV & NAVI control unit.
    1. Remove fixing screws (A).

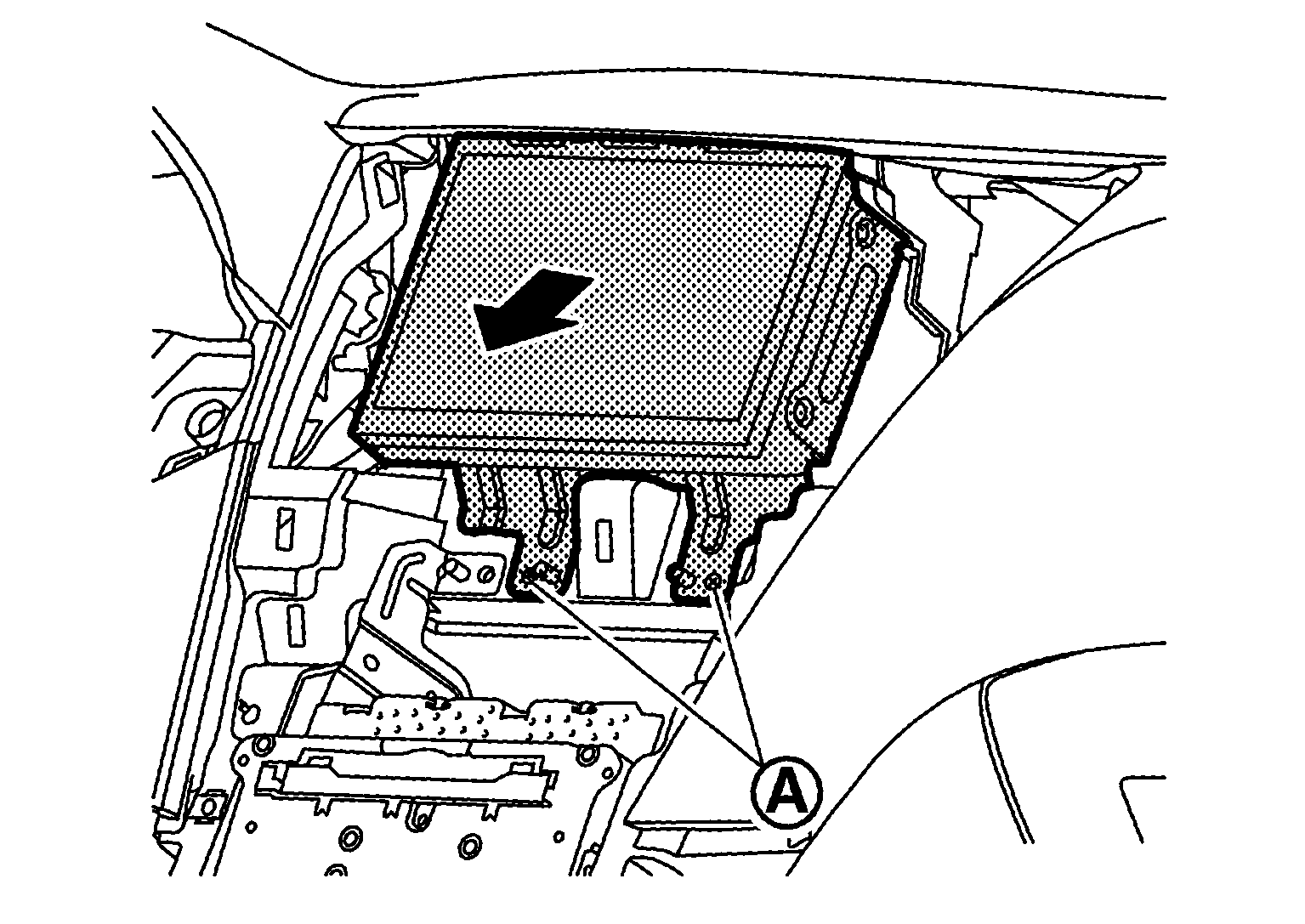

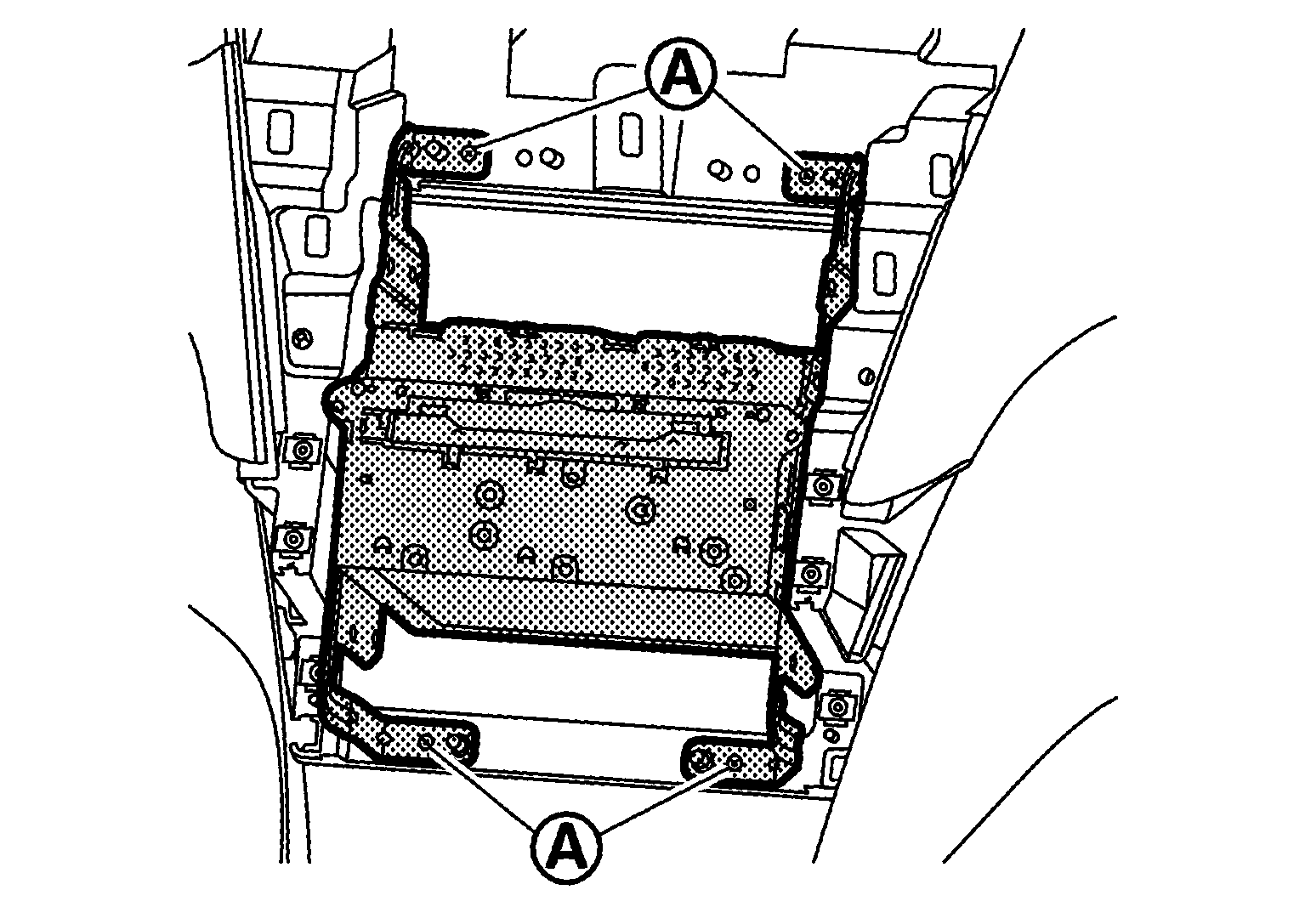

      Fig 19: Locating Fixing Screws
      G09163192Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back AV & NAVI control unit to remove.
    3. Disconnect harness connector.
  18. Release front pillar portion of front body side welt RH. Refer to "BODY SIDE WELT: REMOVAL AND INSTALLATION ".
  19. Remove instrument side finisher RH.
    1. Apply protective tape (A) on the part to protect it from damage.

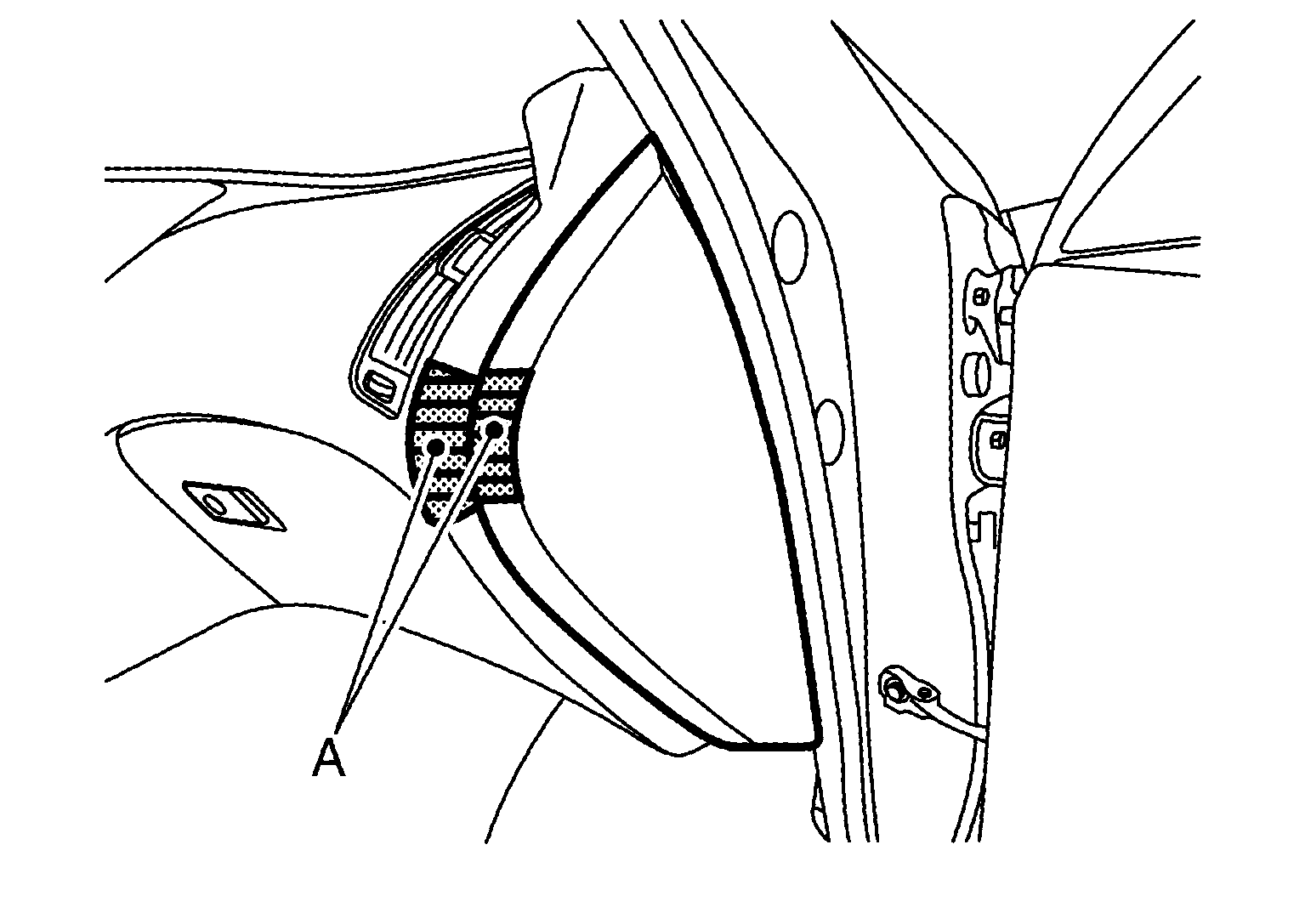

      Fig 20: Locating Instrument Panel Protective Tape Application Area
      G09163193Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull instrument side finisher RH, and then disengage pawls using a remover tool (A) according to the numerical order 1→2 as shown in the figure below.

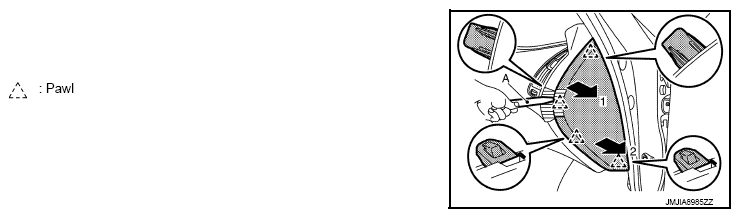

      Fig 21: Disengaging Pawls Using Remover Tool
      G09163194Courtesy of NISSAN NORTH AMERICA, INC.
  20. Remove front pillar garnish RH. Refer to "FRONT PILLAR GARNISH: REMOVAL AND INSTALLATION ".
  21. Remove glove box assembly.
    1. Open the glove box assembly.
    2. Pull back glove box assembly toward the direction of the arrow to disengage joint from instrument lower panel RH.

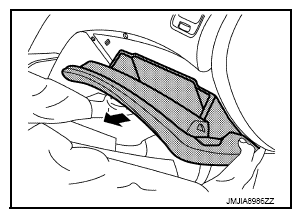

      Fig 22: Disengaging Joint From Instrument Lower Panel RH
      G09163195Courtesy of NISSAN NORTH AMERICA, INC.
    3. Pull glove box assembly damper string and remove it from glove box assembly (A).
      CAUTION: Never excessively pull damper string.

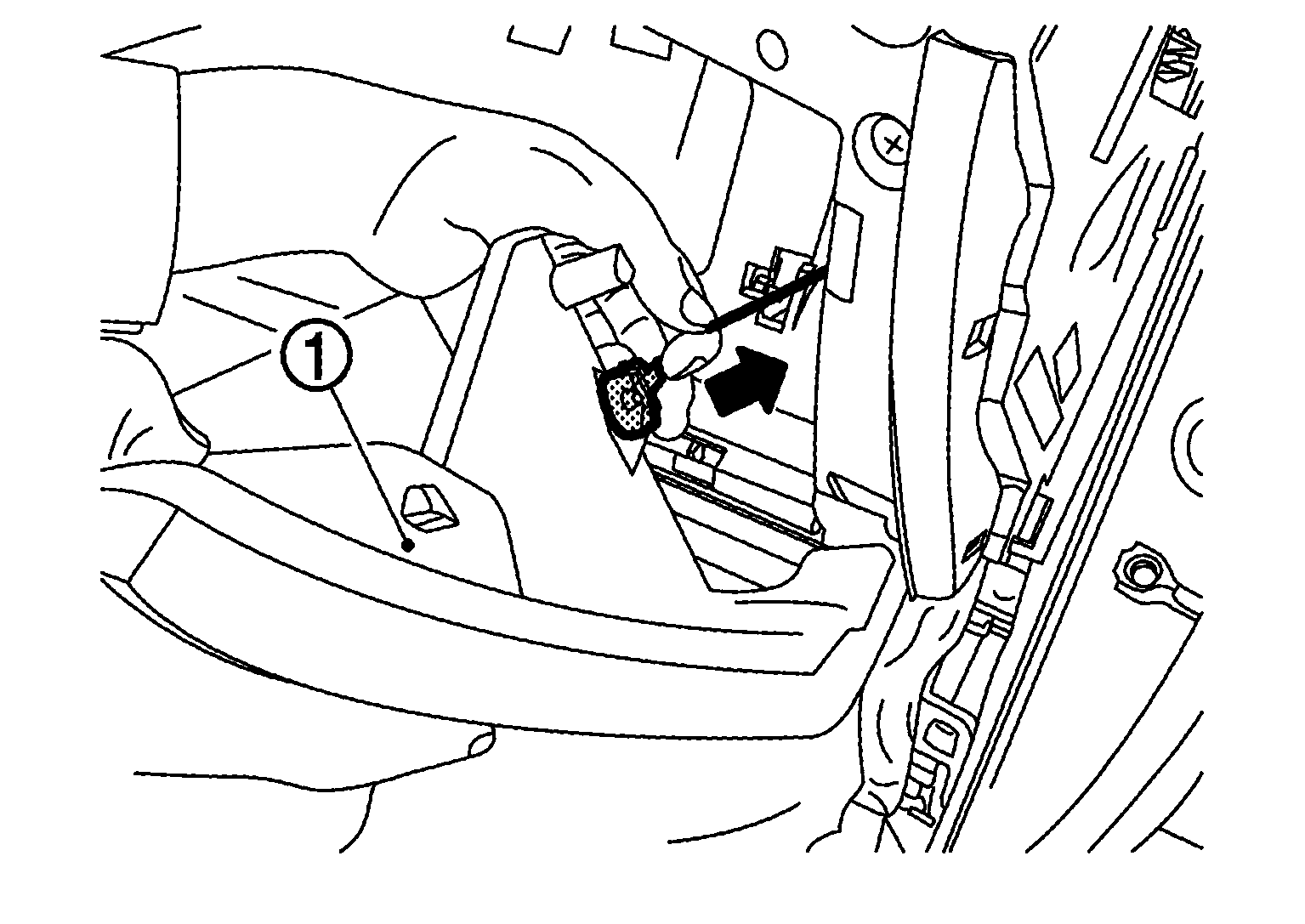

      Fig 23: Removing Glove Box Assembly Damper String
      G09163196Courtesy of NISSAN NORTH AMERICA, INC.
  22. Remove instrument lower cover.
    1. Pull downward to disengage the fixing metals clips in the numerical order 1→4 as shown in the figure below.

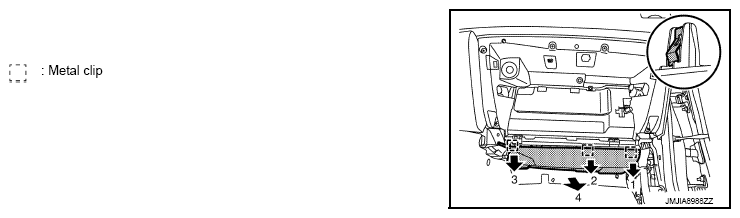

      Fig 24: Removing Instrument Lower Cover
      G09163197Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back instrument lower cover.
    3. Disconnect harness connectors.
  23. Remove instrument lower panel RH.
    1. Remove instrument lower panel RH fixing screws.
    2. Pull back instrument lower panel RH, and then disengage the fixing metal clips.

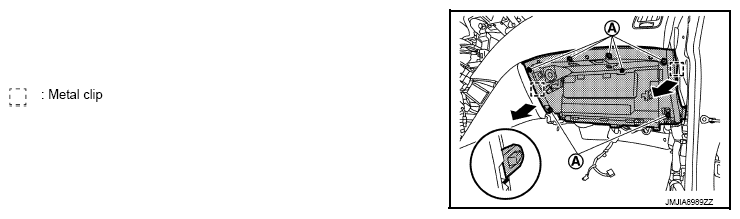

      Fig 25: Removing Instrument Lower Panel RH
      G09163198Courtesy of NISSAN NORTH AMERICA, INC.
    3. Disconnect harness connector.
  24. Remove instrument side panel RH
    1. Remove fixing screws (A).
    2. Pull instrument side panel RH, and then disengage pawls and metal clips according to the numerical order 1→2 as shown in the figure below.

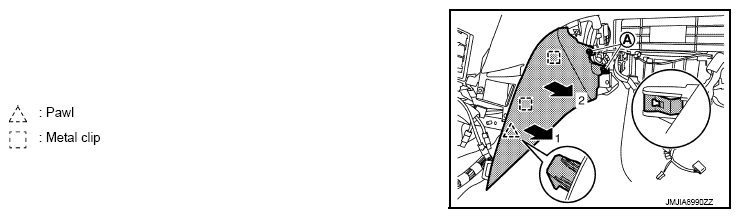

      Fig 26: Removing Instrument Side Panel RH
      G09163199Courtesy of NISSAN NORTH AMERICA, INC.
  25. Remove front speaker grille.
    1. Apply protective tape (A) on the part to protect it from damage.

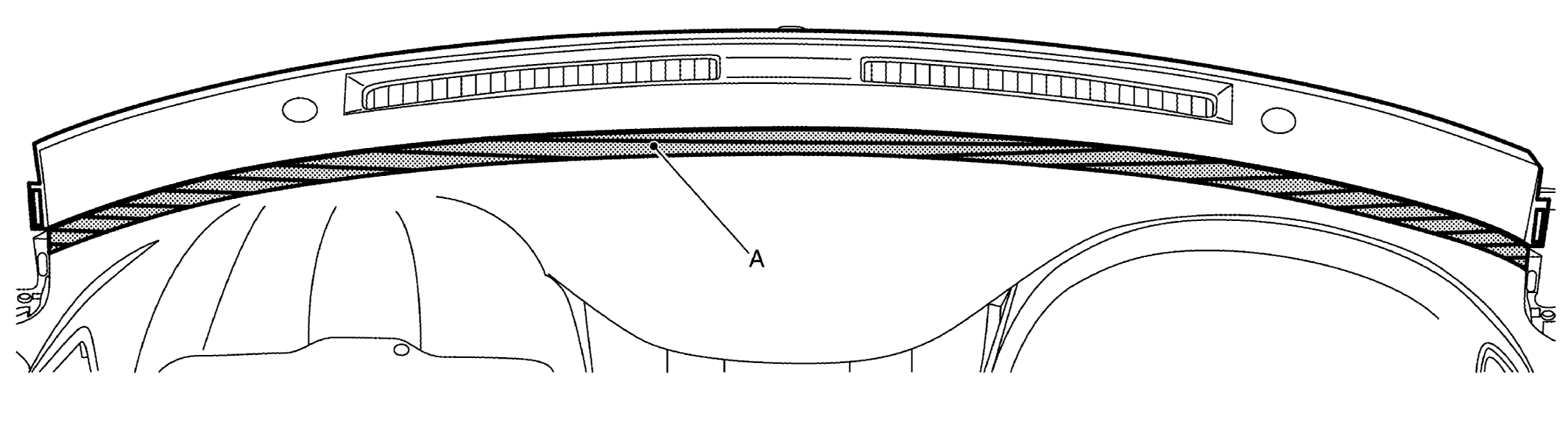

      Fig 27: Locating Front Speaker Grille Protective Tape Application Area
      G09163200Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disengage front speaker grille fixing metal clips starting from both sides and work toward the center of the front speaker grille as 1→2 as shown in the figure below.

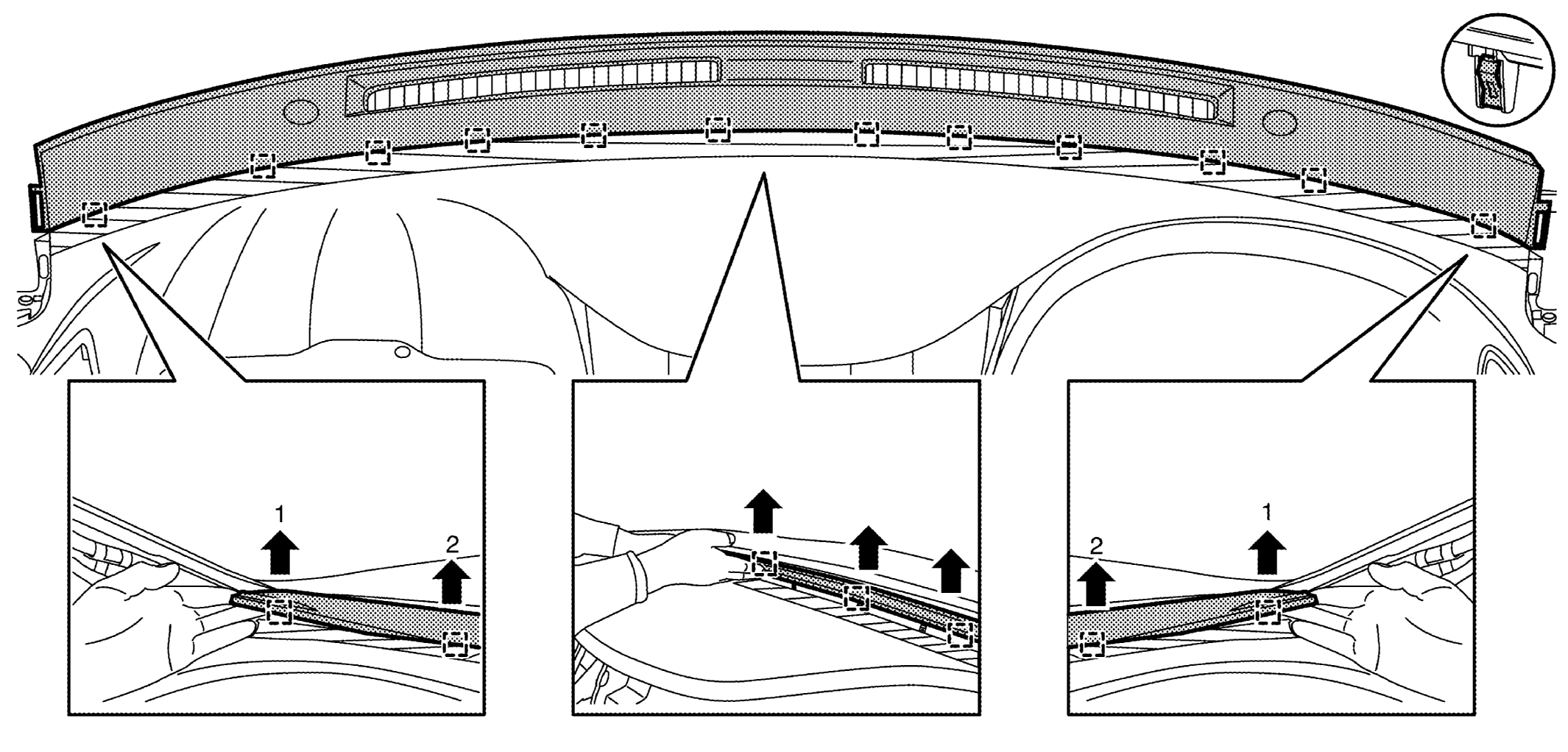

      Fig 28: Disengaging Front Speaker Grille Fixing Metal Clips
      G09163201Courtesy of NISSAN NORTH AMERICA, INC.
    3. Disconnect optical sensor and sunload sensor harness connector.
  26. Remove front squawker LH. Refer to "REMOVAL AND INSTALLATION ".
  27. Remove center squawker. Refer to "REMOVAL AND INSTALLATION ".
  28. Remove front squawker RH. Refer to "REMOVAL AND INSTALLATION ".
  29. Disconnect passenger air bag module harness connector. Refer to "REMOVAL AND INSTALLATION ".
  30. Remove passenger air bag module mounting bolt.
  31. Remove instrument panel assembly.
    1. Remove instrument panel assembly fixing screws, mounting bolt and clip.

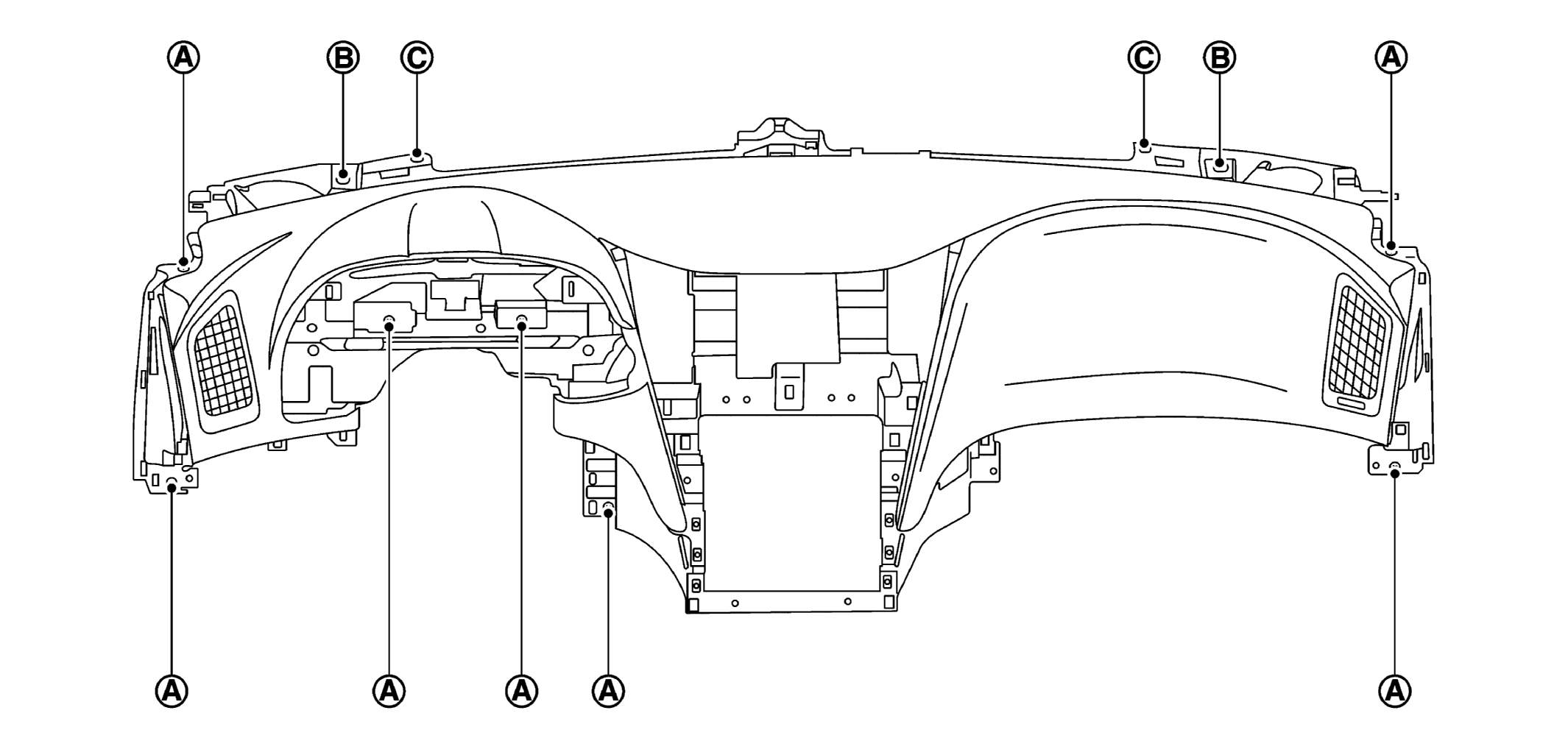

      Fig 29: Locating Instrument Panel Assembly Fixing Screws, Mounting Bolt And Clip
      G09163202Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disengage harness of front pillar LH and RH portions from instrument panel assembly.
    3. Remove harness fixing clips and disengage harness from instrument panel assembly.
    4. Remove instrument panel assembly from passenger door opening portion.
      CAUTION:
      • Cover shift selector upper surface with a shop cloth to prevent it from being damaged.
      • When removing instrument panel assembly, 2 workers are required to prevent it from dropping.
  32. Remove the following parts after removing instrument panel assembly.
