Infiniti
>>
2014
>>
Q50 Base, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel (Except Hybrid)
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
Exploded View
Exploded View

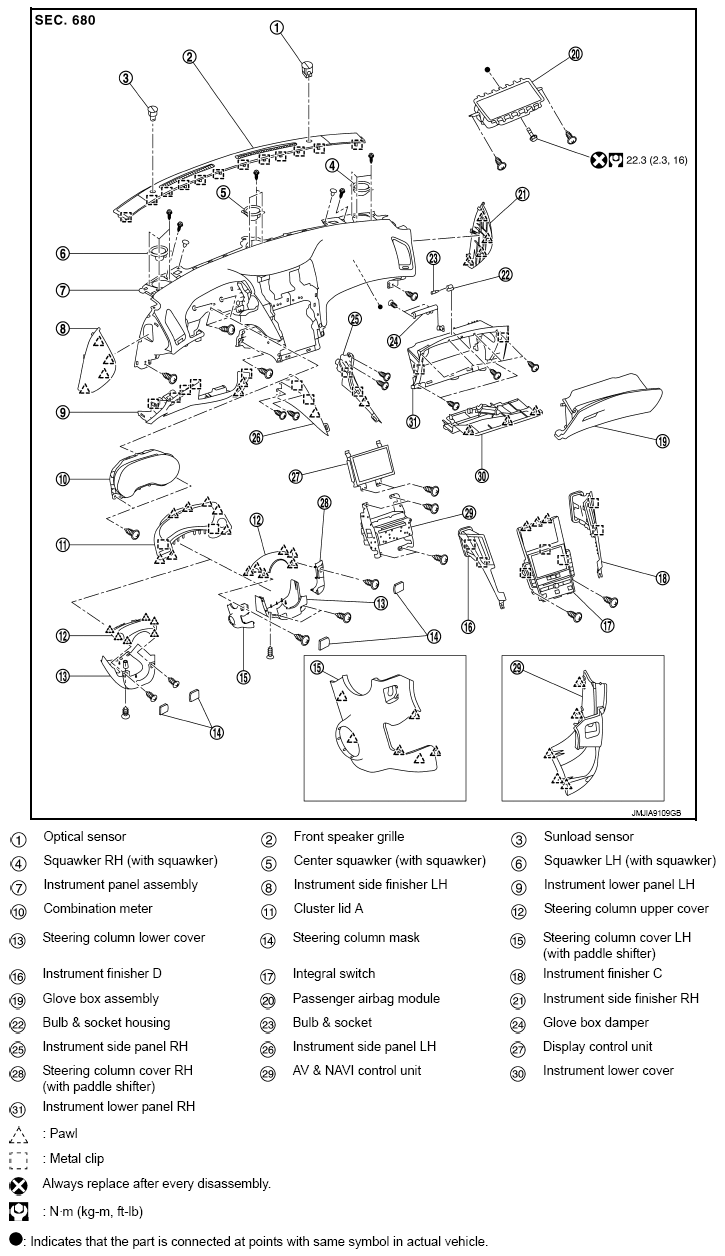

Fig 1: Exploded View Of Instrument Panel Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
