Disassembly and Assembly: Disassembly

  1. Remove console lid fixing screws.

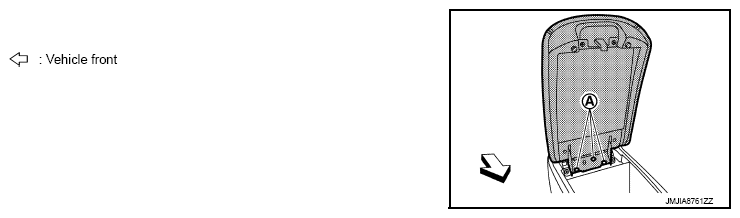

    Fig 1: Locating Console Lid Fixing Screws
    G09163214Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove console reinforcement fixing screws.

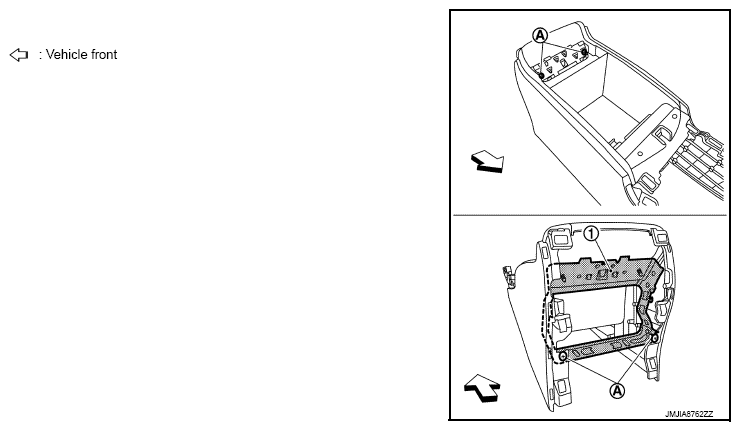

    Fig 2: Removing Console Reinforcement Fixing Screws
    G09163215Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disengage center console finisher fixing pawls and remove center console finisher.

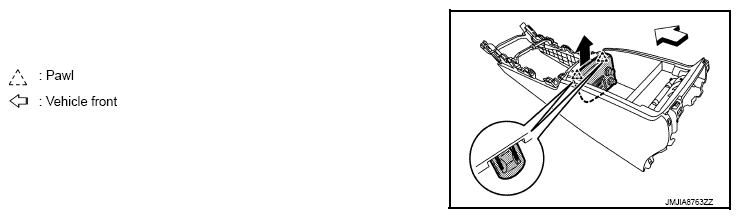

    Fig 3: Removing Center Console Finisher
    G09163216Courtesy of NISSAN NORTH AMERICA, INC.
