Removal and Installation: Removal

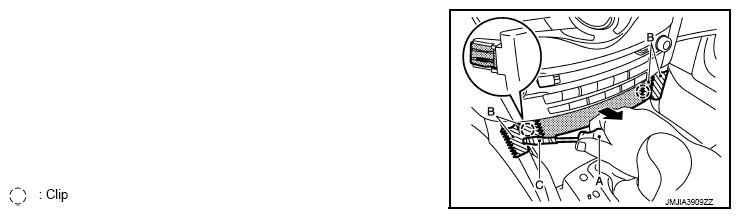

Insert a flat-bladed screwdriver (A) between cluster lid C and instrument side panel LH and RH [within 15.0 mm (0.591 in) from lower end of cluster lid C] and disengage clips.

Fig 1: Removing Cluster Lid C Using Flat-Bladed Screwdriver

Courtesy of NISSAN NORTH AMERICA, INC.

• 2WD models: Refer to "2WD: REMOVAL AND INSTALLATION ".
• AWD models: Refer to "AWD: REMOVAL AND INSTALLATION ".

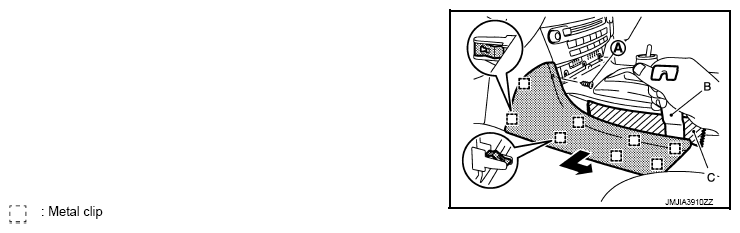

1. Remove screw (A).
2. Insert a remover tool (B) between instrument side panel LH and console finisher assembly and disengage metal clips on the lateral side.
3. Pull out instrument side LH toward vehicle rear and disengage metal clips in front end.

Fig 2: Removing Instrument Side Panel LH Using Tool

Courtesy of NISSAN NORTH AMERICA, INC.

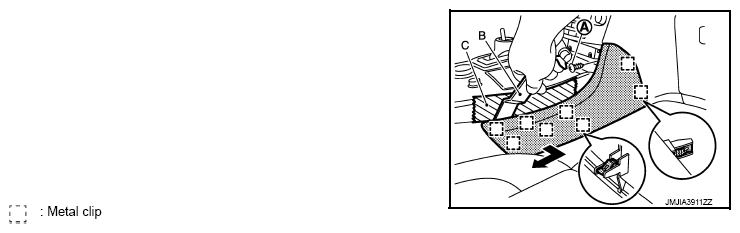

1. Remove screw (A).
2. Insert a remover tool (B) between instrument side panel RH and console finisher assembly and disengage metal clips on the lateral side.
3. Pull out instrument side RH toward vehicle rear and disengage metal clips in front end.

Fig 3: Removing Instrument Side Panel RH

Courtesy of NISSAN NORTH AMERICA, INC.

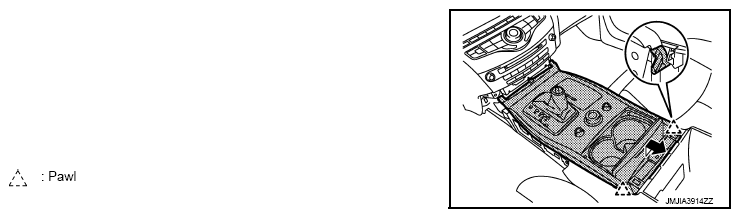

1. Open the cup holder and console lid.
2. Pull upward to release console mask fixing clips and pawls from center console assembly.
   Fig 4: Removing Console Mask

   Courtesy of NISSAN NORTH AMERICA, INC.

1. Put selector lever in "D" position.
2. Remove screws (A).
   Fig 5: Identifying Console Finisher Assembly Mounting Screws

   Courtesy of NISSAN NORTH AMERICA, INC.
3. Lift up console finisher assembly back side, and then remove console finisher assembly.
   CAUTION:

   • Be careful not to damage front end of console finisher assembly.
   • Disengage slowly so that pawls in rear end of console finisher assembly are not damaged.
   • Be careful not to damage preset switch.
   Fig 6: Removing Console Finisher Assembly

   Courtesy of NISSAN NORTH AMERICA, INC.
4. Disconnect harness connectors.

1. Close the console lid assembly.

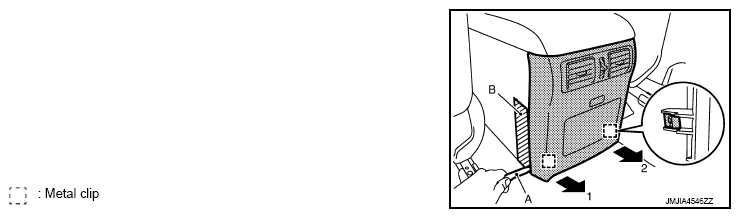

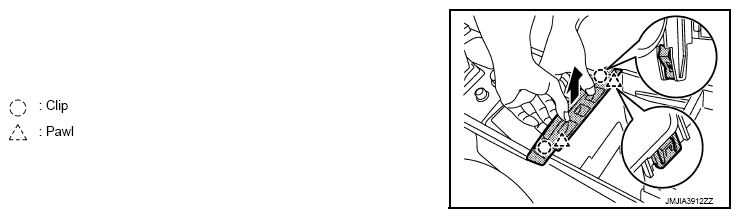

2. Insert remover tool (A) between console rear finisher and center console assembly to disengage the metal clips of console rear finisher lower side.
   CAUTION:

   • Hooks of console rear finisher are engaged at upper and lower. Never pull console rear finisher forcefully.
   • Apply protective tape (B) on the part to protect from damage.
   Fig 7: Removing Console Rear Finisher

   Courtesy of NISSAN NORTH AMERICA, INC.

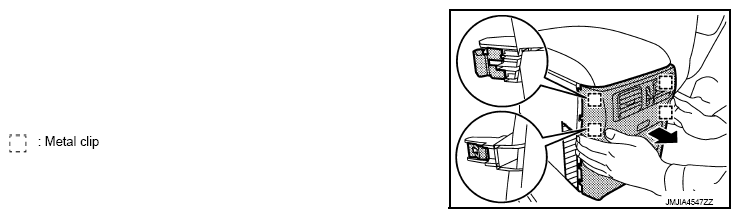

3. Pull console rear finisher toward vehicle rear and disengage metal clips on center portion and upper portion of console rear finisher.
   CAUTION: Hooks of console rear finisher are engaged at upper and lower. Never pull console rear finisher forcefully.
   Fig 8: Pulling Console Rear Finisher Toward Vehicle Rear

   Courtesy of NISSAN NORTH AMERICA, INC.

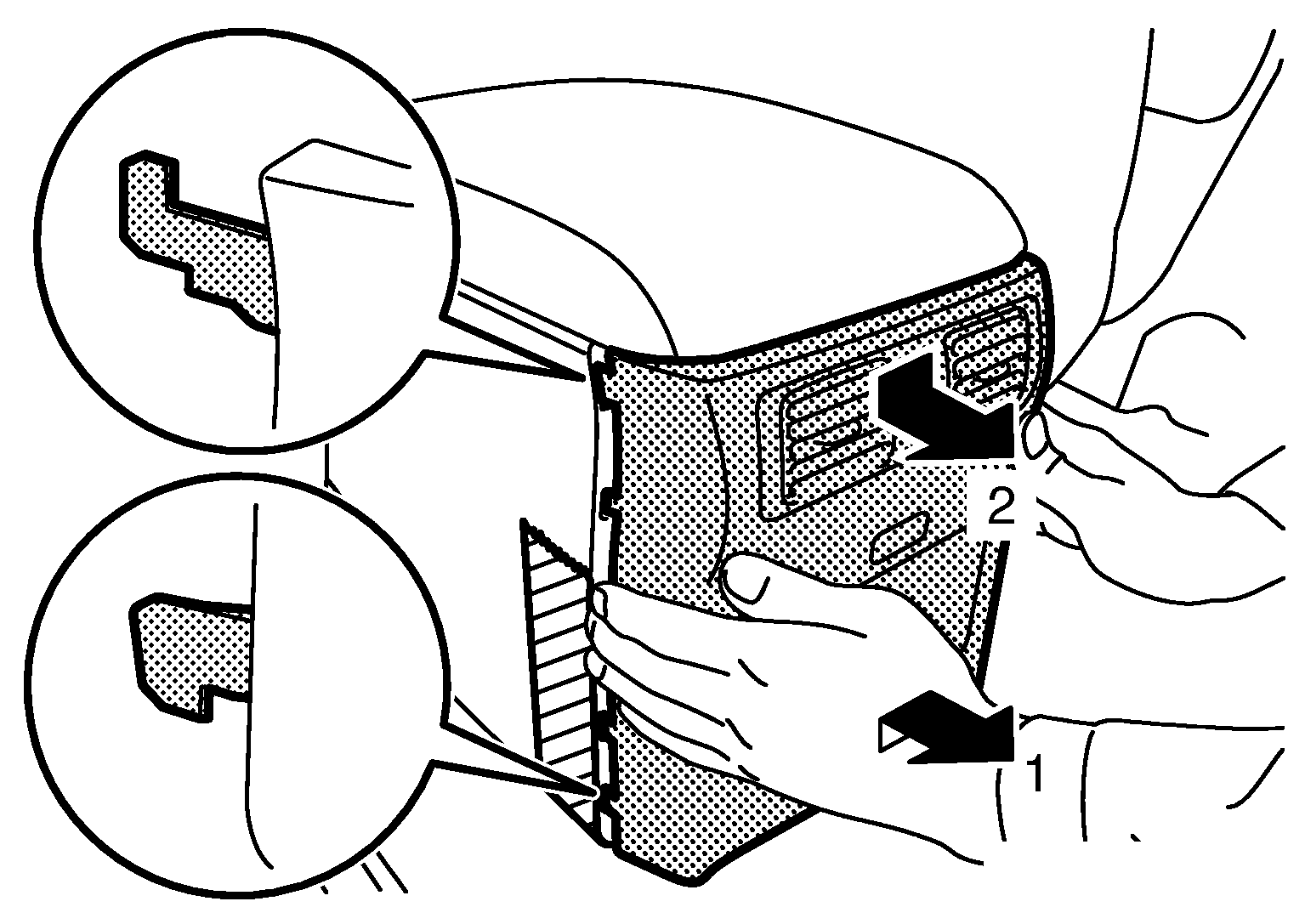

4. Hold both sides of console rear finisher and pull it out towards vehicle rear, while disengaging hooks at upper and lower and then bypassing hooks.
   CAUTION: Remove hooks slowly so that they are not damaged.
5. Disconnect harness connector of back side and remove console rear finisher.
   Fig 9: Removing Console Rear Finisher

   Courtesy of NISSAN NORTH AMERICA, INC.

1. Disconnect inside key antenna (console) harness connector. Refer to "REMOVAL AND INSTALLATION ".
2. Disconnect USB connector harness connector. Refer to "REMOVAL AND INSTALLATION ".
3. Disconnect console power socket harness connector. Refer to "REMOVAL AND INSTALLATION ".

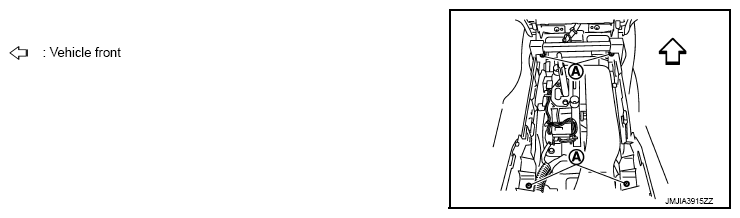

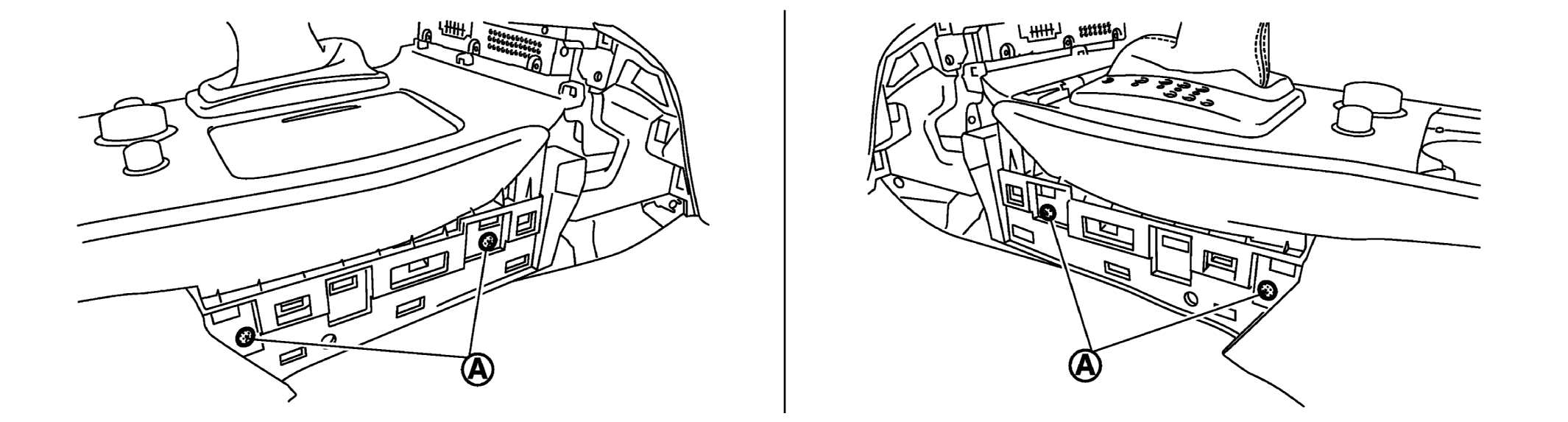

4. Remove center console assembly fixing screws (A).
   Fig 10: Identifying Center Console Assembly Fixing Screws

   Courtesy of NISSAN NORTH AMERICA, INC.
5. Put front seat to frontmost position.

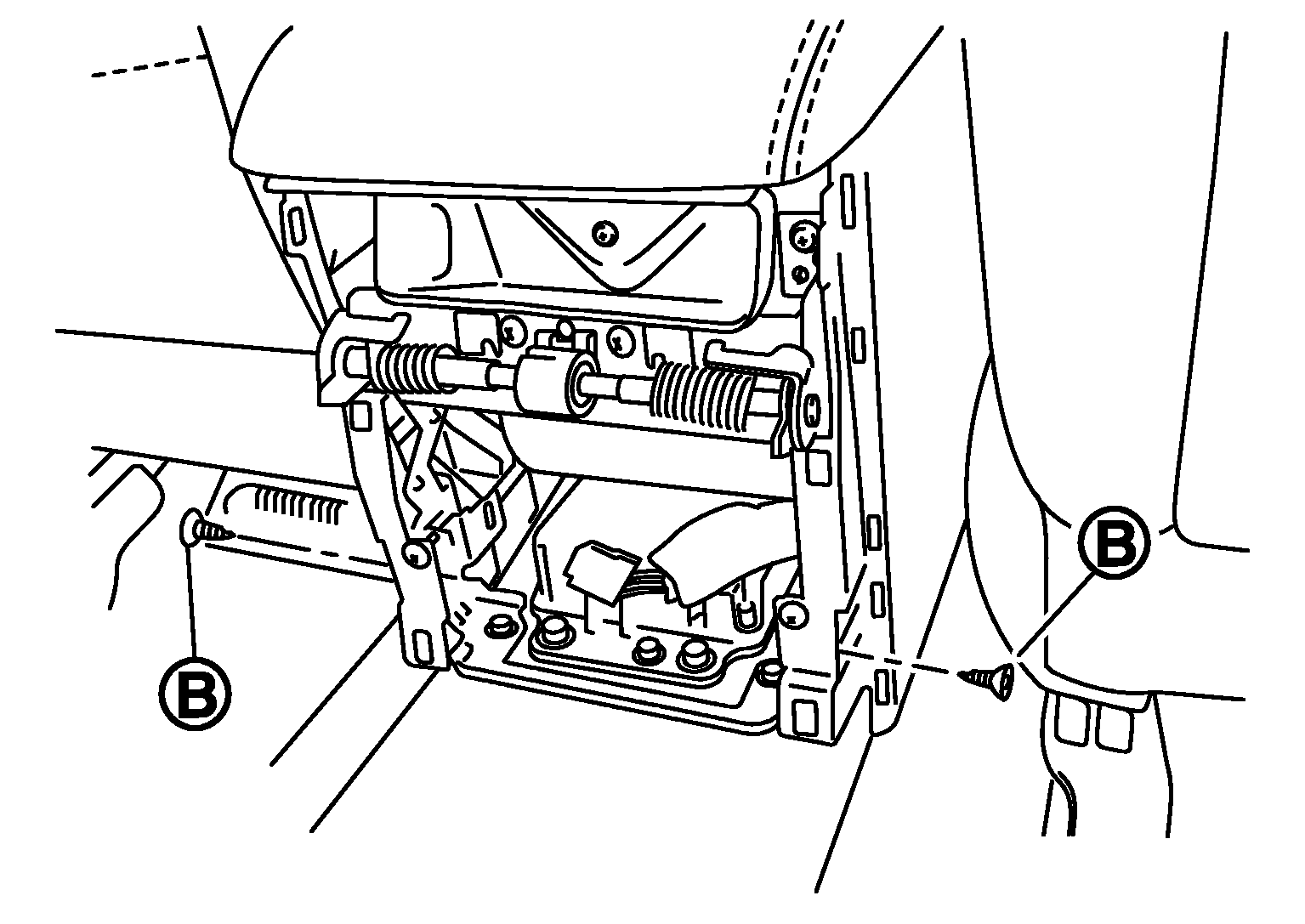

6. Remove center console assembly fixing screws (B).
   Fig 11: Identifying Center Console Assembly Fixing Screws

   Courtesy of NISSAN NORTH AMERICA, INC.
7. Put front seat to rearmost position.
8. Lift up center console assembly back side, and then remove center console assembly.
