Wiring Diagram - Without Intelligent Cruise Control

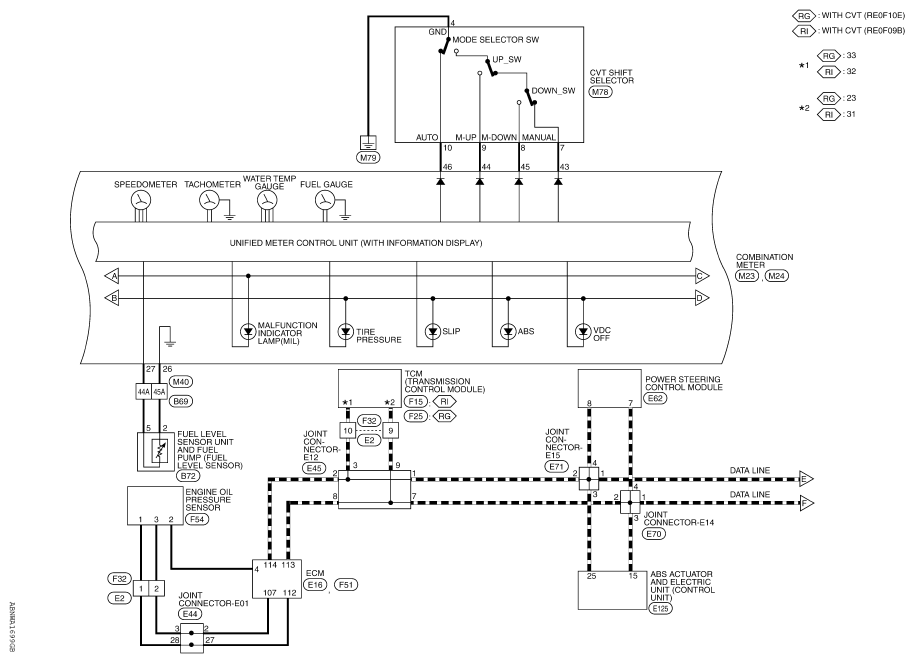

Fig 1: Meter System (Without Intelligent Cruise Control) Wiring Diagram (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

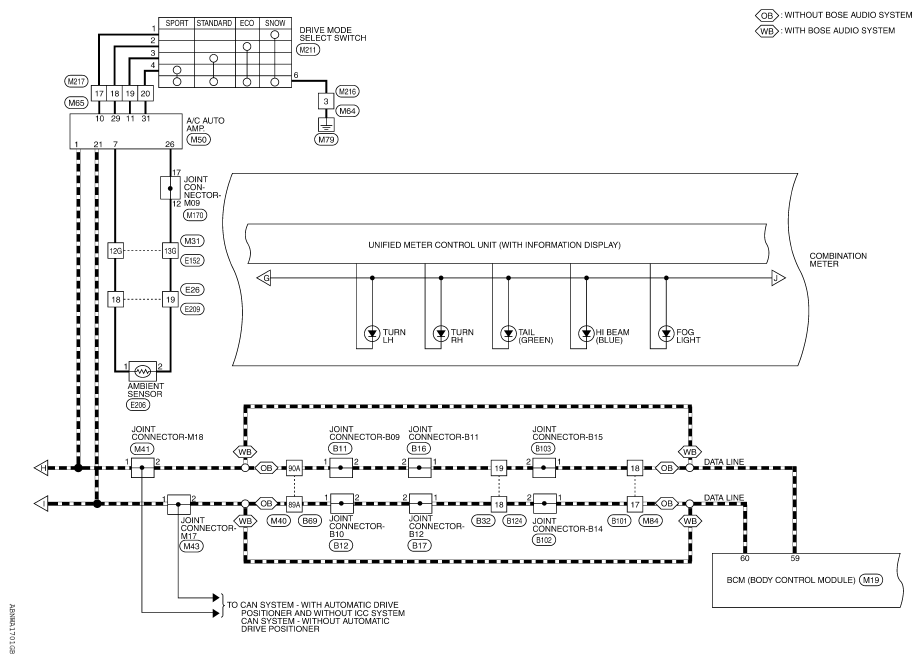

Fig 2: Meter System (Without Intelligent Cruise Control) Wiring Diagram (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Meter System (Without Intelligent Cruise Control) Wiring Diagram (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Meter System (Without Intelligent Cruise Control) Wiring Diagram (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Meter System (Without Intelligent Cruise Control) Wiring Diagram (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

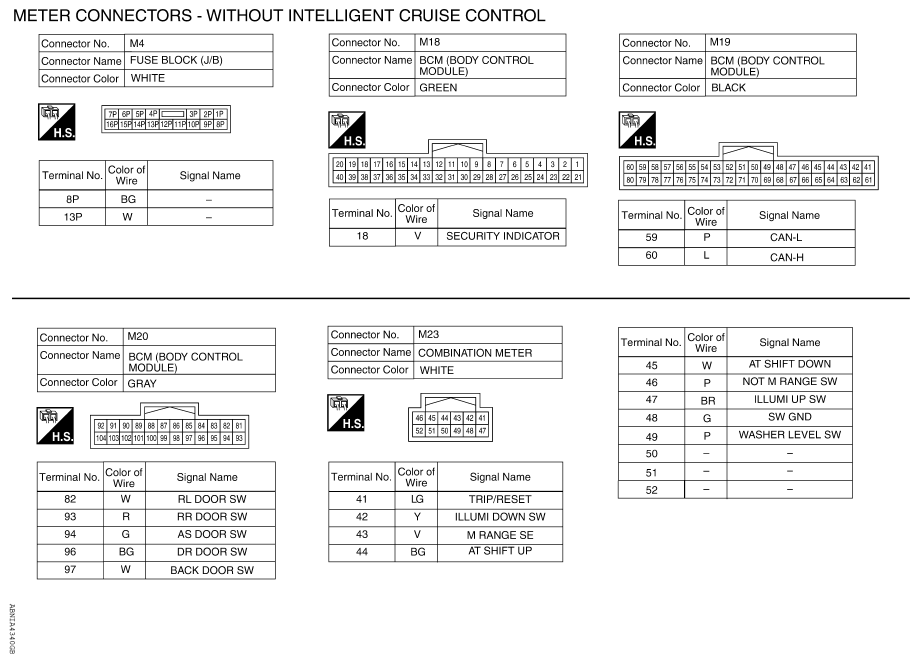

Fig 6: Meter System (Without Intelligent Cruise Control) Connector End Views (1 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Meter System (Without Intelligent Cruise Control) Connector End Views (2 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

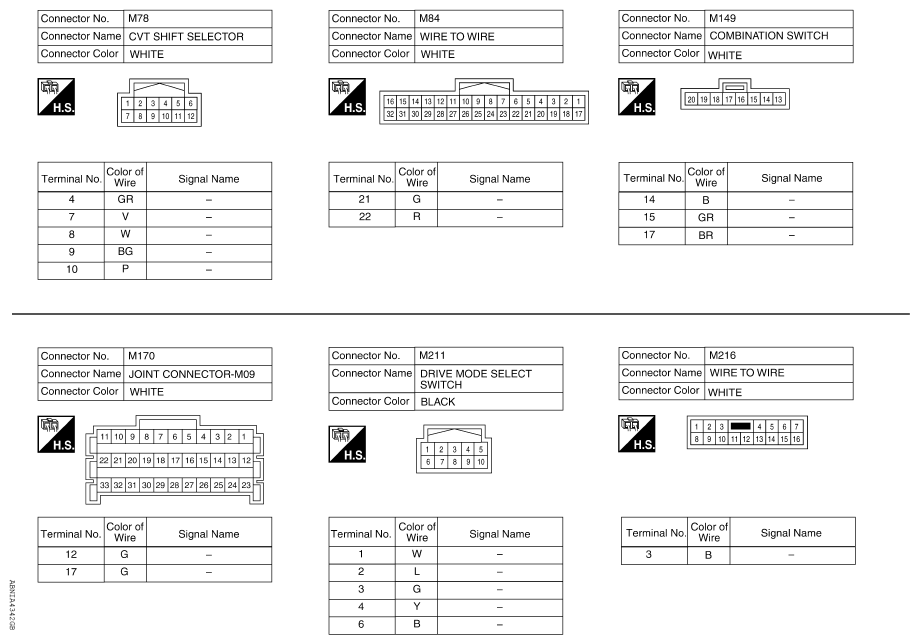

Fig 8: Meter System (Without Intelligent Cruise Control) Connector End Views (3 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Meter System (Without Intelligent Cruise Control) Connector End Views (4 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

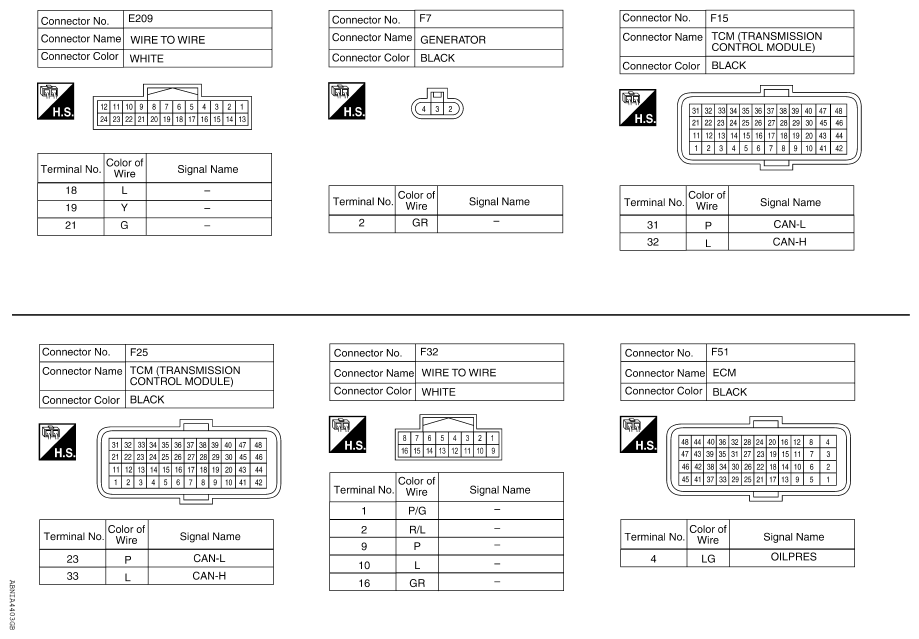

Fig 10: Meter System (Without Intelligent Cruise Control) Connector End Views (5 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Meter System (Without Intelligent Cruise Control) Connector End Views (6 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

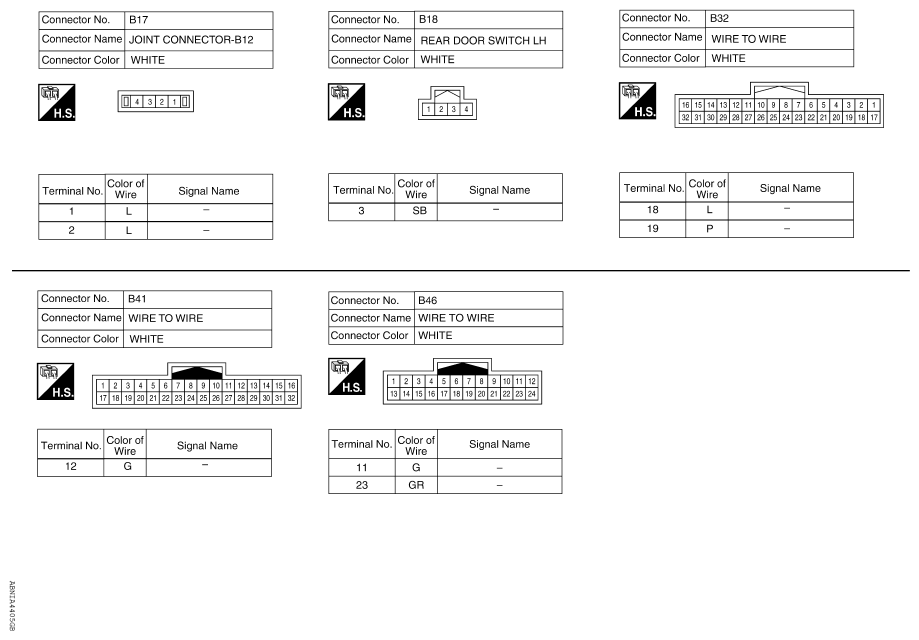

Fig 12: Meter System (Without Intelligent Cruise Control) Connector End Views (7 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

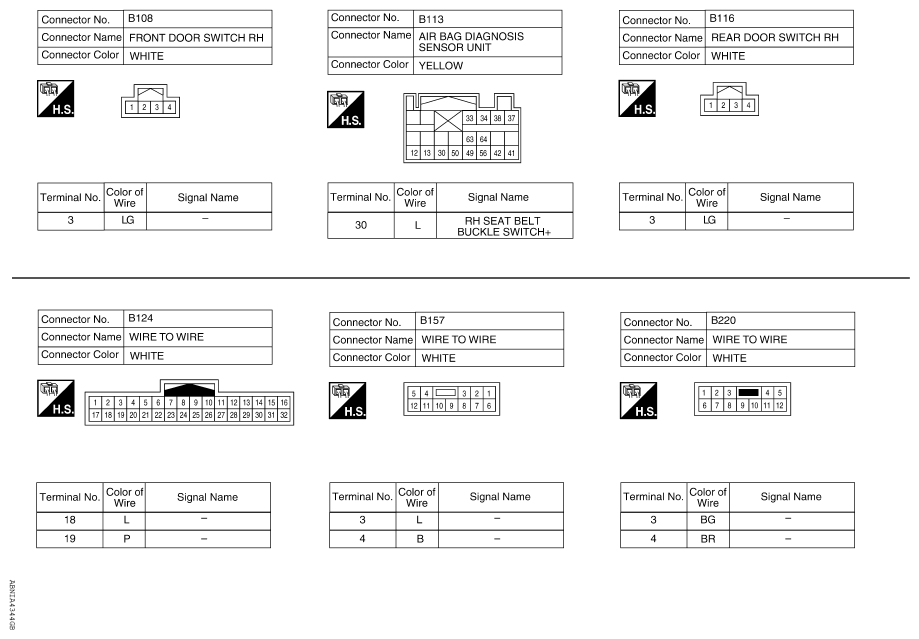

Fig 13: Meter System (Without Intelligent Cruise Control) Connector End Views (8 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Meter System (Without Intelligent Cruise Control) Connector End Views (9 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

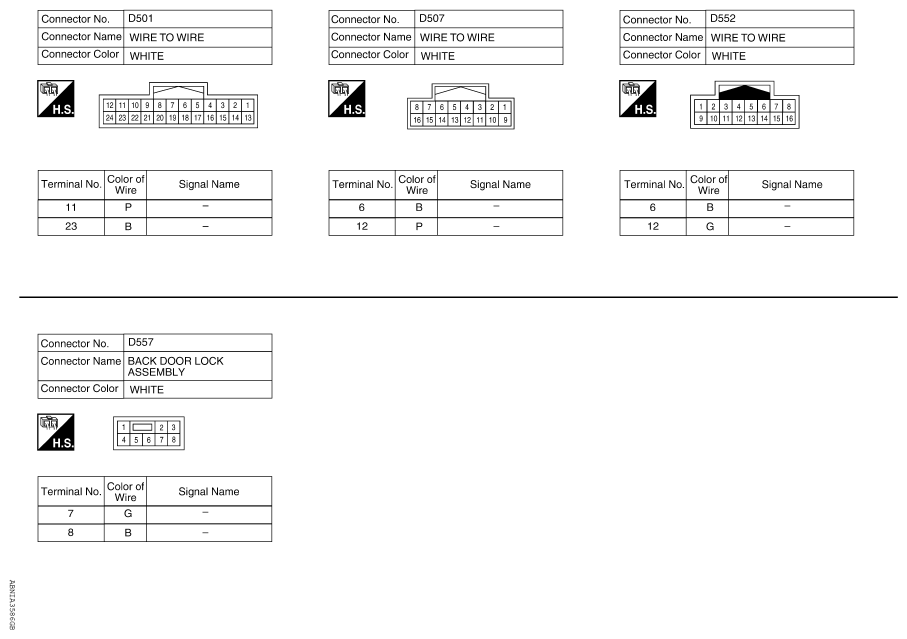

Fig 15: Meter System (Without Intelligent Cruise Control) Connector End Views (10 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Meter System (Without Intelligent Cruise Control) Connector End Views (11 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Meter System (Without Intelligent Cruise Control) Connector End Views (12 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Meter System (Without Intelligent Cruise Control) Connector End Views (13 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Meter System (Without Intelligent Cruise Control) Connector End Views (14 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Meter System (Without Intelligent Cruise Control) Connector End Views (15 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.
