Propeller Shaft Vibration

NOTE: If vibration is present at high speed, check propeller shaft runout first, then check mounting between propeller shaft and companion flange.

Measure the runout of the propeller shaft tube at several points by rotating the final drive companion flange with your hands.
Propeller shaft runout: Refer to "PROPELLER SHAFT RUNOUT ".

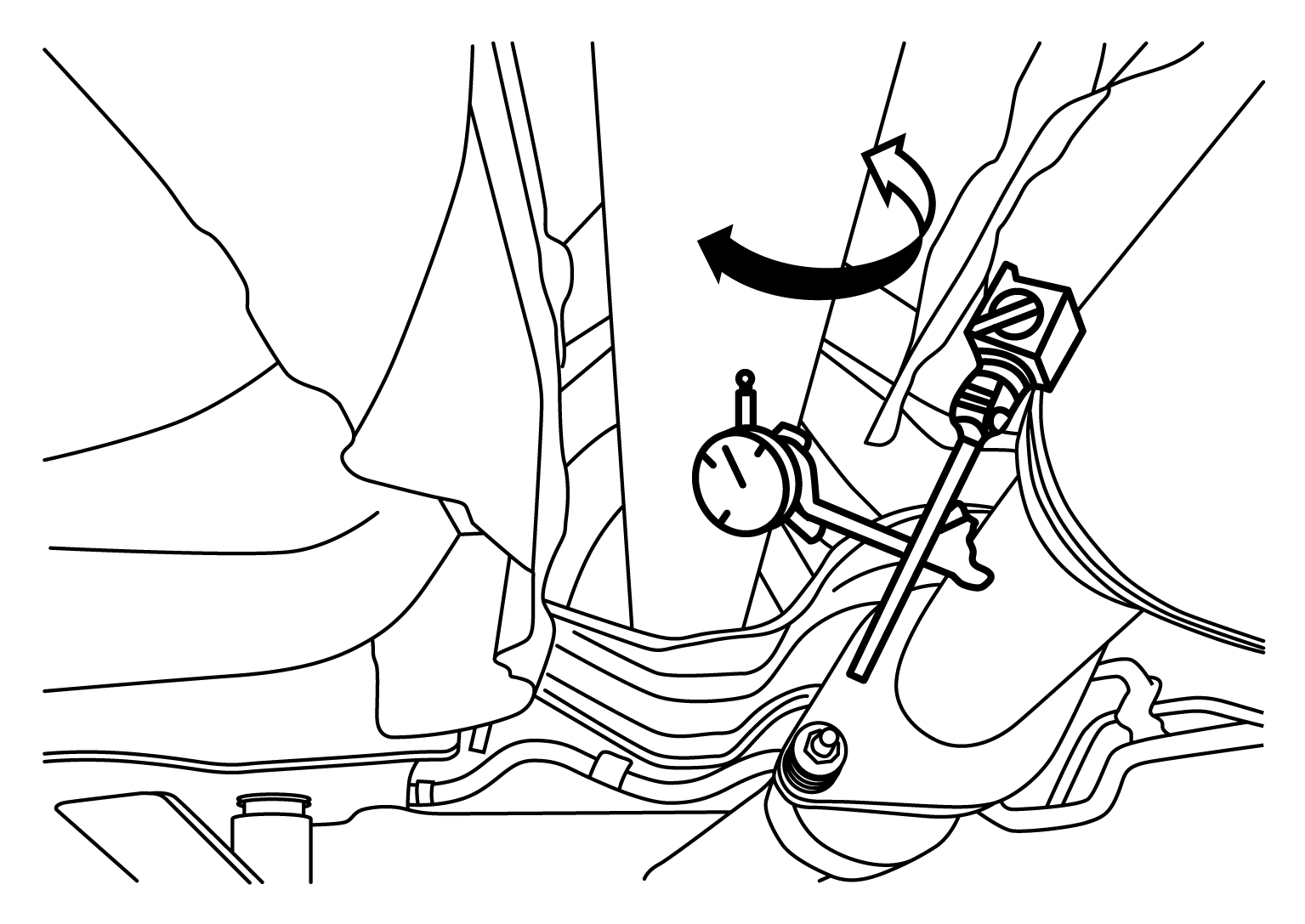

Fig 1: Measuring Propeller Shaft Runout Using Dial Indicator
Courtesy of NISSAN NORTH AMERICA, INC.
- Propeller shaft runout measuring point (Point "Δ").
  Dimension (A): 538.0 mm (21.18 in)

  (B): 475.5 mm (18.72 in)

  Fig 2: Identifying Propeller Shaft Runout Measuring Points
  Courtesy of NISSAN NORTH AMERICA, INC.
If the runout still exceeds specifications, disconnect the propeller shaft at the final drive companion flange; then rotate the companion flange 90°, 180°, 270° and reconnect propeller shaft.
Check the runout again. If the runout still exceeds specifications, replace the propeller shaft assembly.
After installation, check for vibration by driving the vehicle.
