Intelligent Key System: Wiring Diagram

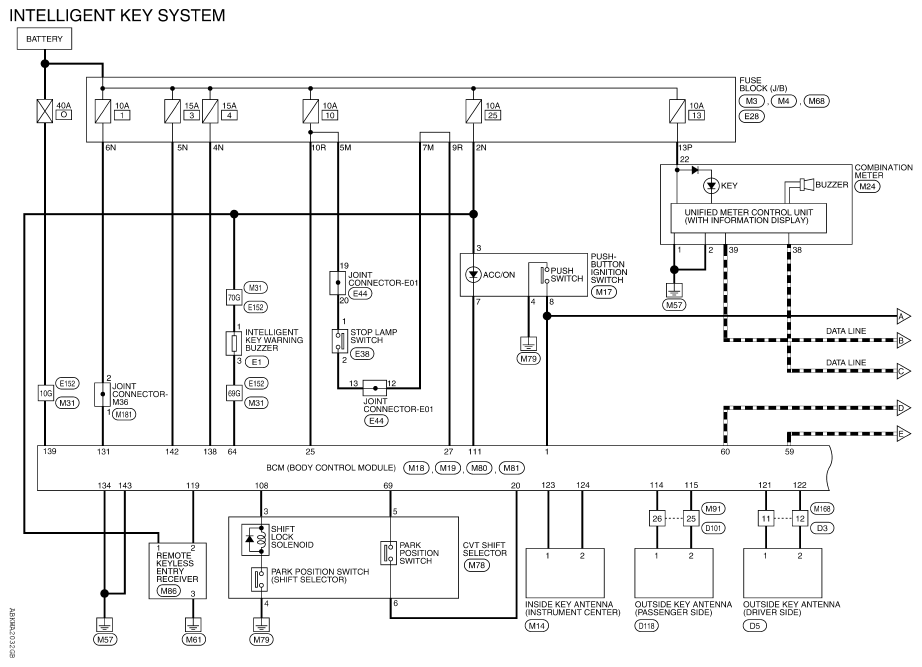

Fig 1: Intelligent Key System Wiring Diagram (1 Of 5)

G08854355

Courtesy of NISSAN NORTH AMERICA, INC.

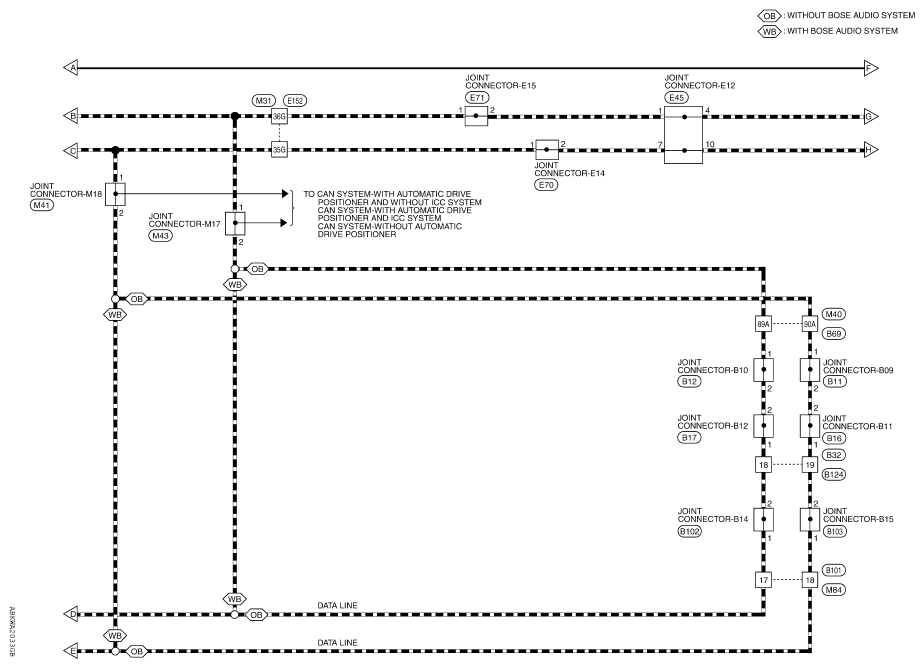

Fig 2: Intelligent Key System Wiring Diagram (2 Of 5)

G08854356

Courtesy of NISSAN NORTH AMERICA, INC.

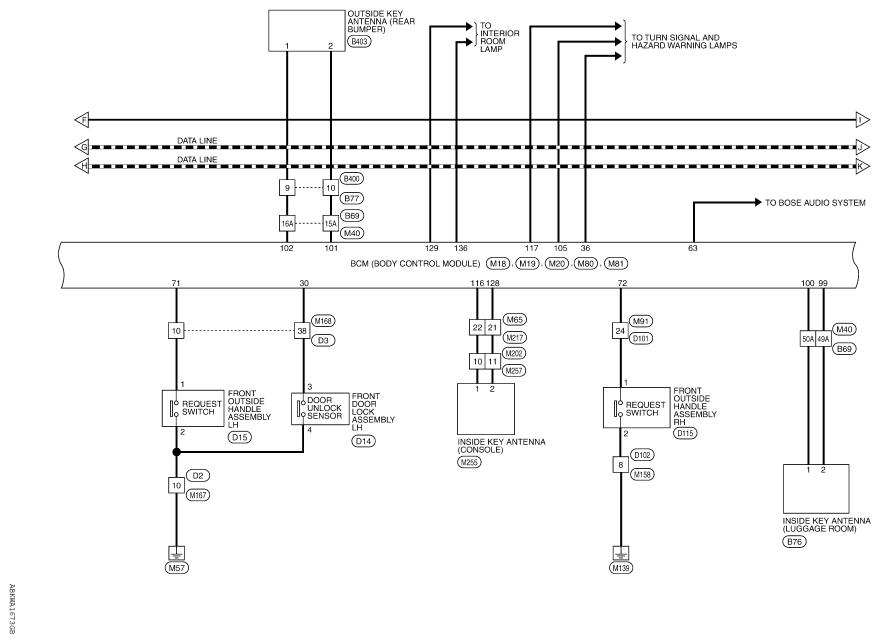

Fig 3: Intelligent Key System Wiring Diagram (3 Of 5)

G08854357

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Intelligent Key System Wiring Diagram (4 Of 5)

G08854358

Courtesy of NISSAN NORTH AMERICA, INC.

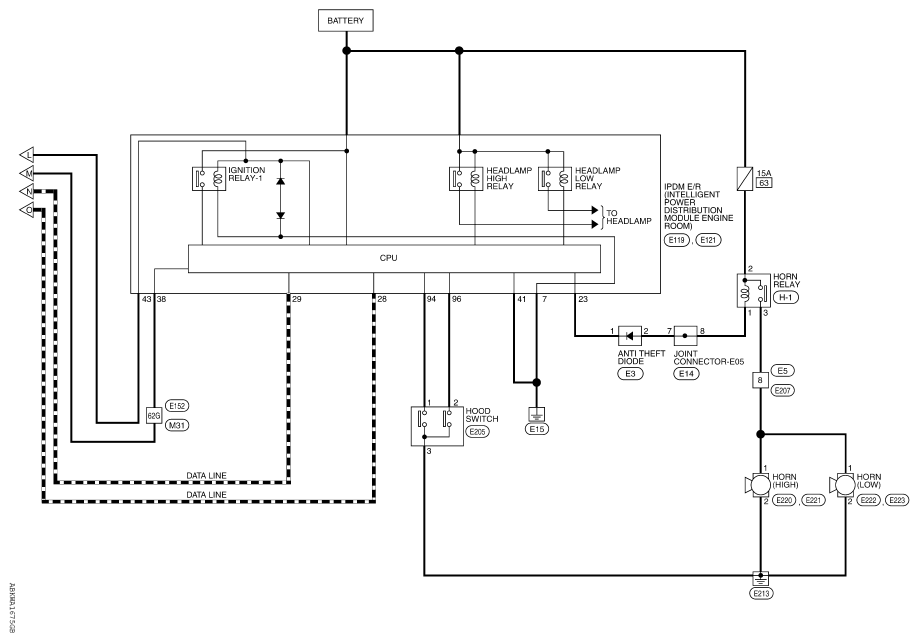

Fig 5: Intelligent Key System Wiring Diagram (5 Of 5)

G08854359

Courtesy of NISSAN NORTH AMERICA, INC.

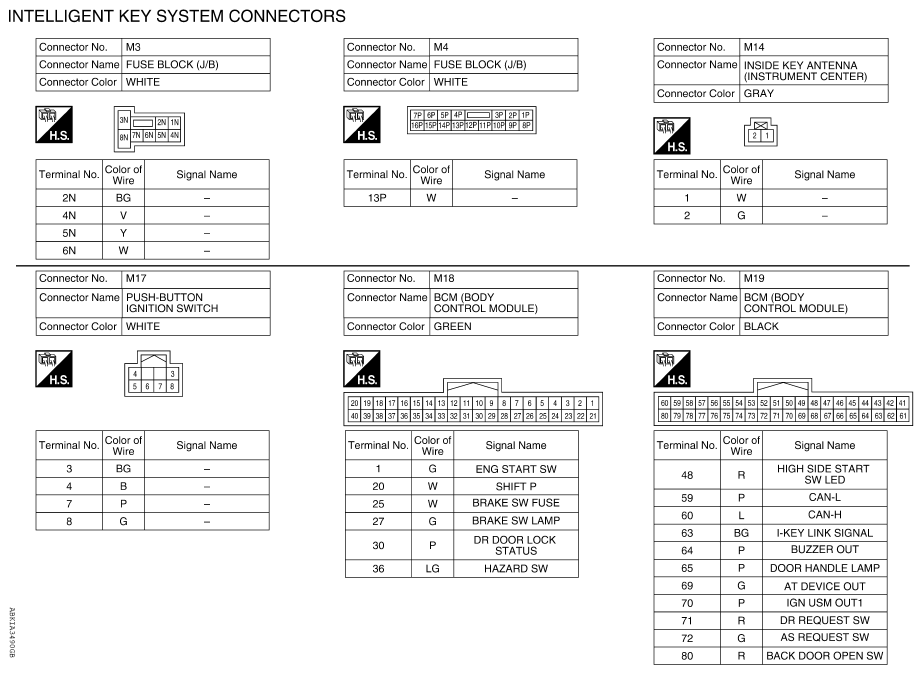

Fig 6: Intelligent Key System Connector End Views (1 Of 15)

G08854360

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Intelligent Key System Connector End Views (2 Of 15)

G08854361

Courtesy of NISSAN NORTH AMERICA, INC.

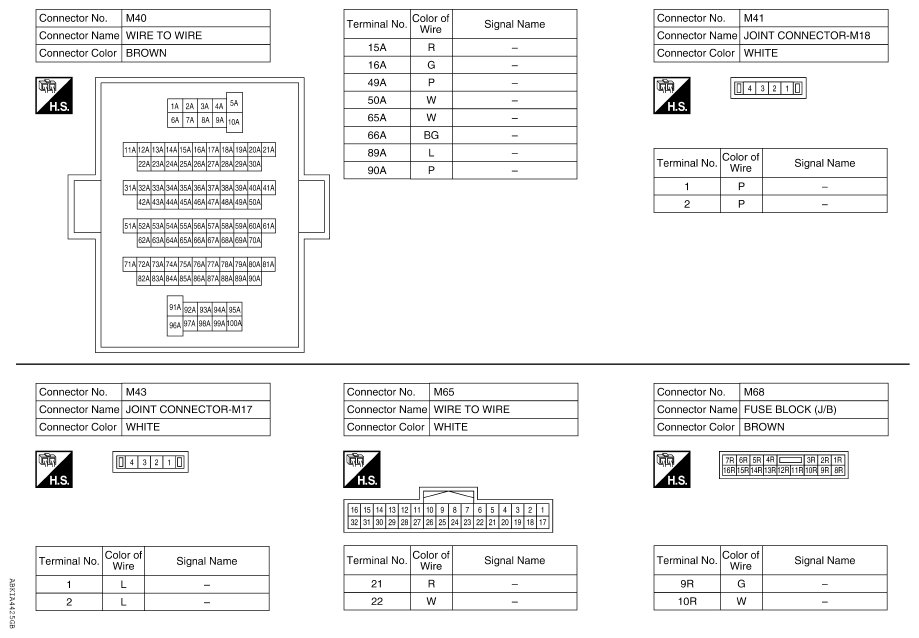

Fig 8: Intelligent Key System Connector End Views (3 Of 15)

G08854362

Courtesy of NISSAN NORTH AMERICA, INC.

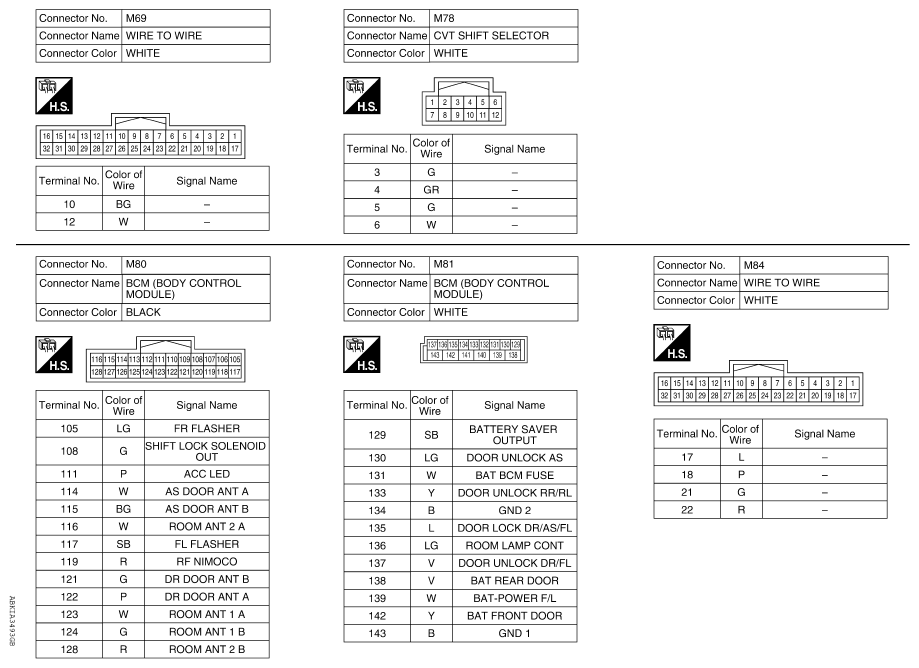

Fig 9: Intelligent Key System Connector End Views (4 Of 15)

G08854363

Courtesy of NISSAN NORTH AMERICA, INC.

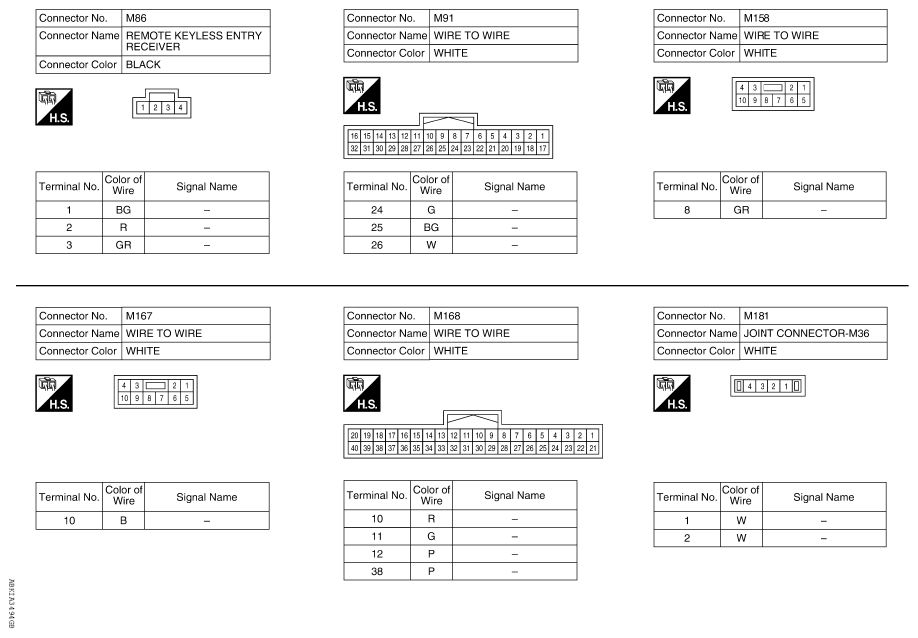

Fig 10: Intelligent Key System Connector End Views (5 Of 15)

G08854364

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Intelligent Key System Connector End Views (6 Of 15)

G08854365

Courtesy of NISSAN NORTH AMERICA, INC.

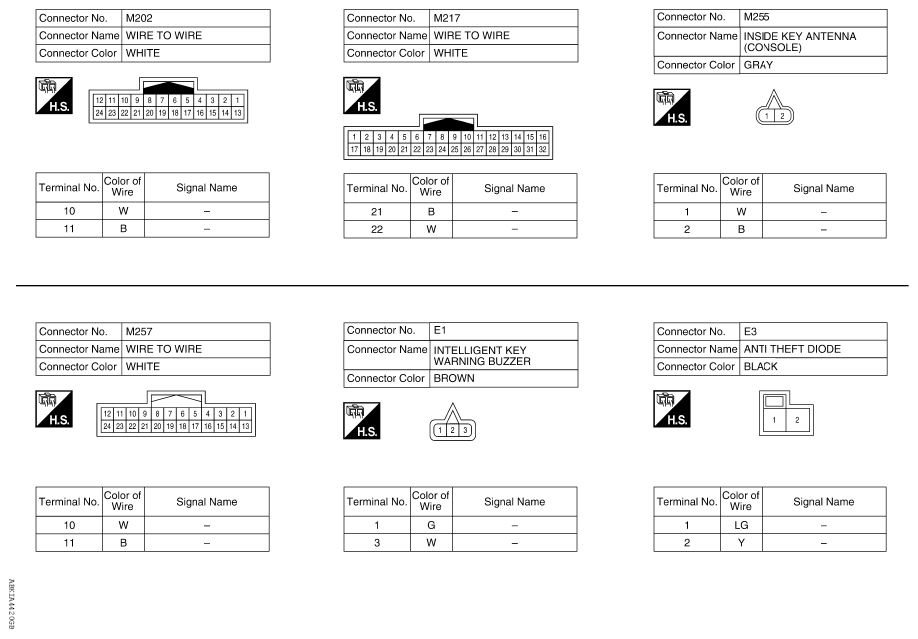

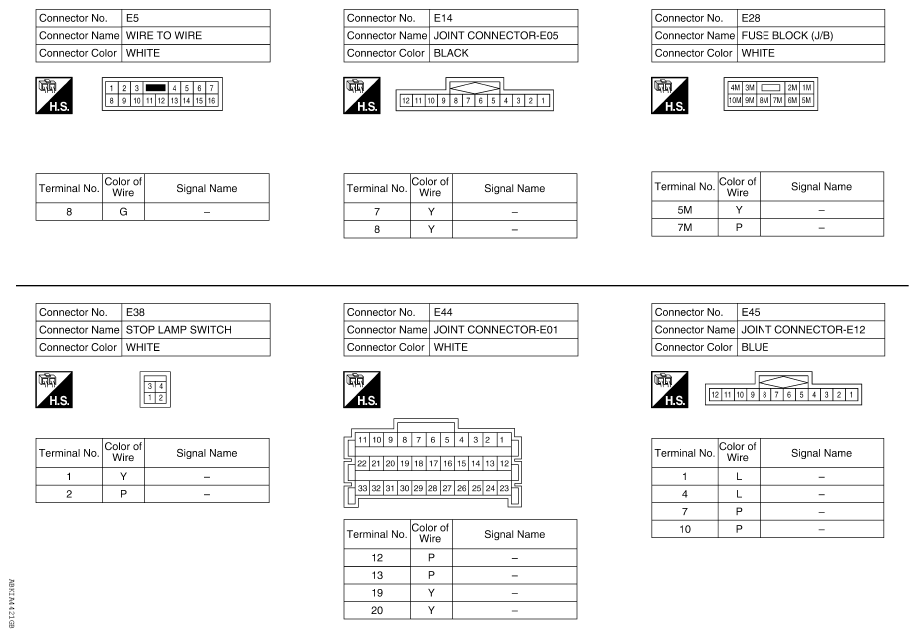

Fig 12: Intelligent Key System Connector End Views (7 Of 15)

G08854366

Courtesy of NISSAN NORTH AMERICA, INC.

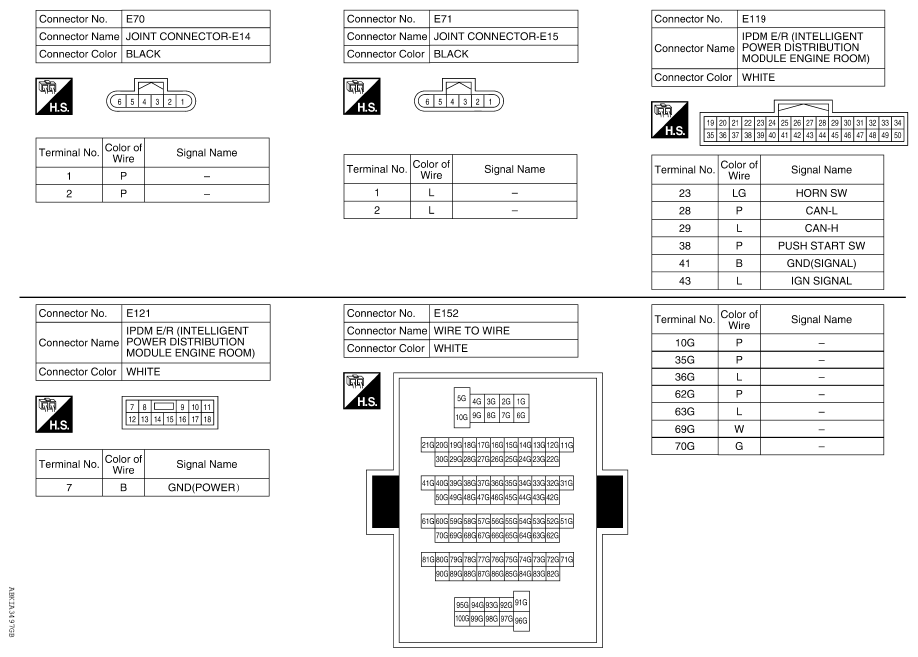

Fig 13: Intelligent Key System Connector End Views (8 Of 15)

G08854367

Courtesy of NISSAN NORTH AMERICA, INC.

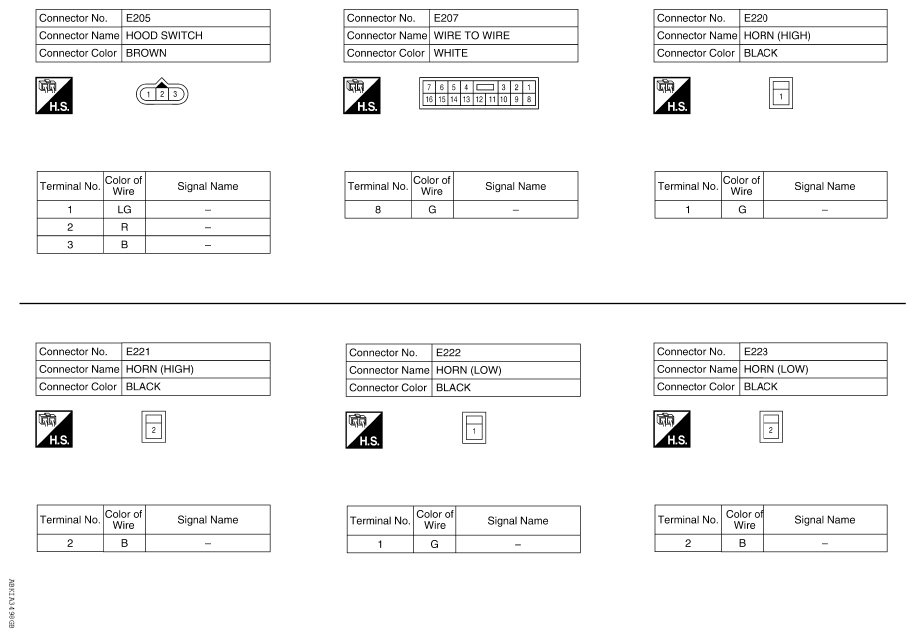

Fig 14: Intelligent Key System Connector End Views (9 Of 15)

G08854368

Courtesy of NISSAN NORTH AMERICA, INC.

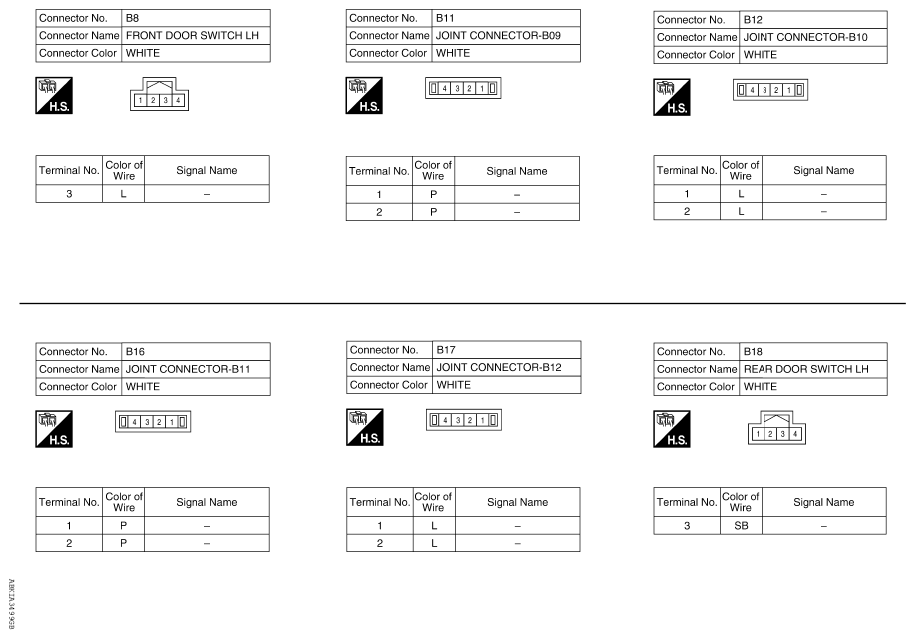

Fig 15: Intelligent Key System Connector End Views (10 Of 15)

G08854369

Courtesy of NISSAN NORTH AMERICA, INC.

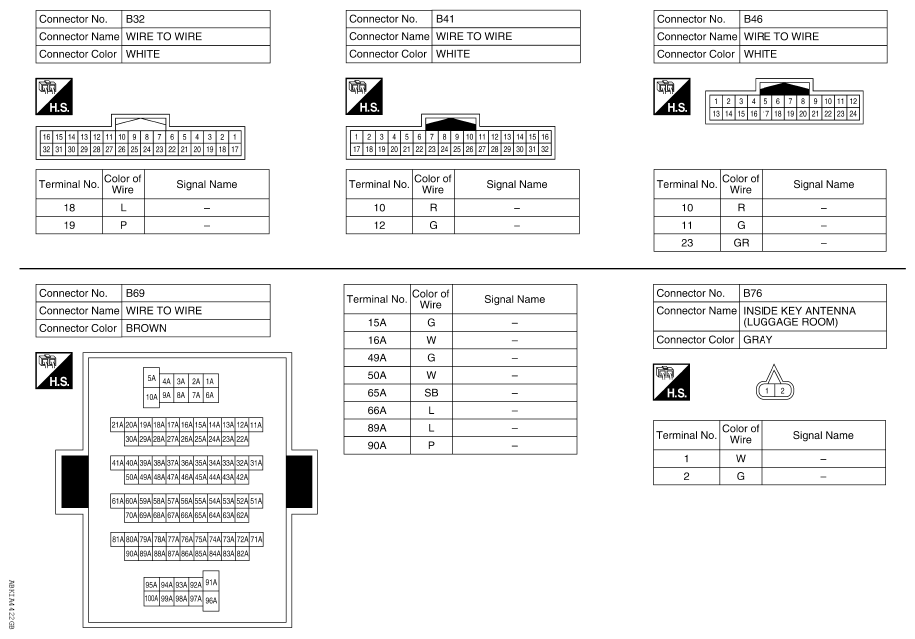

Fig 16: Intelligent Key System Connector End Views (11 Of 15)

G08854370

Courtesy of NISSAN NORTH AMERICA, INC.

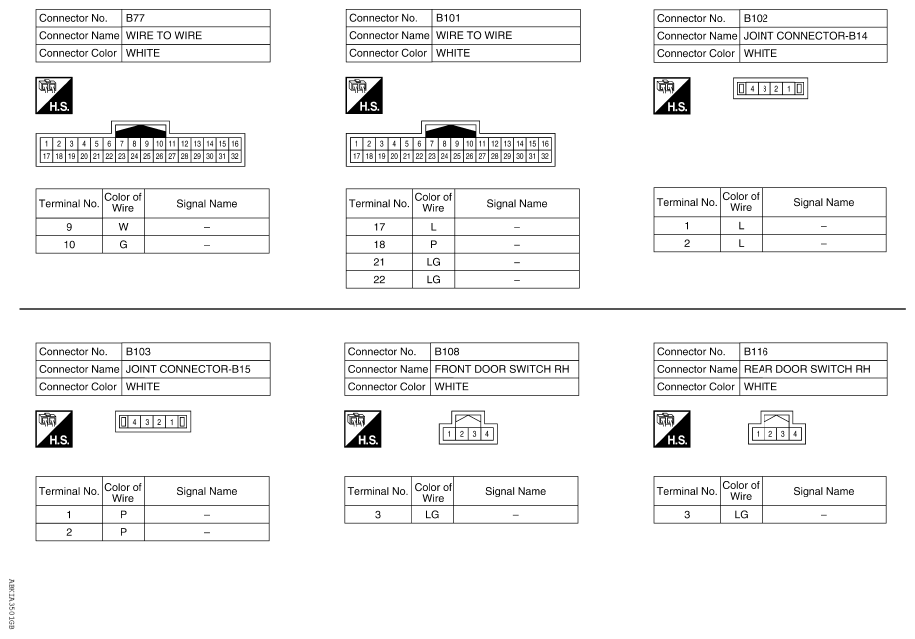

Fig 17: Intelligent Key System Connector End Views (12 Of 15)

G08854371

Courtesy of NISSAN NORTH AMERICA, INC.

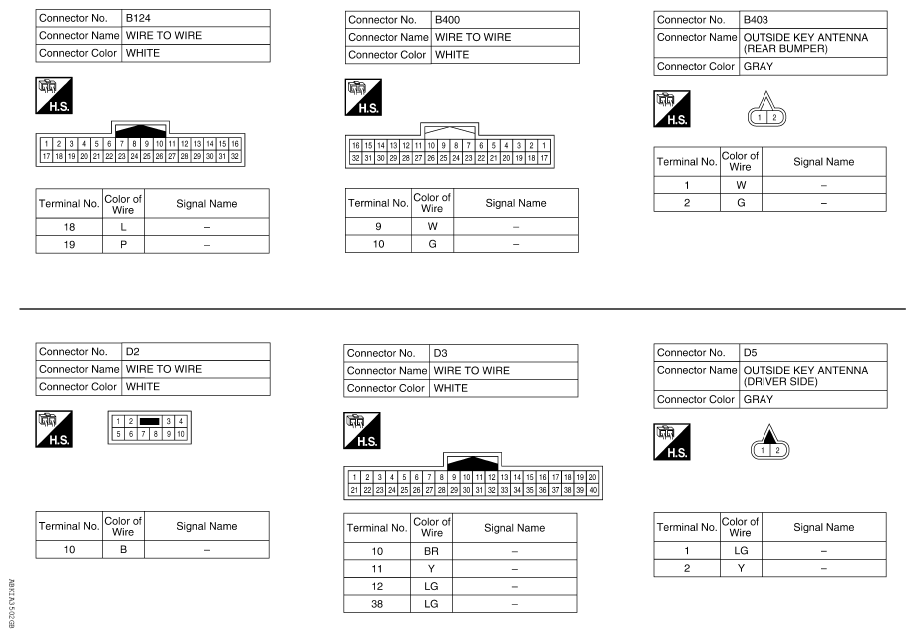

Fig 18: Intelligent Key System Connector End Views (13 Of 15)

G08854372

Courtesy of NISSAN NORTH AMERICA, INC.

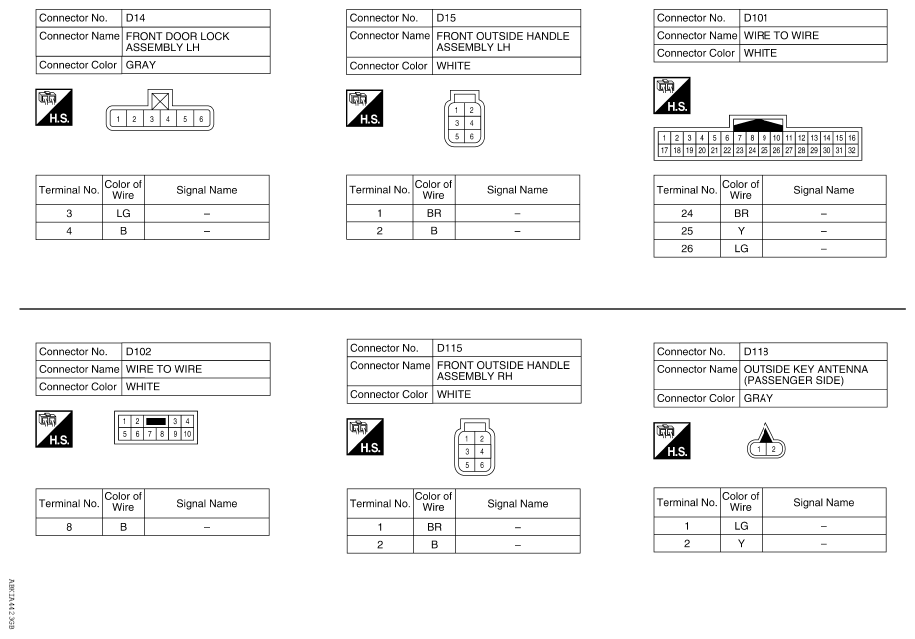

Fig 19: Intelligent Key System Connector End Views (14 Of 15)

G08854373

Courtesy of NISSAN NORTH AMERICA, INC.

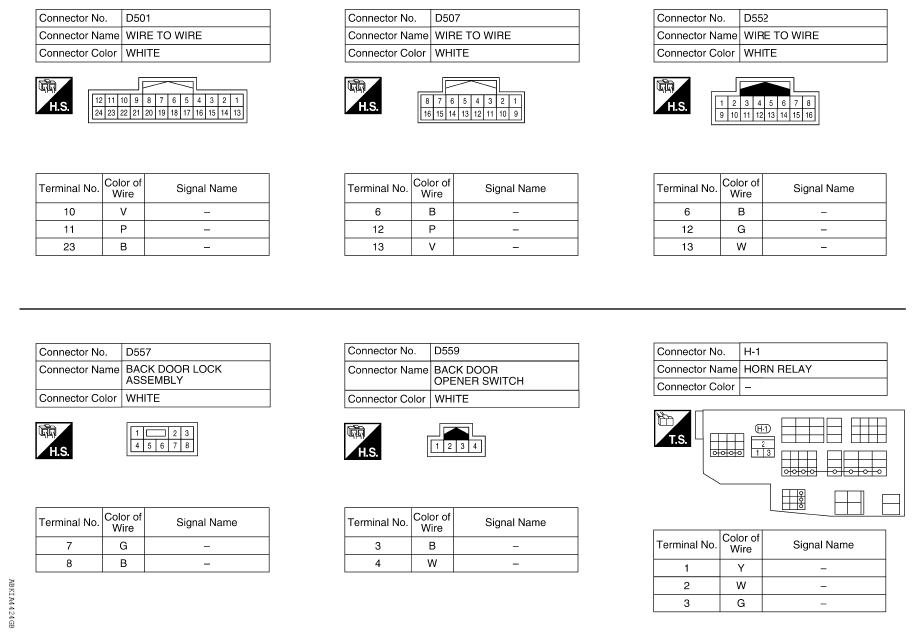

Fig 20: Intelligent Key System Connector End Views (15 Of 15)

G08854374

Courtesy of NISSAN NORTH AMERICA, INC.
