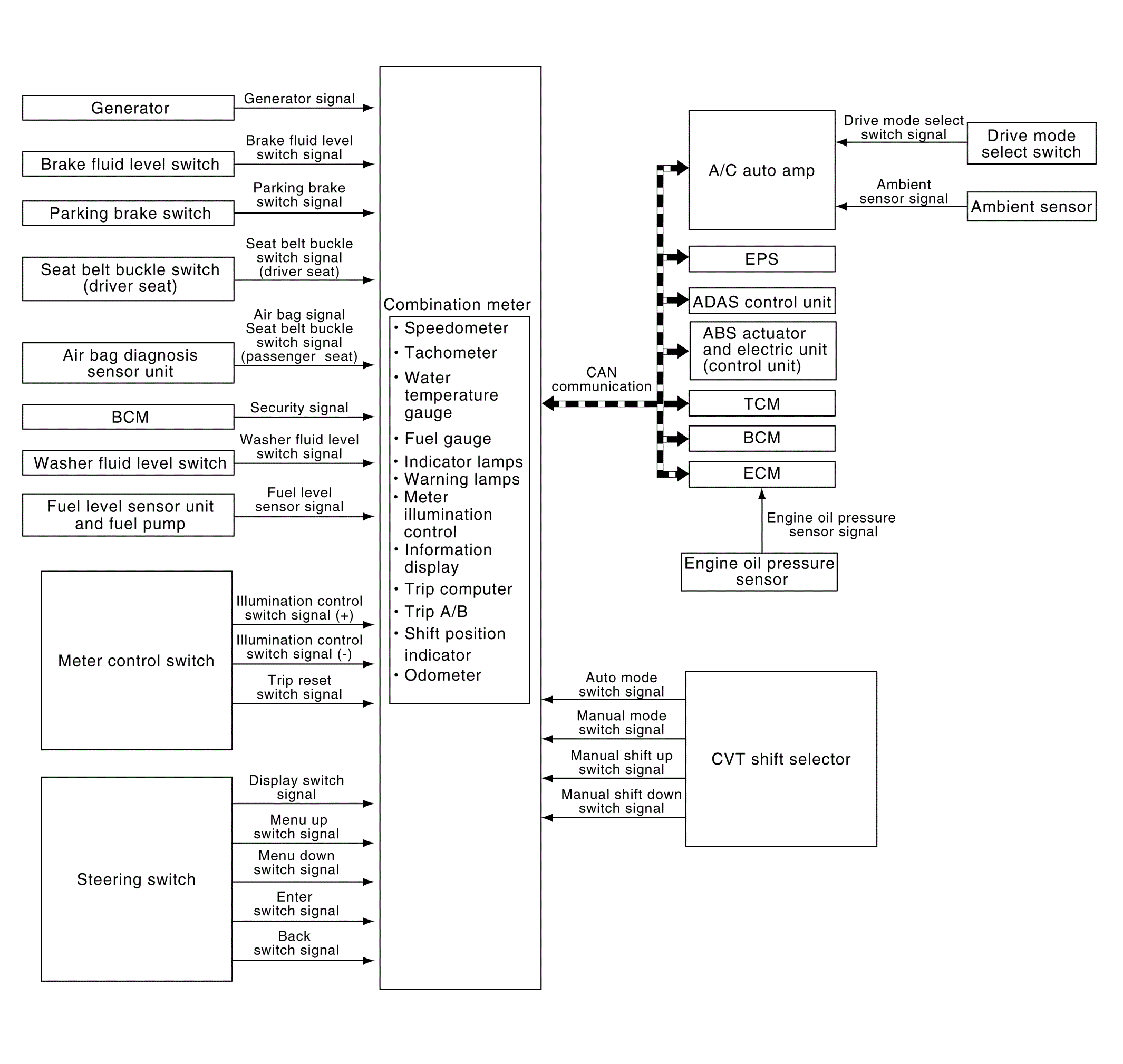

Home >> Infiniti >> 2013 >> JX35 FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator >> System Description >> System >> Meter System >> METER SYSTEM: System Diagram
