Disassembly and Assembly: Notes

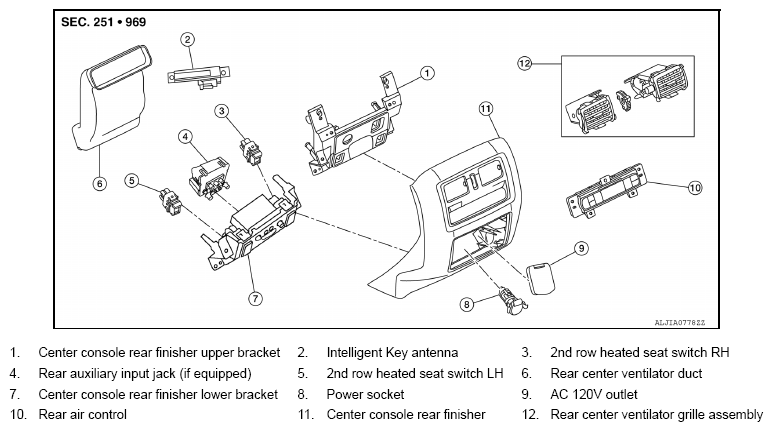

Fig 1: Disassembled View Of Center Console Rear Finisher

G08856936

Courtesy of NISSAN NORTH AMERICA, INC.
