Disassembly and Assembly: Disassembly

  1. Remove the center console rear finisher by releasing clips and pawls using a suitable tool.
  2. Remove the rear center ventilator duct screws (A), then remove the rear center ventilator duct (1).

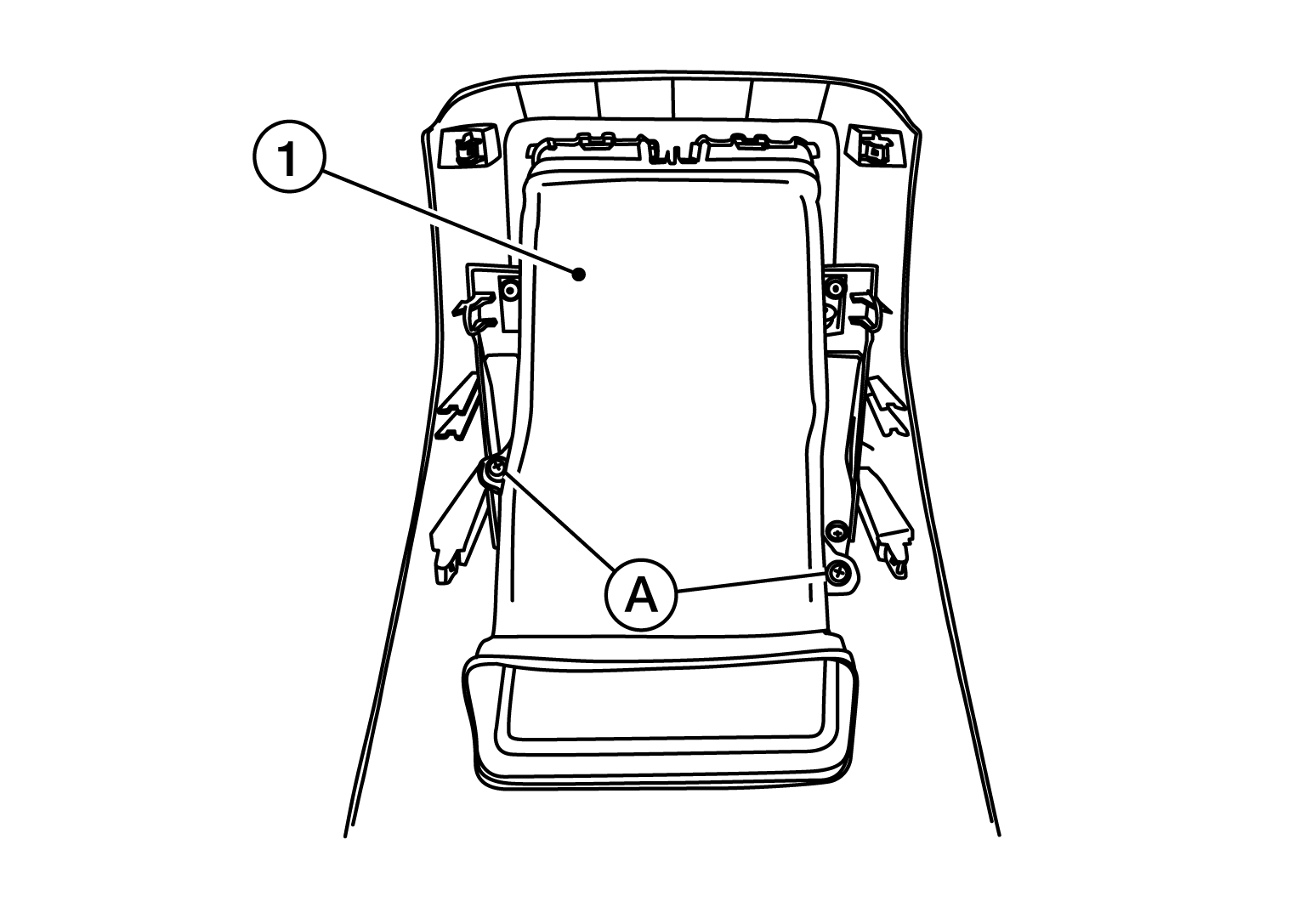

    Fig 1: Locating Rear Center Ventilator Duct And Screw
    G08856797Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the pawls using a suitable tool and remove the rear center ventilator grille assembly.
  4. Remove the rear blower control.
  5. Remove the center console rear finisher upper bracket screws, then remove the center console rear finisher upper bracket.
  6. Remove the center console rear finisher lower bracket screws, then remove the center console rear finisher lower bracket.
  7. Remove the power socket. Refer to "REMOVAL AND INSTALLATION ".
  8. Remove the AC 120V outlet (if equipped). Refer to "REMOVAL AND INSTALLATION ".
  9. Remove the 2nd row heated seat switches (LH/RH).
  10. Remove the rear auxiliary input jack (if equipped). Refer to "REMOVAL AND INSTALLATION ".
