Removal and Installation: Removal

  1. Remove cluster lid C upper. Refer to "REMOVAL AND INSTALLATION - CLUSTER LID C UPPER ".
  2. Remove cluster lid D screw (A).
  3. Release the clips and pawls using a suitable tool, then remove cluster lid D.

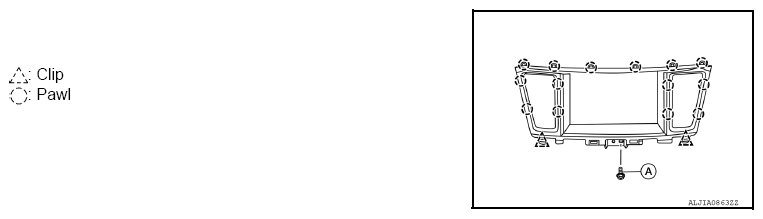

    Fig 1: Locating Cluster Lid D Screw
    G08856933Courtesy of NISSAN NORTH AMERICA, INC.
