Removal and Installation - Cluster Lid C Upper: Removal

Remove A/C and AV switch assembly. Refer to "REMOVAL AND INSTALLATION - AV AND AC SWITCH ASSEMBLY " (BASE AUDIO), "REMOVAL AND INSTALLATION - AV AND AC SWITCH ASSEMBLY " (BOSE AUDIO W/O SURROUND SOUND), "REMOVAL AND INSTALLATION - AV AND AC SWITCH ASSEMBLY " (BOSE AUDIO WITH SURROUND SOUND) or "REMOVAL AND INSTALLATION - AV AND AC SWITCH ASSEMBLY " (TELEMATICS SYSTEM).
Release the pawls using a suitable tool, and position cluster lid C upper aside.
Disconnect the harness connectors, remove cluster lid C upper screws (A), then separate cluster lid C upper from multifunction switch assembly.

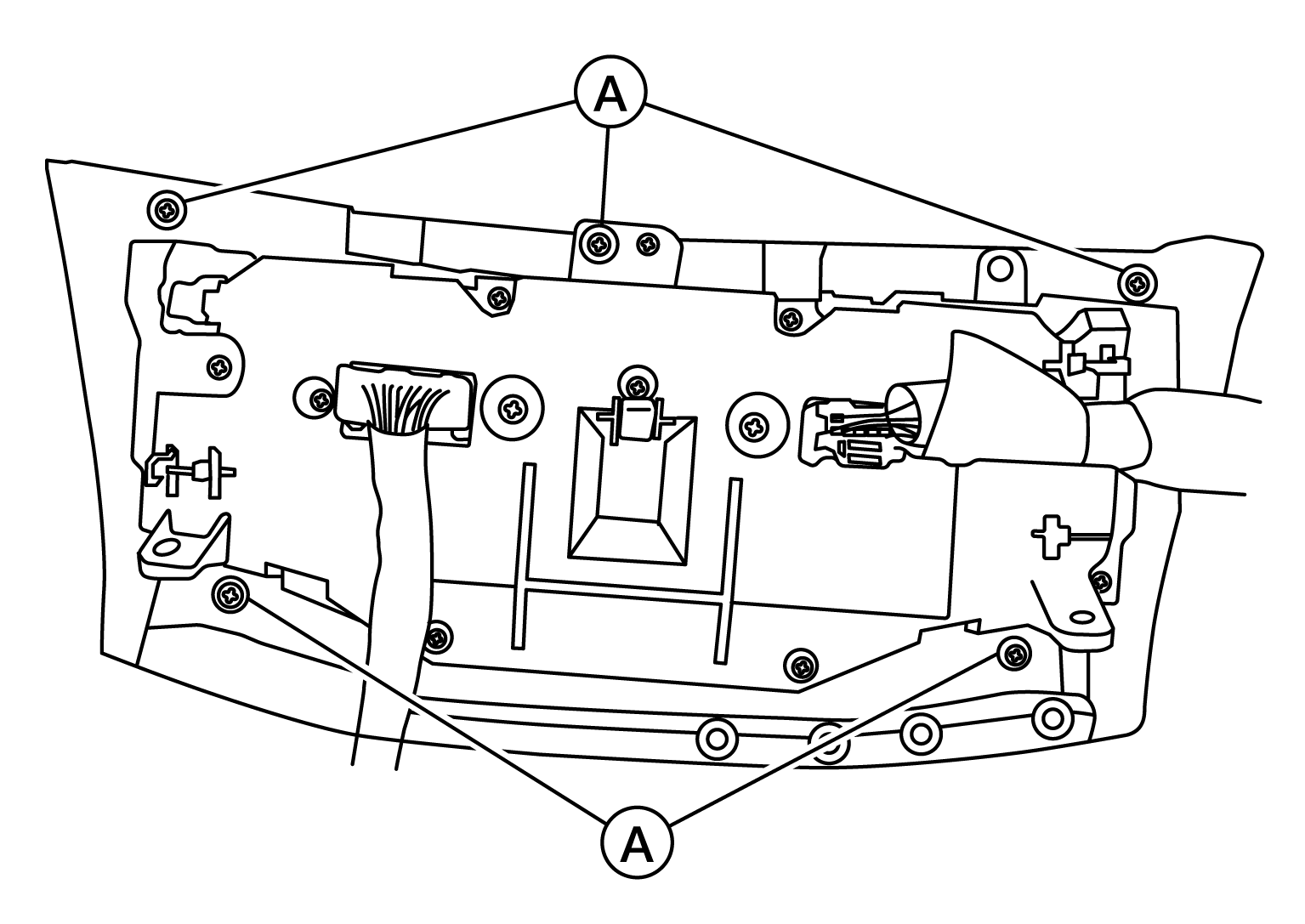

Fig 1: Locating Cluster Lid C Upper Screws
Courtesy of NISSAN NORTH AMERICA, INC.
