Removal and Installation: Removal

  1. Remove the instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  2. Release the pawls and metal clips using a suitable tool, disconnect the harness connector, then remove cluster lid A.

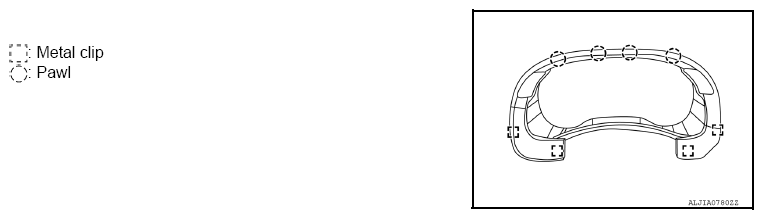

    Fig 1: Locating Cluster Lid A Metal Clips And Pawl
    G08856931Courtesy of NISSAN NORTH AMERICA, INC.
