Infiniti
>>
2013
>>
G37 Base
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Seat Belts (Convertible)
>>
Removal And Installation
>>
Rear Seat Belt
>>
Seat Belt Retractor
>>
SEAT BELT RETRACTOR: Exploded View
SEAT BELT RETRACTOR: Exploded View

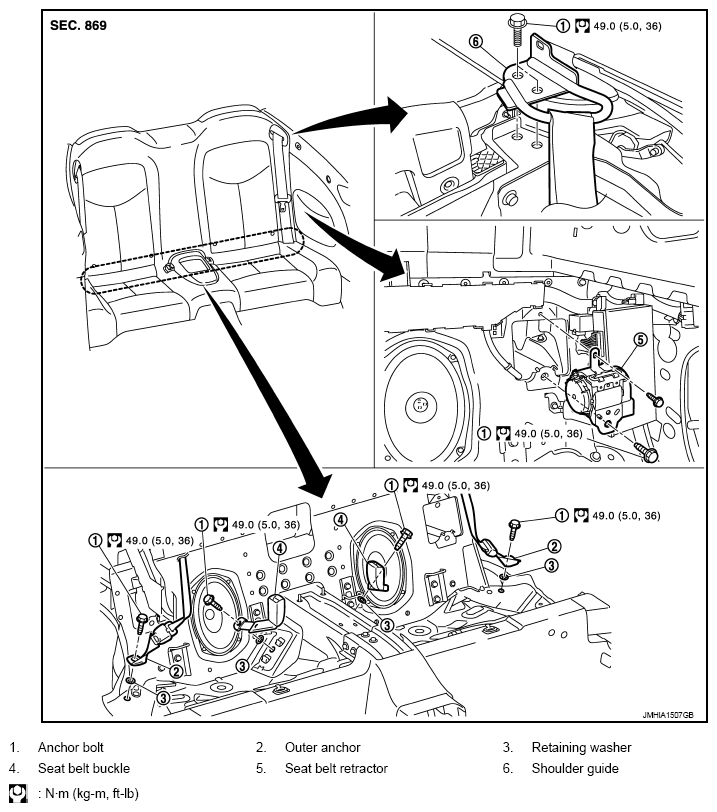

Fig 1: Exploded View Of Seat Belt Retractor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
