SEAT BELT RETRACTOR: Exploded View
SEAT BELT RETRACTOR: Exploded View

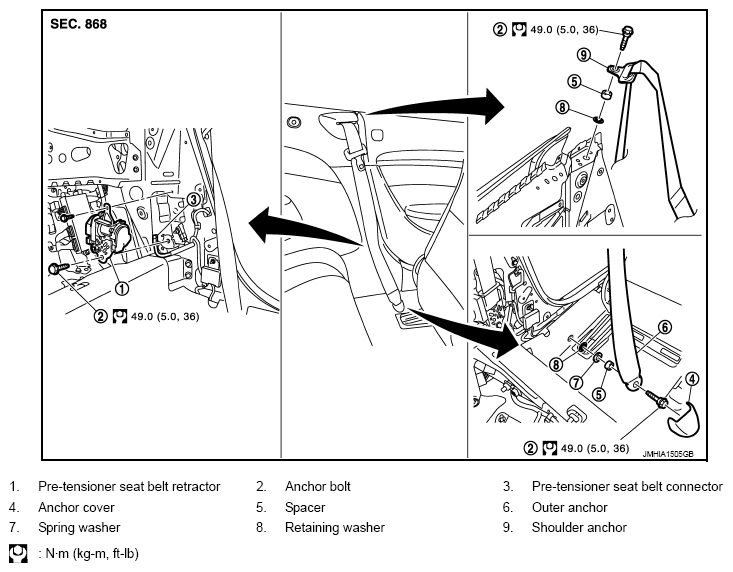

Fig 1: Exploded View Of Seat Belt Retractor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
