REAR DIFFERENTIAL GEAR OIL: R200: Refilling

Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.
Oil grade and viscosity: Refer to "FLUIDS AND LUBRICANTS ".

Oil capacity: Refer to "GENERAL SPECIFICATION ".

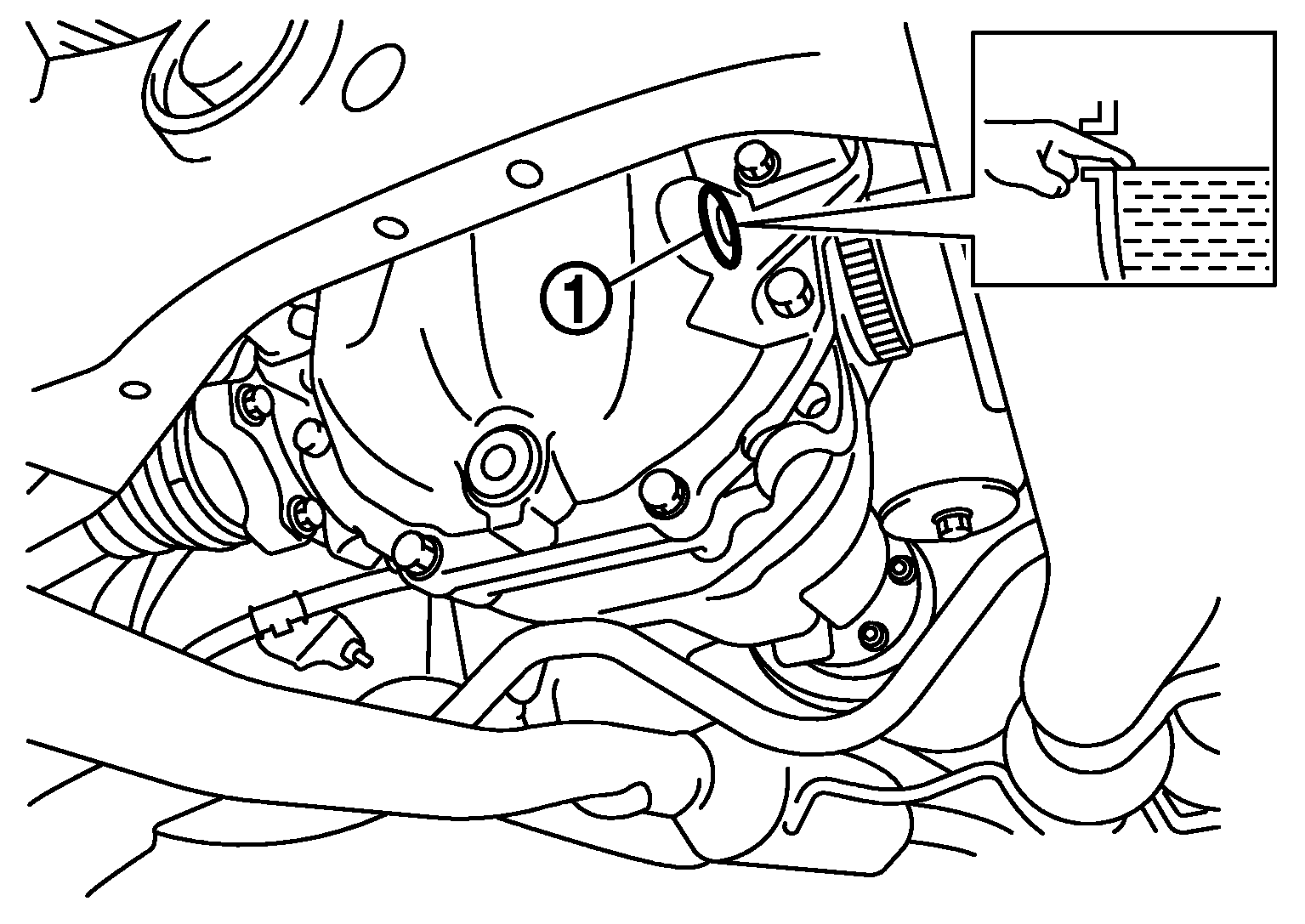

Fig 1: Checking Rear Differential Gear Oil Level From Filler Plug Mounting Hole
Courtesy of NISSAN NORTH AMERICA, INC.
After refilling oil, check oil level. Set a gasket to filler plug, then install it to final drive assembly. Refer to "M/T: EXPLODED VIEW " (M/T), "A/T: EXPLODED VIEW " (A/T).
CAUTION: Never reuse gasket.
