REAR DIFFERENTIAL GEAR OIL: R200: Draining
- Stop the engine.

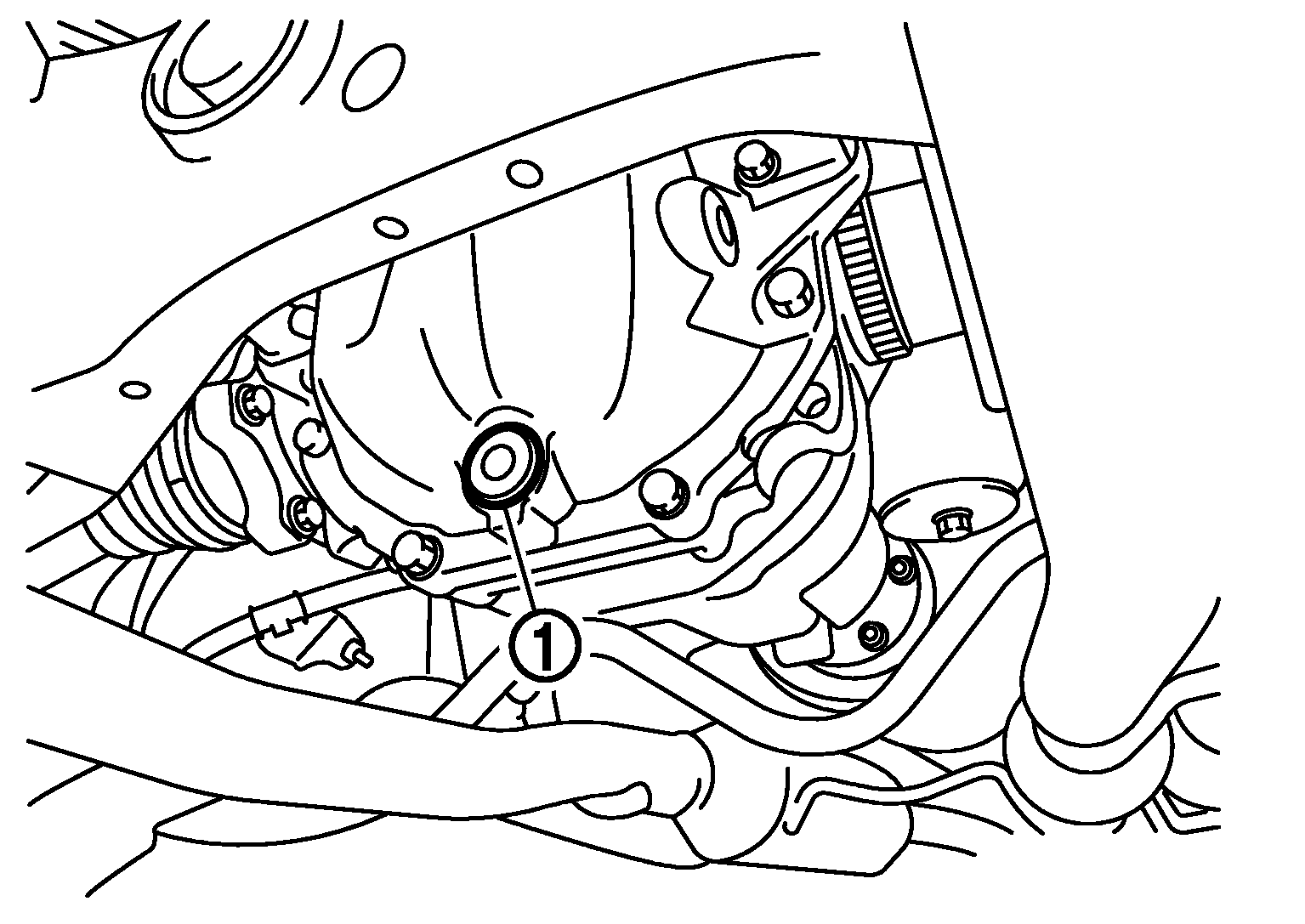

- Remove drain plug (1) and drain gear oil.
- Set a gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Refer to
"M/T: EXPLODED VIEW
" (M/T),
"A/T: EXPLODED VIEW
" (A/T).CAUTION: Never reuse gasket.
