VQ37VHR: Removal and Installation (2WD): Removal

  1. Disconnect the battery cable from the negative terminal.
  2. Remove engine front undercover, using power tools.
  3. Remove drive belt. Refer to "REMOVAL AND INSTALLATION "
  4. Remove the Splash guard (RH).
  5. Disconnect alternator connector (1).
    Fig 1: Locating Alternator Connector, Terminal Nut And Harness Bracket Bolts
    G09004681Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove "B" terminal nut (2).
  7. Remove the harness bracket bolts (A).
  8. Remove oil pressure switch harness clip (C) from alternator stay (1).

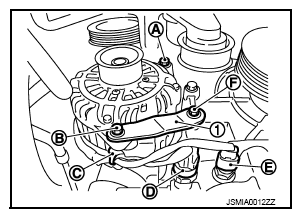

    Fig 2: Locating Oil Pressure Switch Harness Clip, Alternator Stay, Oil Temperature Sensor Connector And Related Components
    G09004682Courtesy of NISSAN NORTH AMERICA, INC.
  9. Disconnect oil pressure switch connector (D) and oil temperature sensor connector (E).
  10. Remove alternator mounting bolt (B) and alternator stay mounting bolt (F) using power tools, then remove alternator stay.
  11. Remove alternator mounting bolt (A), using power tools.
  12. Move a power steering oil pump hose upward.
  13. Remove alternator assembly downward from the vehicle.
