VQ37VHR: Exploded View
VQ37VHR: Exploded View

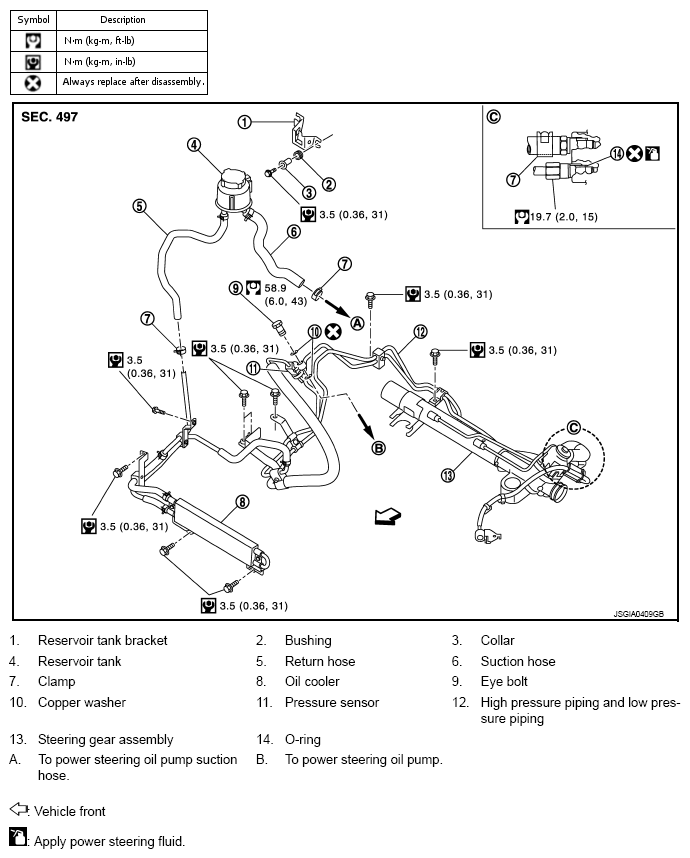

Fig 1: Exploded View Of Hydraulic Line (VQ37VHR)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYMBOLS
" for symbols not described on the above.
