VK50VE: Exploded View
VK50VE: Exploded View

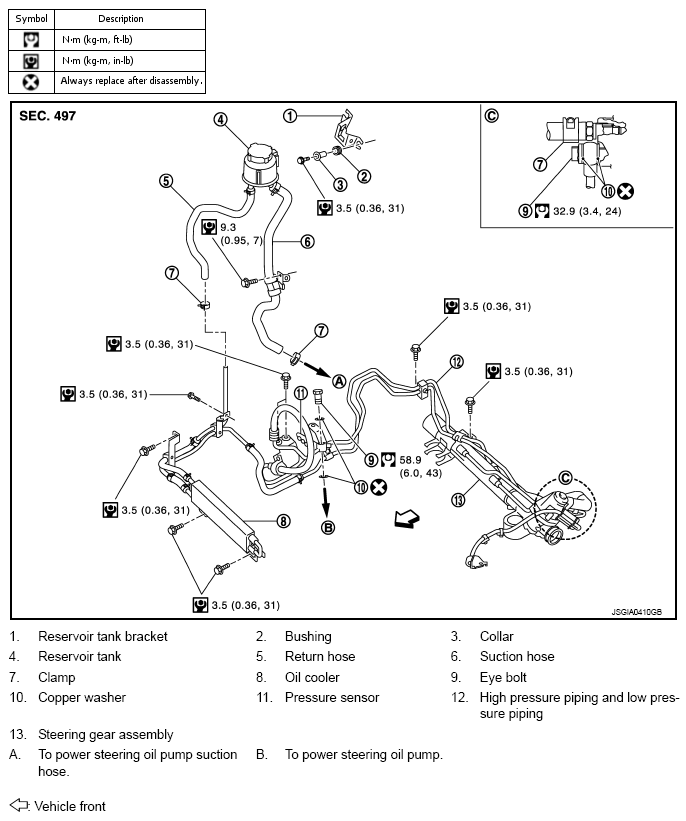

Fig 1: Exploded View Of Hydraulic Line (VK50VE)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYMBOLS
" for symbols in the figure.
