Infiniti
>>
2013
>>
FX37 Base, RWD
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
SRS Airbag
>>
Removal And Installation
>>
Passenger Air Bag Module
>>
Exploded View
Exploded View

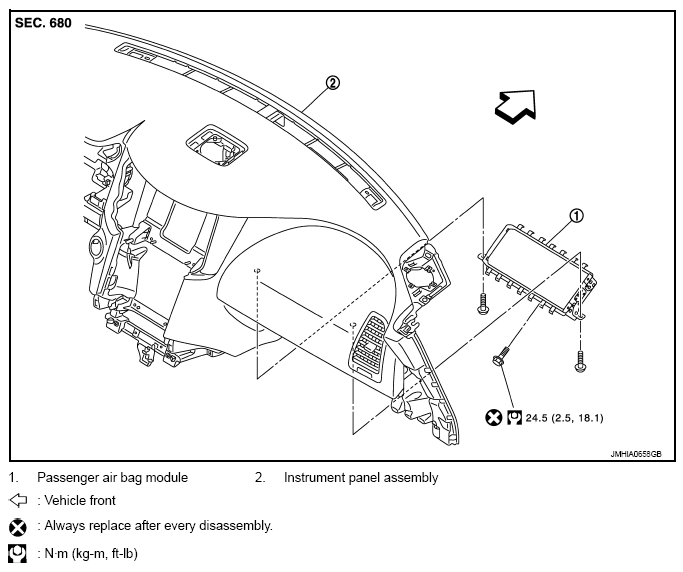

Fig 1: Exploded View Of Passenger Air Bag Module With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
