VQ37VHR: Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque.

  Bolt No.	A	B	C	D
  Quantity	4	3	4	2
  Bolt length "L" mm (in)	75 (2.95)	45 (1.77)	40 (1.57)	30 (1.18)

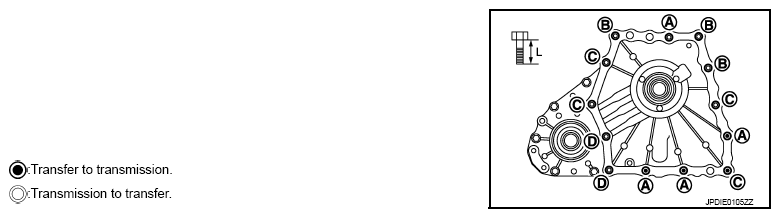

  Fig 1: Identifying Transfer Case To Transmission Mounting Bolts

  Courtesy of NISSAN NORTH AMERICA, INC.
• When installing transfer air breather hose, make sure there are no pinched or restricted areas on the transfer air breather hose caused by bending or winding.
  • Set transfer air breather hose (1) of transmission side with the paint mark (A) facing upward, and insert air breather hose to air breather tube until hose end reaches the tube bend R portion.
    Fig 2: Locating Transfer Air Breather Hose And Transmission Side Paint Mark

    Courtesy of NISSAN NORTH AMERICA, INC.
  • Be sure to insert air breather hose (1) of transfer side to air breather tube (2) until hose end reaches the tube bend R portion.
    Fig 3: Inserting Air Breather Hose To Air Breather Tube

    Courtesy of NISSAN NORTH AMERICA, INC.
  • Be sure to fix air breather hose in (A) parts of transmission and transfer.
• After the installation, check the fluid level, fluid leakage and the A/T positions. Refer to "VQ37VHR: INSPECTION ".
  Fig 4: Fixing Air Breather Hose To Transmission And Transfer Case

  Courtesy of NISSAN NORTH AMERICA, INC.
