VQ37VHR: Exploded View

WARNING: This page is about a different variant/trim than selected.

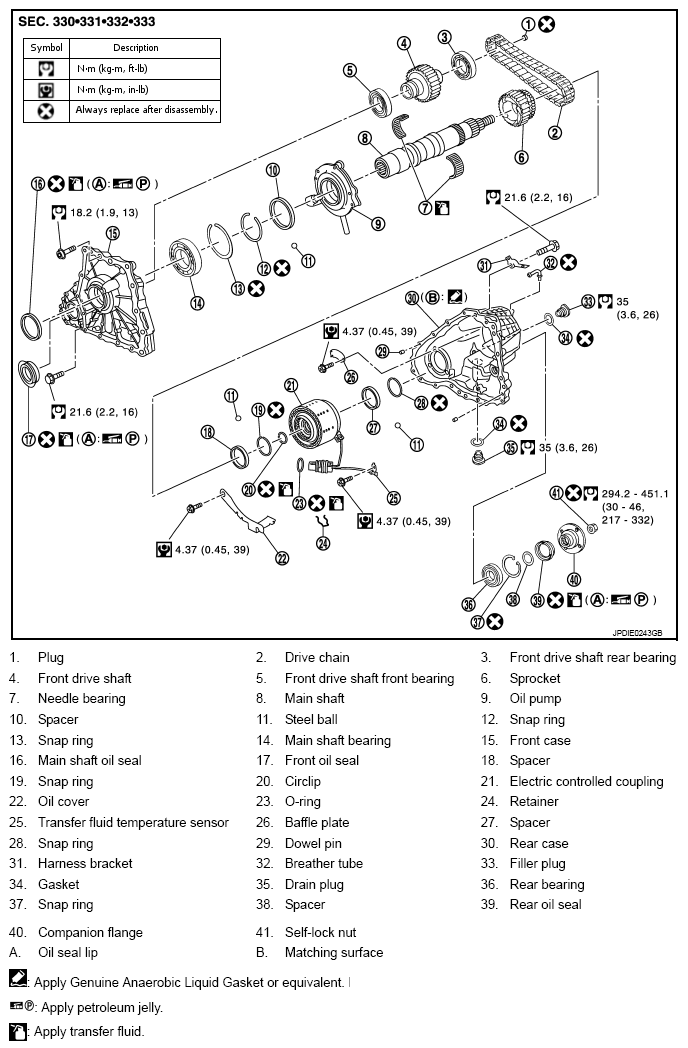

Fig 1: Exploded View Of Main Shaft (VQ37VHR)
G09002582Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols not described above.
